display FIAT STRADA 2011 Owner handbook (in English)

EXCESSIVE ENGINE
COOLANT
TEMPERATURE (red)
When the key is turned to
MAR, the warning light switches on
but should switch off after a few
seconds.
The warning light turns on when the
engine is overheated.
If the warning light switches on,
proceed as follows:
– In the case of normal driving: stop
the vehicle, stop the engine and
check that the level of coolant in
the reservoir is not below the
MIN reference. In these
circumstances, wait a few minutes
to let the engine cool, then open
the reservoir cap slowly and
cautiously.
Top up with coolant, making sure
that the level of fluid is between
the MIN and MAX references on
the reservoir. Also check visually
for leaks. If, when restarting, the
warning light should come on
again, contact a Fiat Dealership.
ç
– If the vehicle is used under
demanding conditions (e.g. towing
trailers uphill or fully loaded): slow
down and, if the light stays on,
stop the vehicle.
Wait for 2 or 3 minutes with the
engine running and slightly
accelerated to further favour the
coolant circulation. Then stop the
engine. Check correct fluid level in
the reservoir as described above.IMPORTANT Over demanding
routes, it is advisable to keep the
engine on and slightly accelerated for
a few minutes before switching it off.
On some versions, the display shows
a dedicated message.
57

ABS SYSTEM
FAILURE (amber)
When the key is turned to MAR, the
warning light switches on but should
switch off after a few seconds.
The warning light will switch on
when the system is either not
working or not available. In this case
the braking system maintains its own
efficiency unaltered, but without the
advantage of the ABS system.
Drive carefully and contact a Fiat
Dealership as soon as possible.
On some versions, the display shows
a dedicated message. BATTERY CHARGE
LOW (red)
The warning light switches
on when the ignition key is turned
to MAR, but it should switch off as
soon as the engine has started (with
the engine idling a brief delay before
switching off is acceptable).
If the warning light stays on, contact
a Fiat Dealership immediately.
On some versions, the display shows
a dedicated message.
w>x>
EBD FAILURE
(red - amber)
(for versions/
markets, where
provided)
If the
xand >warning lights
switch on simultaneously with the
engine running, this indicates that
there is a fault in the EBD system or
that the system in unavailable.
In this case, the rear wheels may
suddenly lock and the vehicle may
swerve when braking sharply. Drive
very carefully to a Fiat Dealership to
have the system inspected
immediately.
On some versions, the display shows
a dedicated message.
58

Constant: LOW
ENGINE OIL
PRESSURE (red)
Flashing: ENGINE OIL
DETERIORATED
(red)
When the key is turned to MAR, the
warning light switches on, but should
switch off as soon as the engine is
started.
Low engine oil pressure
The warning light switches on
constantly, together with a message
(for versions/markets, where
provided) on the display, when the
system detects that engine oil
pressure is too low.
vIf the vwarning
light switches on when
the vehicle is travelling (on
certain versions together with a
message on the display) stop
the engine immediately and
contact a Fiat Dealership.
WARNING
Engine oil deteriorated
The
vwarning light starts to
flash together with a message on the
display (for versions/markets, where
provided) when the system detects
that the engine oil has deteriorated.
If the warning light flashes, this does
not mean that the vehicle is faulty,
but simply informs the driver that it
is now necessary to change the
engine oil as a result of regular
vehicle use.If the oil is not changed, when a
second deterioration threshold is
reached, the
Uwarning light also
switches on in the instrument panel
and engine operation is limited to
3000 rpm.
If the oil is still not changed, when a
third deterioration threshold is
reached, the engine is limited to
1500 rpm to avoid damage.
To avoid damaging the
engine you are advised
to change the engine oil
when the warning light
v
flashes. Contact a Fiat
Dealership.
59

Contact a Fiat
Dealership as soon as
possible if the
U
warning light does not switch on
when the ignition key is turned
to MAR or if it switches on
when driving (together with a
message on the display on some
versions). The operation of the
Uwarning light may be
checked by the traffic control
authorities using specific
devices. Always comply with the
traffic regulations in force in the
country where you are driving.
INJECTION SYSTEM
FAILURE (amber)
In normal conditions, when the
ignition key is turned to MAR, the
warning light switches on, but should
switch off when the engine starts.
If the warning light stays on or
comes on when travelling, it means
there is a fault in the injection
system which could cause loss of
performance, poor handling and high
fuel consumption levels.
On some versions, the display shows
a dedicated message.
Under these conditions, the vehicle
can continue travelling at moderate
speed without demanding excessive
effort from the engine. In any case,
you should contact a Fiat Dealership
as soon as possible. DOORS NOT
CLOSED
CORRECTLY (red)
On certain versions, the warning
light switches on when one or more
doors are not closed correctly. On
some versions, the display shows a
dedicated message. On some
versions, an acoustic signal is emitted
when the vehicle is in motion.SEAT BELTS NOT
FASTENED (red)
(for versions/markets,
where provided)
The warning light on the panel
switches on constantly when the
vehicle is stationary and the driver
side seat belt is not fastened correctly.
It will flash, and be accompanied by a
buzzer, if the front seat belts are not
fastened correctly when the vehicle is
in motion.
<
´
U
60

FUEL RESERVE
(amber)
When the key is turned to MAR, the
warning light switches on but should
switch off after a few seconds.
The warning light switches on when
5.5 to 7.5 litres of fuel are left in the
tank.
On some versions, the
Kwarning
light flashes on the display.
ç
61
PLUG
PREHEATING/PLUG
PREHEATING
FAILURE (amber)
Plug preheating
This warning light switches on when
the key is turned to MAR. It will
switch off when the plugs have
reached a preset temperature.
Start the engine as soon as the
warning light switches off.
IMPORTANT At high ambient
temperatures, the warning light may
stay on for an extremely short time.
Plug preheating failure
The warning light flashes if there is a
fault in the plug preheating system.
Contact a Fiat Dealership as soon as
possible.
On some versions, the display shows
a dedicated message.
m
BRAKE PAD WEAR
(amber)
(for versions/markets,
where provided)
The warning light switches on if the
front brake pads are worn. In this
case replace them as soon as
possible.
On certain versions a dedicated
message is displayed.
d

EXTERIOR LIGHTS
FAULT (amber)
(for versions/markets,
where provided)
The warning light will switch on, on
some versions, when a fault with
one of the following lights is
detected:
– side lights
– brake lights
– rear fog lights
– direction indicators
– number plate lights.
The fault relating to these lights
could be: one or more blown bulbs,
a blown protection fuse or a break
in the electrical connection.
On some versions, the display shows
a dedicated message.The presence of water in
the fuel supply circuit
may cause severe
damage to the injection system
and irregular engine operation.
If the
cwarning light switches
on (on some versions together
with the message on the
display), contact a Fiat
Dealership as soon as possible
to have the system bled. If this
problem is indicated
immediately after refueling,
water may have entered the fuel
tank. In this case, stop the
engine immediately and contact
a Fiat Dealership.
W
WATER IN DIESEL
FILTER (amber)
When the key is turned to MAR, the
warning light switches on but should
switch off after a few seconds.
The cwarning light switches on
when there is water in the diesel
filter.
On some versions, the display shows
a dedicated message.
c
62

GENERIC FAILURE
INDICATION (amber)
The warning light switches on in the
following circumstances.
DPF (particulate filter) cleaning
in progress
(for versions/markets,
where provided)
The warning light switches on to
inform the driver that the DPF
system needs to eliminate the
trapped pollutants (particulate)
through the regeneration process.
The warning light will switch off if
the vehicle remains in motion until
the regeneration process has been
completed.
Together with the warning light, the
display shows the dedicated
message.
On some versions, together with the
message on the display, there is an
acoustic signal. If this warning light comes on, it
does not mean that the vehicle is
defective, so there is no need to
take it to a Fiat Dealership.Speed limit exceeded
(for versions/markets,
where provided)
This warning light switches on
(on some versions together with a
dedicated message on the display
and an acoustic signal) when the
vehicle exceeds the speed limit set
previously.
Fuel cut-off inertia switch
tripped
The warning light switches on when
the fuel cut-off inertia switch is
tripped.
The display will show the dedicated
message.
è
63
Always drive at a speed
appropriate to the
traffic conditions, the weather
and traffic regulations. You are
advised to stop the engine and
stop driving only after the
warning light has switched off,
following completed
regeneration.
WARNING

E-LOCKER SYSTEM
(Front differential
locking)
(for versions/markets,
where provided)
The warning light switches on (on
some versions together with a
dedicated message on the display) as
follows:
– flashing when the system is
activated;
– flashing more rapidly to indicate
that the speed of the vehicle is
approaching 20 km/h;
– constantly if there is a fault with
the system.RIGHT DIRECTION
INDICATOR (green -
intermittent)
The warning light switches on when
the direction indicator control stalk
is moved upwards or, together with
the left indicator, when the hazard
warning light button is pressed.
LEFT DIRECTION
INDICATOR
(green - intermittent)
The warning light switches on when
the direction indicator control stalk
is moved downwards or, together
with the right indicator, when the
hazard warning light button is
pressed.


ELD
SIDE LIGHTS (green) -
FOLLOW ME HOME
(green)
Side lights
The warning light switches on when
the side lights are activated.

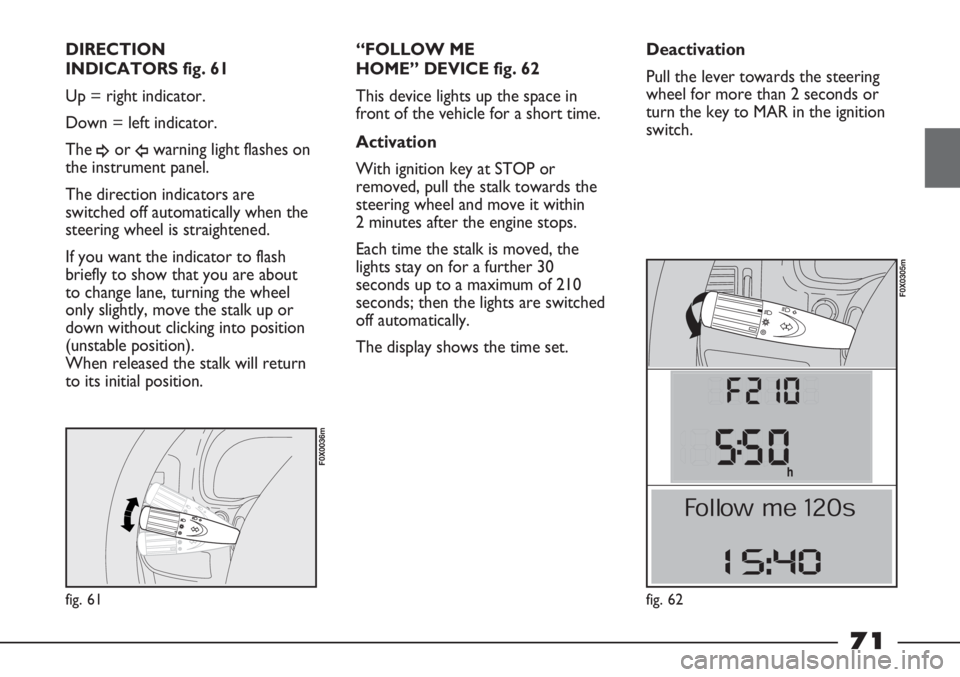

Follow me home
(for versions/markets, where
provided)
This warning light switches on when
this device is activated (see Follow
Me Home in this section).
The display will show the dedicated
message.
FOG LIGHTS (green)
(for versions/markets,
where provided)
The warning light switches on when
the front fog lights are activated.REAR FOG LIGHTS
(amber)
(for versions/markets,
where provided)
The warning light switches on when
the rear fog lights are activated.
3
5
4
MAIN BEAM
HEADLIGHTS
The warning light switches on when
the main beams headlights are
activated.
1
64

fig. 61
F0X0036m
DIRECTION
INDICATORS fig. 61
Up = right indicator.
Down = left indicator.
The
¥or Îwarning light flashes on
the instrument panel.
The direction indicators are
switched off automatically when the
steering wheel is straightened.
If you want the indicator to flash
briefly to show that you are about
to change lane, turning the wheel
only slightly, move the stalk up or
down without clicking into position
(unstable position).
When released the stalk will return
to its initial position.“FOLLOW ME
HOME” DEVICE fig. 62
This device lights up the space in
front of the vehicle for a short time.
Activation
With ignition key at STOP or
removed, pull the stalk towards the
steering wheel and move it within
2 minutes after the engine stops.
Each time the stalk is moved, the
lights stay on for a further 30
seconds up to a maximum of 210
seconds; then the lights are switched
off automatically.
The display shows the time set.Deactivation
Pull the lever towards the steering
wheel for more than 2 seconds or
turn the key to MAR in the ignition
switch.
fig. 62
F0X0305m
71

REAR AND SIDE
FOOTBOARDS
(for versions/markets, where
provided)
To facilitate access to the load
compartment, the vehicle features
two rear footboards fig. 96.
To facilitate access to the passenger
compartment, the Adventure
version features side footboards.
HEADLIGHTS
LIGHT BEAM DIRECTION
The correct direction of the
headlights is essential for the
comfort and safety of the driver and
other road users. To ensure the
best visibility when travelling with
the headlights on, the vehicle’s
headlight alignment must be correct.
Contact a Fiat Dealership to have
the headlights checked and adjusted.
HEADLIGHT ALIGNMENT
CORRECTOR
This device operates with the
ignition key at MAR and the dipped
headlights on. The vehicle tilts
backwards when it is laden, raising
the beam. The beams must
therefore be realigned in this case.Headlight alignment
adjustment fig. 97
To adjust, depending on the version,
use the dedicated buttons on the
control panel to the left of the
steering wheel fig. 97.
The display on the instrument panel
provides a visual indication of the
adjustment position.
Position 0 - one or two people in
the front seats.
Position 1 - four people.
Position 2 - four people + load in
the rear compartment.
Position 3 - driver + maximum
permitted load, all
stowed in the rear load
compartment.
fig. 97
F0X0078m
fig. 96
F0X0077m
89
