FIAT STRADA 2011 Owner handbook (in English)

49

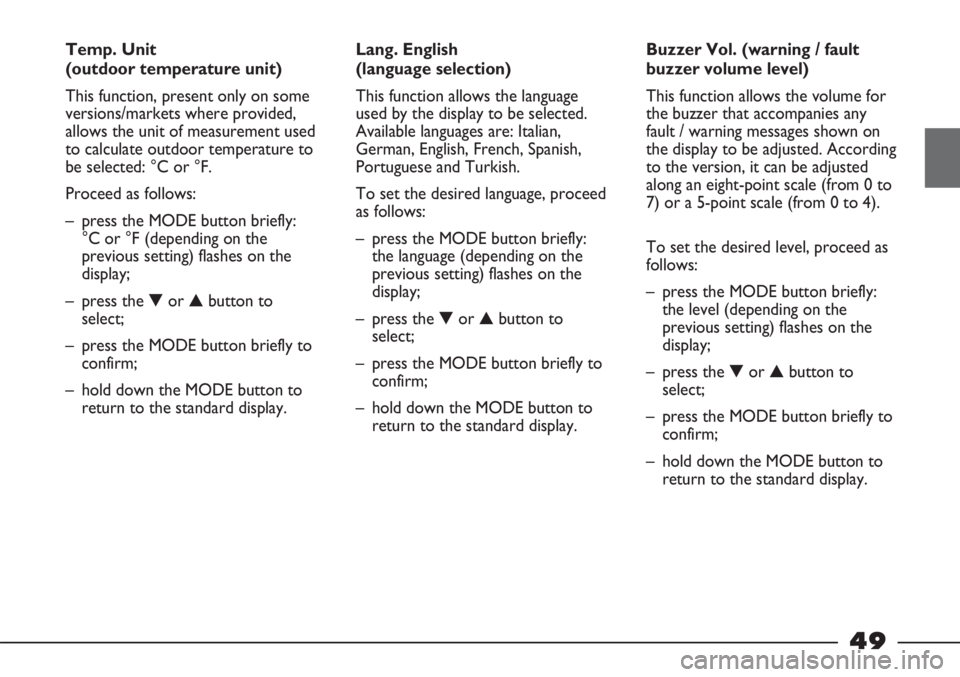

Temp. Unit
(outdoor temperature unit)
This function, present only on some
versions/markets where provided,
allows the unit of measurement used
to calculate outdoor temperature to
be selected: °C or °F.
Proceed as follows:
– press the MODE button briefly:
°C or °F (depending on the
previous setting) flashes on the
display;
– press the ▼or ▲button to
select;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.Lang. English
(language selection)
This function allows the language
used by the display to be selected.
Available languages are: Italian,
German, English, French, Spanish,
Portuguese and Turkish.
To set the desired language, proceed
as follows:
– press the MODE button briefly:
the language (depending on the
previous setting) flashes on the
display;
– press the ▼or ▲button to
select;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.Buzzer Vol. (warning / fault
buzzer volume level)
This function allows the volume for
the buzzer that accompanies any
fault / warning messages shown on
the display to be adjusted. According
to the version, it can be adjusted
along an eight-point scale (from 0 to
7) or a 5-point scale (from 0 to 4).
To set the desired level, proceed as
follows:
– press the MODE button briefly:
the level (depending on the
previous setting) flashes on the
display;
– press the ▼or ▲button to
select;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.

50

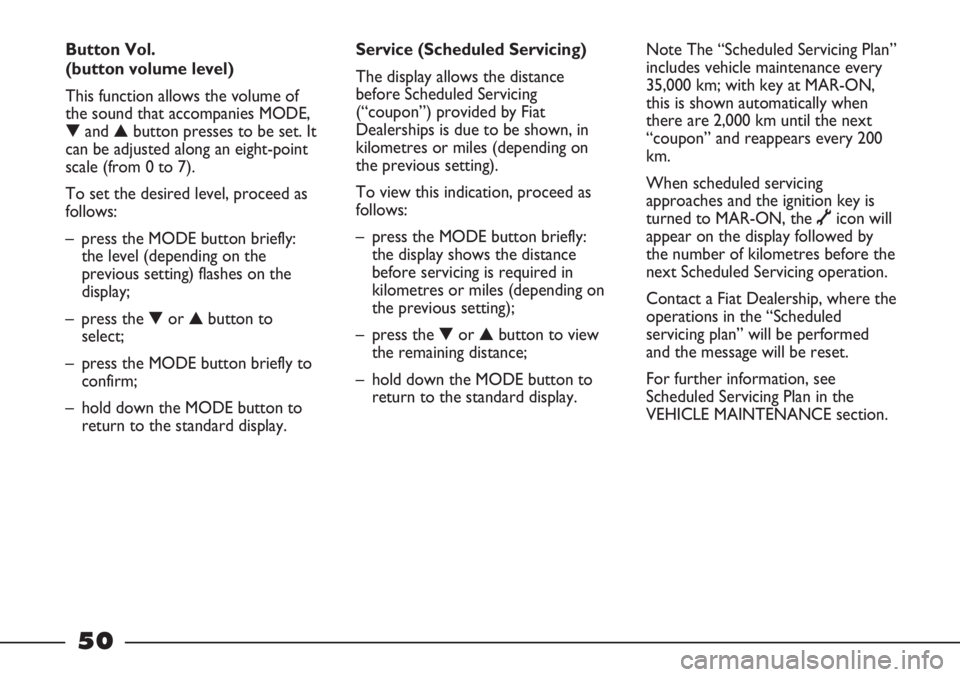

Service (Scheduled Servicing)
The display allows the distance
before Scheduled Servicing
(“coupon”) provided by Fiat
Dealerships is due to be shown, in
kilometres or miles (depending on
the previous setting).
To view this indication, proceed as
follows:
– press the MODE button briefly:
the display shows the distance
before servicing is required in
kilometres or miles (depending on
the previous setting);
– press the ▼or ▲button to view
the remaining distance;
– hold down the MODE button to
return to the standard display.Note The “Scheduled Servicing Plan”
includes vehicle maintenance every
35,000 km; with key at MAR-ON,
this is shown automatically when
there are 2,000 km until the next
“coupon” and reappears every 200
km.
When scheduled servicing
approaches and the ignition key is
turned to MAR-ON, the
õicon will
appear on the display followed by
the number of kilometres before the
next Scheduled Servicing operation.
Contact a Fiat Dealership, where the
operations in the “Scheduled
servicing plan” will be performed
and the message will be reset.
For further information, see
Scheduled Servicing Plan in the
VEHICLE MAINTENANCE section. Button Vol.
(button volume level)
This function allows the volume of
the sound that accompanies MODE,
▼and ▲button presses to be set. It
can be adjusted along an eight-point
scale (from 0 to 7).
To set the desired level, proceed as
follows:
– press the MODE button briefly:
the level (depending on the
previous setting) flashes on the
display;
– press the ▼or ▲button to
select;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.

51

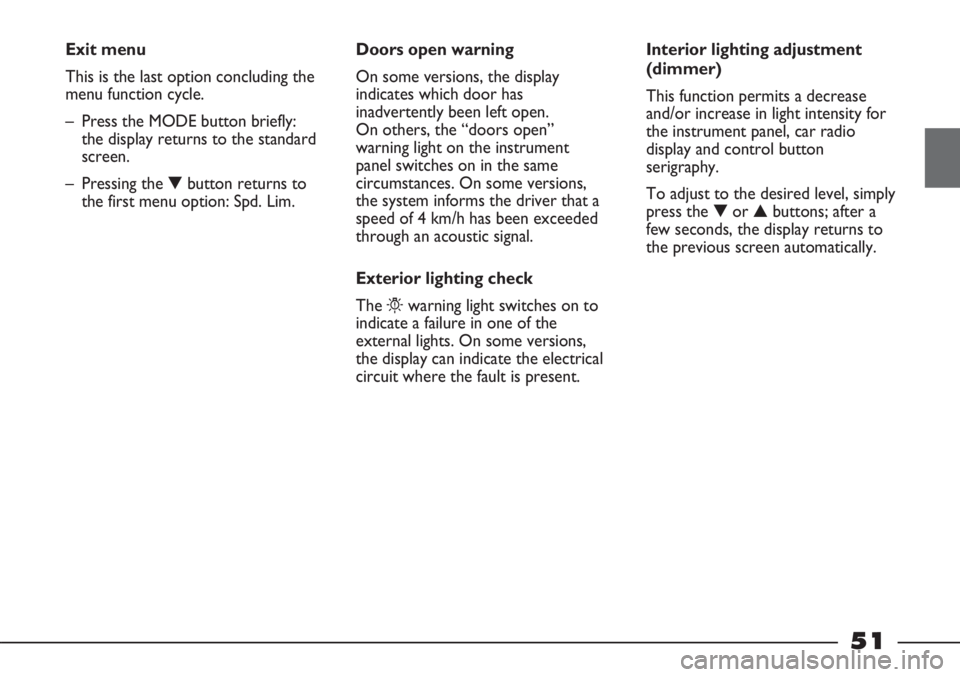

Exit menu
This is the last option concluding the
menu function cycle.
– Press the MODE button briefly:
the display returns to the standard
screen.
– Pressing the ▼button returns to
the first menu option: Spd. Lim.Doors open warning
On some versions, the display
indicates which door has
inadvertently been left open.
On others, the “doors open”
warning light on the instrument
panel switches on in the same
circumstances. On some versions,
the system informs the driver that a
speed of 4 km/h has been exceeded
through an acoustic signal.
Exterior lighting check
The
Wwarning light switches on to
indicate a failure in one of the
external lights. On some versions,
the display can indicate the electrical
circuit where the fault is present.Interior lighting adjustment
(dimmer)
This function permits a decrease
and/or increase in light intensity for
the instrument panel, car radio
display and control button
serigraphy.
To adjust to the desired level, simply
press the ▼or ▲buttons; after a
few seconds, the display returns to
the previous screen automatically.

52

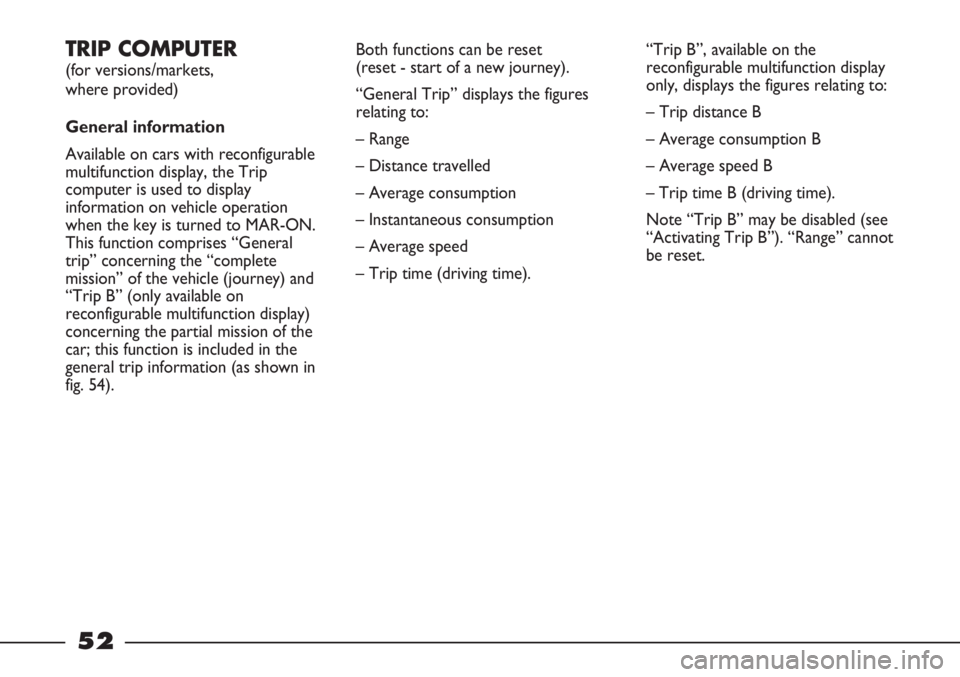

TRIP COMPUTER
(for versions/markets,
where provided)
General information
Available on cars with reconfigurable
multifunction display, the Trip
computer is used to display
information on vehicle operation
when the key is turned to MAR-ON.
This function comprises “General
trip” concerning the “complete
mission” of the vehicle (journey) and
“Trip B” (only available on
reconfigurable multifunction display)
concerning the partial mission of the
car; this function is included in the
general trip information (as shown in
fig. 54).Both functions can be reset
(reset - start of a new journey).
“General Trip” displays the figures
relating to:
– Range
– Distance travelled
– Average consumption
– Instantaneous consumption
– Average speed
– Trip time (driving time).“Trip B”, available on the
reconfigurable multifunction display
only, displays the figures relating to:
– Trip distance B
– Average consumption B
– Average speed B
– Trip time B (driving time).
Note “Trip B” may be disabled (see
“Activating Trip B”). “Range” cannot
be reset.

53

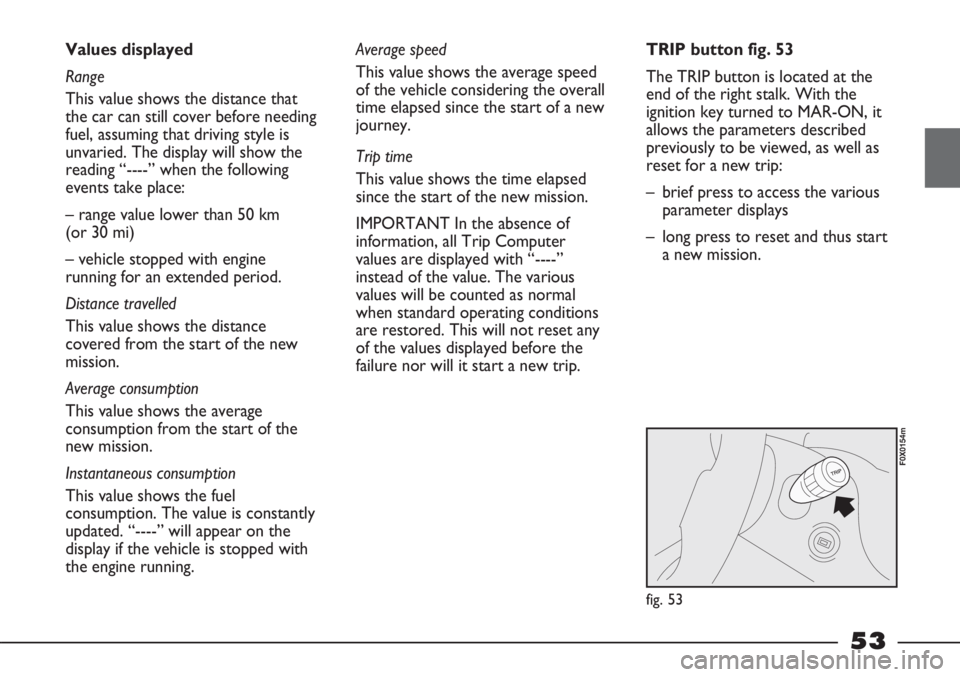

Values displayed
Range
This value shows the distance that
the car can still cover before needing
fuel, assuming that driving style is
unvaried. The display will show the
reading “----” when the following
events take place:
– range value lower than 50 km
(or 30 mi)
– vehicle stopped with engine
running for an extended period.
Distance travelled
This value shows the distance
covered from the start of the new
mission.
Average consumption
This value shows the average
consumption from the start of the
new mission.
Instantaneous consumption
This value shows the fuel
consumption. The value is constantly
updated. “----” will appear on the
display if the vehicle is stopped with
the engine running.Average speed
This value shows the average speed
of the vehicle considering the overall
time elapsed since the start of a new
journey.
Trip time
This value shows the time elapsed
since the start of the new mission.
IMPORTANT In the absence of
information, all Trip Computer
values are displayed with “----”
instead of the value. The various
values will be counted as normal
when standard operating conditions
are restored. This will not reset any
of the values displayed before the
failure nor will it start a new trip.TRIP button fig. 53
The TRIP button is located at the
end of the right stalk. With the
ignition key turned to MAR-ON, it
allows the parameters described
previously to be viewed, as well as
reset for a new trip:
– brief press to access the various
parameter displays
– long press to reset and thus start
a new mission.
fig. 53
F0X0154m

54

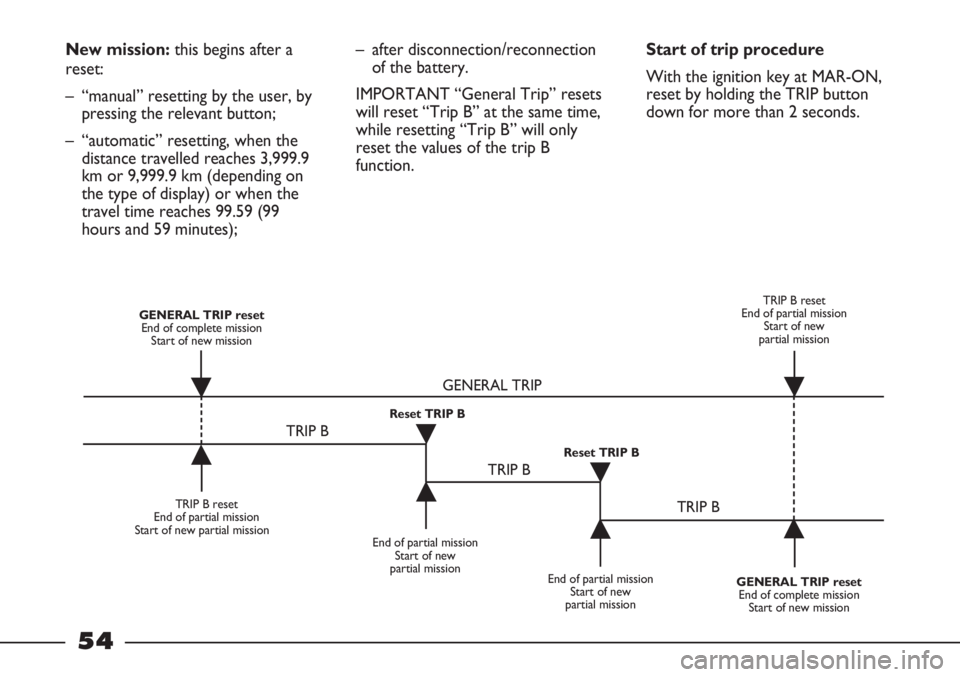

New mission: this begins after a
reset:
– “manual” resetting by the user, by
pressing the relevant button;
– “automatic” resetting, when the
distance travelled reaches 3,999.9
km or 9,999.9 km (depending on
the type of display) or when the
travel time reaches 99.59 (99
hours and 59 minutes);– after disconnection/reconnection
of the battery.
IMPORTANT “General Trip” resets
will reset “Trip B” at the same time,
while resetting “Trip B” will only
reset the values of the trip B
function.Start of trip procedure
With the ignition key at MAR-ON,
reset by holding the TRIP button
down for more than 2 seconds.
TRIP B reset
End of partial mission
Start of new partial mission
End of partial mission
Start of new
partial mission
GENERAL TRIP reset
End of complete mission
Start of new mission GENERAL TRIP reset
End of complete mission
Start of new missionTRIP B reset
End of partial mission
Start of new
partial mission
End of partial mission
Start of new
partial mission Reset TRIP B
Reset TRIP B
TRIP B
TRIP B
TRIP B GENERAL TRIP˙
˙
˙
˙˙
˙
˙ ˙

BRAKE FLUID LOW
(red) / HANDBRAKE
ENGAGED (red)
When the key is turned to
MAR, the warning light switches on
but should switch off after a few
seconds.
Brake fluid low
The warning light switches on when
the level of the brake fluid in the
reservoir falls below the minimum
level, possibly due to a leak in the
circuit.
On some versions, the display shows
a dedicated message.

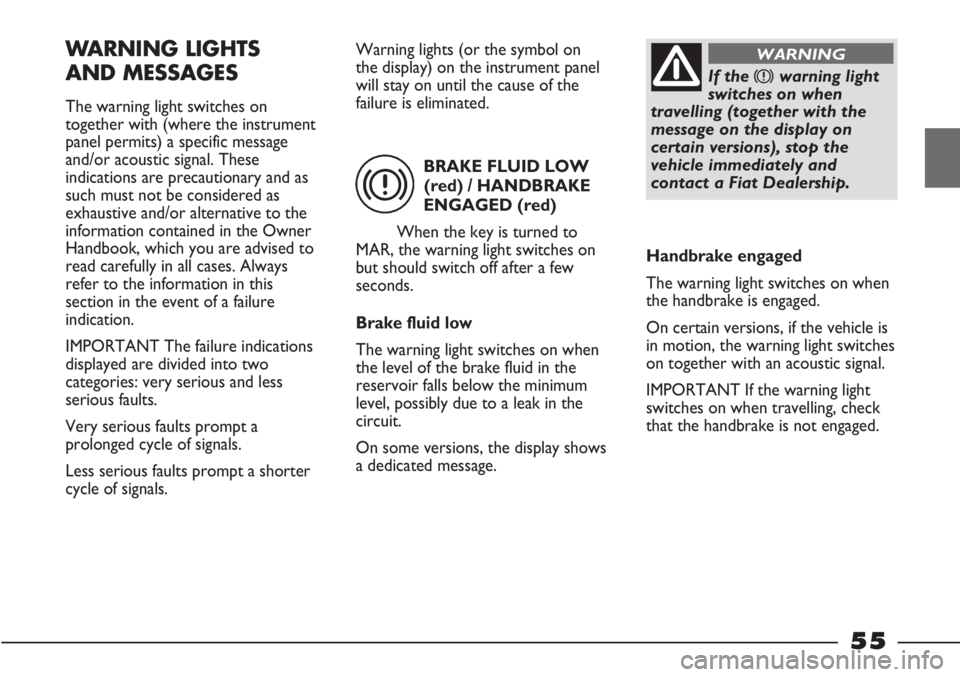

WARNING LIGHTS
AND MESSAGES
The warning light switches on
together with (where the instrument
panel permits) a specific message
and/or acoustic signal. These
indications are precautionary and as
such must not be considered as
exhaustive and/or alternative to the
information contained in the Owner
Handbook, which you are advised to
read carefully in all cases. Always
refer to the information in this
section in the event of a failure
indication.
IMPORTANT The failure indications
displayed are divided into two
categories: very serious and less
serious faults.
Very serious faults prompt a
prolonged cycle of signals.
Less serious faults prompt a shorter
cycle of signals.Warning lights (or the symbol on
the display) on the instrument panel
will stay on until the cause of the
failure is eliminated.
If the
xwarning light
switches on when
travelling (together with the
message on the display on
certain versions), stop the
vehicle immediately and
contact a Fiat Dealership.
WARNING
x
Handbrake engaged
The warning light switches on when
the handbrake is engaged.
On certain versions, if the vehicle is
in motion, the warning light switches
on together with an acoustic signal.
IMPORTANT If the warning light
switches on when travelling, check
that the handbrake is not engaged.
55

PASSENGER AIRBAG
DEACTIVATED
(amber)
(for versions/markets,
where provided)
The Fwarning light switches on
when the front passenger side airbag
is deactivated.
With the front passenger airbag
enabled, when the ignition key is
turned to MAR, the Fwarning light
switches on constantly for about 4
seconds, flashes for another 4
seconds and then should switch off.
F
Failure of the F
warning light is
indicated by the
¬warning
light switching on.
In addition, the airbag system
automatically disables the
airbags on the passenger’s
side. Before proceeding,
contact a Fiat Dealership
immediately to have the
system checked.
WARNING
AIRBAG FAILURE
(red)
(for versions/markets,
where provided)
When the key is turned to MAR, the
warning light switches on but should
switch off after a few seconds. The
warning light switches on constantly
if there is a fault in the airbag system.
On some versions, the display shows
a dedicated message.
¬
If the ¬warning light
does not switch on when

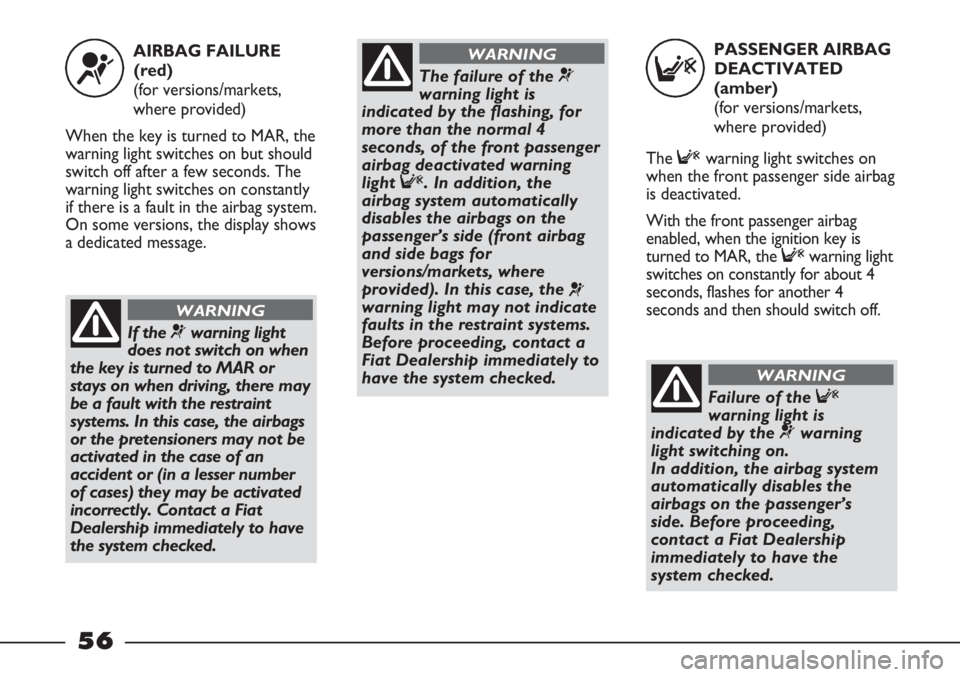

the key is turned to MAR or
stays on when driving, there may
be a fault with the restraint
systems. In this case, the airbags
or the pretensioners may not be
activated in the case of an
accident or (in a lesser number
of cases) they may be activated
incorrectly. Contact a Fiat
Dealership immediately to have
the system checked.
WARNING
The failure of the ¬
warning light is
indicated by the flashing, for
more than the normal 4
seconds, of the front passenger
airbag deactivated warning
light
F. In addition, the
airbag system automatically
disables the airbags on the
passenger’s side (front airbag
and side bags for
versions/markets, where
provided). In this case, the
¬warning light may not indicate
faults in the restraint systems.
Before proceeding, contact a
Fiat Dealership immediately to
have the system checked.
WARNING
56

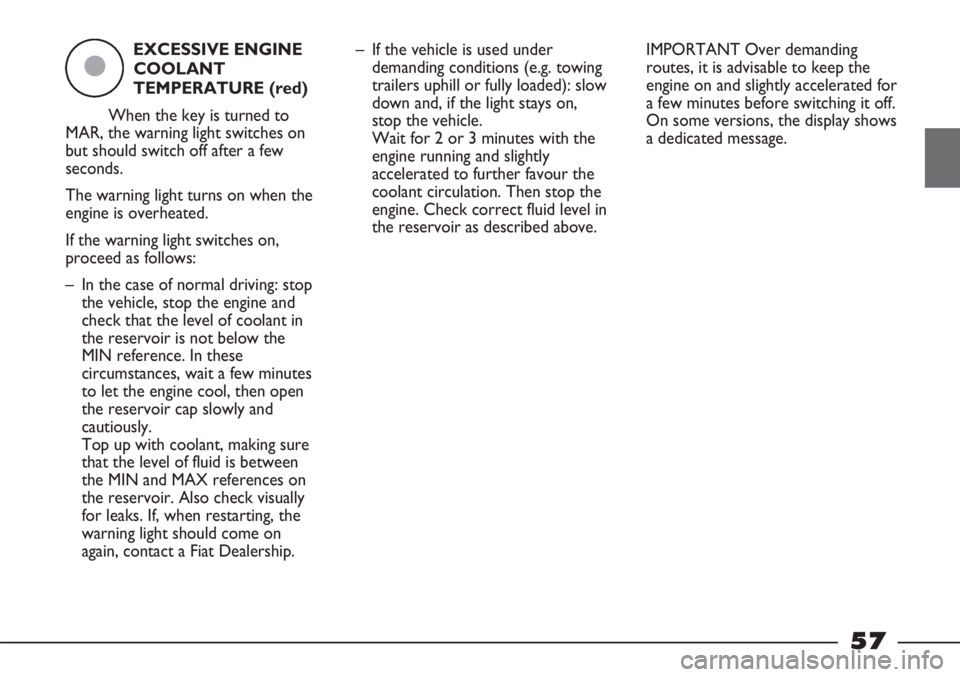

EXCESSIVE ENGINE
COOLANT
TEMPERATURE (red)
When the key is turned to
MAR, the warning light switches on
but should switch off after a few
seconds.
The warning light turns on when the
engine is overheated.
If the warning light switches on,
proceed as follows:
– In the case of normal driving: stop
the vehicle, stop the engine and
check that the level of coolant in
the reservoir is not below the
MIN reference. In these
circumstances, wait a few minutes
to let the engine cool, then open
the reservoir cap slowly and
cautiously.
Top up with coolant, making sure
that the level of fluid is between
the MIN and MAX references on
the reservoir. Also check visually
for leaks. If, when restarting, the
warning light should come on
again, contact a Fiat Dealership.
ç
– If the vehicle is used under
demanding conditions (e.g. towing
trailers uphill or fully loaded): slow
down and, if the light stays on,
stop the vehicle.
Wait for 2 or 3 minutes with the
engine running and slightly
accelerated to further favour the
coolant circulation. Then stop the
engine. Check correct fluid level in
the reservoir as described above.IMPORTANT Over demanding
routes, it is advisable to keep the
engine on and slightly accelerated for
a few minutes before switching it off.
On some versions, the display shows
a dedicated message.
57

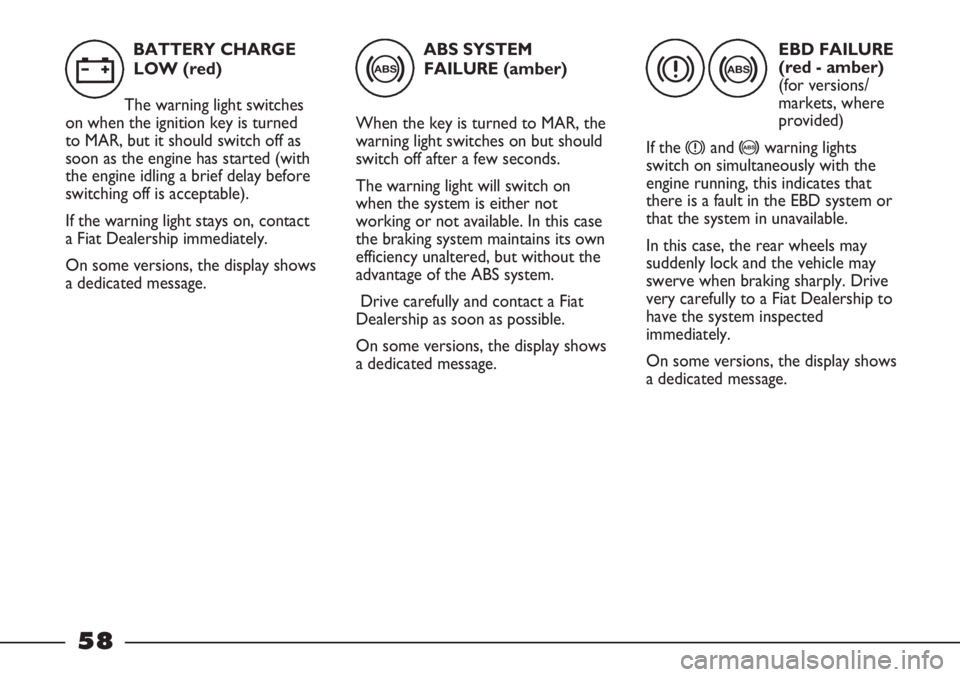

ABS SYSTEM
FAILURE (amber)
When the key is turned to MAR, the
warning light switches on but should
switch off after a few seconds.
The warning light will switch on
when the system is either not
working or not available. In this case
the braking system maintains its own
efficiency unaltered, but without the
advantage of the ABS system.
Drive carefully and contact a Fiat
Dealership as soon as possible.
On some versions, the display shows
a dedicated message. BATTERY CHARGE
LOW (red)
The warning light switches
on when the ignition key is turned
to MAR, but it should switch off as
soon as the engine has started (with
the engine idling a brief delay before
switching off is acceptable).
If the warning light stays on, contact
a Fiat Dealership immediately.
On some versions, the display shows
a dedicated message.
w>x>
EBD FAILURE
(red - amber)
(for versions/
markets, where
provided)
If the
xand >warning lights
switch on simultaneously with the
engine running, this indicates that
there is a fault in the EBD system or
that the system in unavailable.
In this case, the rear wheels may
suddenly lock and the vehicle may
swerve when braking sharply. Drive
very carefully to a Fiat Dealership to
have the system inspected
immediately.
On some versions, the display shows
a dedicated message.
58
