fuse box FIAT STRADA 2011 Owner handbook (in English)

133
To access the fuse box fig. 143, undo
the fixing screws A-fig. 144 and
remove the guard B.
The symbols which identify the main
electrical component that
corresponds to each fuse are
located on the inside of the cover.
fig. 143
F0X0126m
fig. 144
F0X0127m
DASHBOARD FUSE BOX fig. 143
The fuse box is located under the instrument panel, to the left of the steering
wheel.

134

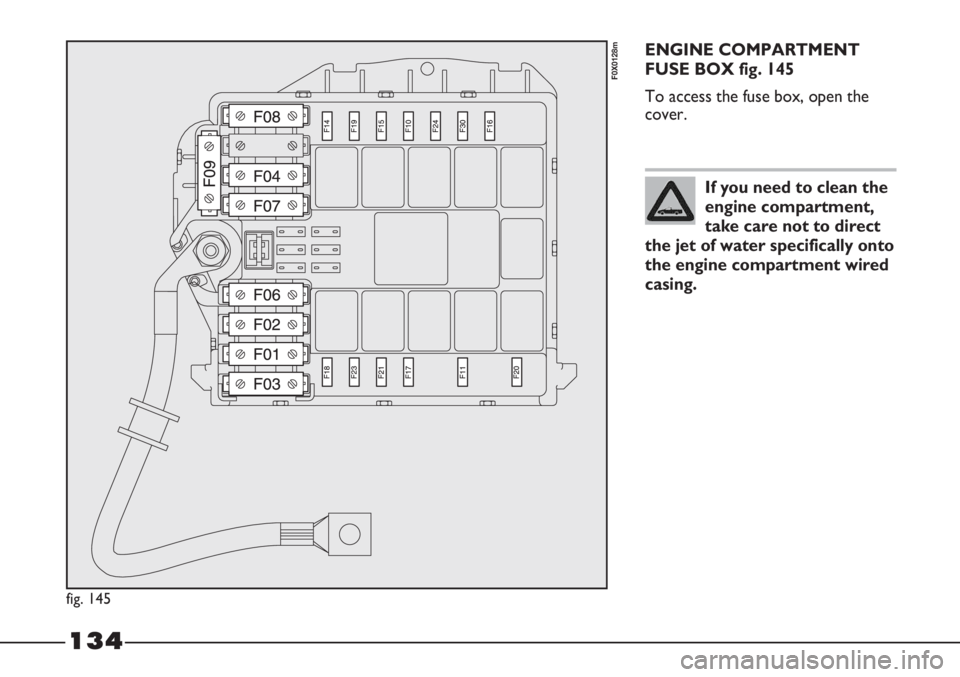

ENGINE COMPARTMENT
FUSE BOX fig. 145
To access the fuse box, open the
cover.
fig. 145
F0X0128m
If you need to clean the
engine compartment,
take care not to direct
the jet of water specifically onto
the engine compartment wired
casing.

135
FUSE SUMMARY TABLE
Device protected No. Fuse Amps Location
F12
F13
F31
F32
F35
F37
F38
F39
F42
F43
F44
F47
F48
F49
F50
F51
F5315A
15A
7,5A
15A
10A
10A
20A
15A
7,5A
30A
20A
30A
30A
7,5A
7,5A
7,5A
10Afig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
ARight dipped headlight
Left dipped headlight, headlight alignment corrector
Supply for reversing light, relay switch coils on engine compartment
fuse box, manual climate control system
+30 exterior lighting control supply
Brake light switch supply (NC signal)
Brake lights, instrument panel node
Central locking
+30 supply for roof light, glove compartment light, radio
ABS control unit
Windscreen wiper, two-way pump
Power socket - cigar lighter
Front left electric window
Front right electric window
+15 services supply for radio, electric mirrors, central and side
control panel lighting, electric mirror control lighting
Airbag system
+ supply for number plate lights, heater control lighting,
power socket – cigar lighter lighting, radio lighting
Direction indicators, hazard warning lights, instrument panel node

136
Device protected No. Fuse Amps Location
F00
F01
F02
F03
F04
F06
F07
F08
F10
F11
F14
F15
F16
F17
F18
F19
F20
F21
F23
F24
F3060A
70A
40A
20A
50A
30A – 40A (*)
40A – 60A (*)
40A
15A
15A
10A
10A
7,5A
10A
7,5A
7,5A
20A
15A
15A
10A
15A
Plug preheating
Dashboard fuse box - basic
Dashboard fuse box - optional
Ignition switch
Anti-slip system
Single speed – Radiator fan first speed
Single speed – Radiator fan second speed
Climate control fan
Horn
Speedometer generator, canister solenoid valve, preheating
control unit, secondary loads, engine management system
Right main beam headlight
Left main beam headlight
Engine management control unit, engine management
system relay switch, engine cooling system remote control switch
Engine management control unit (supply), diesel pump solenoid
valve unit
Engine management control unit
Climate control compressor
Heated filter
Fuel pump, cut-off system
Additional headlights
Ignition-operated +15 positive pole
Fog lights
(*) For versions/markets, where provided.fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145

162
Exterior plastic parts should be
cleaned in the same way as the rest
of the vehicle. Where possible, do
not park the vehicle under trees; the
resinous substances released by
many species give the paint a dull
appearance and increase the
possibility of corrosion.
IMPORTANT Bird droppings must
be washed off immediately and
thoroughly, as the acid they contain
is particularly aggressive.Windows
To clean windows, use specific
cleaning products.
Use clean cloths to avoid scratching
the glass or damaging the
transparency.
Engine compartment
At the end of each winter,
thoroughly wash the engine
compartment, taking care to avoid
spraying the water jet directly onto
the electronic control units or the
fuse box on the left side of the
engine compartment (driving
direction).
Have this operation performed at a
specialised workshop.
IMPORTANT Washing should take
place with the engine cold and the
ignition key removed.
After the washing operation, make
sure that the various protections
(e.g. rubber caps and guards) have
not been removed or damaged.
Detergents cause water
pollution. The vehicle
should be washed in
areas equipped for collecting
and purifying the liquid used in
the washing process.
Some car washes with
old-style blades and/or
in a poor state of repair
can damage the paintwork,
facilitating the formation of
lines that give the paint a
dull/misty appearance,
especially on dark colours.
If this happens, lightly polish the
paintwork with appropriate
products.
Dry the less visible parts, such as the
door frames, bonnet and the
headlight frames with special care, as
in these areas water may stagnate
more easily.
It is a good idea to leave the vehicle
outdoors for a while after washing it
to give the water time to evaporate.
Do not wash the vehicle after it has
been left in the sun or with the
bonnet hot: this may alter the shine
of the paintwork.

Fog lights
- bulb replacement................................................................... 127
- control ..................................................................................... 74
Follow me home system ............................................................. 71
Footboards..................................................................................... 89
Front ceiling light ......................................................................... 76
- bulb replacement ................................................................. 130
Front roof lights
- bulb replacement ................................................................. 130
- control ................................................................................... 76
Fuel cut-off switch ...................................................................... 75
Fuel level indicator gauge ........................................................... 27
Fuel tank cap.................................................................................. 103
Fuel
- fuel cap ................................................................................... 103
- fuel cut-off ............................................................................. 75
- level gauge ............................................................................. 27
- refuelling.................................................................................. 102
- specification......................................................................168-178
Fuses .............................................................................................. 131
- dashboard fuse box ............................................................. 133
- engine compartment fuse box .......................................... 134
- fuse list .............................................................................135-136
- general information ............................................................. 131
Gearbox
- using the gearbox ................................................................. 109
Glasses holder............................................................................... 76
Glove box light
- bulb replacement ................................................................. 131
Glove compartment .................................................................. 75Handbrake .................................................................................... 108
Hazard warning lights switch .................................................... 73
Headlights ..................................................................................... 89
- alignment corrector ............................................................ 89
- light beam direction ............................................................. 89
- washing ................................................................................... 163
Headrests
- front ........................................................................................ 17
- rear ......................................................................................... 18
Heating / climate control system ............................................. 65
Heating and ventilation................................................................ 65
- controls ................................................................................... 66
Heavy use of the vehicle............................................................. 147
How to save fuel........................................................................... 112
Identification data ........................................................................ 165
- VIN plate ............................................................................... 165
Ignition switch .............................................................................. 11
In an emergency ..................................................................... 117
Instrument panel ..........................................................................14-15
Interiors .......................................................................................... 163
Internal features ........................................................................... 75
Jack ..................................................................................119-120-138
Key with remote control ......................................................... 8
Keys ................................................................................................ 7
- duplicating............................................................................... 10
Know your vehicle................................................................... 7
Leather trim
- cleaning.................................................................................... 164
Left stalk......................................................................................... 72
- follow me home .................................................................... 71
189
