stop start FIAT STRADA 2011 Owner handbook (in English)

11
STEERING LOCK
Engagement: with ignition at
STOP, or PARK, remove the key
and turn the steering wheel until it
locks.IGNITION
The key can be turned to 4 different
positions fig. 5:
– STOP: engine off, key can be
removed, steering column locked.
Some electrical devices (e.g. car
radio, central door locking system,
electronic alarm, etc.) can
operate.
– MAR-ON: driving position. All
electric devices can operate.
– AVV: engine starting.
– PARK: engine off, parking lights
on, key can be removed, steering
column locked.
To turn the key to PARK, press
button A.
PARKSTOPMARAVV
A
fig. 5
F0X0005m
If the ignition is
tampered with
(e.g. attempted theft),
have it checked by a Fiat
Dealership before driving
again.
WARNING
Never remove the key
while the vehicle is in
motion. The steering wheel
would automatically lock as
soon as it is turned. This also
applies to cases in which the
vehicle is towed.
WARNING

28
IMPORTANT If the needle moves to
the beginning of the scale
(low temperature) with the
overheating warning light A on, this
indicates a fault in the system. If this
is the case, contact a Fiat Dealership
to have the system checked.
The needle may also approach the
red section when travelling too
slowly in a very hot climate. In this
case, it is best to stop for a while
and stop the engine.
Then restart and accelerate lightly.
fig. 38
F0X0302m
ENGINE COOLANT
TEMPERATURE GAUGE
fig. 37-38
If warning light A switches on in the
instrument panel, this indicates
overheating of the engine coolant.
In normal operating conditions, the
needle may move to various
positions within the scale according
to the vehicle usage conditions and
the management of the engine
cooling system performed
automatically by the system itself.
However, it should not move to the
red danger zone.
fig. 37
F0X0301m
IMPORTANT If the indicator shows
that the tank is empty and the
reserve warning light A-fig. 35-36
flashes, this indicates a fault in the
system. On some versions, the same
fault indication is provided by scale
C, which flashes on the display. If
this is the case, contact a Fiat
Dealership to have the system
checked.

31
Recalibrating the instruments
(compass and roll and pitch
meters)
The red LEDs will start to flash if
there is a fault with one of these
instruments.
In this case, the instruments must be
recalibrated. Proceed as follows:
– park the vehicle in an area which
is flat and with plenty of space
(suitable for driving through a
compete circle);
– make sure that the vehicle is
completely stationary;
– start the engine;
– use the stalk to switch on the side
lights 3 times in the space of 15
seconds;
– the roll and pitch meter LEDs
flash to indicate that the
recalibration process has started,
after which the compass LEDs
also flash;– at this point, drive the vehicle
through 2 complete circles,
finishing at the same starting point;
– the compass LEDs will stop
flashing; you must now switch the
side lights off 3 times in the space
of 15 seconds;
– the compass LEDs will switch on
for a moment, after which the
instrument panel display will show
a dedicated message regarding the
result of the calibration process.IMPORTANT Do not carry out the
recalibration procedure near strong
magnetic fields or energy sources.
To achieve correct recalibration,
carry out the procedure with vehicle
in running order and without
additional loads.

38

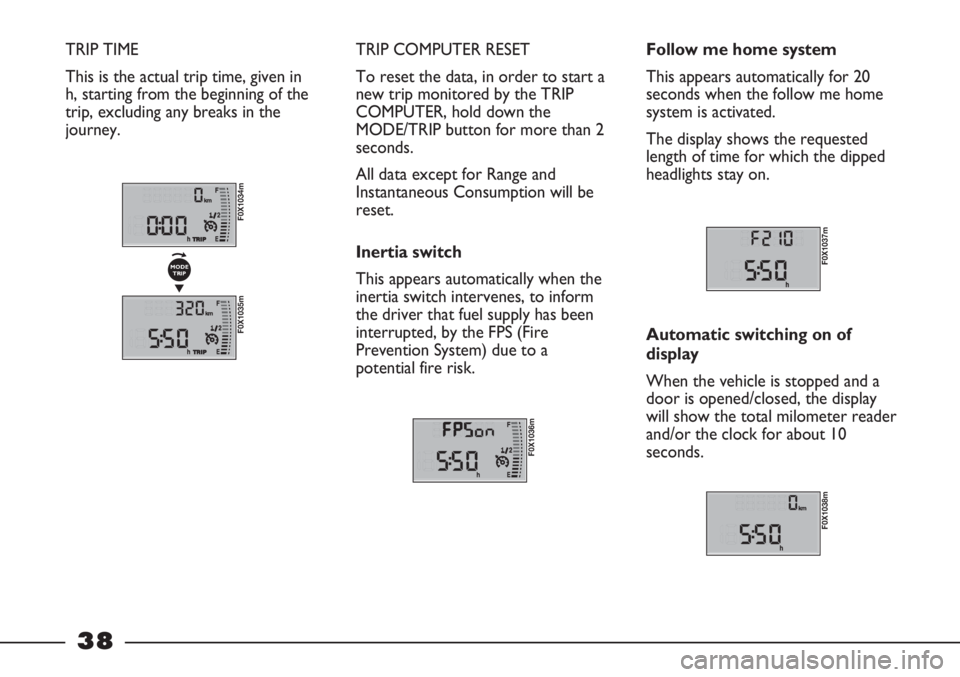

TRIP TIME
This is the actual trip time, given in
h, starting from the beginning of the
trip, excluding any breaks in the
journey. TRIP COMPUTER RESET
To reset the data, in order to start a
new trip monitored by the TRIP
COMPUTER, hold down the
MODE/TRIP button for more than 2
seconds.
All data except for Range and
Instantaneous Consumption will be
reset.
Inertia switch
This appears automatically when the
inertia switch intervenes, to inform
the driver that fuel supply has been
interrupted, by the FPS (Fire
Prevention System) due to a
potential fire risk.
F0X1036m
Follow me home system
This appears automatically for 20
seconds when the follow me home
system is activated.
The display shows the requested
length of time for which the dipped
headlights stay on.
F0X1037m
Automatic switching on of
display
When the vehicle is stopped and a
door is opened/closed, the display
will show the total milometer reader
and/or the clock for about 10
seconds.
F0X1038m
F0X1034m
F0X1035m
▼
MODE
TRIP

53
Values displayed
Range
This value shows the distance that
the car can still cover before needing
fuel, assuming that driving style is
unvaried. The display will show the
reading “----” when the following
events take place:
– range value lower than 50 km
(or 30 mi)
– vehicle stopped with engine
running for an extended period.
Distance travelled
This value shows the distance
covered from the start of the new
mission.
Average consumption
This value shows the average
consumption from the start of the
new mission.
Instantaneous consumption
This value shows the fuel
consumption. The value is constantly
updated. “----” will appear on the
display if the vehicle is stopped with
the engine running.Average speed
This value shows the average speed
of the vehicle considering the overall
time elapsed since the start of a new
journey.
Trip time
This value shows the time elapsed
since the start of the new mission.
IMPORTANT In the absence of
information, all Trip Computer
values are displayed with “----”
instead of the value. The various
values will be counted as normal
when standard operating conditions
are restored. This will not reset any
of the values displayed before the
failure nor will it start a new trip.TRIP button fig. 53
The TRIP button is located at the
end of the right stalk. With the
ignition key turned to MAR-ON, it
allows the parameters described
previously to be viewed, as well as
reset for a new trip:
– brief press to access the various
parameter displays
– long press to reset and thus start
a new mission.
fig. 53
F0X0154m

EXCESSIVE ENGINE
COOLANT
TEMPERATURE (red)
When the key is turned to
MAR, the warning light switches on
but should switch off after a few
seconds.
The warning light turns on when the
engine is overheated.
If the warning light switches on,
proceed as follows:
– In the case of normal driving: stop
the vehicle, stop the engine and
check that the level of coolant in
the reservoir is not below the
MIN reference. In these
circumstances, wait a few minutes
to let the engine cool, then open
the reservoir cap slowly and
cautiously.
Top up with coolant, making sure
that the level of fluid is between
the MIN and MAX references on
the reservoir. Also check visually
for leaks. If, when restarting, the
warning light should come on
again, contact a Fiat Dealership.
ç
– If the vehicle is used under
demanding conditions (e.g. towing
trailers uphill or fully loaded): slow
down and, if the light stays on,
stop the vehicle.
Wait for 2 or 3 minutes with the
engine running and slightly
accelerated to further favour the
coolant circulation. Then stop the
engine. Check correct fluid level in
the reservoir as described above.IMPORTANT Over demanding
routes, it is advisable to keep the
engine on and slightly accelerated for
a few minutes before switching it off.
On some versions, the display shows
a dedicated message.
57

Constant: LOW
ENGINE OIL
PRESSURE (red)
Flashing: ENGINE OIL
DETERIORATED
(red)
When the key is turned to MAR, the
warning light switches on, but should
switch off as soon as the engine is
started.
Low engine oil pressure
The warning light switches on
constantly, together with a message
(for versions/markets, where
provided) on the display, when the
system detects that engine oil
pressure is too low.
vIf the vwarning
light switches on when
the vehicle is travelling (on
certain versions together with a
message on the display) stop
the engine immediately and
contact a Fiat Dealership.
WARNING
Engine oil deteriorated
The
vwarning light starts to
flash together with a message on the
display (for versions/markets, where
provided) when the system detects
that the engine oil has deteriorated.
If the warning light flashes, this does
not mean that the vehicle is faulty,
but simply informs the driver that it
is now necessary to change the
engine oil as a result of regular
vehicle use.If the oil is not changed, when a
second deterioration threshold is
reached, the
Uwarning light also
switches on in the instrument panel
and engine operation is limited to
3000 rpm.
If the oil is still not changed, when a
third deterioration threshold is
reached, the engine is limited to
1500 rpm to avoid damage.
To avoid damaging the
engine you are advised
to change the engine oil
when the warning light
v
flashes. Contact a Fiat
Dealership.
59

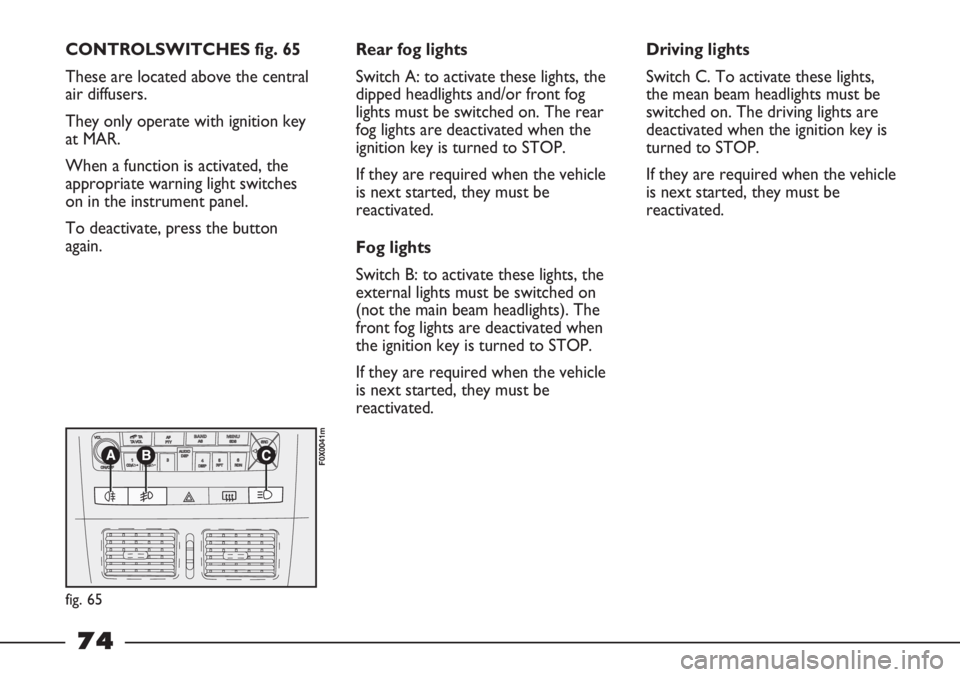

CONTROLSWITCHES fig. 65
These are located above the central
air diffusers.
They only operate with ignition key
at MAR.
When a function is activated, the
appropriate warning light switches
on in the instrument panel.
To deactivate, press the button
again.
(
r
fig. 65
F0X0041m
Rear fog lights
Switch A: to activate these lights, the
dipped headlights and/or front fog
lights must be switched on. The rear
fog lights are deactivated when the
ignition key is turned to STOP.
If they are required when the vehicle
is next started, they must be
reactivated.
Fog lights
Switch B: to activate these lights, the
external lights must be switched on
(not the main beam headlights). The
front fog lights are deactivated when
the ignition key is turned to STOP.
If they are required when the vehicle
is next started, they must be
reactivated.Driving lights
Switch C. To activate these lights,
the mean beam headlights must be
switched on. The driving lights are
deactivated when the ignition key is
turned to STOP.
If they are required when the vehicle
is next started, they must be
reactivated.
74

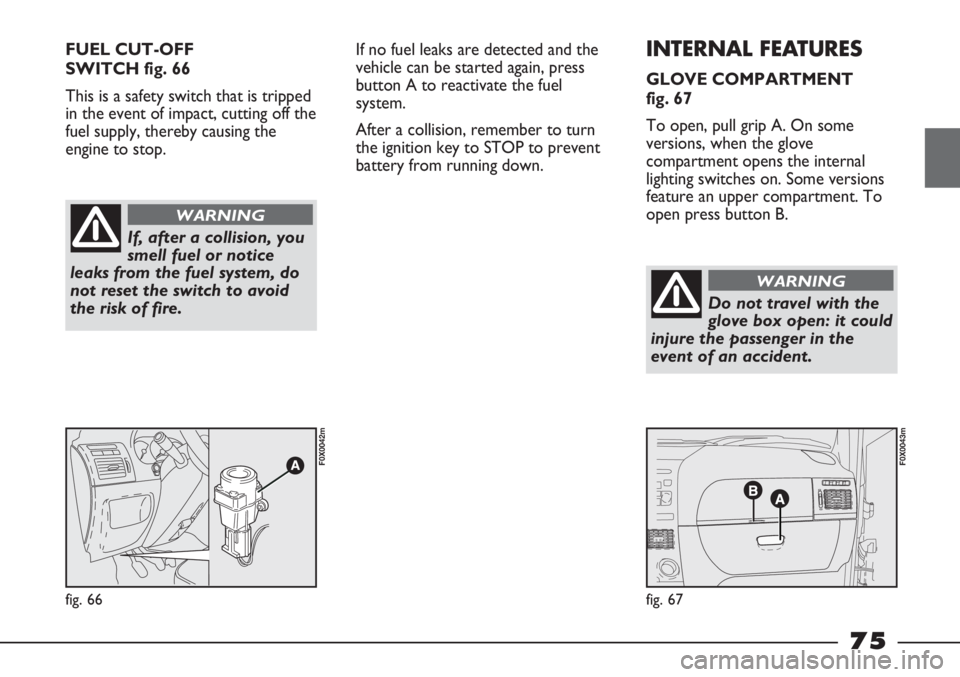

FUEL CUT-OFF
SWITCH fig. 66
This is a safety switch that is tripped
in the event of impact, cutting off the
fuel supply, thereby causing the
engine to stop.
fig. 66
F0X0042m
fig. 67
F0X0043m
If, after a collision, you
smell fuel or notice
leaks from the fuel system, do
not reset the switch to avoid
the risk of fire.
WARNING
INTERNAL FEATURES
GLOVE COMPARTMENT
fig. 67
To open, pull grip A. On some
versions, when the glove
compartment opens the internal
lighting switches on. Some versions
feature an upper compartment. To
open press button B. If no fuel leaks are detected and the
vehicle can be started again, press
button A to reactivate the fuel
system.
After a collision, remember to turn
the ignition key to STOP to prevent
battery from running down.
Do not travel with the
glove box open: it could
injure the passenger in the
event of an accident.
WARNING
75

96
If the key is inserted
and turned to MAR
when no faults are indicated by
the warning lights, airbags may
be deployed if another vehicle
crashes into the vehicle even if
the engine is not running and
the vehicle is stationary. For
this reason, children must
never sit on the front seat,
even if the vehicle is stationary.
On the other hand, if the key is
inserted in STOP position,
none of the safety devices
(airbags or pretensioners) will
be deployed in the event of
impact. Non-deployment of
these devices does not indicate
a system malfunction.
WARNING
For versions/markets
where provided, when
the ignition key is turned to
MAR, the “yellow” Fwarning
light switches on for a few
seconds. If the passenger
airbag is active, the “yellow”
warning light switches off after
a few seconds. If the passenger
airbag is NOT active, the
“yellow” warning light
stays on.
WARNING
If the “red” ûwarning
light does not switch on
for a few seconds when the key
is turned to MAR, there may be
a fault with the “red” warning
light. In this case, the “yellow”
warning light starts to flash
after a few seconds and, for
versions/markets where
provided, the explosive charge
of the passenger airbag is
deactivated.
WARNING
The expiry date of the
explosive charge is
shown on a specific label
contained in the glove box;
contact a Fiat Dealership to
have it replaced when this
expiry date approaches.
WARNING
In the event of “yellow”
Fwarning light
failure, the “red”
ûwarning
light switches on and, for
versions/markets where
provided, the explosive charge
of the passenger airbag is
deactivated.
WARNING
