engine FIAT STRADA 2012 Owner handbook (in English)

For diesel engines, in the event of an emergency in which the original products are not available, lubricants with at least
ACEA C2 performance are acceptable; however, in this case optimum engine performance is not guaranteed and the
lubricants should be replaced with recommended products as soon as possible at a Fiat Dealership.
The use of products with lower specifications than ACEA C2 could cause damage to the engine not covered by warranty.
For particularly harsh climate conditions, ask a Fiat Dealership for the appropriate product from PETRONAS
LUBRICANTS.
SAE 5W-30 grade synthetic-based lubricant,
FIAT 9.55535-S1classification. Lubricants
for diesel enginesSELENIA WR P.E.
Contractual Technical
Reference No. F510.D07According to
Scheduled
Servicing Plan

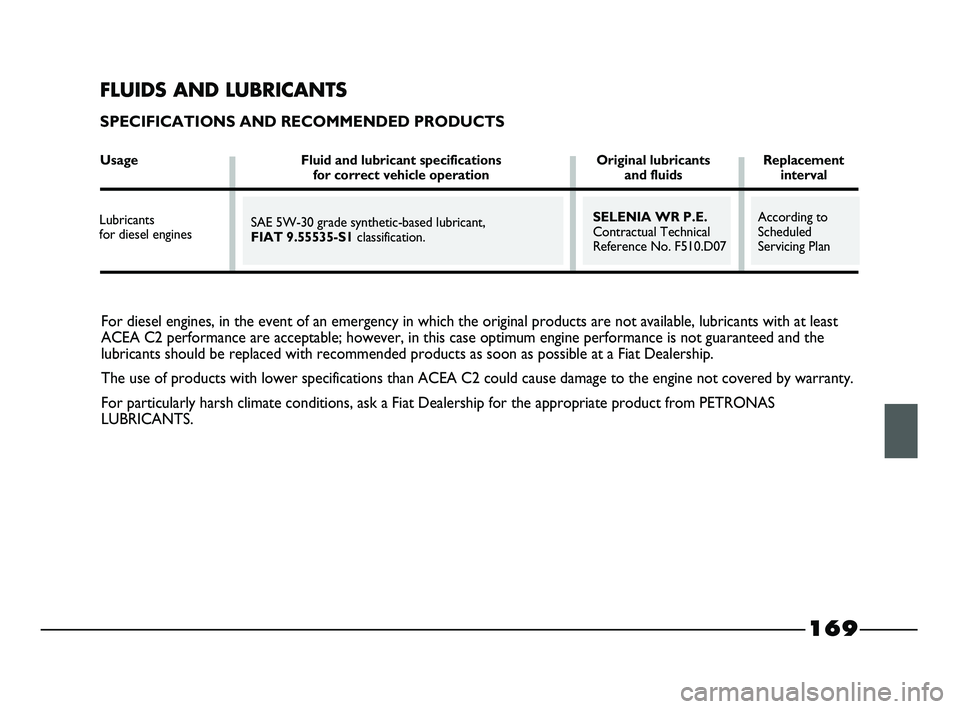

FLUIDS AND LUBRICANTS
SPECIFICATIONS AND RECOMMENDED PRODUCTS
Usage Fluid and lubricant specifications Original lubricants Replacementfor correct vehicle operation and fluids interval
169
155-184 STRADA LUM GB 1ed 20-01-2012 9:34 Pagina 169

173

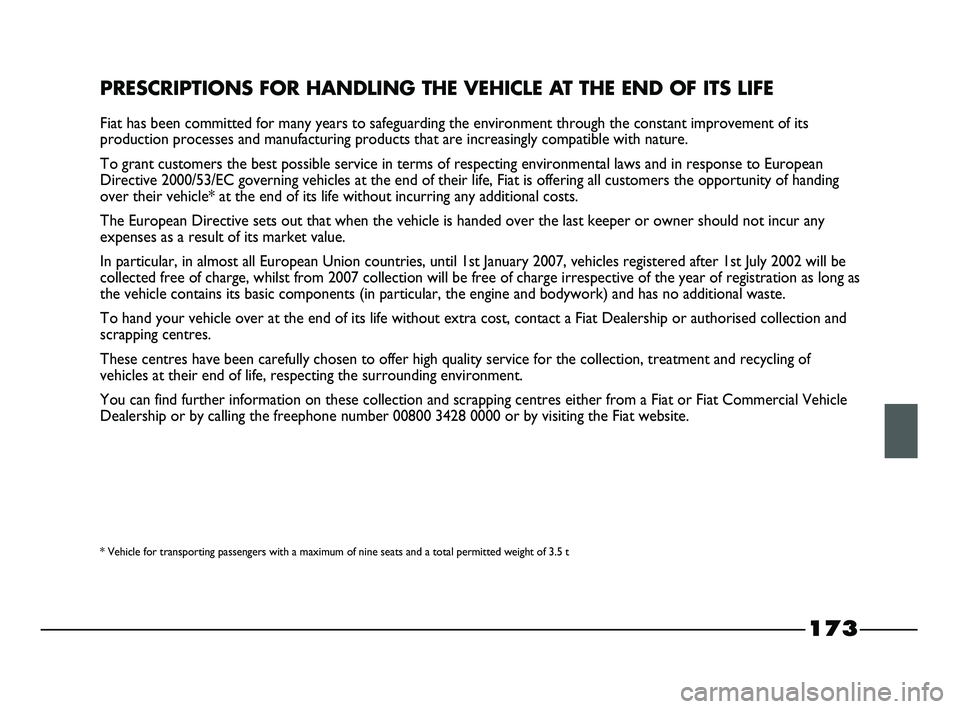

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFE
Fiat has been committed for many years to safeguarding the environment through the constant improvement of its
production processes and manufacturing products that are increasingly compatible with nature.
To grant customers the best possible service in terms of respecting environmental laws and in response to European
Directive 2000/53/EC governing vehicles at the end of their life, Fiat is offering all customers the opportunity of handing
over their vehicle* at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any
expenses as a result of its market value.
In particular, in almost all European Union countries, until 1st January 2007, vehicles registered after 1st July 2002 will be
collected free of charge, whilst from 2007 collection will be free of charge irrespective of the year of registration as long as
the vehicle contains its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, contact a Fiat Dealership or authorised collection and
scrapping centres.
These centres have been carefully chosen to offer high quality service for the collection, treatment and recycling of
vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat or Fiat Commercial Vehicle
Dealership or by calling the freephone number 00800 3428 0000 or by visiting the Fiat website.
* Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
155-184 STRADA LUM GB 1ed 20-01-2012 9:34 Pagina 173

®
Always ask your mechanic for
®
Pagine_ITA.indd 118-05-2005 11:53:40
In the heart of your engine.
155-184 STRADA LUM GB 1ed 20-01-2012 9:34 Pagina 174

Pagine_ITA.indd 118-05-2005 11:53:40

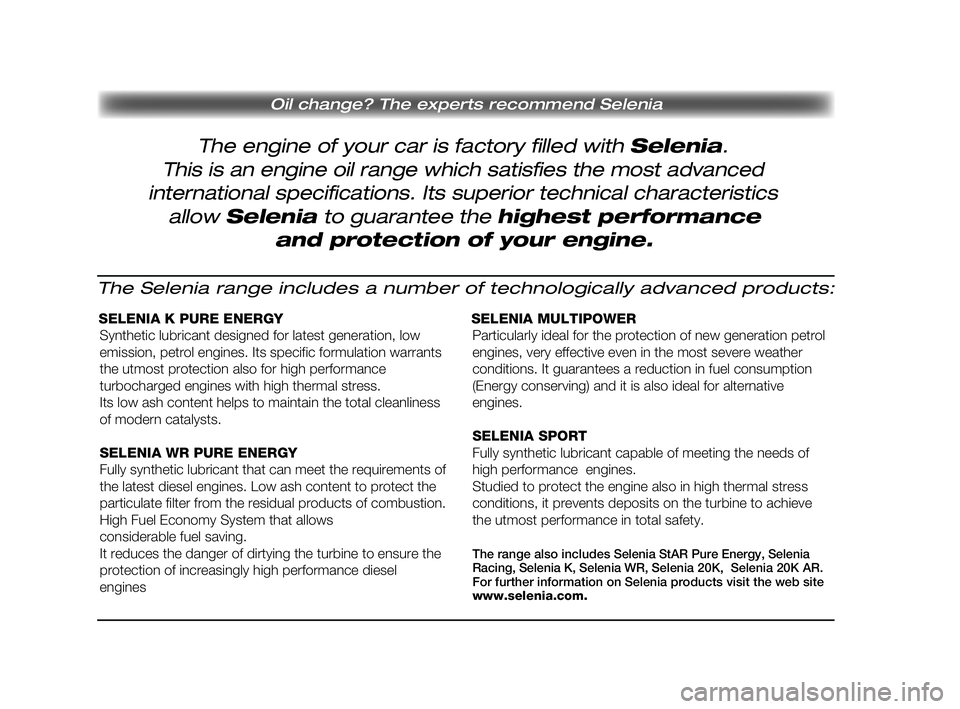

The engine of your car is factory filled with Selenia.
Oil change? The experts recommend Selenia
This is an engine oil range which satisfies the most advanced
international specifications. Its superior technical characteristics
allow Selenia to guarantee the highest performance
and protection of your engine.
The Selenia range includes a number of technologically advanced products:
SELENIA K PURE ENERGY
Pagine_ITA.indd 418-05-2005 11:54:19
Synthetic lubricant designed for latest generation, low
emission, petrol engines. Its specific formulation warrants
the utmost protection also for high performance
turbocharged engines with high thermal stress.
Its low ash content helps to maintain the total cleanliness
of modern catalysts.
SELENIA WR PURE ENERGY
Fully synthetic lubricant that can meet the requirements of
the latest diesel engines. Low ash content to protect the
particulate filter from the residual products of combustion.
High Fuel Economy System that allows
considerable fuel saving.
It reduces the danger of dirtying the turbine to ensure the
protection of increasingly high performance diesel
enginesSELENIA MULTIPOWER
Particularly ideal for the protection of new generation petrol
engines, very effective even in the most severe weather
conditions. It guarantees a reduction in fuel consumption
(Energy conserving) and it is also ideal for alternative
engines.
SELENIA SPORT
Fully synthetic lubricant capable of meeting the needs of
high performance engines.
Studied to protect the engine also in high thermal stress
conditions, it prevents deposits on the turbine to achieve
the utmost performance in total safety.
The range also includes Selenia StAR Pure Energy, Selenia
Racing, Selenia K, Selenia WR, Selenia 20K, Selenia 20K AR.
For further information on Selenia products visit the web site
www.selenia.com.
