EXTERIOR LIGHTS
FAULT (amber)
(for versions/markets,
where provided)
The warning light will switch on, on
some versions, when a fault with
one of the following lights is
detected:
– side lights
– brake lights
– rear fog lights
– direction indicators
– number plate lights.
The fault relating to these lights
could be: one or more blown bulbs,
a blown protection fuse or a break
in the electrical connection.
On some versions, the display shows
a dedicated message.The presence of water in
the fuel supply circuit
may cause severe
damage to the injection system
and irregular engine operation.
If the
cwarning light switches
on (on some versions together
with the message on the
display), contact a Fiat
Dealership as soon as possible
to have the system bled. If this
problem is indicated
immediately after refueling,
water may have entered the fuel
tank. In this case, stop the
engine immediately and contact
a Fiat Dealership.
W
WATER IN DIESEL
FILTER (amber)
When the key is turned to MAR, the
warning light switches on but should
switch off after a few seconds.
The cwarning light switches on
when there is water in the diesel
filter.
On some versions, the display shows
a dedicated message.
c
52
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 52

113
Modifications or repairs
to the electrical system
that are not carried out
correctly or do not take the
system’s technical
specifications into account can
cause malfunctions leading to
the risk of fire.
WARNING
Halogen bulbs contain
pressurised gas. Glass
shards may be projected if a
bulb breaks.
WARNING
Halogen bulbs must be
handled by holding the
metal part only. If the
transparent bulb is touched with
the fingers, its lighting intensity
is reduced and life of the bulb
may be compromised. In the
event of accidental contact,
wipe the bulb with a cloth
moistened with alcohol and let
the bulb dry.
Where possible, it is
advisable to have bulbs
changed at a Fiat
Dealership. The correct
operation and direction of the
exterior lights are absolutely
essential for the driving in safety
and compliance with law.
– Burnt bulbs must be replaced by
others of the same type and
power.
– Always check the direction of the
beam after changing a headlight
bulb, for reasons of safety.
TYPES OF BULBS
Various types of bulbs are fitted on
your vehicle fig. 119:
A. All-glass bulbs
These are press-fitted.
Pull to remove them.
B. Bayonet bulbs
To remove this type of bulb from
the holder, press the bulb and turn it
anticlockwise.
C. Cylindrical bulbs
Release from the contacts to
remove.
D-E. Halogen bulbs
Detach the locking spring from its
housing to remove the bulb.IF YOU NEED TO
REPLACE A BULB
GENERAL INSTRUCTIONS
– When a light is not working,
check that the corresponding fuse
is intact before replacing the bulb.
– For the location of fuses, refer to
the paragraph “If you blow a fuse”
in this section.
– Before changing a burnt bulb,
check the contacts for oxidation.
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 113

114
fig. 119
F0X0100mD
E
D
E
A
B
B
E
B
B
B
A
C
C
C
C
EH4
H1
H4
H1
W5W
PY21W
PY21W
H1
P21/5W
P21/5W
P21W
C5W
C10W
C10W-W5W
C10W
C5W
H160W
55W
55W
55W
5W
21W
21W
55W
21W
5W/21W
21W
5W
10W
C10W-5W
10W
5W
55W
Bulbs fig. 119 Type Power
Main beam:
Headlights with single lens
Main beam:
Polyelliptical headlights
Dipped:
Headlights with single lens
Main beam:
Polyelliptical headlights
Front side lights
Front indicators
Rear indicators
Fog lights
Rear fog lights
Rear side / brake lights
Reverse
Number plate
Front roof light:
with tilting lens
Front roof light:
with spot light
Rear roof light (
for versions/markets, where provided)
Glove compartment
Driving lights
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 114

115
IF AN EXTERIOR LIGHT
STOPS WORKING
MAIN BEAM AND
DIPPED HEADLIGHTS
To replace the halogen bulbs of main
beam or dipped headlights, proceed
as follows:
Single-lens headlights
– disconnect connector A-fig. 120;
– remove rubber gaiter B-fig. 121;
– release fixing spring C-fig. 122
then remove bulb D;– insert the new bulb, aligning the
tabs of the metal part with the
grooves on the curve of the
headlight;
– reattach the fixing spring, refit the
gaiter and reconnect the
connector.Polyelliptical headlights
– remove cover A-fig. 123 to
replace the dipped beam bulb or B
to replace the main beam bulb;
fig. 123
F0X0104m
fig. 122
F0X0103m
fig. 120
F0X0101m
fig. 121
F0X0102m
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 115

116
– disconnect connector B-fig. 124;
– release fixing spring A then
remove the bulb;
– insert the new bulb in the
dedicated housing, reattach the
fixing spring, reconnect the
connector and close the cover.FRONT DIRECTION
INDICATORS
To change the bulbs of the direction
indicators, proceed as follows:
Single-lens headlights
– remove the bulb holder assembly
A-fig. 125, turning it anticlockwise;
– remove the bulb, pushing it gently
and turning it anticlockwise;
– insert the new bulb, pushing it
gently and turning it clockwise,
then refit the bulb holder
assembly.Polyelliptical headlights
– remove cover C-fig. 123, turning it
clockwise;
– remove bulb A-fig. 126 pushing it
gently and turning it clockwise;
– insert the new bulb, pushing it
gently and turning it anticlockwise,
then refit the bulb holder
assembly.
fig. 126
F0X0107m
fig. 124
F0X0105m
fig. 125
F0X0106m
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 116

117
FRONT SIDE LIGHTS
To change the bulbs of the side
lights, proceed as follows:
Single-lens headlights
– remove the bulb holder assembly
A-fig. 127, turning it anticlockwise;
– remove the bulb from the bulb
holder;
– insert the new bulb then refit the
bulb holder assembly.Polyelliptical headlights
– remove cover B-fig. 123, turning it
anticlockwise;
– remove bulb holder assembly
A-fig. 128;
– remove the bulb from the bulb
holder;
– insert the new bulb, reinsert the
bulb holder assembly then close
the cover, rotating it clockwise.FRONT FOG LIGHTS
To replace the front fog light bulbs,
contact a Fiat Dealership.
SIDE INDICATORS
These are located in the door
mirrors fig. 129 and are LED type.
In the event of a failure, contact a
Fiat Dealership.
fig. 129
F0X0110m
fig. 127
F0X0108m
fig. 128
F0X0109m
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 117

118

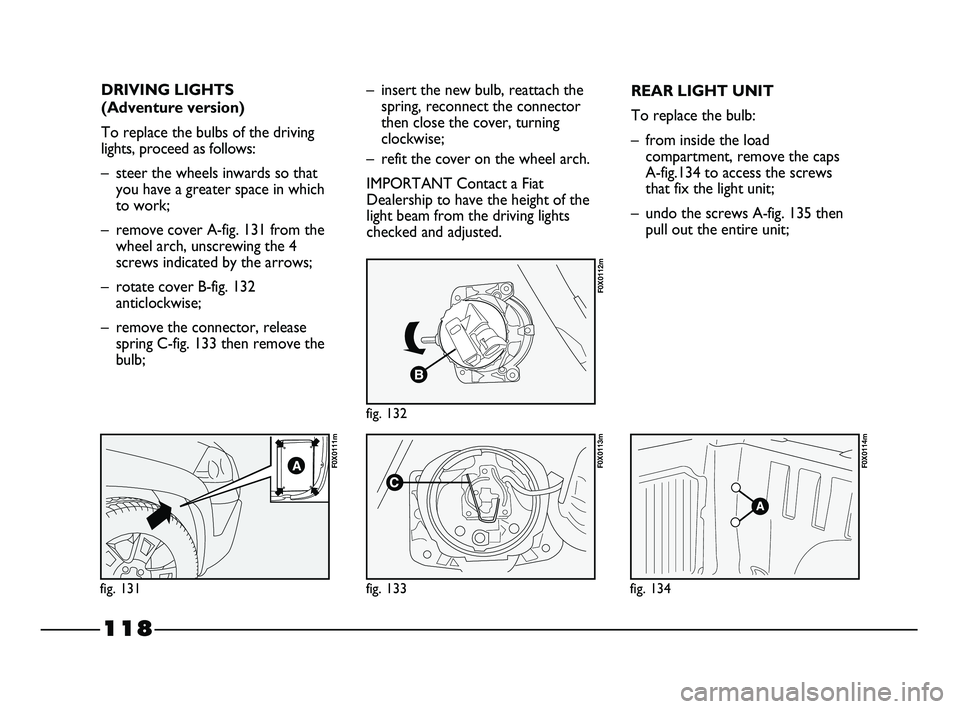

DRIVING LIGHTS
(Adventure version)
To replace the bulbs of the driving
lights, proceed as follows:
– steer the wheels inwards so that
you have a greater space in which
to work;
– remove cover A-fig. 131 from the
wheel arch, unscrewing the 4
screws indicated by the arrows;
– rotate cover B-fig. 132
anticlockwise;
– remove the connector, release
spring C-fig. 133 then remove the
bulb;
fig. 131
F0X0111m
fig. 132
F0X0112m
fig. 133
F0X0113m
fig. 134
F0X0114m
– insert the new bulb, reattach the
spring, reconnect the connector
then close the cover, turning
clockwise;
– refit the cover on the wheel arch.
IMPORTANT Contact a Fiat
Dealership to have the height of the
light beam from the driving lights
checked and adjusted.REAR LIGHT UNIT
To replace the bulb:
– from inside the load
compartment, remove the caps
A-fig.134 to access the screws
that fix the light unit;
– undo the screws A-fig. 135 then
pull out the entire unit;
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 118

119
fig. 135
F0X0115m
fig. 136
F0X0116m
fig. 137
F0X0117m
– disconnect the connector then
undo the screws A-fig. 136 to
access the bulbs to be replaced;
– remove the bulbs, pushing them
slightly and turning them
anticlockwise;
The bulbs fig. 136 are:
B - 12V-P21/5W for the brake lights
C - 12V-P21W for the reversing
lights
D - 12V-P21W for the direction
indicators
E - 12V-P21/5W for the side lights
and rear fog lights.3rdBRAKE LIGHT
The third brake light is LED type.
In the event of a failure, contact a
Fiat Dealership.NUMBER PLATE LIGHT
fig. 137
To replace the bulb:
1) undo the fixing screws A and
remove the lens.
2) remove the bulb holder, rotating
it slightly, and replace press-fitted
bulb B.
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 119

120
IF AN INTERNAL LIGHT
STOPS WORKING

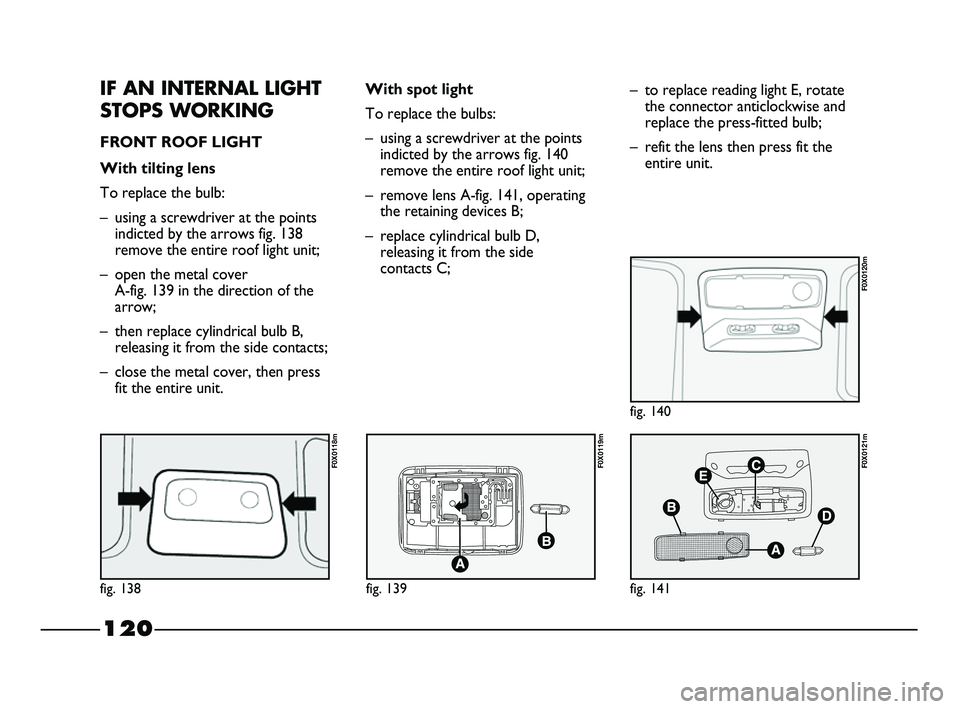

FRONT ROOF LIGHT
With tilting lens
To replace the bulb:
– using a screwdriver at the points
indicted by the arrows fig. 138
remove the entire roof light unit;
– open the metal cover
A-fig. 139 in the direction of the
arrow;
– then replace cylindrical bulb B,
releasing it from the side contacts;
– close the metal cover, then press
fit the entire unit.With spot light
To replace the bulbs:
– using a screwdriver at the points
indicted by the arrows fig. 140
remove the entire roof light unit;
– remove lens A-fig. 141, operating
the retaining devices B;
– replace cylindrical bulb D,
releasing it from the side
contacts C;– to replace reading light E, rotate
the connector anticlockwise and
replace the press-fitted bulb;
– refit the lens then press fit the
entire unit.
fig. 138
F0X0118m
fig. 139
F0X0119m
fig. 141
F0X0121m
fig. 140
F0X0120m
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 120

121
fig. 143
F0X0123m
fig. 142
F0X0122m
fig. 144
F0X0124m
fig. 145
F0X0125m

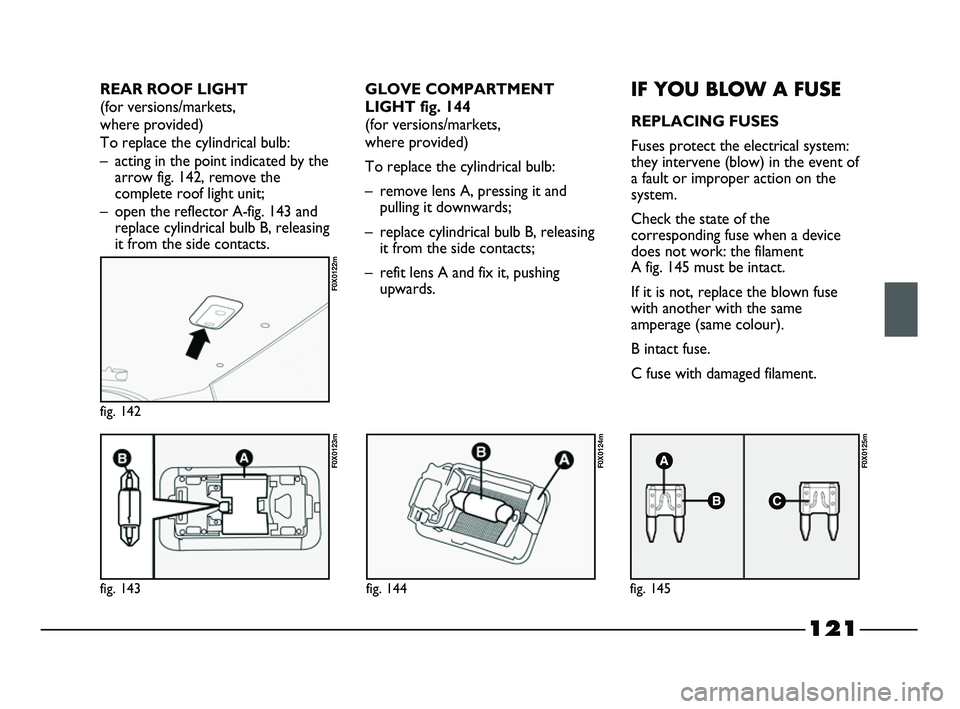

GLOVE COMPARTMENT
LIGHT fig. 144
(for versions/markets,
where provided)
To replace the cylindrical bulb:
– remove lens A, pressing it and
pulling it downwards;
– replace cylindrical bulb B, releasing
it from the side contacts;
– refit lens A and fix it, pushing
upwards.IF YOU BLOW A FUSE
REPLACING FUSES
Fuses protect the electrical system:
they intervene (blow) in the event of
a fault or improper action on the
system.
Check the state of the
corresponding fuse when a device
does not work: the filament
A fig. 145 must be intact.
If it is not, replace the blown fuse
with another with the same
amperage (same colour).
B intact fuse.
C fuse with damaged filament. REAR ROOF LIGHT
(for versions/markets,
where provided)
To replace the cylindrical bulb:
– acting in the point indicated by the
arrow fig. 142, remove the
complete roof light unit;
– open the reflector A-fig. 143 and
replace cylindrical bulb B, releasing
it from the side contacts.
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 121
