rear view mirror FIAT STRADA 2012 Owner handbook (in English)

18
INTERIOR REAR VIEW
MIRROR fig. 17
This is adjustable. Move lever A for:
1) normal position
2) anti-glare position.
It also features a safety device which
causes it to detach in the event of
impact.
It can be adjusted vertically:
1) Move lever A to position 1.
2) Adjust the steering wheel.
3) Return the lever to position 2 to
lock the steering wheel again. STEERING WHEEL fig. 16
fig. 17
F0X0017m
fig. 16
F0X0016m
fig. 15
F0X0015m
Rear
(Crew Cab version)
Height-adjustable headrests are
provided for the rear seats. Some
versions feature a third central
headrest which can be adjusted to 2
height positions only: completely
raised / completely lowered.
To remove the headrests, operate
the retaining devices A-fig. 15 then
slide them upwards.
Adjustment must only
be carried out with
vehicle stationary.
WARNING
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 18

fig. 73
F0X0049m
fig. 74
F0X0050m
If the power socket is
used as a cigar lighter,
remember that it reaches high
temperatures. Handle with
care and make sure that
children don’t touch it: risk of
fire and burns.
WARNING
After using the cigar
lighter, always make
sure that it is deactivated.
WARNING

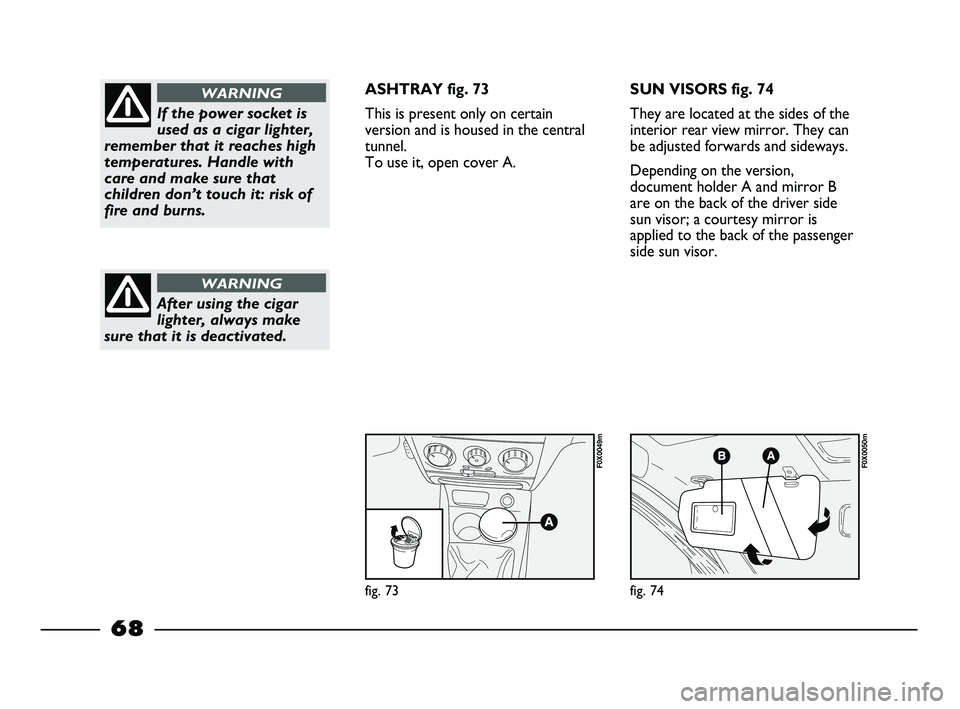

ASHTRAY fig. 73
This is present only on certain
version and is housed in the central
tunnel.
To use it, open cover A.SUN VISORS fig. 74
They are located at the sides of the
interior rear view mirror. They can
be adjusted forwards and sideways.
Depending on the version,
document holder A and mirror B
are on the back of the driver side
sun visor; a courtesy mirror is
applied to the back of the passenger
side sun visor.
68
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 68

104
TOWING TRAILERS
IMPORTANT
The vehicle must be equipped with a
type-approved tow hook and
adequate electrical system to tow
trailers.
Install any specific and/or additional
rear view mirrors as specified by the
Highway Code.
Remember that when towing a
trailer, steep hills are harder to
climb, stopping distances increase
and overtaking takes longer
depending on the overall weight.
Engage a low gear when driving
downhill, rather than constantly
using the brake.
The weight of the trailer on the
vehicle tow hook will reduce the
loading capacity of the vehicle by the
same amount.
To make sure that the maximum
towable weight is not exceeded, the
fully laden trailer weight, including
accessories and luggage, must be
taken into account.Do not exceed the speed limits
specific to each country you are
driving in, in the case of vehicles
towing trailers. In any case, the top
speed must not exceed 80 km/h.
The ABS system does
not control the braking
system of the trailer. Particular
caution is therefore required
on slippery surfaces.
WARNING
Never modify the
braking system of the
vehicle to control the trailer
brake. The trailer’s braking
system must be completely
independent from the
hydraulic system of the vehicle.
WARNING
SNOW CHAINS
The use of chains is subject to local
regulations.
Chains may be applied only to the
tyres of the drive wheels (front
wheels).
Use “spider” type reduced size snow
chains.
Keep your speed
down when snow
chains are fitted;
do not exceed 50 km/h.
Avoid potholes, steps and
pavements and avoid driving
long distances on roads not
covered with snow, to avoid
damaging the vehicle and the
road surface.
095-106 STRADA LUM GB 1ed 9-01-2012 14:51 Pagina 104

Rear fog lights
- bulb replacement............................................................118-119
- control ..................................................................................... 64
Rear roof light
- bulb replacement ................................................................. 121
- control ..................................................................................... 67
Rear roof light
- bulb replacement ................................................................. 121
- control ..................................................................................... 67
Rear view mirrors
- door mirrors ..........................................................................19
- interior .................................................................................... 18
Refuelling........................................................................................ 92
- filling the tank......................................................................... 93
- fuel cap .................................................................................... 93
- saving....................................................................................... 102
Remote control battery (replacement) ................................... 10
Remote control ............................................................................ 8
- additional................................................................................. 9
- ministerial approval............................................................... 10
- replacing the battery ............................................................ 10
Rev counter .................................................................................. 29
Reversing lights
- bulb replacement............................................................118-119
Right stalk ....................................................................................... 60
Rim Protector (tyres) ................................................................. 162
Rims
- correct reading ..................................................................... 163
- specifications ......................................................................... 163
Roll and pitch meters
- pitch meter............................................................................. 30
- recalibrating the instruments ............................................ 31
- roll meter................................................................................30
Rubber tubes................................................................................. 148Scrappage ................................................................................. 171
Scrapping the vehicle................................................................... 173
Seat belts .......................................................................................20
- front ........................................................................................ 20
- general instructions .............................................................. 22
- height adjustment ................................................................. 20
- maintenance .......................................................................... 24
- rear ......................................................................................... 21
Seats
- adjusting ..................................................................................16-17
- cleaning ....................................................................................153
Set-up menu................................................................................... 34
Side lights
- control ..................................................................................... 61
- front bulb replacement ....................................................... 117
- rear bulb replacement..........................................................118
Snow chains .................................................................................. 104
Socket ............................................................................................. 67
Speed ratings (tyres) ................................................................... 162
Speedometer................................................................................. 27
Starting the engine ......................................................................95-96
- bump starting ........................................................................ 108
- ignition switch ....................................................................... 11
- jump starting ......................................................................... 107
Steering lock ................................................................................. 11
Steering wheel ...............................................................................18
Steering........................................................................................... 160
Sun visors ...................................................................................... 68
Sun visors ....................................................................................... 68
Sunroof........................................................................................... 71
Suspension...................................................................................... 160
Symbols........................................................................................... 7
183
155-184 STRADA LUM GB 1ed 20-01-2012 9:34 Pagina 183
