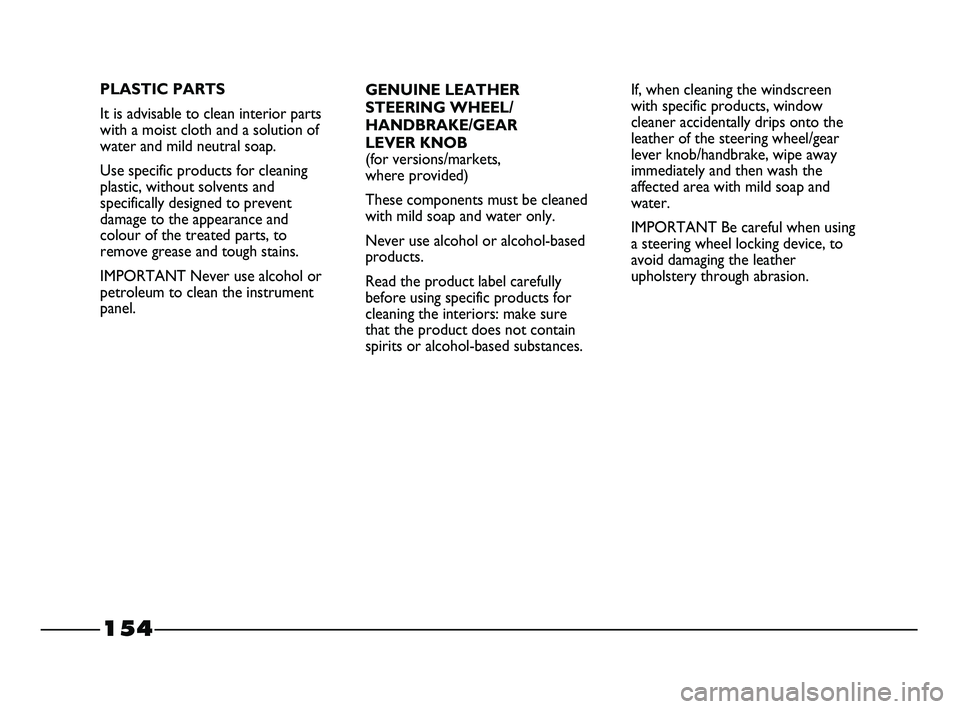

GENUINE LEATHER
STEERING WHEEL/
HANDBRAKE/GEAR
LEVER KNOB
(for versions/markets,
where provided)
These components must be cleaned
with mild soap and water only.
Never use alcohol or alcohol-based
products.
Read the product label carefully
before using specific products for
cleaning the interiors: make sure
that the product does not contain
spirits or alcohol-based substances.If, when cleaning the windscreen
with specific products, window
cleaner accidentally drips onto the
leather of the steering wheel/gear
lever knob/handbrake, wipe away
immediately and then wash the
affected area with mild soap and
water.
IMPORTANT Be careful when using
a steering wheel locking device, to
avoid damaging the leather
upholstery through abrasion. PLASTIC PARTS
It is advisable to clean interior parts
with a moist cloth and a solution of
water and mild neutral soap.
Use specific products for cleaning
plastic, without solvents and
specifically designed to prevent
damage to the appearance and
colour of the treated parts, to
remove grease and tough stains.
IMPORTANT Never use alcohol or
petroleum to clean the instrument
panel.
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 154

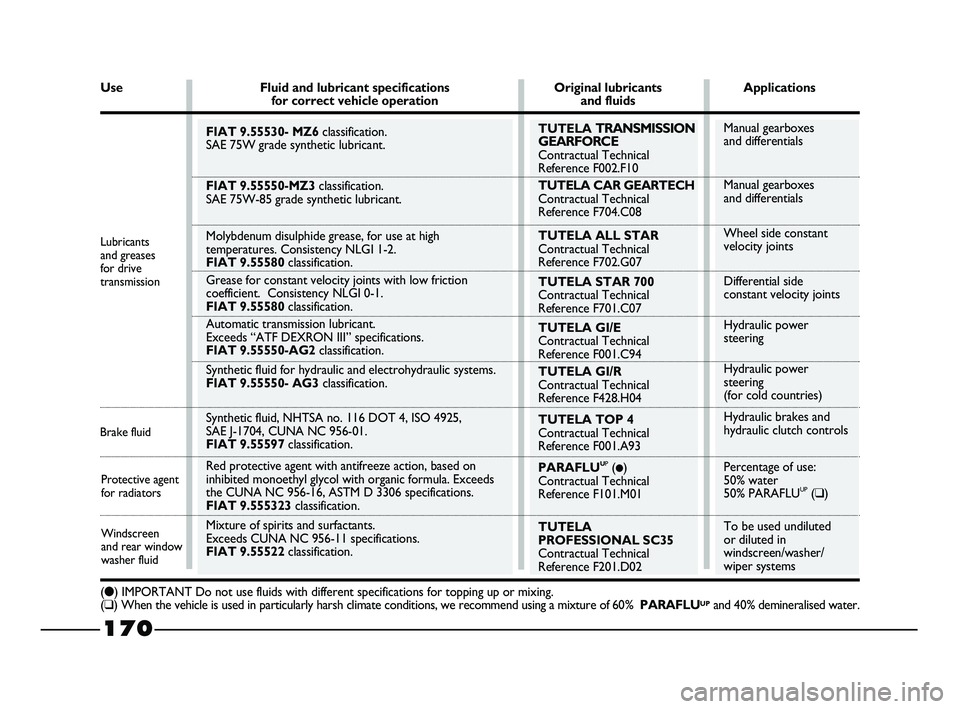

170
Protective agent
for radiators
Windscreen
and rear window
washer fluid Brake fluidLubricants
and greases
for drive
transmission
FIAT 9.55530- MZ6classification.
SAE 75W grade synthetic lubricant.
FIAT 9.55550-MZ3classification.
SAE 75W-85 grade synthetic lubricant.
Molybdenum disulphide grease, for use at high
temperatures. Consistency NLGI 1-2.
FIAT 9.55580classification.
Grease for constant velocity joints with low friction
coefficient. Consistency NLGI 0-1.
FIAT 9.55580classification.
Automatic transmission lubricant.
Exceeds “ATF DEXRON III” specifications.
FIAT 9.55550-AG2classification.
Synthetic fluid for hydraulic and electrohydraulic systems.
FIAT 9.55550- AG3classification.
Synthetic fluid, NHTSA no. 116 DOT 4, ISO 4925,
SAE J-1704, CUNA NC 956-01.
FIAT 9.55597classification.
Red protective agent with antifreeze action, based on
inhibited monoethyl glycol with organic formula. Exceeds
the CUNA NC 956-16, ASTM D 3306 specifications.
FIAT 9.555323classification.
Mixture of spirits and surfactants.
Exceeds CUNA NC 956-11 specifications.
FIAT 9.55522classification.Manual gearboxes
and differentials
Manual gearboxes
and differentials
Wheel side constant
velocity joints
Differential side
constant velocity joints
Hydraulic power
steering
Hydraulic power
steering
(for cold countries)
Hydraulic brakes and
hydraulic clutch controls
Percentage of use:
50% water
50% PARAFLU
UP(❑)
To be used undiluted
or diluted in
windscreen/washer/
wiper systems
TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference F002.F10
TUTELA CAR GEARTECH
Contractual Technical
Reference F704.C08
TUTELA ALL STAR
Contractual Technical
Reference F702.G07
TUTELA STAR 700
Contractual Technical
Reference F701.C07
TUTELA GI/E
Contractual Technical
Reference F001.C94
TUTELA GI/R
Contractual Technical
Reference F428.H04
TUTELA TOP 4
Contractual Technical
Reference F001.A93
PARAFLU
UP(●)
Contractual Technical
Reference F101.M01
TUTELA
PROFESSIONAL SC35
Contractual Technical
Reference F201.D02 Use Fluid and lubricant specifications Original lubricants Applications
for correct vehicle operation and fluids
(●) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(❑) When the vehicle is used in particularly harsh climate conditions, we recommend using a mixture of 60% PARAFLUUPand 40% demineralised water.
155-184 STRADA LUM GB 1ed 20-01-2012 9:34 Pagina 170
