engine overheat FIAT STRADA 2015 Owner handbook (in English)

15
fig. 9F0X0009m
Adventure version fig. 9
A – Speedometer
B – Fuel level gauge with reserve
warning light
C – Engine coolant temperature
gauge with overheating warning
light
D – Rev counter
E – Display
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 15

28
IMPORTANT If the needle moves to
the beginning of the scale
(low temperature) with the
overheating warning light A on, this
indicates a fault in the system. If this
is the case, contact a Fiat Dealership
to have the system checked.
The needle may also approach the
red section when travelling too
slowly in a very hot climate. In this
case, it is best to stop for a while
and stop the engine.
Then restart and accelerate lightly.
fig. 38
F0X0302m
ENGINE COOLANT
TEMPERATURE GAUGE
fig. 37-38
If warning light A switches on in the
instrument panel, this indicates
overheating of the engine coolant.
In normal operating conditions, the
needle may move to various
positions within the scale according
to the vehicle usage conditions and
the management of the engine
cooling system performed
automatically by the system itself.
However, it should not move to the
red danger zone.
fig. 37
F0X0301m
IMPORTANT If the indicator shows
that the tank is empty and the
reserve warning light A-fig. 35-36
flashes, this indicates a fault in the
system. On some versions, the same
fault indication is provided by scale
C, which flashes on the display. If
this is the case, contact a Fiat
Dealership to have the system
checked.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 28

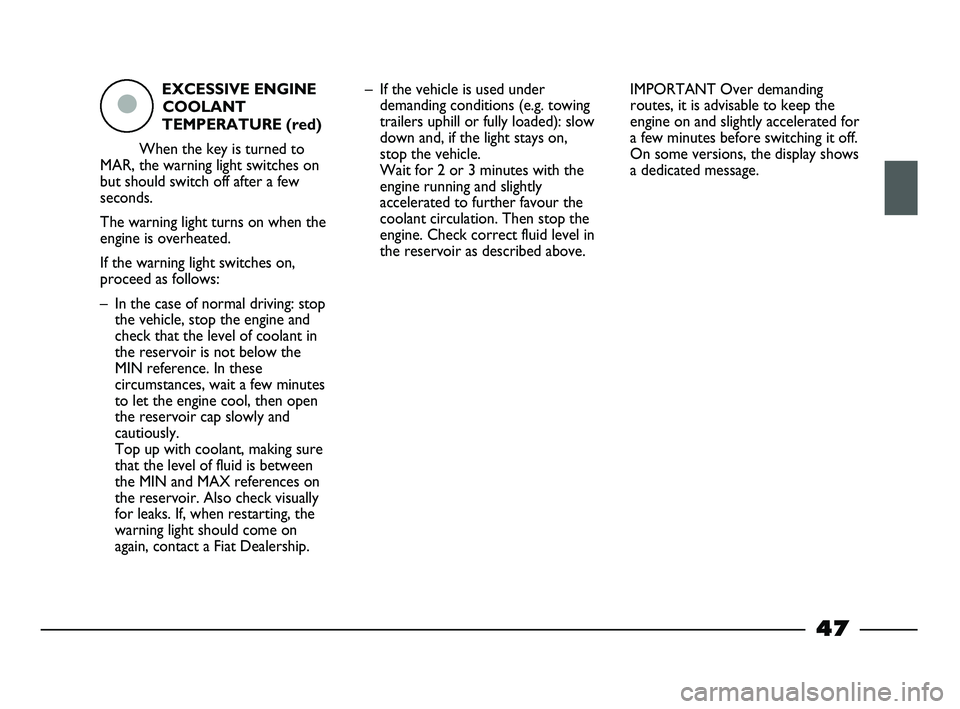

EXCESSIVE ENGINE
COOLANT
TEMPERATURE (red)
When the key is turned to
MAR, the warning light switches on
but should switch off after a few
seconds.
The warning light turns on when the
engine is overheated.
If the warning light switches on,
proceed as follows:
– In the case of normal driving: stop
the vehicle, stop the engine and
check that the level of coolant in
the reservoir is not below the
MIN reference. In these
circumstances, wait a few minutes
to let the engine cool, then open
the reservoir cap slowly and
cautiously.
Top up with coolant, making sure
that the level of fluid is between
the MIN and MAX references on
the reservoir. Also check visually
for leaks. If, when restarting, the
warning light should come on
again, contact a Fiat Dealership.
ç
– If the vehicle is used under
demanding conditions (e.g. towing
trailers uphill or fully loaded): slow
down and, if the light stays on,
stop the vehicle.
Wait for 2 or 3 minutes with the
engine running and slightly
accelerated to further favour the
coolant circulation. Then stop the
engine. Check correct fluid level in
the reservoir as described above.IMPORTANT Over demanding
routes, it is advisable to keep the
engine on and slightly accelerated for
a few minutes before switching it off.
On some versions, the display shows
a dedicated message.
47
