25
The pretensioner does not require
any maintenance or lubrication.
Anything that modifies its original
conditions invalidates its efficiency.
If, due to unusual natural events
(floods, sea storms, etc.), the device
has been affected by water and mud,
it must be replaced.
To obtain the highest degree of
protection from the action of the
pretensioner, wear the seat belt

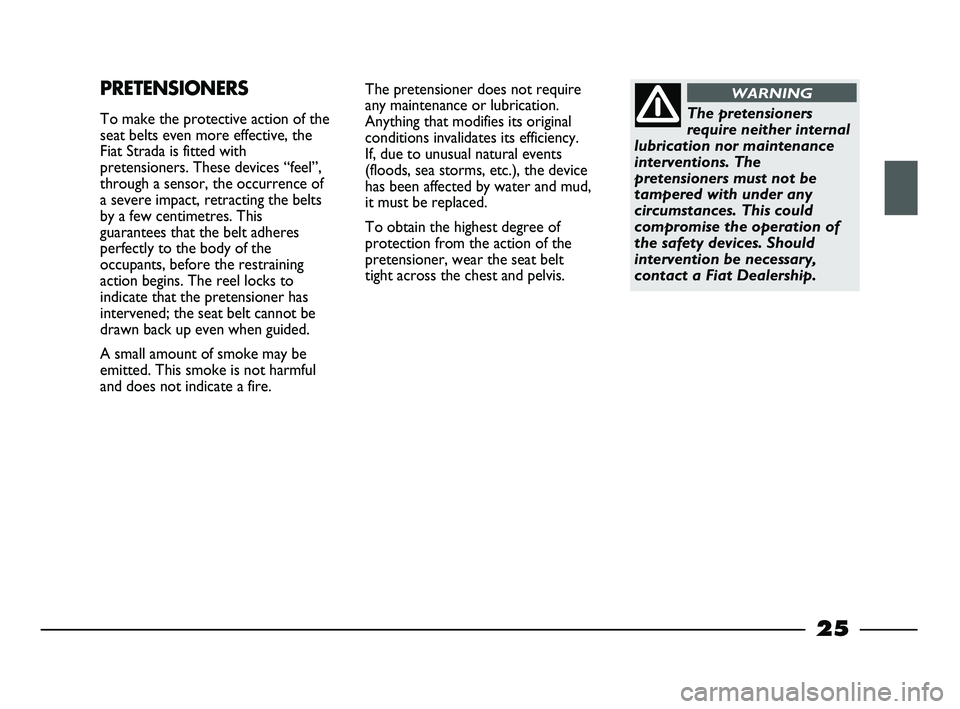

tight across the chest and pelvis.PRETENSIONERS
To make the protective action of the
seat belts even more effective, the
Fiat Strada is fitted with
pretensioners. These devices “feel”,
through a sensor, the occurrence of
a severe impact, retracting the belts
by a few centimetres. This
guarantees that the belt adheres
perfectly to the body of the
occupants, before the restraining
action begins. The reel locks to
indicate that the pretensioner has
intervened; the seat belt cannot be
drawn back up even when guided.
A small amount of smoke may be
emitted. This smoke is not harmful
and does not indicate a fire.The pretensioners
require neither internal
lubrication nor maintenance
interventions. The
pretensioners must not be
tampered with under any
circumstances. This could
compromise the operation of
the safety devices. Should
intervention be necessary,
contact a Fiat Dealership.
WARNING
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 25

36

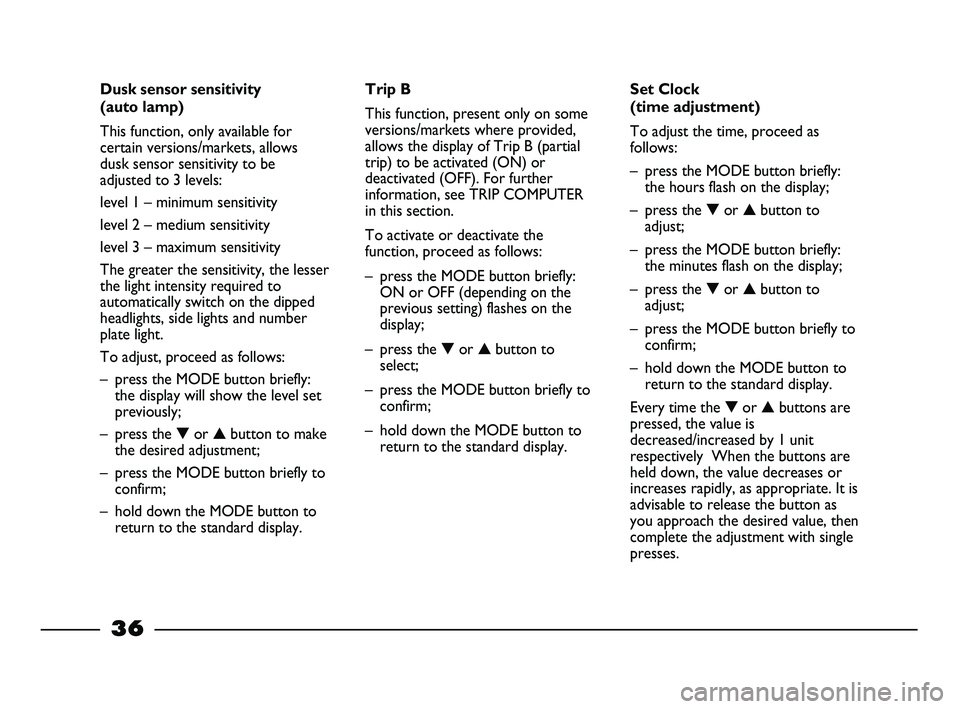

Dusk sensor sensitivity
(auto lamp)
This function, only available for
certain versions/markets, allows
dusk sensor sensitivity to be
adjusted to 3 levels:
level 1 – minimum sensitivity
level 2 – medium sensitivity
level 3 – maximum sensitivity
The greater the sensitivity, the lesser
the light intensity required to
automatically switch on the dipped
headlights, side lights and number
plate light.
To adjust, proceed as follows:
– press the MODE button briefly:
the display will show the level set
previously;
– press the ▼or ▲button to make
the desired adjustment;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.Trip B
This function, present only on some
versions/markets where provided,
allows the display of Trip B (partial
trip) to be activated (ON) or
deactivated (OFF). For further
information, see TRIP COMPUTER
in this section.
To activate or deactivate the
function, proceed as follows:
– press the MODE button briefly:
ON or OFF (depending on the
previous setting) flashes on the
display;
– press the ▼or ▲button to
select;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.Set Clock
(time adjustment)
To adjust the time, proceed as
follows:
– press the MODE button briefly:
the hours flash on the display;
– press the ▼or ▲button to
adjust;
– press the MODE button briefly:
the minutes flash on the display;
– press the ▼or ▲button to
adjust;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.
Every time the ▼or ▲buttons are
pressed, the value is
decreased/increased by 1 unit
respectively When the buttons are
held down, the value decreases or
increases rapidly, as appropriate. It is
advisable to release the button as
you approach the desired value, then
complete the adjustment with single
presses.
