service FIAT STRADA 2015 Owner handbook (in English)

We really know your vehicle because we invented,
designed and built it: we really know every single detail. At Fiat Professional Service authorised workshops
you can find technicians directly trained by us, offering quality and professionalism for all service operations.
Fiat Professional workshops are always close to you for the regular servicing operations,
season checks and practical recommendations by our experts.
With Fiat Professional Genuine Parts you keep the reliability, comfort and performance
features of your new vehicle unchanged in time: that's why you bought it for.
Always ask for Genuine Parts for the components used on our vehicles; we recommend them because they come from
our steady commitment in research and development of highly innovative technologies.
For all these reasons:
rely on Genuine Parts, because they are the only ones designed by Fiat Professional for your vehicle.
SAFETY:
BRAKING SYSTEMENVIRONMENT: PARTICULATE FILTERS,
CLIMATE CONTROL SYSTEM MAINTENANCECOMFORT:
SUSPENSION AND WINDSCREEN WIPERSPERFORMANCE:
SPARK PLUGS, INJECTORS
AND BATTERIESLINEACCESSORI:
ROOF RACK BARS, WHEEL RIMS
WHY CHOOSING
GENUINE PARTS

Dear Customer,
Thank you for choosing Fiat and congratulations on your choice of a Fiat Strada.
We have written this handbook to help you get to know all the features of your vehicle and use it in the best
possible way.
You are advised to read it right through before taking to the road for the first time. You will find information, advice
and important warnings regarding the use of your vehicle to help you get the most from the technological features of
your Fiat Strada.
Read the warnings and indications marked with the following symbols carefully:
personal safety;
vehicle integrity;
environmental protection.
The enclosed Warranty Booklet lists the services that Fiat offers to its Customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity;
❒the range of additional services available to Fiat customers.
Enjoy reading and happy motoring!
This Owner Handbook describes all Fiat Strada versions. As a consequence, you should
only consider the information which is related to the trim level, engine and
version that you have purchased.
001-006 STRADA LUM GB 1ed 9-01-2012 14:48 Pagina C

16
PERSONAL
ADJUSTMENTS
SEATS Lengthwise adjustment
Raise the lever A-fig. 10 and push
the seat forwards or backwards: in
driving position your arms should be
slightly bent and your hands should
rest on the rim of the steering
wheel.
After releasing the adjustment lever
always check that the seat is locked
into place by trying to move it back
and forth. Failure to lock the seat
could cause it to move and detach
from the guides.
All adjustments must be
made only with the
vehicle stationary.
WARNING
Do not remove the
seats or attempt to
service and/or repair them:
operations which are carried
out incorrectly may
compromise the operation of
the safety devices; always
contact a Fiat Dealership.
WARNING
fig. 10
F0X0010m
fig. 11
F0X0011m
Reclining backrest adjustment
Turn knob B-fig. 11 until the desired
backrest inclination is achieved.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 16

40

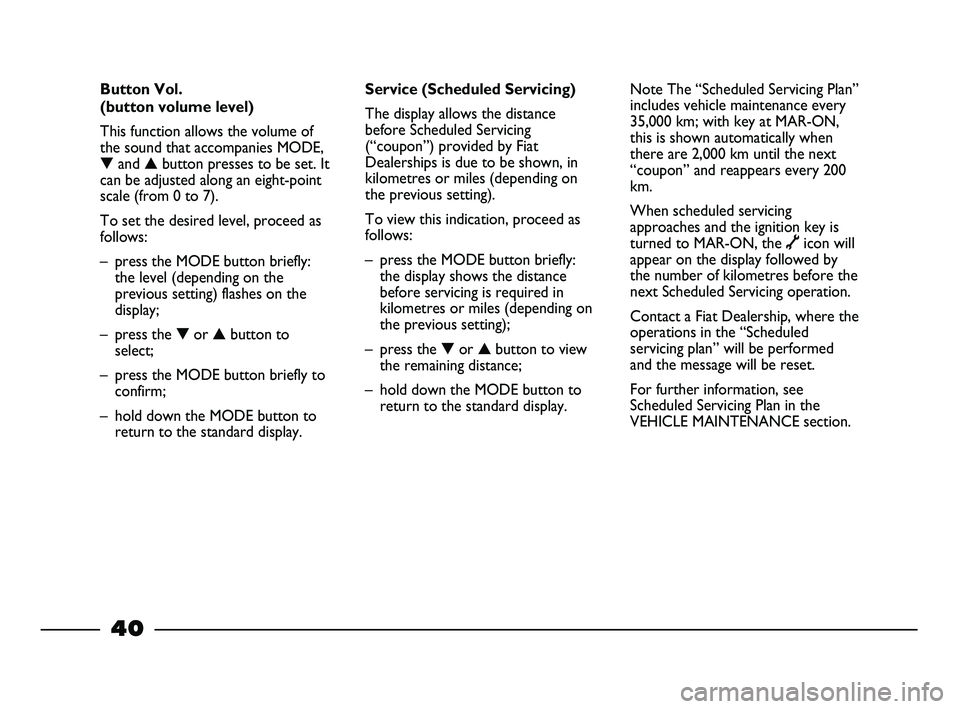

Service (Scheduled Servicing)
The display allows the distance
before Scheduled Servicing
(“coupon”) provided by Fiat
Dealerships is due to be shown, in
kilometres or miles (depending on
the previous setting).
To view this indication, proceed as
follows:
– press the MODE button briefly:
the display shows the distance
before servicing is required in
kilometres or miles (depending on
the previous setting);
– press the ▼or ▲button to view
the remaining distance;
– hold down the MODE button to
return to the standard display.Note The “Scheduled Servicing Plan”
includes vehicle maintenance every
35,000 km; with key at MAR-ON,
this is shown automatically when
there are 2,000 km until the next
“coupon” and reappears every 200
km.
When scheduled servicing
approaches and the ignition key is
turned to MAR-ON, the
õicon will
appear on the display followed by
the number of kilometres before the
next Scheduled Servicing operation.
Contact a Fiat Dealership, where the
operations in the “Scheduled
servicing plan” will be performed
and the message will be reset.
For further information, see
Scheduled Servicing Plan in the
VEHICLE MAINTENANCE section. Button Vol.
(button volume level)
This function allows the volume of
the sound that accompanies MODE,
▼and ▲button presses to be set. It
can be adjusted along an eight-point
scale (from 0 to 7).
To set the desired level, proceed as
follows:
– press the MODE button briefly:
the level (depending on the
previous setting) flashes on the
display;
– press the ▼or ▲button to
select;
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 40

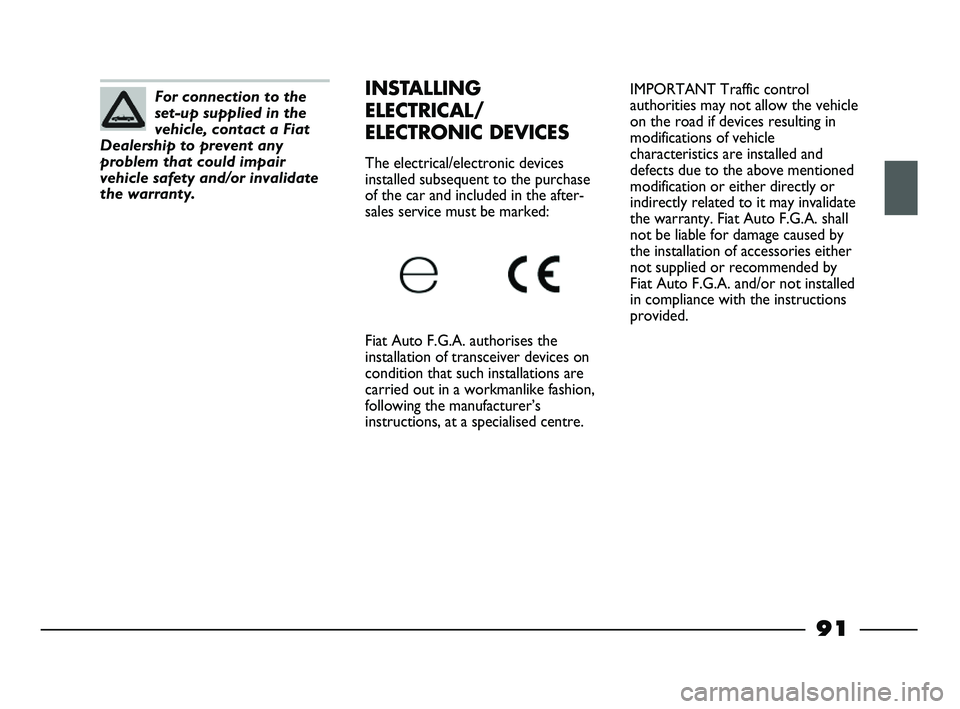

IMPORTANT Traffic control
authorities may not allow the vehicle
on the road if devices resulting in
modifications of vehicle
characteristics are installed and
defects due to the above mentioned
modification or either directly or
indirectly related to it may invalidate
the warranty. Fiat Auto F.G.A. shall
not be liable for damage caused by
the installation of accessories either
not supplied or recommended by
Fiat Auto F.G.A. and/or not installed
in compliance with the instructions
provided.For connection to the
set-up supplied in the
vehicle, contact a Fiat
Dealership to prevent any
problem that could impair
vehicle safety and/or invalidate
the warranty.INSTALLING
ELECTRICAL/
ELECTRONIC DEVICES
The electrical/electronic devices
installed subsequent to the purchase
of the car and included in the after-
sales service must be marked:
Fiat Auto F.G.A. authorises the
installation of transceiver devices on
condition that such installations are
carried out in a workmanlike fashion,
following the manufacturer’s
instructions, at a specialised centre.
91
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 91

122

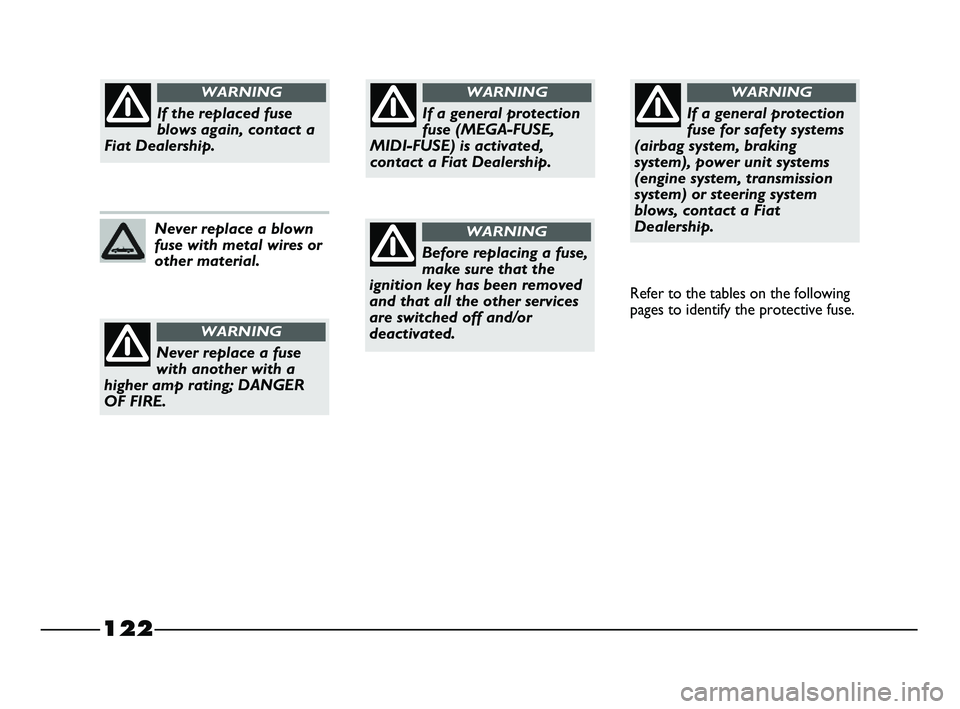

If a general protection
fuse (MEGA-FUSE,
MIDI-FUSE) is activated,
contact a Fiat Dealership.
WARNING
Before replacing a fuse,
make sure that the
ignition key has been removed
and that all the other services
are switched off and/or
deactivated.
WARNING
If a general protection
fuse for safety systems
(airbag system, braking
system), power unit systems
(engine system, transmission
system) or steering system
blows, contact a Fiat
Dealership.
WARNING
Refer to the tables on the following
pages to identify the protective fuse.
Never replace a blown
fuse with metal wires or
other material.
If the replaced fuse
blows again, contact a
Fiat Dealership.
WARNING
Never replace a fuse
with another with a
higher amp rating; DANGER
OF FIRE.
WARNING
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 122

125

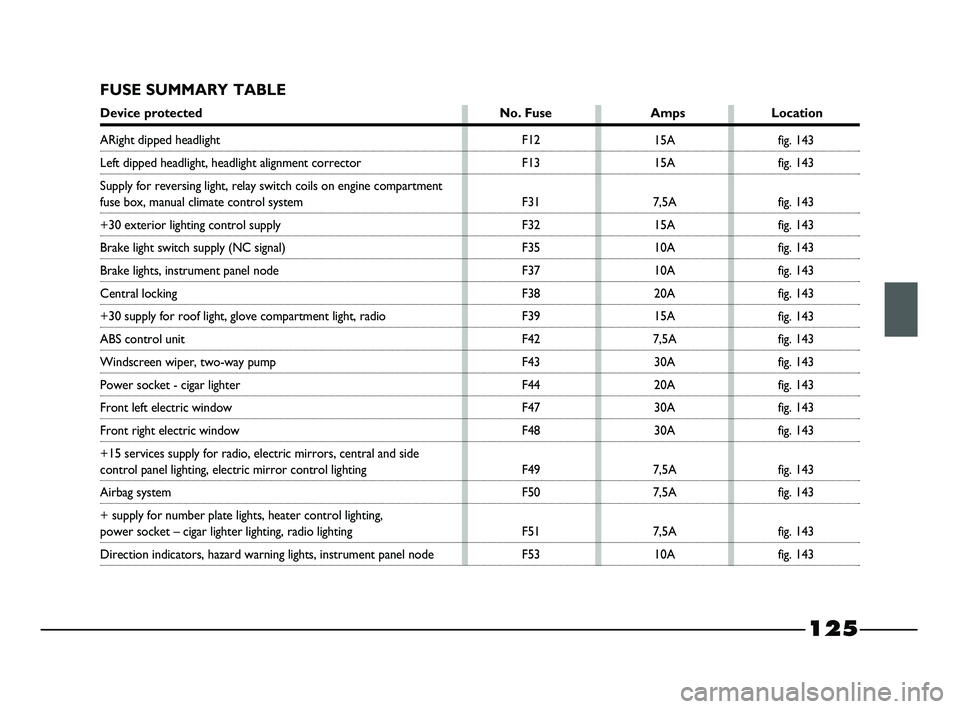

FUSE SUMMARY TABLE
Device protected No. Fuse Amps Location
F12
F13
F31
F32
F35
F37
F38
F39
F42
F43
F44
F47
F48
F49
F50
F51
F5315A
15A
7,5A
15A
10A
10A
20A
15A
7,5A
30A
20A
30A
30A
7,5A
7,5A
7,5A
10Afig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
ARight dipped headlight
Left dipped headlight, headlight alignment corrector
Supply for reversing light, relay switch coils on engine compartment
fuse box, manual climate control system
+30 exterior lighting control supply
Brake light switch supply (NC signal)
Brake lights, instrument panel node
Central locking
+30 supply for roof light, glove compartment light, radio
ABS control unit
Windscreen wiper, two-way pump
Power socket - cigar lighter
Front left electric window
Front right electric window
+15 services supply for radio, electric mirrors, central and side
control panel lighting, electric mirror control lighting
Airbag system
+ supply for number plate lights, heater control lighting,
power socket – cigar lighter lighting, radio lighting
Direction indicators, hazard warning lights, instrument panel node
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 125

133

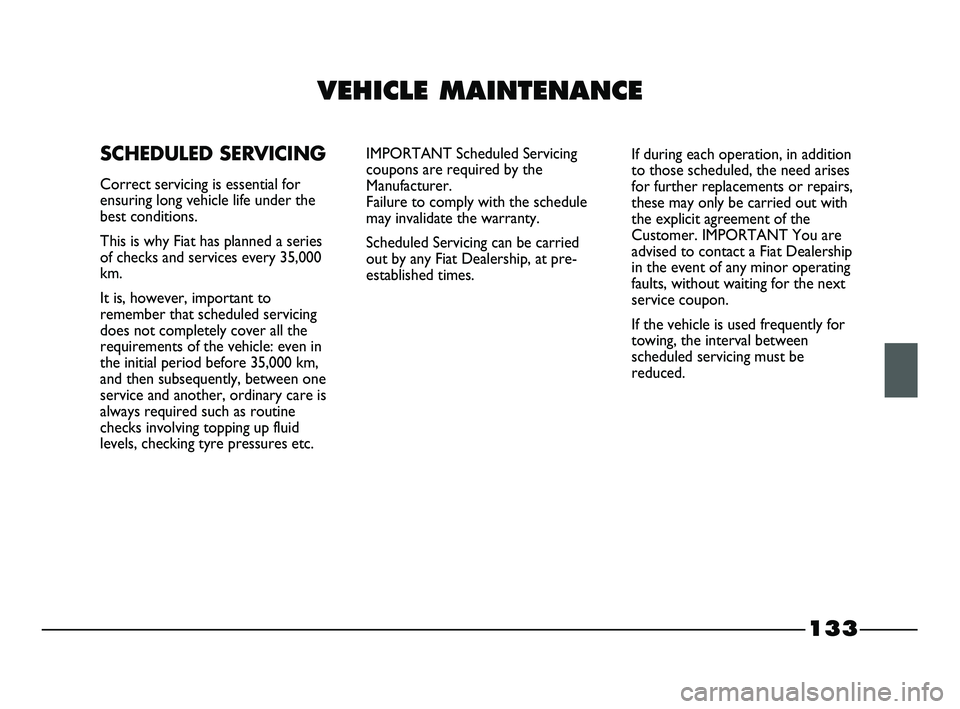

VEHICLE MAINTENANCE
SCHEDULED SERVICING
Correct servicing is essential for
ensuring long vehicle life under the
best conditions.
This is why Fiat has planned a series
of checks and services every 35,000
km.
It is, however, important to
remember that scheduled servicing
does not completely cover all the
requirements of the vehicle: even in
the initial period before 35,000 km,
and then subsequently, between one
service and another, ordinary care is
always required such as routine
checks involving topping up fluid
levels, checking tyre pressures etc.IMPORTANT Scheduled Servicing
coupons are required by the
Manufacturer.
Failure to comply with the schedule
may invalidate the warranty.
Scheduled Servicing can be carried
out by any Fiat Dealership, at pre-
established times.If during each operation, in addition
to those scheduled, the need arises
for further replacements or repairs,
these may only be carried out with
the explicit agreement of the
Customer. IMPORTANT You are
advised to contact a Fiat Dealership
in the event of any minor operating
faults, without waiting for the next
service coupon.
If the vehicle is used frequently for
towing, the interval between
scheduled servicing must be
reduced.
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 133

21 42 63 84 105
35 70 105 140 175
24 48 72 96 120
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●
134

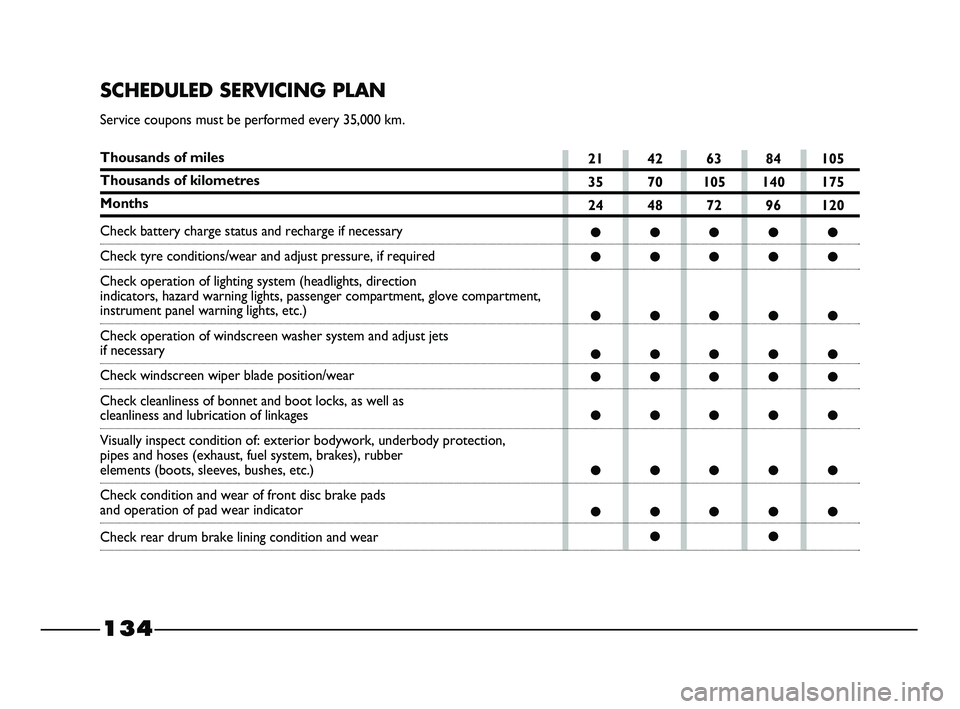

SCHEDULED SERVICING PLAN
Service coupons must be performed every 35,000 km.
Thousands of miles
Thousands of kilometres
Months
Check battery charge status and recharge if necessary
Check tyre conditions/wear and adjust pressure, if required
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, passenger compartment, glove compartment,
instrument panel warning lights, etc.)
Check operation of windscreen washer system and adjust jets
if necessary
Check windscreen wiper blade position/wear
Check cleanliness of bonnet and boot locks, as well as
cleanliness and lubrication of linkages
Visually inspect condition of: exterior bodywork, underbody protection,
pipes and hoses (exhaust, fuel system, brakes), rubber
elements (boots, sleeves, bushes, etc.)
Check condition and wear of front disc brake pads
and operation of pad wear indicator
Check rear drum brake lining condition and wear
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 134

145

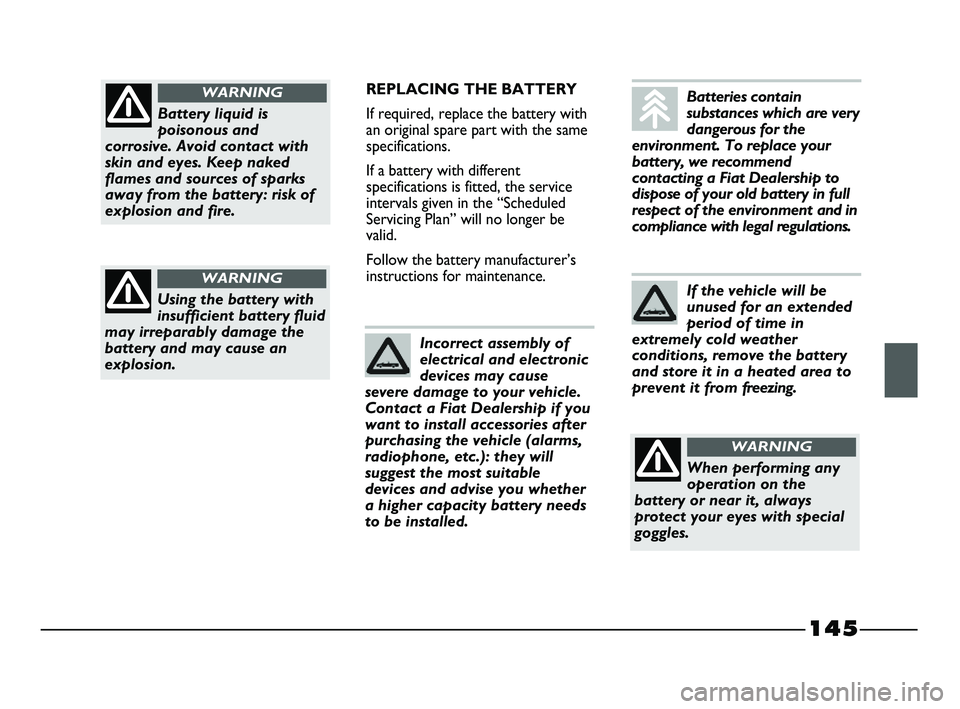

REPLACING THE BATTERY
If required, replace the battery with
an original spare part with the same
specifications.
If a battery with different
specifications is fitted, the service
intervals given in the “Scheduled
Servicing Plan” will no longer be
valid.
Follow the battery manufacturer’s
instructions for maintenance.
Battery liquid is
poisonous and
corrosive. Avoid contact with
skin and eyes. Keep naked
flames and sources of sparks
away from the battery: risk of
explosion and fire.
WARNING
Using the battery with
insufficient battery fluid
may irreparably damage the
battery and may cause an
explosion.
WARNING
When performing any
operation on the
battery or near it, always
protect your eyes with special
goggles.
WARNING
Incorrect assembly of
electrical and electronic
devices may cause
severe damage to your vehicle.
Contact a Fiat Dealership if you
want to install accessories after
purchasing the vehicle (alarms,
radiophone, etc.): they will
suggest the most suitable
devices and advise you whether
a higher capacity battery needs
to be installed.
If the vehicle will be
unused for an extended
period of time in
extremely cold weather
conditions, remove the battery
and store it in a heated area to
prevent it from freezing.
Batteries contain
substances which are very
dangerous for the
environment. To replace your
battery, we recommend
contacting a Fiat Dealership to
dispose of your old battery in full
respect of the environment and in
compliance with legal regulations.
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 145
