dimensions FIAT TALENTO 2016 2.G User Guide

TECHNICAL DATA
Everything you may find useful for
understanding how your vehicle is
made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.IDENTIFICATION DATA.........182
ENGINE..................184
BRAKING SYSTEM...........186
TRANSMISSION.............187
STEERING................188
TYRES...................189
DIMENSIONS..............190
VOLUMES................201
REFUELLING...............209
FLUIDS AND LUBRICANTS......211
PERFORMANCE............213
CONSUMPTION.............215
CO
2EMISSIONS............217
WHATTODOIF...............219
181

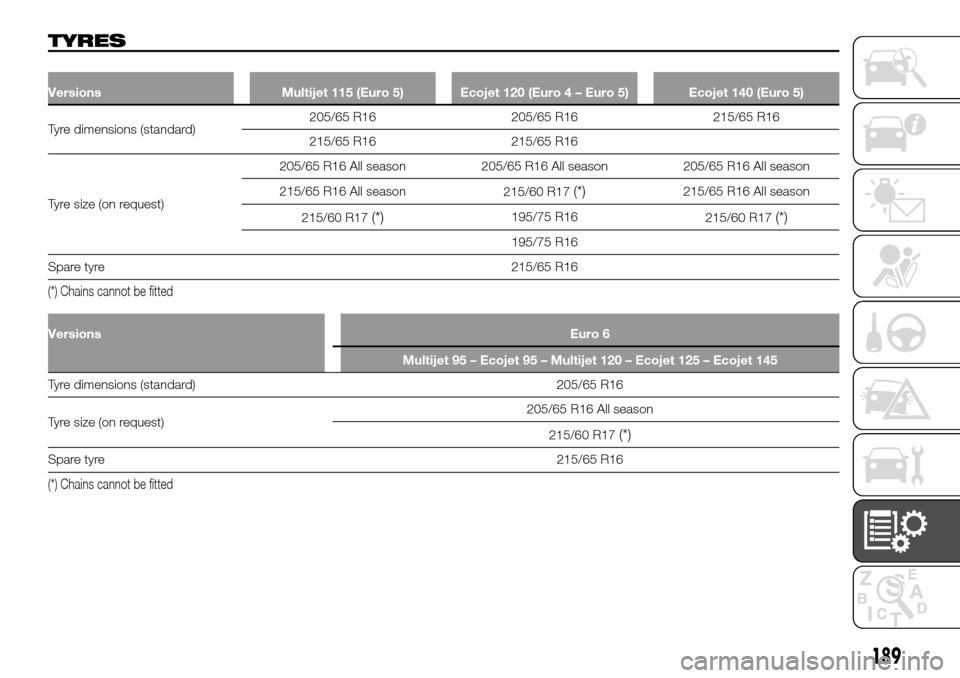

TYRES
Versions Multijet 115 (Euro 5) Ecojet 120 (Euro 4 – Euro 5) Ecojet 140 (Euro 5)
Tyre dimensions (standard)205/65 R16 205/65 R16 215/65 R16
215/65 R16 215/65 R16
Tyre size (on request)205/65 R16 All season 205/65 R16 All season 205/65 R16 All season
215/65 R16 All season
215/60 R17
(*)215/65 R16 All season
215/60 R17
(*)195/75 R16
215/60 R17(*)
195/75 R16
Spare tyre 215/65 R16
(*) Chains cannot be fitted
VersionsEuro 6
Multijet 95 – Ecojet 95 – Multijet 120 – Ecojet 125 – Ecojet 145
Tyre dimensions (standard) 205/65 R16
Tyre size (on request)205/65 R16 All season
215/60 R17
(*)
Spare tyre215/65 R16
(*) Chains cannot be fitted
189

DIMENSIONS
Van version
286T36713
190
TECHNICAL DATA

Vehicles complete and with no further changes. Measurements i millimetres
FLOOR CABLong wheelbase (L2)
Low roof (H1)
A 3498
B (fittings excluded) 5248
C 933
D (fittings excluded) 817
G 2150
H (fittings excluded) 1953
J 552
DIMENSIONS WITH FITTINGS
Total length (with fittings) 5648
Load length (with fittings) 3100
Maximum width (with fittings) 2150
Total height (with fittings) 2700
Rear overhang (with fittings) 1217
198
