Vehicles with additional heater
Some vehicles are equipped with an
additional heater that heats the
passenger compartment more quickly.
This device functions only with the
engine on and at low temperatures.
When functioning, a bit of smoke
issuing from the right side of the
vehicle, coming from the heat exhaust
system, is normal.
Irregular operation
Generally speaking, if you notice any
operational irregularity, please see a Fiat
Dealer.
Limited effectiveness of defrosting,
de-misting or air conditioning can be
due to a clogged cabin filter cartridge.
Cold air is not generated. Check the
position of the controls and condition of
the fuses. Otherwise, turn the system
off.
Water beneath the vehicle
After prolonged use of air conditioning,
it is normal to find water under it due to
condensation.
47

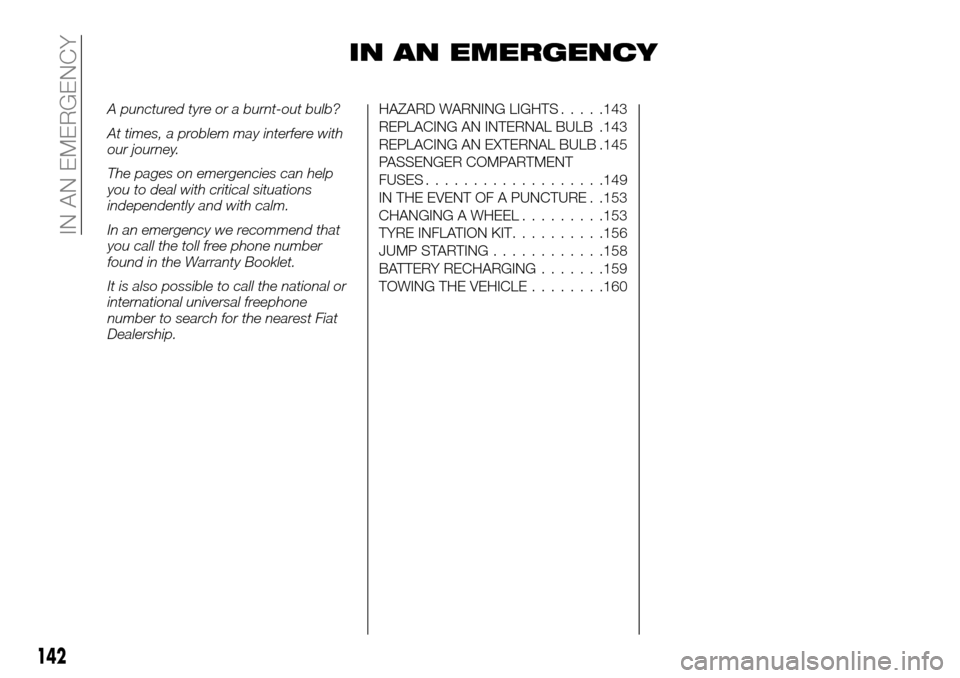

IN AN EMERGENCY
A punctured tyre or a burnt-out bulb?
At times, a problem may interfere with
our journey.
The pages on emergencies can help
you to deal with critical situations
independently and with calm.
In an emergency we recommend that
you call the toll free phone number
found in the Warranty Booklet.
It is also possible to call the national or
international universal freephone
number to search for the nearest Fiat
Dealership.HAZARD WARNING LIGHTS.....143
REPLACING AN INTERNAL BULB .143
REPLACING AN EXTERNAL BULB .145
PASSENGER COMPARTMENT
FUSES...................149
IN THE EVENT OF A PUNCTURE . .153
CHANGING A WHEEL.........153
TYRE INFLATION KIT..........156
JUMP STARTING............158
BATTERY RECHARGING.......159
TOWING THE VEHICLE........160
142
IN AN EMERGENCY

REPLACING AN
EXTERNAL BULB
156) 157) 158) 159) 160)
29)
Daytime running lights
Turn the bulb holder A fig. 230 a quarter
turn anticlockwise and pull it out.
Types of bulbs: W21W/5W.
Replace the bulb and reposition the
holder.Main and low beam headlights
Turn the guard B fig. 230 a quarter turn
anticlockwise.
Disconnect the connector 2 fig. 231.
Unhook the spring 1 fig. 231 and
remove the bulb.
Type of bulb: H4.
Do not touch the bulb crystal. Hold
it by its ends.
Replace the bulb, hook the spring back
on and reconnect the connector, taking
care to also refit the guard B fig. 230.Turn indicator
Turn the bulb holder C fig. 232 a
quarter turn anticlockwise and pull out
the bulb.
IMPORTANT Depending on the local
laws or as a precaution, buy an
emergency box containing a series of
light bulbs and fuses from a Fiat
Dealership.
Types of bulbs: PY21W (orange bulb).
Front fog lights
To replace the lights 3 fig. 233:
pass under the vehicle to access the
bulb holder;
unhook the flap;
turn the bulb holder a quarter turn.
230T36663
231T36664
232T36665
145

PASSENGER
COMPARTMENT
FUSES
Fuses in compartment A
If electrical equipment does not work,
check the fuse state. Release the glove
compartment A fig. 246.
161) 162) 163) 164) 165)
30) 31)
IMPORTANT Depending on the local
laws or as a precaution, buy an
emergency box containing a series of
light bulbs and fuses from a Fiat
Dealership.Fuse extracting pliers
Take out the fuse using pliers 1 fig. 247,
located behind flap A. To remove the
fuse from the pliers, slide it sideways.
We recommend you not use the free
fuse positions.
The presence of fuses will depend on
the vehicle's trim level.
246T36573
247T32868
149

No. Destination No. Destination No. Destination
1APC charger for vehicles with
electronic key10 Predisposition for towing system 19 Heater
2Free11Timer battery, central passenger
compartment unit20Rearscreen wipers, window washer
pump, horn
3Free12Right daytime running lights, front
parking lights, right high beam, left low
beam21 General APC charger
4+ battery for vehicles with
electronic key13Danger warning lights, direction
indicators22 Reversing lights
5 Additional air conditioning 14 Locking the opening parts 23 Stop switch
6 Additional cabin heating 15Left daytime running lights, rear parking
lights, left high beam, right low beam24
Injection, ignition
(1)
7Electric rear view mirrors,
complementary central
adaptation unit16Licence plate light, front and rear fog
lights25
Air bag, steering wheel lock(1)
8 Rear view mirror defroster 17Alarms, acoustic warnings, light and
windscreen wiper levers26 Passenger's electric window
9Radio, multi-media system, rear
view mirror, diagnostic socket.18 Instrument panel 27
Power steering
(1)
(1) Contact a Fiat Dealership to replace these fuses.
151

No. Destination No. Destination No. Destination
28 Brake lights 34 Interior lighting, air conditioning 40 Auxiliary rear power socket
29APC charger for vehicles with
electronic key35 Starter for vehicles with electronic key 41
BCM starter
(1)
30 General auxiliary 36 Rear wiper 42 Heated seats
31 Cigar lighter, accessory socket 37 Electromagnetic warning 43 Tachograph
32 Heater 38 Additional socket in load compartment 44 Front windscreen wiper
33
Stop lights, ABS, transponder
(1)39 Driver’s electric window motor 45 Heating and climate control
(1) Contact a Fiat Dealership to replace these fuses.
WARNING
161)If the replaced fuse blows again, contact a Fiat Dealership.
162)Never replace a fuse with another with a higher amp rating; DANGER OF FIRE.
163)If a general protection fuse (MAXI-FUSE, MEGA-FUSE, MIDI-FUSE) blows, do not attempt any repair and contact a Fiat Dealership.
164)Before replacing a fuse, make sure that the key has been removed from the starter switch and that all the other services are switched off
and/or disengaged.
165)Contact Fiat Dealership if a safety system (airbags, brakes), engine system (engine, gearbox) or steering system general protection fuse
blows.
IMPORTANT
30)Never replace a fuse with metal wires or anything else.
31)If it is necessary to wash the engine compartment, take care not to directly hit the fuse box and the window wiper motors with the water
jet.
152
IN AN EMERGENCY

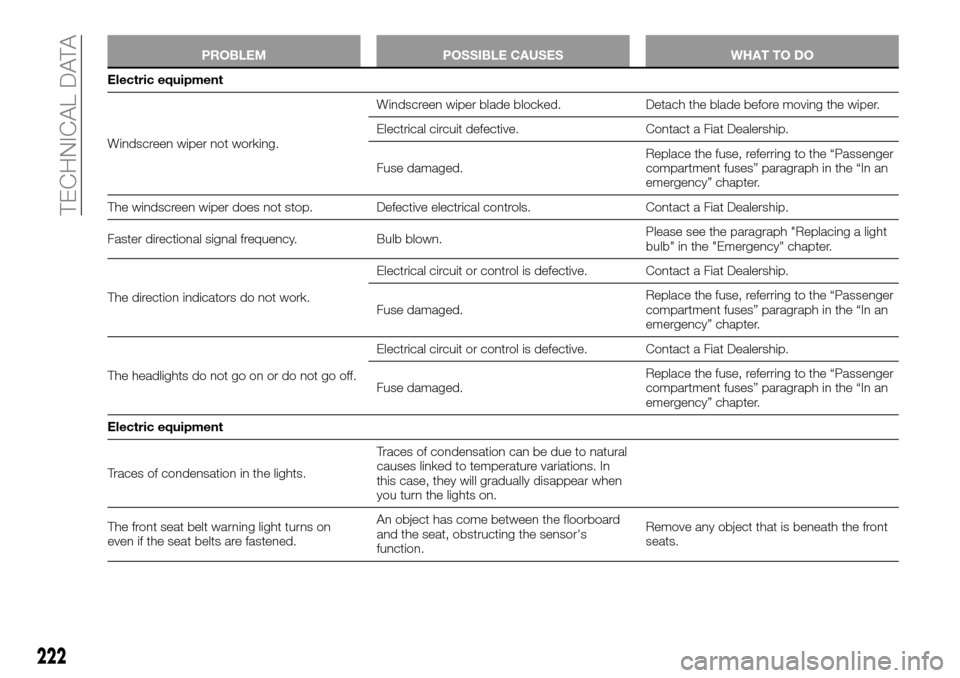

PROBLEM POSSIBLE CAUSES WHAT TO DO
Electric equipment
Windscreen wiper not working.Windscreen wiper blade blocked. Detach the blade before moving the wiper.
Electrical circuit defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse, referring to the “Passenger
compartment fuses” paragraph in the “In an
emergency” chapter.
The windscreen wiper does not stop. Defective electrical controls. Contact a Fiat Dealership.
Faster directional signal frequency. Bulb blown.Please see the paragraph "Replacing a light
bulb" in the "Emergency" chapter.
The direction indicators do not work.Electrical circuit or control is defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse, referring to the “Passenger
compartment fuses” paragraph in the “In an
emergency” chapter.
The headlights do not go on or do not go off.Electrical circuit or control is defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse, referring to the “Passenger
compartment fuses” paragraph in the “In an
emergency” chapter.
Electric equipment
Traces of condensation in the lights.Traces of condensation can be due to natural
causes linked to temperature variations. In
this case, they will gradually disappear when
you turn the lights on.
The front seat belt warning light turns on
even if the seat belts are fastened.An object has come between the floorboard
and the seat, obstructing the sensor's
function.Remove any object that is beneath the front
seats.
222
TECHNICAL DATA

INDEX
ABS (Anti-lock Braking System). . .126
Accessories purchased by the
owner....................5
Active safety systems..........126
Adblue additive reservoir.........45
Baggage cover..............70
Battery...................173
Battery recharging............159
Bodywork.................178
Braking system..............186
Cargo volumes.............199
Checking levels..............169
Child protection systems........101
Carrying children safely.......101
Fitting a child restraint system
with seat belts............103
ISOFIX fastening system......116
Climate control...............46
Control panel and on-board
instruments...............88
Cruise control (constant speed
regulator).................70
Diesel version particularities......76
Diffusers...................49
Display....................78
Doors.....................21
Centralised door locking/
unlocking for the openable parts . .25Front doors...............21
Manual door locking/unlocking . . .26
Rear swing doors...........23
Sliding side door............22
Tailgate.................24
Electric windows.............60
Engine...................184
Engine bonnet...............61
ESC (Electronic Stability Control)
system.................126
External lights...............37
Daytime running lights........37
Dipped headlights...........37
Direction indicators..........39
Front fog lights.............38
Headlight alignment adjustment . .38
Main beam headlights........37
Rear fog light..............38
Side lights................37
Filters...................172
Front air bags
Driver and passenger air bags . . .97
Front passenger side air bag and
child restraint..............98
Front airbags................97
Front headrest...............28
Handbrake................135
Hazard warning lights..........143
Headrests..................28Heating and ventilation..........48
Heavy-duty use of the vehicle
(scheduled service)..........168
Hill Holder Assistance for starting
uphill...................128
Identification data............182
Ignition device...............46
Installing electrical/electronic
devices...................5
Interior...................180
Interior fittings...............62
Sun visors................62
Interior lights................40
Jump starting..............158
Keys.....................14
Electronic key.............17
Key with remote control.......14
Manual climate control.........50
Occupant protection systems.....93
Parking the vehicle...........135
Passenger compartment fuse
control unit...............150
Passenger compartment fuses. . . .149
PBA (Panic Brake Assist) system. . .127
Periodic checks (scheduled
servicing)................168
Pre-tensioners...............96
Protecting the environment.......75
Radar parking...............57
Radio.....................69
Fluids and lubricants..........211 CO2 Emissions..............217
Consumption...............215
Performance...............213
