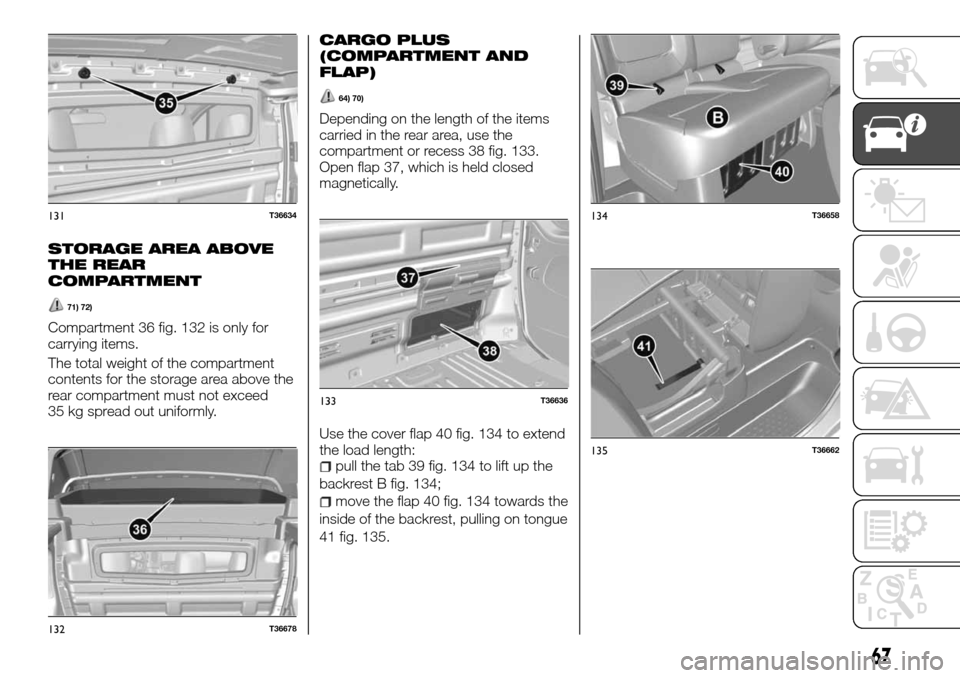

STORAGE AREA ABOVE
THE REAR
COMPARTMENT
71) 72)
Compartment 36 fig. 132 is only for
carrying items.
The total weight of the compartment
contents for the storage area above the
rear compartment must not exceed
35 kg spread out uniformly.
CARGO PLUS
(COMPARTMENT AND
FLAP)
64) 70)
Depending on the length of the items
carried in the rear area, use the
compartment or recess 38 fig. 133.
Open flap 37, which is held closed
magnetically.
Use the cover flap 40 fig. 134 to extend
the load length:
pull the tab 39 fig. 134 to lift up the
backrest B fig. 134;
move the flap 40 fig. 134 towards the
inside of the backrest, pulling on tongue
41 fig. 135.
131T36634
132T36678
133T36636
134T36658
135T36662
67

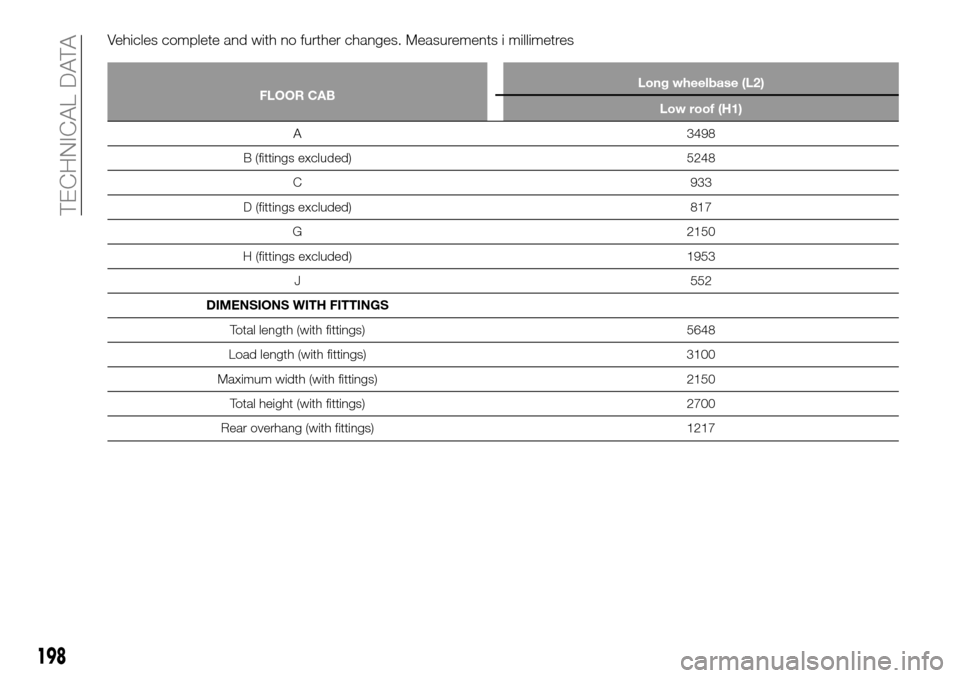

Vehicles complete and with no further changes. Measurements i millimetres
FLOOR CABLong wheelbase (L2)
Low roof (H1)
A 3498
B (fittings excluded) 5248
C 933
D (fittings excluded) 817
G 2150
H (fittings excluded) 1953
J 552
DIMENSIONS WITH FITTINGS
Total length (with fittings) 5648
Load length (with fittings) 3100
Maximum width (with fittings) 2150
Total height (with fittings) 2700
Rear overhang (with fittings) 1217
198
TECHNICAL DATA
