6
RADIO TRANSMITTERS AND MOBILE PHONES
Radio transmitter equipment (vehicle mobile phones, CB radios, amateur radio, etc.) cannot be used inside the car unless a
separate aerial is mounted on the roof of the vehicle.
Transmission and reception of these devices may be affected by the shielding effect of the vehicle body. As far as the use of
EC-approved mobile phones is concerned (GSM, GPRS, UMTS, LTE), follow the usage instructions provided by the mobile
phone Manufacturer.
IMPORTANT The use of such devices inside the passenger compartment (without an external aerial) may, in addition to
potential damage to the health of the passengers, cause malfunctions in the vehicle’s electronic systems, compromising the
safety of the vehicle.

Keyless ENTRY
This lets you lock/unlock without
needing to use the electronic key, if you
are in the access area 1 fig. 16.
Locking/unlocking the vehicle
There are two ways to lock/unlock the
vehicle: being physically in the access
area or by using the electronic key.
IMPORTANT Do not place the
electronic key where it could come into
contact with other electronic equipment
(computer, phone, etc.) that could
compromise its operation.In the access area:Depending on the
vehicle, press button 2 fig. 17 – fig. 18 –
fig. 19 on one of the front door handles,
the tailgate or the rear swing door.
The danger warning lights will flash to
let you know the vehicle's status:
two flashes indicate that the vehicle
is locked;
one flash means the vehicle is
unlocked.
Details relative to locking the
vehicle
When closing, if a door is open or
not properly closed, a rapid vehicle
lock/unlock without emergency lights
flashing will occur;
after locking by pressing button 2
fig. 17 – fig. 18 – fig. 19, you need to
wait about three seconds to be able to
unlock the vehicle.
Unlocking using the electronic key:
Press button 3 fig. 20. The emergency
lights will flash once to confirm the
vehicle is open.
16T36509
17T36508
18T36533
19T36513
18
KNOWING YOUR VEHICLE

MANUAL DOOR
LOCKING/UNLOCKING
4) 5)
Locking from the outside
This can be done with either the remote
control or electronic key: refer to the
"Key with remote control" or "Electronic
key" paragraphs in the "Knowing your
vehicle” chapter.
In some cases, the radio frequency
remote control or the electronic key
might not function:
the remote or electronic key might
have dead batteries, etc.
use of devices on the same
electronic key frequency (cell phone,
etc.);
the vehicle is located in an area
known for a high presence of
electro-magnetic waves.So you can:
use the key integrated in the remote
or electronic key, or the emergency key
integrated in the left front door unlock
card, or, depending on the vehicle, the
rear swing door
manually lock each door
to enable the door lock/unlock
control from the inside (see paragraph
"Centralised locking/unlocking of
opening parts" in the chapter "Knowing
your vehicle").
Using the key
Insert the key in the lock 1 fig. 45 and
lock or unlock the front left door, or,
depending on the vehicle, the rear
sliding door.Manually lock each door
With the door open, turn the device 2
fig. 46 (using the end of the key) and
close the door.
Now it is closed from the outside.
Opening the front door can only be
done from the inside or with the key.
Concerning vehicles with one
tailgate: after manually locking the
doors, the tailgate stays unlocked.
AUTOMATIC DOOR LOCK
WHILE DRIVING
To enable the function:
With the contact inserted, press button
1 fig. 47 for about 5 seconds, until you
hear an acoustic signal.
44T36612
45T36611
46T36616
26
KNOWING YOUR VEHICLE

HOUSING
64)
Housing 1 fig. 113 can be used as a
cup holder, item holder or to attach an
ashtray.
STORAGE
COMPARTMENT
64)
To open the compartment 3 fig. 113,
pull handle 2.
DOCUMENT HOLDER
POCKET
65)
The document holder pocket 4
fig. 114 on the sun visor can hold
motorway tickets, paper, etc.
STORAGE
COMPARTMENT
Compartment 5 fig. 115 can hold pay
cards, coins, etc.
PHONE SUPPORT(For versions/markets where provided)
66)
Phone support 6 fig. 116.
SUPPORT FOR MULTI-
MEDIA TABLET
(For versions/markets where provided)
Pull handle 7 fig. 117 all the way
towards the driver as far as it will go.
Rotate support 8 fig. 118 and push it as
far as it will go.
113T36645
114T36576
115T36572
116T38819
117T38815
63

ACCESSORIES SOCKET
72)
Socket 3 fig. 138 and, depending on
the trim, sockets 4 fig. 139 and 5
fig. 140 are for connecting accessories
whose power supply is not greater than
120 Watts (12 V).
WARNING
64)There should be no objects on the
driver's side floorboard: in case of sharp
braking, they could slide under the pedals,
hampering their use.
65)Check there are no hard, heavy or
sharp objects sticking out or in the "open"
compartments: they could endanger the
safety of the vehicle's occupants in a curve
or in case of sharp braking.
66)We would like to remind you to respect
local laws regarding use of phones and/or
multi-media tablets.
67)In a curve, while accelerating or
braking, make sure that the liquid in the
container in the beverage holder does not
spill. Risk of injury if the liquid is hot
68)Always leave the seat closed while
driving. Risk of injury in case of sharp
braking or accident, risk of objects falling
into the passenger compartment.
69)Sitting on the central seat while its
backrest is reclined is prohibited.
136T36647
137T36574
138T36582
139T36583
140T36719
68
KNOWING YOUR VEHICLE

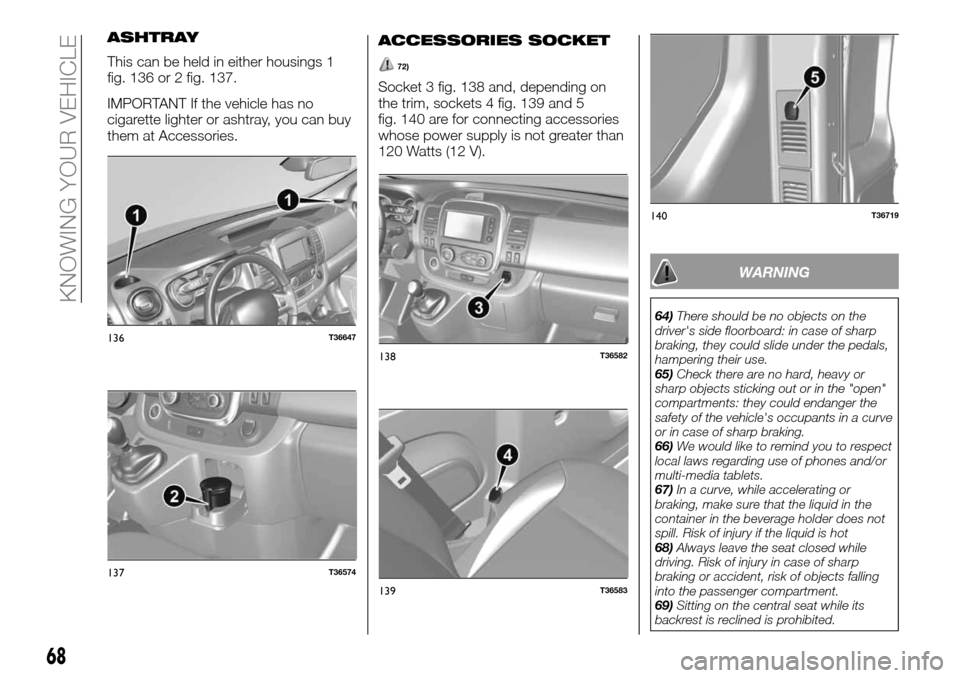

ASHTRAY
This can be held in either housings 1
fig. 136 or 2 fig. 137.
IMPORTANT If the vehicle has no
cigarette lighter or ashtray, you can buy
them at Accessories.

To go back to the preceding mode,
repeat the same operation.
NOTE After disconnecting the battery,
the on-board computer automatically
returns to the original unit of measure.
Time and outside temperature
Display A (depending on the vehicle
version) fig. 162In order to access display A about
setting the time, press button 2 or 3
fig. 164 and wait few seconds.
The hours and minutes will flash, now
you can adjust them with a long press
on button 2 or 3 fig. 164 to adjust the
hour. As soon as the hours flash, press
button 2 or 3 fig. 164 briefly or for a
long time to adjust the hour.Afterwards, press button 2 or 3
fig. 164 for a long time to confirm the
hour set.
The minutes flash: press button 2 or 3
fig. 164 briefly or for a long time to
adjust them.
After adjusting them, the hours and
minutes will show for 2 seconds without
flashing: they are now set.
IMPORTANT If the power supply is
disconnected (battery disconnected,
power line cut, etc.) you must set the
clock again. We advise you not do this
while driving.
Display
(For versions/markets where provided)
Only in vehicles equipped with a
multi-media display B fig. 165,
navigation system, telephone, etc.
Refer to the RADIO / TOUCH-RADIO
NAV supplement
161T35570
162T36518-1
163TIMAGE-1
164T35570-5
165T36519
79

The safety devices complementary to
the front passenger seat belt have to be
activated.
Functioning defects
If the activation/deactivation system for
the front passenger air bags is not
functioning, you cannot install the child
restraint on the front seat with the head
facing rear. We advise you also not totravel with passengers seated there.
Contact a Fiat Dealership as soon as
possible.
WARNING
100)The air bag system uses a
pyrotechnical principle, meaning that its
activation produces heat, emits smoke
(that does not mean fire) and generates an
explosive sound. Air bag deployment,
which should be immediate, can cause
skin injuries or other problems.
101)Do not attach any object (pins, logos,
watches, phone support, etc.) to the
steering wheel.
102)The steering wheel must not be
covered in any way.
103)Dismantling the steering wheel is
prohibited (except by a qualified Fiat
Dealership technician).
104)Do not drive to close to the steering
wheel: adopt a driving position with your
arms slightly bent. This position will ensure
a sufficient distance for the air bag to
deploy efficiently.
105)Do not glue anything (pins, logos,
watches, phone supports, etc.) to the
dashboard near the airbag.
106)Do not place anything (animals,
umbrella, cane, boxes, etc.) between the
dashboard and the passenger.
107)Do not rest your feet on the
dashboard or the seat: these positions
could cause serious injuries. In general,
keep all parts of the body (knees, hands,
head, etc.) away from the dashboard.108)The passenger air bag only protects
the side front seat passenger; the centre
front seat passenger is only protected by
the seat belt. We recommend you respect
normal safety regulations (fasten your seat
belt). There may be serious injuries in the
event of an accident.
109)The passenger airbag must be
activated/deactivated when the vehicle is
stationary. If deactivated while driving, the
andwarning lights turn on. To turn
these lights off, you need to deactivate
then reactivate the passenger air bag again
when the vehicle is stopped.
110)When the child restraint is no longer in
use, reactivate the front seat belt
complementary safety devices to ensure
front passenger protection in case of an
accident. Installing a rear-facing child
restraint system on the front passenger is
prohibited until the front seat belt
complementary safety devices have been
deactivated (refer to the "Passenger side
airbag and child restraint systems – how to
deactivate the airbags" paragraph in the
"Knowing your vehicle” chapter).
111)Because of the incompatibility of the
front passenger air bag deployment and
the positioning of a child seat facing
forward, NEVER INSTALL a child restraint
system facing backwards on a seat
equipped with FRONT AIRBAG
ACTIVATION. It could result in a CHILD'S
DEATH or could SERIOUSLY INJURE
him/her.
184T36501
185T36500
99

RemarksIf the vehicle does not start, a
dedicated message appears on the
instrument panel;
In some cases, you will need to
move the steering wheel while pressing
the ignition button 1 to unlock the
steering wheel column; You will be
warned with message to this effect;
When starting the engine in very cold
weather (less than -10°C): keep the
clutch pressed until the engine starts.
Accessory function
When the engine starts, you can
access a few functions (radio,
navigation system, windscreen wipers,
etc.).
To make the other functions available,
with the key in the passenger
compartment or inserted in the key
reader 2 fig. 205, press button
1 without pressing on the pedals.Irregular operation
The electronic key with easy access will
not function in the following instances:
The electronic key might have dead
batteries
In the vicinity of a device functioning
on the same frequency (screen cell
phone, video games, etc.);
The vehicle is located in an area
known for a high presence of
electro-magnetic waves.
A message to this effect appears in the
instrument panel.
Insert the electronic key in the reader 2
fig. 205 as far as it will go.
STOPPING THE ENGINE
142) 143)
23) 24)
Vehicles with an electronic key
The vehicle needs to be stopped.
With the electronic key in the reader 2
fig. 205 or in the detection area 3
fig. 206, press button 1 fig. 205: the
engine turns off. The steering wheel
lock locks when the driver's door opens
or when the vehicle is locked.
If the key is not in the passenger
compartment when you try to turn the
engine off, a dedicated message
appears on the instrument panel: press
button 1 fig. 205 for more than
2 seconds.After turning the engine off, a few
accessories still on (radio, etc.) continue
functioning for about 10 minutes.
When you open the driver's door, the
accessories turn off.
WARNING
138)Do not start the vehicle on an incline
with the gear in neutral. The power steering
might not activate. Risk of accident.
139)It is dangerous to run the engine in
enclosed areas. The engine takes in
oxygen and releases carbon dioxide,
carbon monoxide and other toxic gases.
140)The brake servo is not active until the
engine is started, so you would need to
apply much more force than usual to the
brake pedal.
141)Do not start the engine by pushing,
towing or driving downhill. These
manoeuvres may damage the catalytic
converter.
142)Do not remove the key from the
starter device or the electronic key from the
reader before effectively stopping the
vehicle; stopping the engine means
deleting various aids: When the engine is
stopped, the power brakes, power steering
and safety devices like the air bags and
pre-tensioners no longer work.
143)Especially when you leave the car
with the electronic key in your pocket,
make sure the engine is effectively
stopped.206T36626-1
133

IN AN EMERGENCY
A punctured tyre or a burnt-out bulb?
At times, a problem may interfere with
our journey.
The pages on emergencies can help
you to deal with critical situations
independently and with calm.
In an emergency we recommend that
you call the toll free phone number
found in the Warranty Booklet.
It is also possible to call the national or
international universal freephone
number to search for the nearest Fiat
Dealership.HAZARD WARNING LIGHTS.....143
REPLACING AN INTERNAL BULB .143
REPLACING AN EXTERNAL BULB .145
PASSENGER COMPARTMENT
FUSES...................149
IN THE EVENT OF A PUNCTURE . .153
CHANGING A WHEEL.........153
TYRE INFLATION KIT..........156
JUMP STARTING............158
BATTERY RECHARGING.......159
TOWING THE VEHICLE........160
142
IN AN EMERGENCY

BATTERY
It is under cover 1 fig. 270 and does not
require service. It must not be opened
and liquid must not be added to it.
REPLACING THE
BATTERY
199) 200) 201) 202) 203) 204)
50) 51) 52)
6)
As the following operation is
complicated, it is advisable to contact a
Fiat Dealership.Label A fig. 271
Respect the instructions on the battery:
2no open flames and no smoking;
3eye protection compulsory;
4keep away from children;
5explosive substances;
6this Owner Handbook;
7corrosive substances.
WARNING
199)The engine must be stopped before
performing any operation in the engine
compartment.
200)Handle the battery carefully, because
it contains sulphuric acid that must not
come into contact with eyes or skin. If that
happens, rinse thoroughly with water. If
necessary, see a doctor. Keep open
flames, incandescent items and sources of
sparks far from the battery's elements: risk
of explosion.201)When you intervene near the engine,
this last could be hot. Moreover, the
cooling fan could start up at any time. Risk
of injury.
202)Battery fluid is poisonous and
corrosive. Avoid contact with the skin and
eyes. Keep open flames away from the
battery and do not use objects that might
create sparks: risk of explosion and fire.
203)Using the battery with insufficient fluid
irreparably damages the battery and may
cause an explosion.
204)When performing any operation on
the battery or near it, always protect your
eyes with special goggles.
IMPORTANT
50)Since the battery is specific, you need
to make sure you replace it with its
equivalent. Consult a Fiat Dealership.
51)Incorrect installation of electric and
electronic devices may cause severe
damage to your vehicle. After purchasing
your vehicle, if you wish to install any
accessories (anti-theft, radio phone, etc.),
go to a Fiat Dealership, which will suggest
the most suitable devices and advise you
whether a higher capacity battery needs to
be installed.
52)If the vehicle will be unused for an
extended period of time in extremely cold
weather conditions, remove the battery and
store it in a heated area to prevent it from
freezing.
270T36628
271T28705
173
