TECHNICAL DATA
Everything you may find useful for
understanding how your vehicle is
made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.IDENTIFICATION DATA.........179
ENGINE..................180
BRAKING SYSTEM...........182
TRANSMISSION.............183
STEERING................184
TYRES...................185
DIMENSIONS..............186
VOLUMES................197
REFUELLING...............205
CLIMATE CONTROL SYSTEM. . . .207
FLUIDS AND LUBRICANTS......209
PERFORMANCE............211
CONSUMPTION.............213
CO
2EMISSIONS............215
WHATTODOIF...............217
178

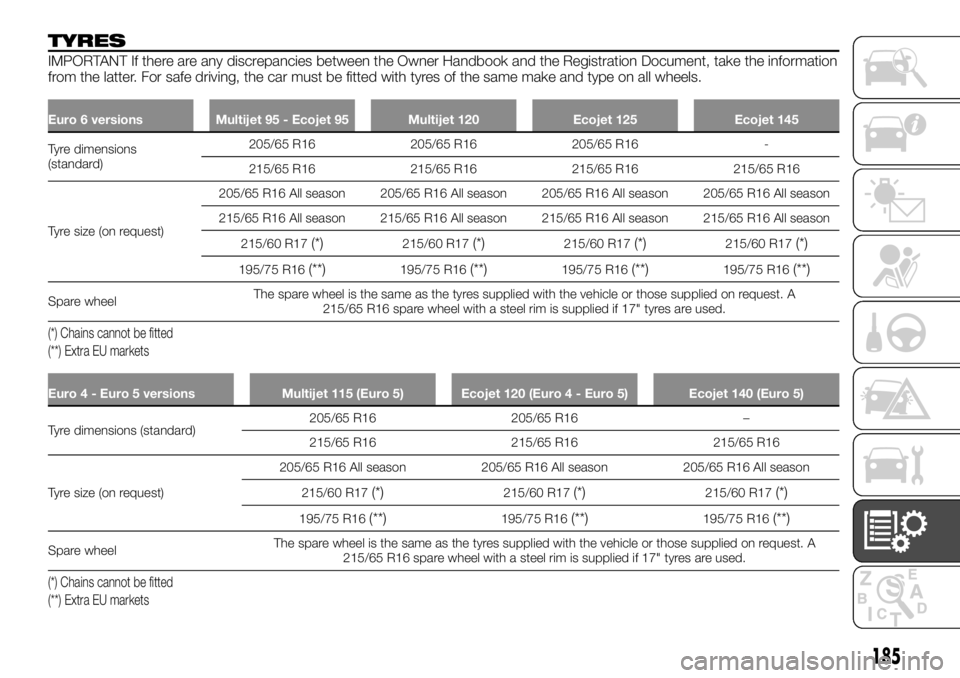

TYRES
IMPORTANT If there are any discrepancies between the Owner Handbook and the Registration Document, take the information
from the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
Euro 6 versions Multijet 95 - Ecojet 95 Multijet 120 Ecojet 125 Ecojet 145
Tyre dimensions
(standard)205/65 R16 205/65 R16 205/65 R16 -
215/65 R16 215/65 R16 215/65 R16 215/65 R16
Tyre size (on request)205/65 R16 All season 205/65 R16 All season 205/65 R16 All season 205/65 R16 All season
215/65 R16 All season 215/65 R16 All season 215/65 R16 All season 215/65 R16 All season
215/60 R17
(*)215/60 R17(*)215/60 R17(*)215/60 R17(*)
195/75 R16(**)195/75 R16(**)195/75 R16(**)195/75 R16(**)
Spare wheelThe spare wheel is the same as the tyres supplied with the vehicle or those supplied on request. A
215/65 R16 spare wheel with a steel rim is supplied if 17" tyres are used.
(*) Chains cannot be fitted
(**) Extra EU markets
Euro 4 - Euro 5 versions Multijet 115 (Euro 5) Ecojet 120 (Euro 4 - Euro 5) Ecojet 140 (Euro 5)
Tyre dimensions (standard)205/65 R16 205/65 R16 –
215/65 R16 215/65 R16 215/65 R16
Tyre size (on request)205/65 R16 All season 205/65 R16 All season 205/65 R16 All season
215/60 R17
(*)215/60 R17(*)215/60 R17(*)
195/75 R16(**)195/75 R16(**)195/75 R16(**)
Spare wheelThe spare wheel is the same as the tyres supplied with the vehicle or those supplied on request. A
215/65 R16 spare wheel with a steel rim is supplied if 17" tyres are used.
(*) Chains cannot be fitted
(**) Extra EU markets
185

DIMENSIONS
Van version
286T36713
186
TECHNICAL DATA

Vehicles complete and with no further changes. Measurements i millimetres
FLOOR CABLong wheelbase (L2)
Low roof (H1)
A 3498
B
(fittings excluded) 5248
C 933
D (fittings excluded) 817
G 2150
H (fittings excluded) 1953
J 552
DIMENSIONS WITH FITTINGS
Total length (with fittings) 5648
Load length (with fittings) 3100
Maximum width (with fittings) 2150
Total height (with fittings) 2700
Rear overhang (with fittings) 1217
