run flat FIAT TALENTO 2018 Owner handbook (in English)

GRAPHICAL INDEX
FRONT VIEW
HEADLIGHTSDaytime running lights........... 34Side lights/dipped headlights.... 34Main beam headlights........... 34Bulb replacement.............. 141
WHEELSRims and tyres................. 185Inflation pressure............... 171
Changing a wheel.............. 150Tyre inflation kit................ 153
DOOR MIRRORSAdjustment..................... 33
DOORSOpening/closing................. 20
WINDSCREEN WIPERSOperation....................... 39Blade replacement............. 173
ENGINEChecking levels................ 166Technical data................. 180
1
9

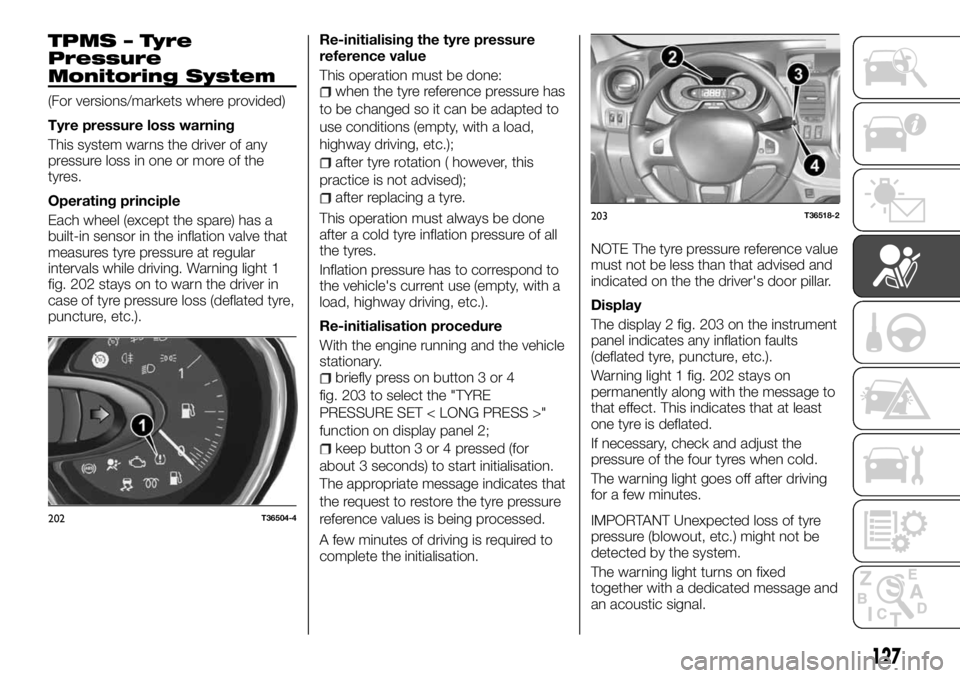

TPMS – Tyre
Pressure
Monitoring System
(For versions/markets where provided)
Tyre pressure loss warning
This system warns the driver of any
pressure loss in one or more of the
tyres.
Operating principle
Each wheel (except the spare) has a
built-in sensor in the inflation valve that
measures tyre pressure at regular
intervals while driving. Warning light 1
fig. 202 stays on to warn the driver in
case of tyre pressure loss (deflated tyre,
puncture, etc.).Re-initialising the tyre pressure
reference value
This operation must be done:when the tyre reference pressure has
to be changed so it can be adapted to
use conditions (empty, with a load,
highway driving, etc.);
after tyre rotation ( however, this
practice is not advised);
after replacing a tyre.
This operation must always be done
after a cold tyre inflation pressure of all
the tyres.
Inflation pressure has to correspond to
the vehicle's current use (empty, with a
load, highway driving, etc.).
Re-initialisation procedure
With the engine running and the vehicle
stationary.
briefly press on button 3 or 4
fig. 203 to select the "TYRE
PRESSURE SET < LONG PRESS >"
function on display panel 2;
keep button 3 or 4 pressed (for
about 3 seconds) to start initialisation.
The appropriate message indicates that
the request to restore the tyre pressure
reference values is being processed.
A few minutes of driving is required to
complete the initialisation.NOTE The tyre pressure reference value
must not be less than that advised and
indicated on the the driver's door pillar.
Display
The display 2 fig. 203 on the instrument
panel indicates any inflation faults
(deflated tyre, puncture, etc.).
Warning light 1 fig. 202 stays on
permanently along with the message to
that effect. This indicates that at least
one tyre is deflated.
If necessary, check and adjust the
pressure of the four tyres when cold.
The warning light goes off after driving
for a few minutes.
IMPORTANT Unexpected loss of tyre
pressure (blowout, etc.) might not be
detected by the system.
The warning light turns on fixed
together with a dedicated message and
an acoustic signal.
202T36504-4
203T36518-2
127

Have adjustments and vehicle checks
done at a Fiat Dealership so they
comply with the instructions in the
Scheduled Service Plan: all the means
and material means that allow the
vehicle’s guarantee to be maintained
are available here.
ENGINE REGISTRATION
The air filter, oil filter: a dirty cartridge
reduces performance. You need to
replace it.
Minimum: no adjustment is needed.
CHECKING LEVELS
ENGINE OIL
An engine normally consumes oil to
lubricate it and cool the moving parts,
and it is normal to have to top up the
lubricating circuit between two oil
changes.
However, if the oil consumption is more
than 0.5 litres every 1000 km after the
run-in period, you need to contact a
Fiat Dealership.
IMPORTANT Periodically check the oil
level and in any case before long trips,
otherwise you risk damaging the
engine.
188) 186) 187) 189) 190) 191) 192) 193) 194)
44) 45) 46) 47)
5)
Oil level check
The oil level should be checked with the
vehicle on a flat surface and the engine
stopped and cold.
To know the oil level exactly and to
make sure it has not exceeded the
maximum level (risk of damaging the
engine), you need to use the dipstick.The instrument panel display only
warns you when the level is at
minimum.
take out the dipstick and clean it with
a clean rag;
insert it as far as it will go;
take it back out;
check the level: it must never be
lower than "min" A fig. 265 nor above
the "max" level B.
Once you have checked the level, insert
the dipstick as far as it will go.
IMPORTANT To avoid splashing, you
can use a funnel when topping up/filling
up.
Topping up/filling the oil
The vehicle has to be on a level surface,
engine stopped and cold (e.g.: before
starting in the morning).
265T29990
166
SERVICING AND CARE

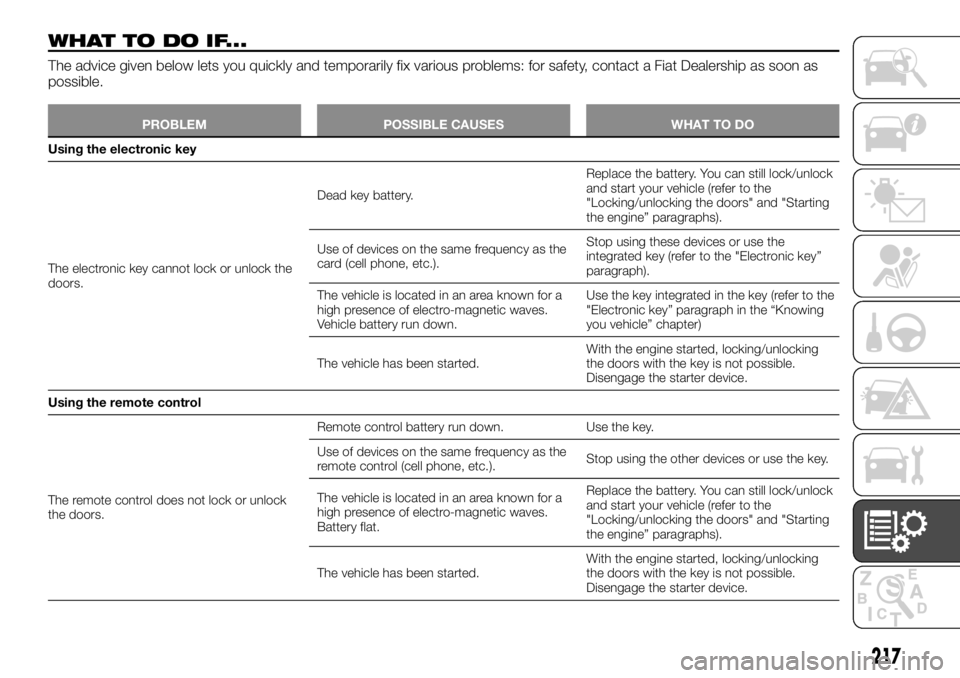

WHATTODOIF...
The advice given below lets you quickly and temporarily fix various problems: for safety, contact a Fiat Dealership as soon as
possible.
PROBLEM POSSIBLE CAUSES WHAT TO DO
Using the electronic key
The electronic key cannot lock or unlock the
doors.Dead key battery.Replace the battery. You can still lock/unlock
and start your vehicle (refer to the
"Locking/unlocking the doors" and "Starting
the engine” paragraphs).
Use of devices on the same frequency as the
card (cell phone, etc.).Stop using these devices or use the
integrated key (refer to the "Electronic key”
paragraph).
The vehicle is located in an area known for a
high presence of electro-magnetic waves.
Vehicle battery run down.Use the key integrated in the key (refer to the
"Electronic key” paragraph in the “Knowing
you vehicle” chapter)
The vehicle has been started.With the engine started, locking/unlocking
the doors with the key is not possible.
Disengage the starter device.
Using the remote control
The remote control does not lock or unlock
the doors.Remote control battery run down. Use the key.
Use of devices on the same frequency as the
remote control (cell phone, etc.).Stop using the other devices or use the key.
The vehicle is located in an area known for a
high presence of electro-magnetic waves.
Battery flat.Replace the battery. You can still lock/unlock
and start your vehicle (refer to the
"Locking/unlocking the doors" and "Starting
the engine” paragraphs).
The vehicle has been started.With the engine started, locking/unlocking
the doors with the key is not possible.
Disengage the starter device.
217
