technical specifications FIAT TALENTO 2021 Owner handbook (in English)

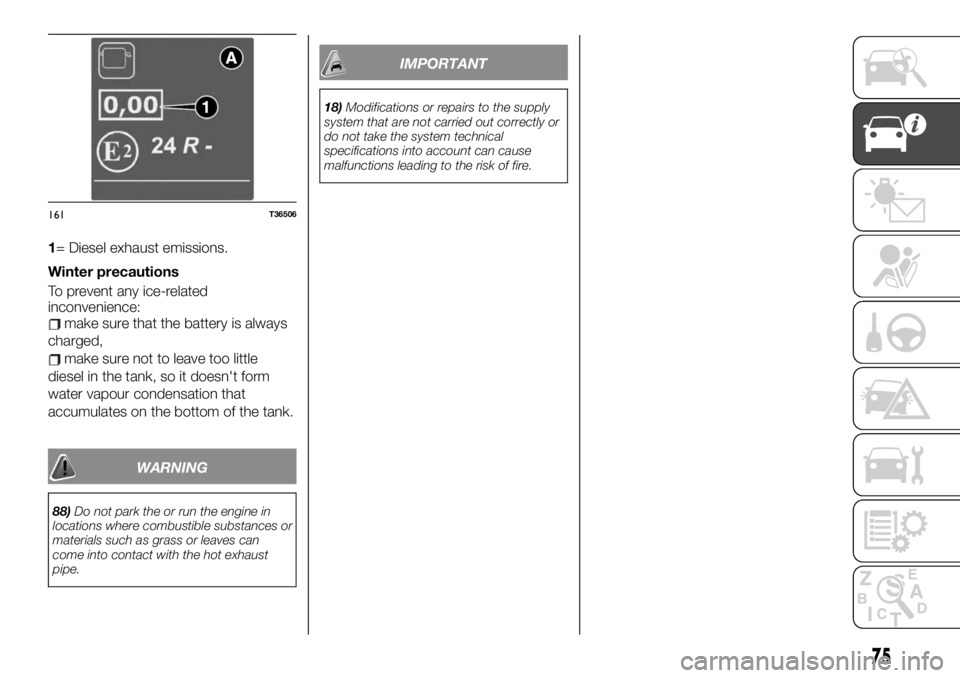

1= Diesel exhaust emissions.
Winter precautions
To prevent any ice-related
inconvenience:
make sure that the battery is always
charged,
make sure not to leave too little
diesel in the tank, so it doesn't form
water vapour condensation that
accumulates on the bottom of the tank.
WARNING
88)Do not park the or run the engine in
locations where combustible substances or
materials such as grass or leaves can
come into contact with the hot exhaust
pipe.
IMPORTANT
18)Modifications or repairs to the supply
system that are not carried out correctly or
do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
161T36506
75

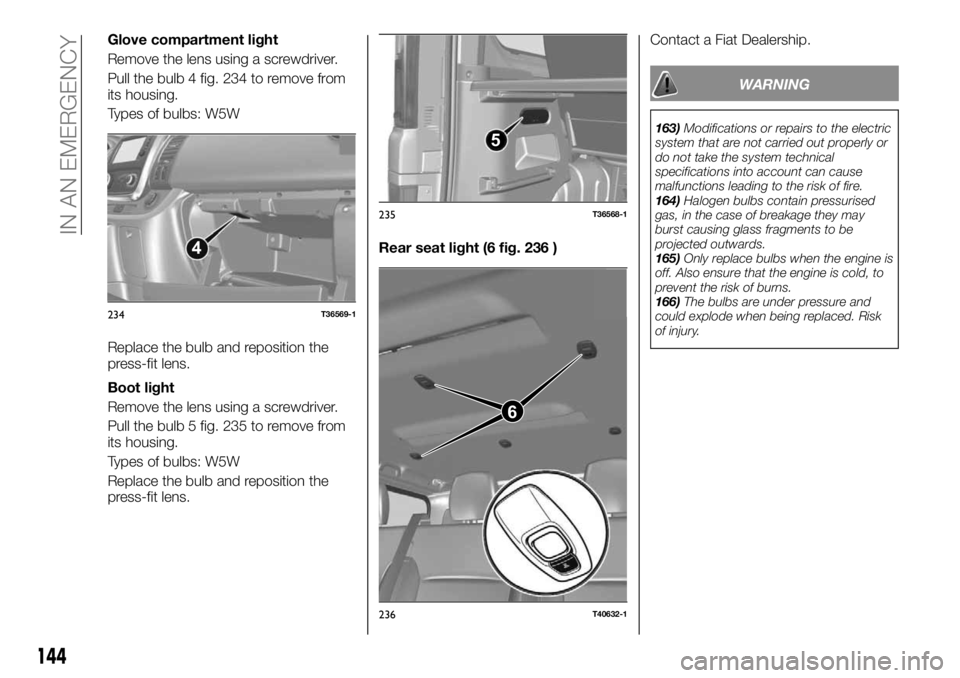

Glove compartment light
Remove the lens using a screwdriver.
Pull the bulb 4 fig. 234 to remove from
its housing.
Types of bulbs: W5W
Replace the bulb and reposition the
press-fit lens.
Boot light
Remove the lens using a screwdriver.
Pull the bulb 5 fig. 235 to remove from
its housing.
Types of bulbs: W5W
Replace the bulb and reposition the
press-fit lens.Rear seat light (6 fig. 236 )Contact a Fiat Dealership.
WARNING
163)Modifications or repairs to the electric
system that are not carried out properly or
do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
164)Halogen bulbs contain pressurised
gas, in the case of breakage they may
burst causing glass fragments to be
projected outwards.
165)Only replace bulbs when the engine is
off. Also ensure that the engine is cold, to
prevent the risk of burns.
166)The bulbs are under pressure and
could explode when being replaced. Risk
of injury.
4
234T36569-1
5
235T36568-1
6
236T40632-1
144
IN AN EMERGENCY

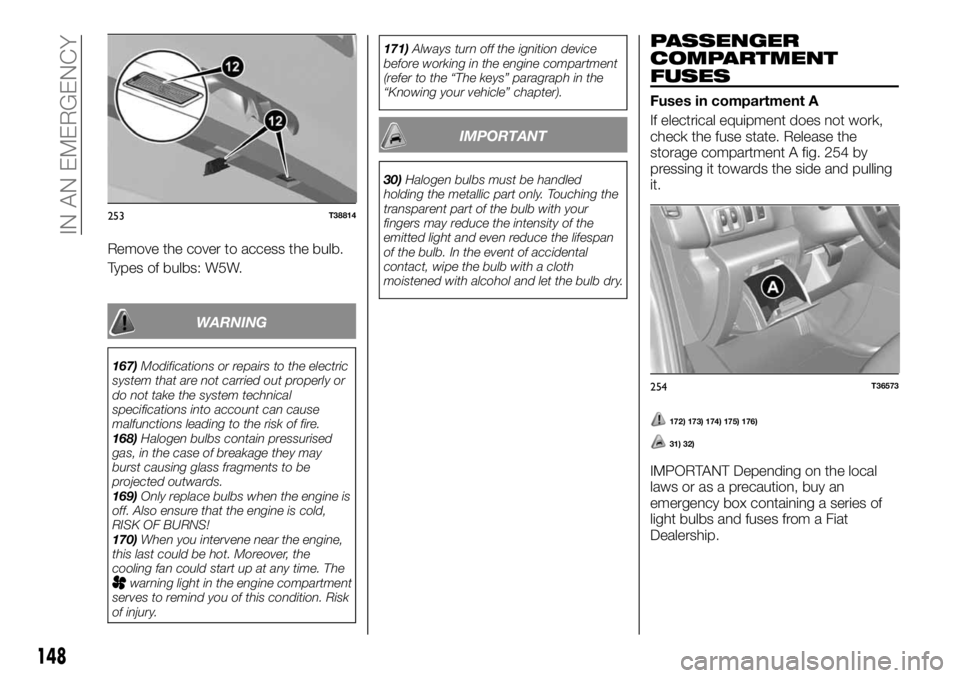

Remove the cover to access the bulb.
Types of bulbs: W5W.
WARNING
167)Modifications or repairs to the electric
system that are not carried out properly or
do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
168)Halogen bulbs contain pressurised
gas, in the case of breakage they may
burst causing glass fragments to be
projected outwards.
169)Only replace bulbs when the engine is
off. Also ensure that the engine is cold,
RISK OF BURNS!
170)When you intervene near the engine,
this last could be hot. Moreover, the
cooling fan could start up at any time. The
warning light in the engine compartment
serves to remind you of this condition. Risk
of injury.171)Always turn off the ignition device
before working in the engine compartment
(refer to the “The keys” paragraph in the
“Knowing your vehicle” chapter).
IMPORTANT
30)Halogen bulbs must be handled
holding the metallic part only. Touching the
transparent part of the bulb with your
fingers may reduce the intensity of the
emitted light and even reduce the lifespan
of the bulb. In the event of accidental
contact, wipe the bulb with a cloth
moistened with alcohol and let the bulb dry.
PASSENGER
COMPARTMENT
FUSES
Fuses in compartment A
If electrical equipment does not work,
check the fuse state. Release the
storage compartment A fig. 254 by
pressing it towards the side and pulling
it.
172) 173) 174) 175) 176)
31) 32)
IMPORTANT Depending on the local
laws or as a precaution, buy an
emergency box containing a series of
light bulbs and fuses from a Fiat
Dealership.
253T38814
254T36573
148
IN AN EMERGENCY

Multijet 95 Ecojet 95 Multijet 120 Ecojet 125 Ecojet 145
EMISSION LEVEL Euro 6
ENGINE
Engine
typeR9M
Engine displacement
(cm³) 1598
Type of injection Common rail turbo Common rail turbo Common rail turboCommon rail twin
turboCommon rail twin
turbo
Type of fuelDiesel
Start&Stop – Standard – Standard Standard
Number of cylinders 4 in line
Number of valves 16
Bore/stroke ratio (at rpm) 80/79.5
Particulate filter SCR catalytic converter and injection Adblue with particulate filter (DPF)
Compression ratio 15.45:1
Maximum engine power70 KW (95 HP) at
3500 rpm70 KW (95 HP) at
3500 rpm88 KW (120 HP) at
3500 rpm92 KW (125 HP) at
3500 rpm107 KW (145 HP)
at 3500 rpm
Maximum torque260 Nm at
1500 rpm260 Nm at
1500 rpm300 Nm at
1750 rpm320 Nm at
1500 rpm340 Nm at
1750 rpm
Tank capacity (litres) 80
Type of fuel The tag on the fuel tank flap indicates the authorised fuel.
WARNING
230)Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
185

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the scheduled servicing plan. Constant use of the prescribed lubricants guarantees the fuel
consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Features Specification Original fluids and
lubricantsReplacement interval
Diesel engine lubricants (SAE 5W-30 – ACEA C4)9.55535-S4SELENIA WR Forward
5W-30
Contractual Technical
Reference No. (F023.N15)According to Scheduled
Servicing Plan
Diesel engine lubricants
(1)(SAE 5W-30 ACEA C3)9.55535-S3 or
MS-11106SELENIA
MULTIPOWER C3
Contractual Technical
Reference No. (F129.F11)According to Scheduled
Servicing Plan
(1) Product used for non-Europe countries.
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up. In this case optimal engine performance is not guaranteed. The use of products with different specifications than those
indicated above could cause damage to the engine not covered by the warranty.
212
TECHNICAL DATA

Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluid
ClutchfluidSynthetic fluidfor brake
and clutch systems
Exceeds specifications:
DOT 49.55597 or MS-90039TUTELA TOP 4S
Contractual Technical
Reference No. F005.F15Hydraulic brakes and
hydraulic clutch controls
Lubricants and greases
for drive transmission
Manual transmission PF6SAE 75W-80 API GL-4+
grade synthetic lubricant.9.55550-MZ12TUTELA
TRANSMISSION
GEARSYNTH MTManual mechanical
transmission
Hydraulic power steering - - -
Protective agent for
radiatorsMixture of spirits and
surfactants. Exceeds
CUNA NC
956-16 specifications9.55523 or MS-90032PARAFLU
UP(1) (*) (**)
Contractual Technical
Reference No. F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLUUP
Cooling gas for the air
conditioning system1. R134a 2. R1234yf - -
Additive for diesel
emissions AdBlue (Urea)Water-urea solutionDIN 70 070 and ISO
22241-1AdBlueTo be used for filling the
tank Urea on vehicles
equipped with system of
Selective Catalytic
Reduction (SCR).
(1) The product used for initial filling and PARAFLU UP can be fully mixed, even though the colours may differ. PARAFLU UP may be used for topping up amounts of
up to 1 litre. Over this amount, we recommend completely changing the coolant in the percentages given.
(*) Do not top up or mix with other fluids which have different specifications from the ones described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLU UP and 40% demineralised water.
