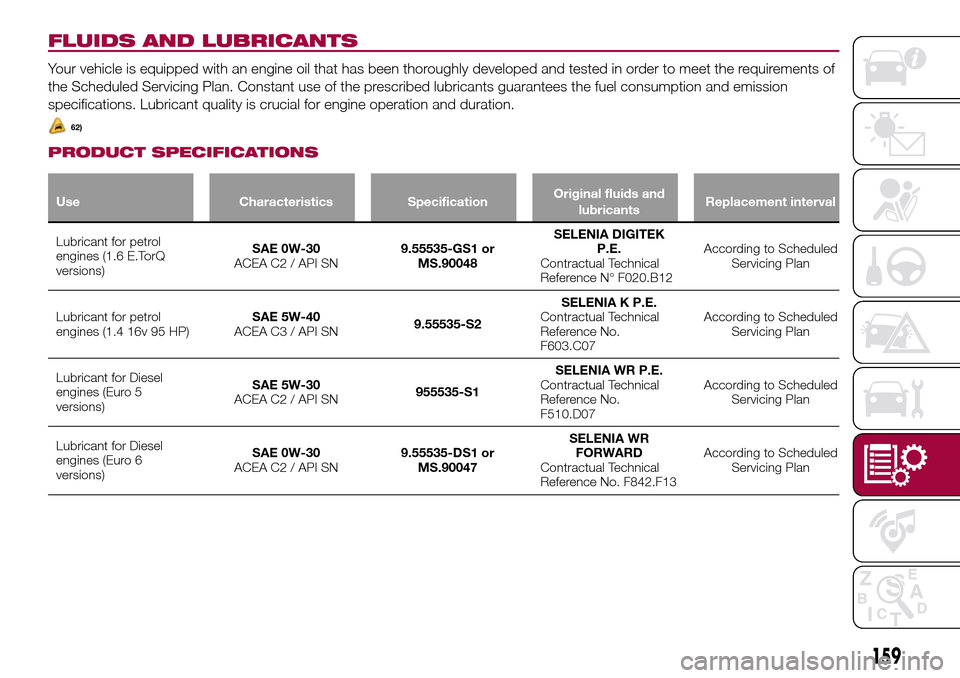

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
62)
PRODUCT SPECIFICATIONS
Use Characteristics SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
engines (1.6 E.TorQ
versions)SAE 0W-30
ACEA C2 / API SN9.55535-GS1 or
MS.90048SELENIA DIGITEK
P.E.
Contractual Technical
Reference N° F020.B12According to Scheduled
Servicing Plan
Lubricant for petrol
engines (1.4 16v 95 HP)SAE 5W-40
ACEA C3 / API SN9.55535-S2SELENIA K P.E.
Contractual Technical
Reference No.
F603.C07According to Scheduled
Servicing Plan
Lubricant for Diesel
engines (Euro 5
versions)SAE 5W-30
ACEA C2 / API SN955535-S1SELENIA WR P.E.
Contractual Technical
Reference No.
F510.D07According to Scheduled
Servicing Plan
Lubricant for Diesel
engines (Euro 6
versions)SAE 0W-30
ACEA C2 / API SN9.55535-DS1 or
MS.90047SELENIA WR
FORWARD
Contractual Technical
Reference No. F842.F13According to Scheduled
Servicing Plan
159

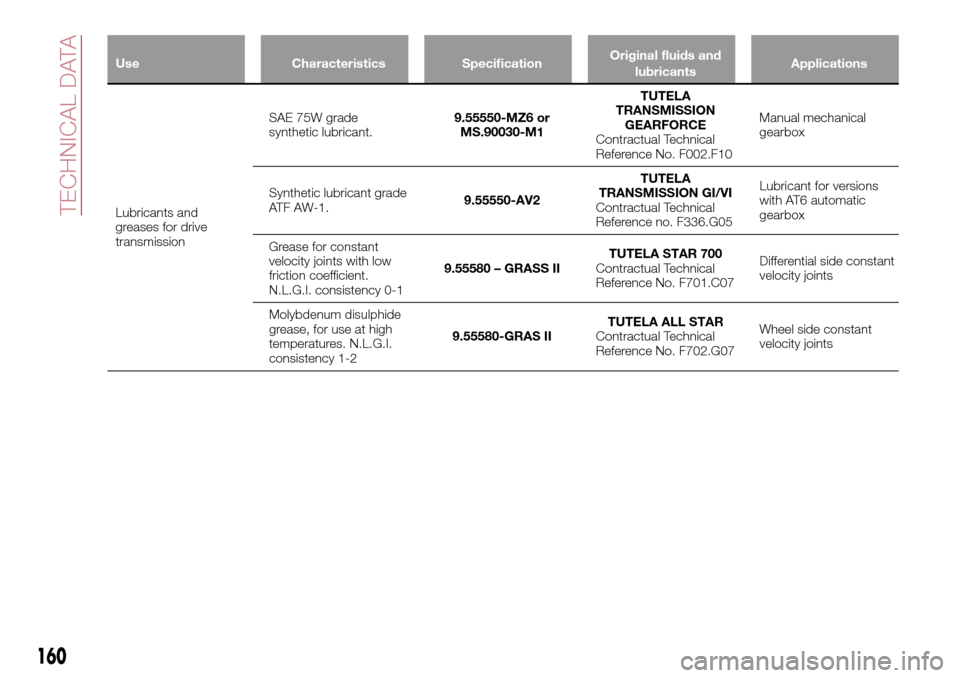

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSAE 75W grade
synthetic lubricant.9.55550-MZ6 or
MS.90030-M1TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Manual mechanical
gearbox
Synthetic lubricant grade
ATF AW-1.9.55550-AV2TUTELA
TRANSMISSION GI/VI
Contractual Technical
Reference no. F336.G05Lubricant for versions
with AT6 automatic
gearbox
Grease for constant
velocity joints with low
friction coefficient.
N.L.G.I. consistency 0-19.55580 – GRASS IITUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-29.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
160
TECHNICAL DATA

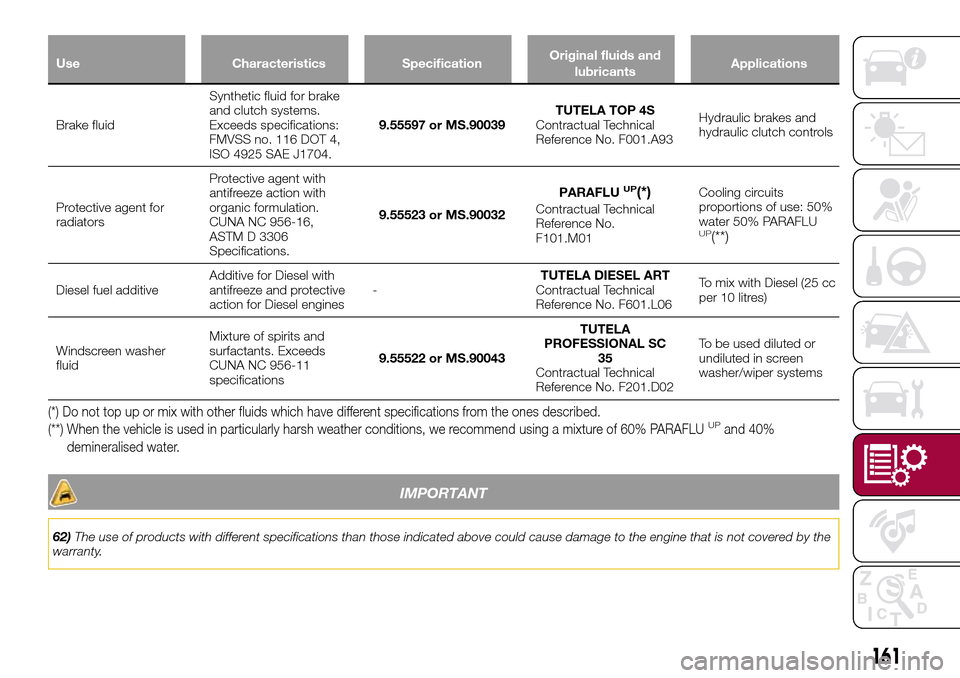

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4S
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsProtective agent with
antifreeze action with
organic formulation.
CUNA NC 956-16,
ASTM D 3306
Specifications.9.55523 or MS.90032PARAFLU
UP(*)
Contractual Technical
Reference No.
F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLU
UP(**)
Diesel fuel additiveAdditive for Diesel with
antifreeze and protective
action for Diesel engines-TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To mix with Diesel (25 cc
per 10 litres)
Windscreen washer
fluidMixture of spirits and
surfactants. Exceeds
CUNA NC 956-11
specifications9.55522 or MS.90043TUTELA
PROFESSIONAL SC
35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in screen
washer/wiper systems
(*) Do not top up or mix with other fluids which have different specifications from the ones described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40%
demineralised water.
IMPORTANT
62)The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by the
warranty.
161

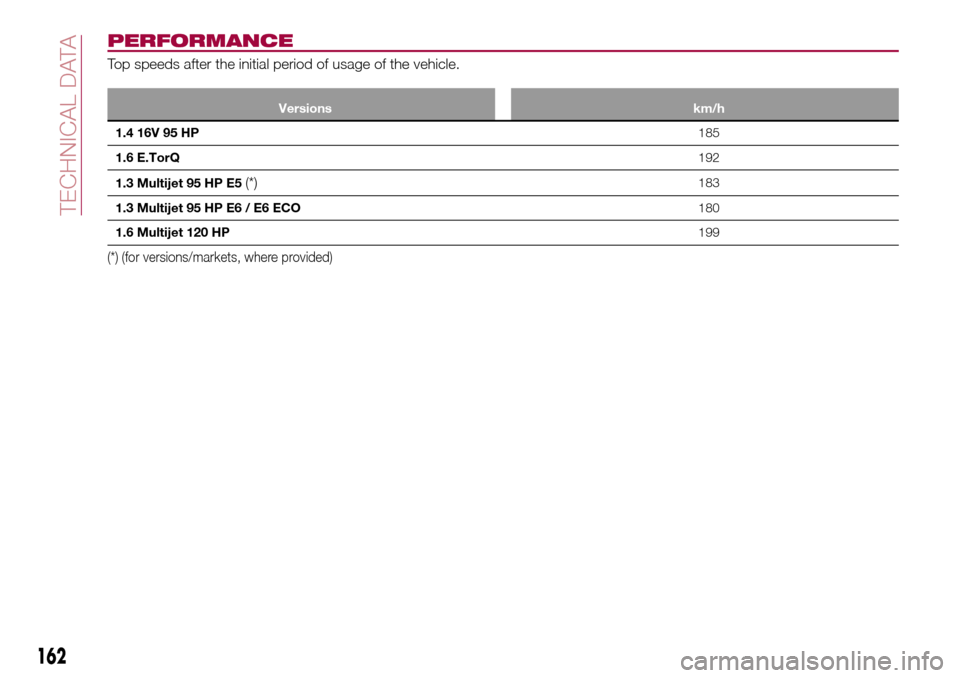

PERFORMANCE
Top speeds after the initial period of usage of the vehicle.
Versions km/h
1.4 16V 95 HP185
1.6 E.TorQ192
1.3 Multijet 95 HP E5
(*)183
1.3 Multijet 95 HP E6 / E6 ECO180
1.6 Multijet 120 HP199
(*) (for versions/markets, where provided)
162
TECHNICAL DATA

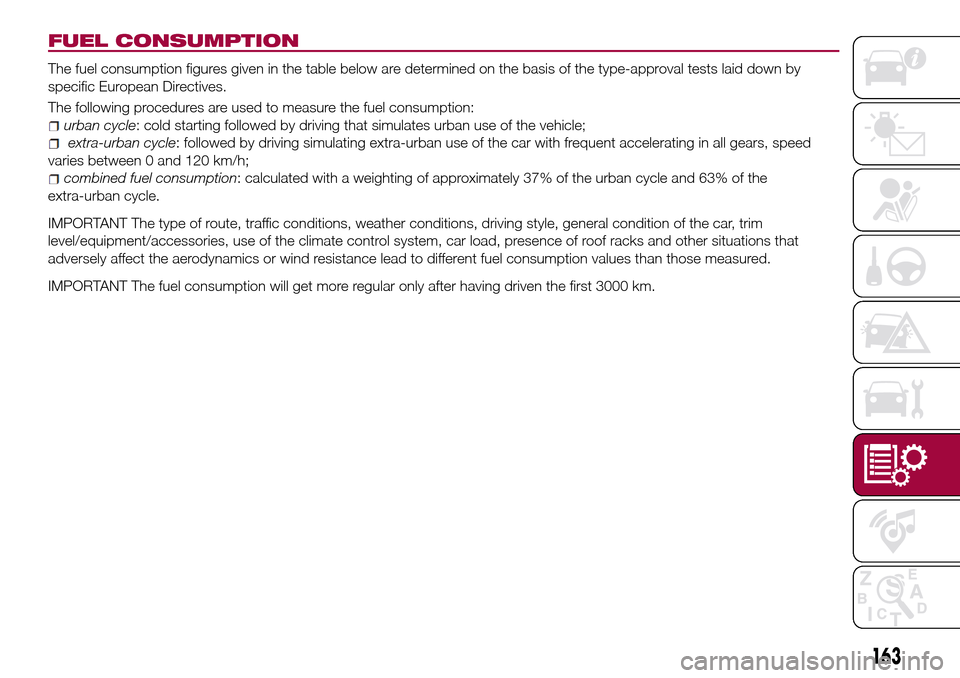

FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the type-approval tests laid down by
specific European Directives.
The following procedures are used to measure the fuel consumption:
urban cycle: cold starting followed by driving that simulates urban use of the vehicle;
extra-urban cycle: followed by driving simulating extra-urban use of the car with frequent accelerating in all gears, speed
varies between 0 and 120 km/h;
combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the
extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim
level/equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured.
IMPORTANT The fuel consumption will get more regular only after having driven the first 3000 km.
163

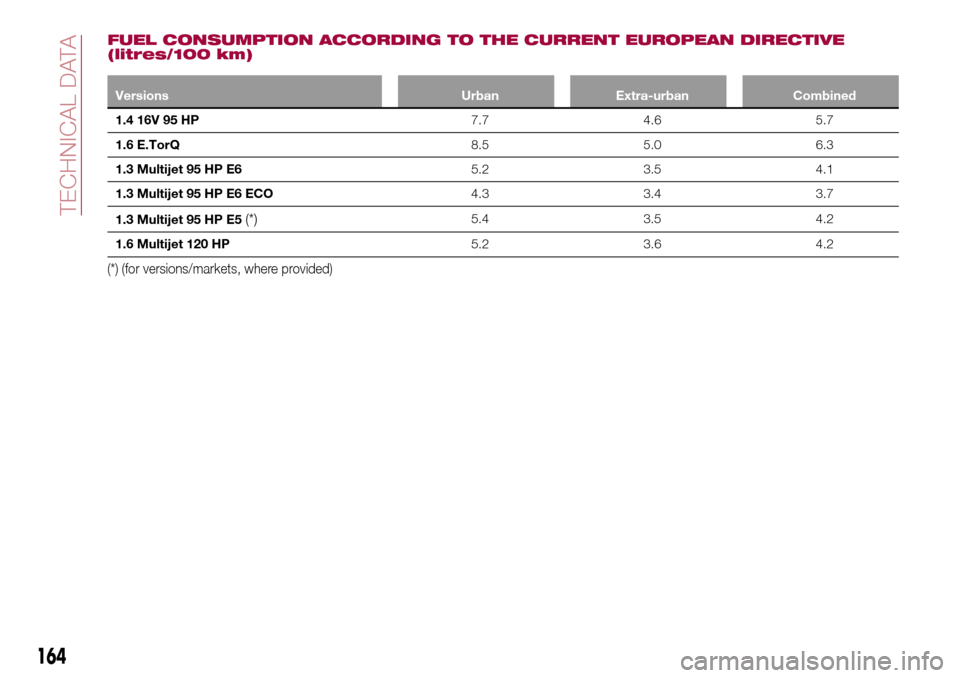

FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)
Versions Urban Extra-urban Combined
1.4 16V 95 HP7.7 4.6 5.7
1.6 E.TorQ8.5 5.0 6.3
1.3 Multijet 95 HP E65.2 3.5 4.1
1.3 Multijet 95 HP E6 ECO4.3 3.4 3.7
1.3 Multijet 95 HP E5
(*)5.4 3.5 4.2
1.6 Multijet 120 HP5.2 3.6 4.2
(*) (for versions/markets, where provided)
164
TECHNICAL DATA

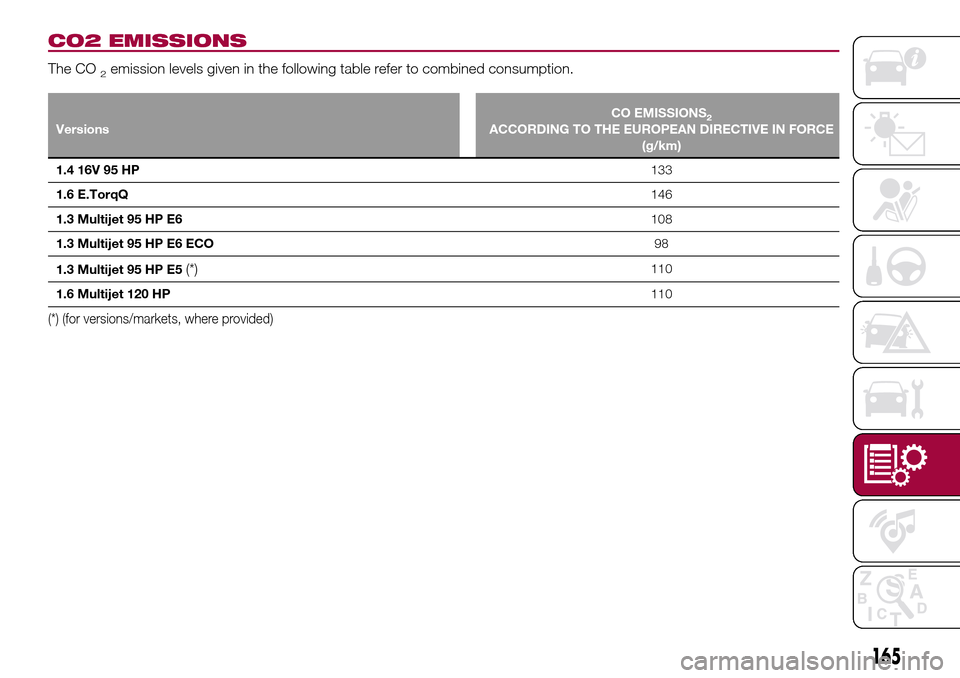

CO2 EMISSIONS
The CO2emission levels given in the following table refer to combined consumption.
VersionsCO EMISSIONS2ACCORDING TO THE EUROPEAN DIRECTIVE IN FORCE
(g/km)
1.4 16V 95 HP133
1.6 E.TorqQ146
1.3 Multijet 95 HP E6108
1.3 Multijet 95 HP E6 ECO98
1.3 Multijet 95 HP E5
(*)110
1.6 Multijet 120 HP110
(*) (for versions/markets, where provided)
165

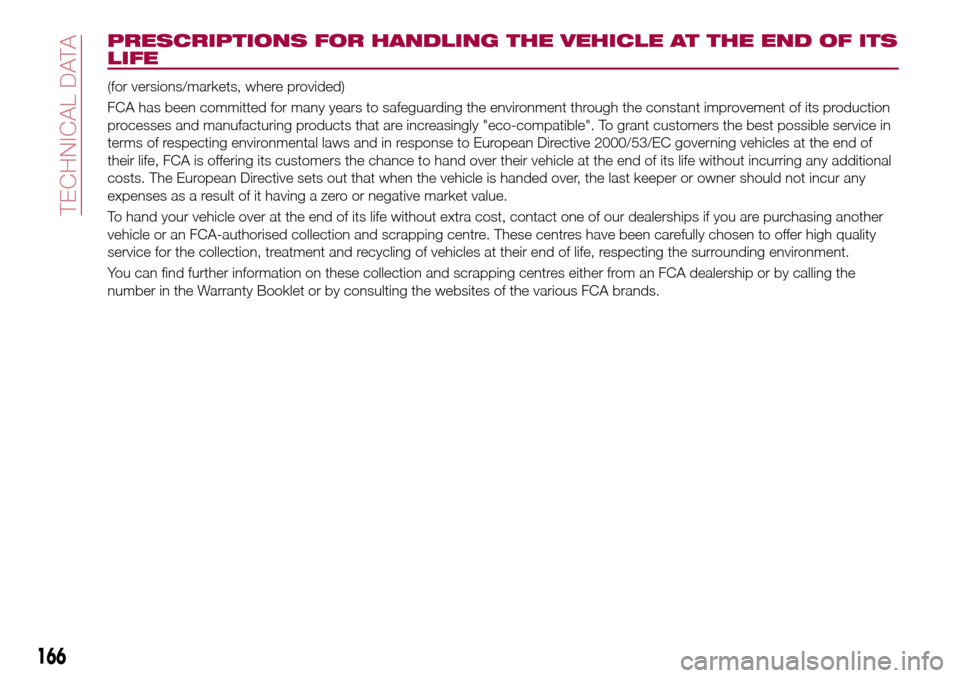

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS
LIFE
(for versions/markets, where provided)
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service in
terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
166
TECHNICAL DATA

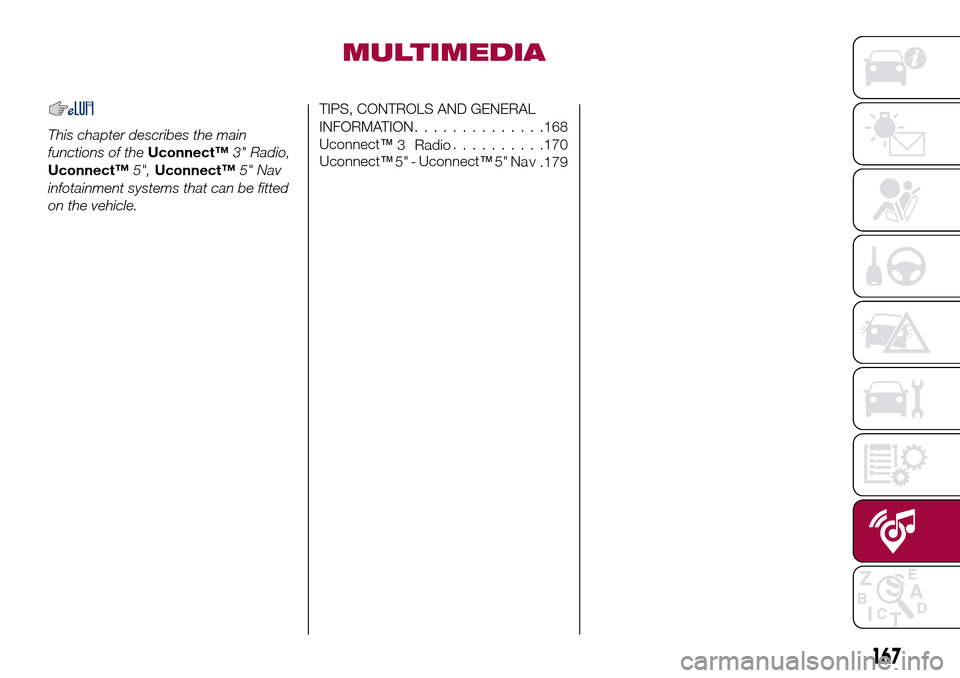

MULTIMEDIA
This chapter describes the main
functions of theUconnect™3" Radio,
Uconnect™5",Uconnect™5" Nav
infotainment systems that can be fitted
on the vehicle.
TIPS, CONTROLS AND GENERAL
INFORMATION..............168
.........170
.179
167
3Radio Uconnect™.
5" - 5" Na Uconnect™ Uconnect™ v

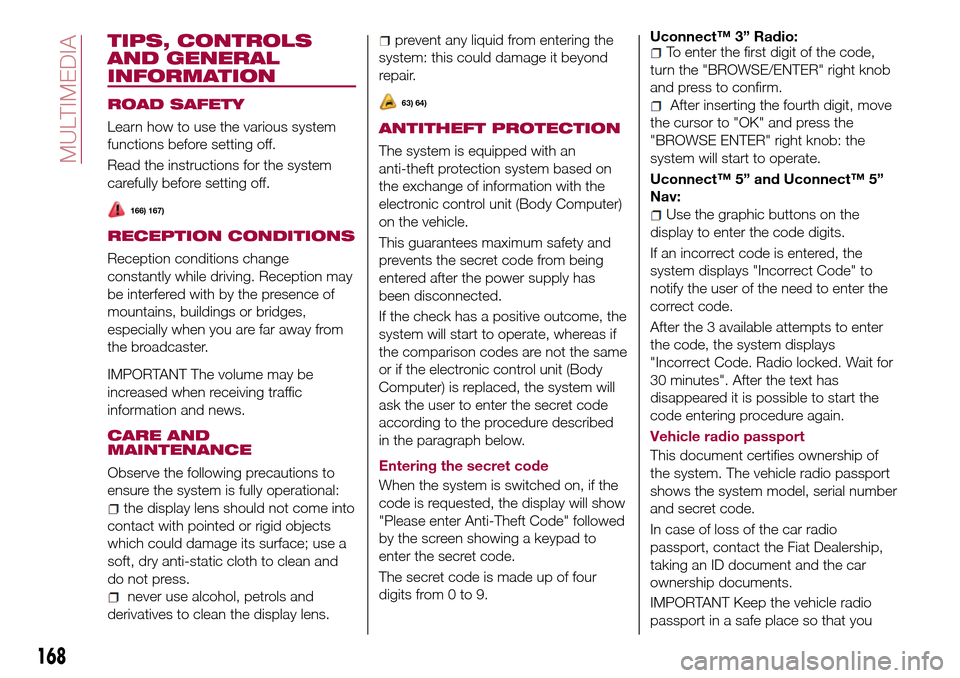

TIPS, CONTROLS
AND GENERAL
INFORMATION
ROAD SAFETY
Learn how to use the various system
functions before setting off.
Read the instructions for the system
carefully before setting off.
166) 167)
RECEPTION CONDITIONS
Reception conditions change
constantly while driving. Reception may
be interfered with by the presence of
mountains, buildings or bridges,
especially when you are far away from
the broadcaster.
IMPORTANT The volume may be
increased when receiving traffic
information and news.
CARE AND
MAINTENANCE
Observe the following precautions to
ensure the system is fully operational:
the display lens should not come into
contact with pointed or rigid objects
which could damage its surface; use a
soft, dry anti-static cloth to clean and
do not press.
never use alcohol, petrols and
derivatives to clean the display lens.
prevent any liquid from entering the
system: this could damage it beyond
repair.
63) 64)
ANTITHEFT PROTECTION
The system is equipped with an
anti-theft protection system based on
the exchange of information with the
electronic control unit (Body Computer)
on the vehicle.
This guarantees maximum safety and
prevents the secret code from being
entered after the power supply has
been disconnected.
If the check has a positive outcome, the
system will start to operate, whereas if
the comparison codes are not the same
or if the electronic control unit (Body
Computer) is replaced, the system will
ask the user to enter the secret code
according to the procedure described
in the paragraph below.
Entering the secret code
When the system is switched on, if the
code is requested, the display will show
"Please enter Anti-Theft Code" followed
by the screen showing a keypad to
enter the secret code.
The secret code is made up of four
digits from 0 to 9.Uconnect™ 3” Radio:
To enter the first digit of the code,
turn the "BROWSE/ENTER" right knob
and press to confirm.
After inserting the fourth digit, move
the cursor to "OK" and press the
"BROWSE ENTER" right knob: the
system will start to operate.
Uconnect™ 5” and Uconnect™ 5”
Nav:
Use the graphic buttons on the
display to enter the code digits.
If an incorrect code is entered, the
system displays "Incorrect Code" to
notify the user of the need to enter the
correct code.
After the 3 available attempts to enter
the code, the system displays
"Incorrect Code. Radio locked. Wait for
30 minutes". After the text has
disappeared it is possible to start the
code entering procedure again.
Vehicle radio passport
This document certifies ownership of
the system. The vehicle radio passport
shows the system model, serial number
and secret code.
In case of loss of the car radio
passport, contact the Fiat Dealership,
taking an ID document and the car
ownership documents.
IMPORTANT Keep the vehicle radio
passport in a safe place so that you
168
