technical specifications FIAT TIPO 4DOORS 2020 Owner handbook (in English)

Versions1.3 Multijet 95 HP
E6/E6ECO1.3 Multijet 95HP
E5(*)1.6 Multijet 120 HP
E61.6 Multijet 115 HP
E6(**)
Engine code 55266963 199B1000 55260384 55260384
Cycle Diesel Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 69.6 × 82 69.6 × 82 79.5 × 80.5 79.5 × 80.5
Total displacement (cm³) 1248 1248 1598 1598
Compression ratio 16.8 : 1 16.8 : 1 16.5 : 1 16.5 : 1
Maximum power (EC) (kW) 70 70 88 84.4
corresponding engine speed (rpm) 3750 4000 3750 3750
Maximum torque (EEC) (Nm) 200 200 320 320
corresponding engine speed (rpm) 1500 1500 1750 1750
FuelDiesel for motor
vehicles
(EN590 Specification)Diesel for motor
vehicles
(EN590 Specification)Diesel for motor
vehicles
(EN590 Specification)Diesel for motor
vehicles
(EN590 Specification)
(*) For versions/markets where provided
(**) Version for specific markets
WARNING
175)Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
191

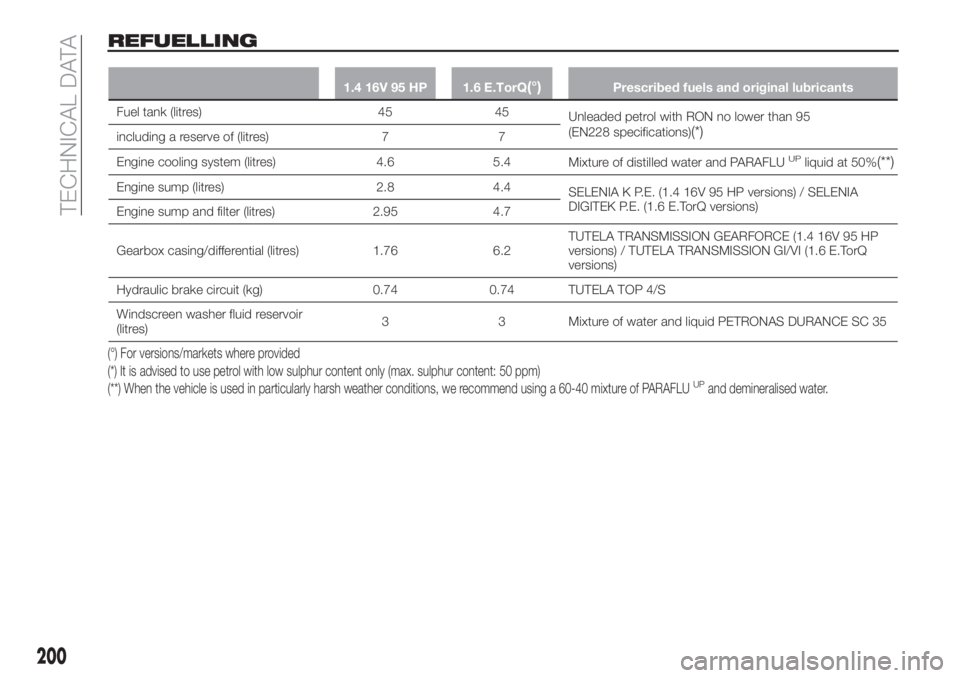

REFUELLING
1.4 16V 95 HP 1.6 E.TorQ(°)Prescribed fuels and original lubricants
Fuel tank (litres) 45 45
Unleaded petrol with RON no lower than 95
(EN228 specifications)
(*)including a reserve of (litres) 7 7
Engine cooling system (litres) 4.6 5.4
Mixture of distilled water and PARAFLU
UPliquid at 50%(**)
Engine sump (litres) 2.8 4.4
SELENIA K P.E. (1.4 16V 95 HP versions) / SELENIA
DIGITEK P.E. (1.6 E.TorQ versions)
Engine sump and filter (litres) 2.95 4.7
Gearbox casing/differential (litres) 1.76 6.2TUTELA TRANSMISSION GEARFORCE (1.4 16V 95 HP
versions) / TUTELA TRANSMISSION GI/VI (1.6 E.TorQ
versions)
Hydraulic brake circuit (kg) 0.74 0.74 TUTELA TOP 4/S
Windscreen washer fluid reservoir
(litres)3 3 Mixture of water and liquid PETRONAS DURANCE SC 35
(°) For versions/markets where provided
(*) It is advised to use petrol with low sulphur content only (max. sulphur content: 50 ppm)
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
200
TECHNICAL DATA

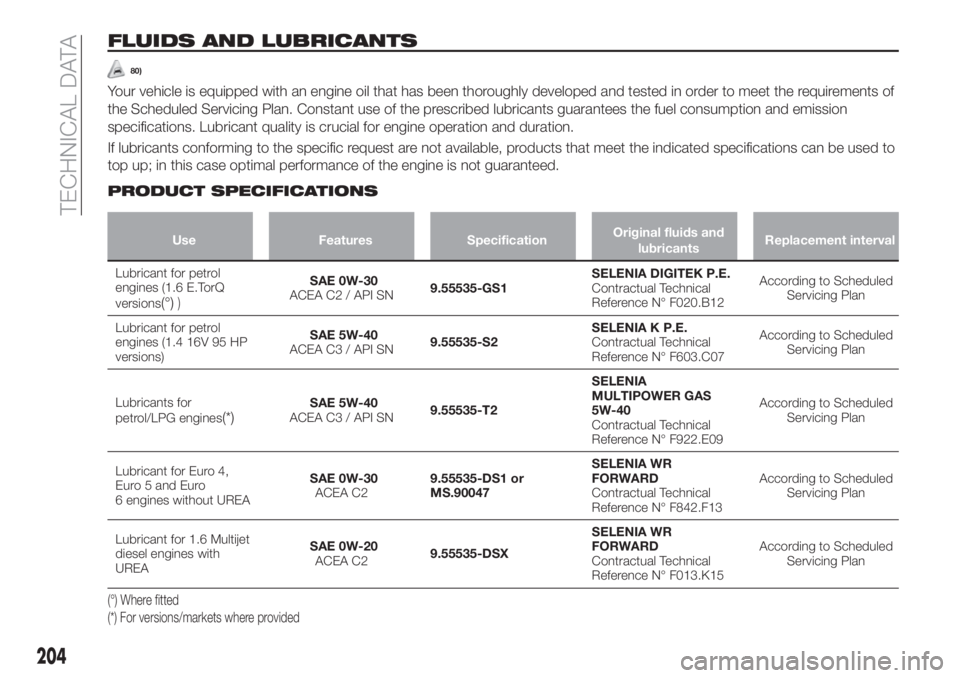

FLUIDS AND LUBRICANTS
80)
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
PRODUCT SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
engines (1.6 E.TorQ
versions
(°))
SAE 0W-30
ACEA C2 / API SN9.55535-GS1SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Scheduled
Servicing Plan
Lubricant for petrol
engines (1.4 16V 95 HP
versions)SAE 5W-40
ACEA C3 / API SN9.55535-S2SELENIA K P.E.
Contractual Technical
Reference N° F603.C07According to Scheduled
Servicing Plan
Lubricants for
petrol/LPG engines
(*)SAE 5W-40
ACEA C3 / API SN9.55535-T2SELENIA
MULTIPOWER GAS
5W-40
Contractual Technical
Reference N° F922.E09According to Scheduled
Servicing Plan
Lubricant for Euro 4,
Euro 5 and Euro
6 engines without UREASAE 0W-30
ACEA C29.55535-DS1 or
MS.90047SELENIA WR
FORWARD
Contractual Technical
Reference N° F842.F13According to Scheduled
Servicing Plan
Lubricant for 1.6 Multijet
diesel engines with
UREASAE 0W-20
ACEA C29.55535-DSXSELENIA WR
FORWARD
Contractual Technical
Reference N° F013.K15According to Scheduled
Servicing Plan
(°) Where fitted
(*) For versions/markets where provided
204
TECHNICAL DATA

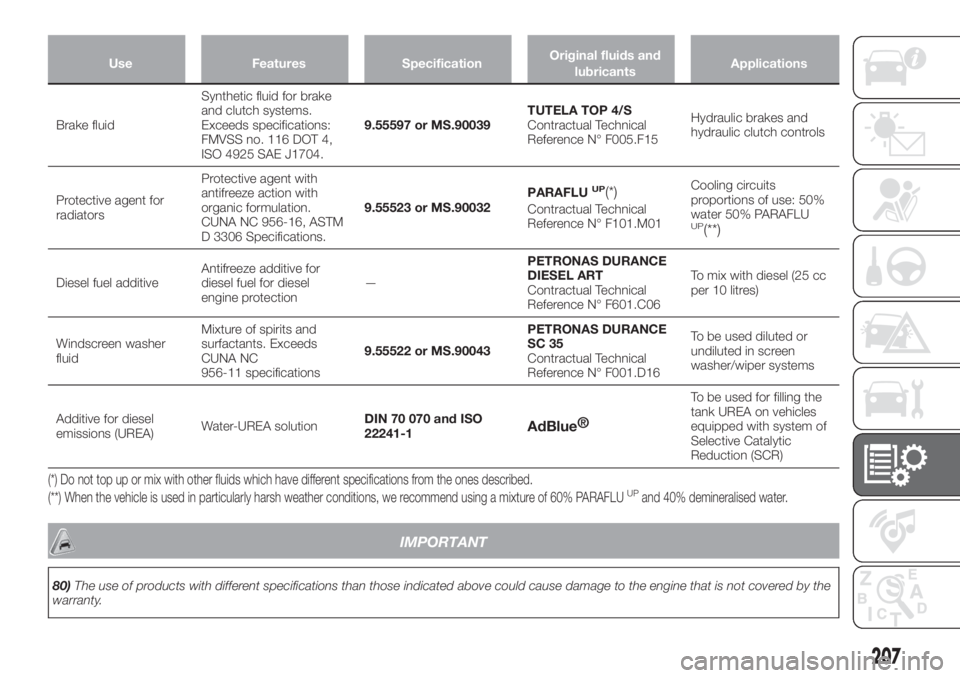

Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsProtective agent with
antifreeze action with
organic formulation.
CUNA NC 956-16, ASTM
D 3306 Specifications.9.55523 or MS.90032PARAFLU
UP(*)
Contractual Technical
Reference N° F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLUUP(**)
Diesel fuel additiveAntifreeze additive for
diesel fuel for diesel
engine protection—PETRONAS DURANCE
DIESEL ART
Contractual Technical
Reference N° F601.C06To mix with diesel (25 cc
per 10 litres)
Windscreen washer
fluidMixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications9.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems
Additive for diesel
emissions (UREA)Water-UREA solutionDIN 70 070 and ISO
22241-1
AdBlue®
To be used for filling the
tank UREA on vehicles
equipped with system of
Selective Catalytic
Reduction (SCR)
(*) Do not top up or mix with other fluids which have different specifications from the ones described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40% demineralised water.
IMPORTANT
80)The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by the
warranty.
207

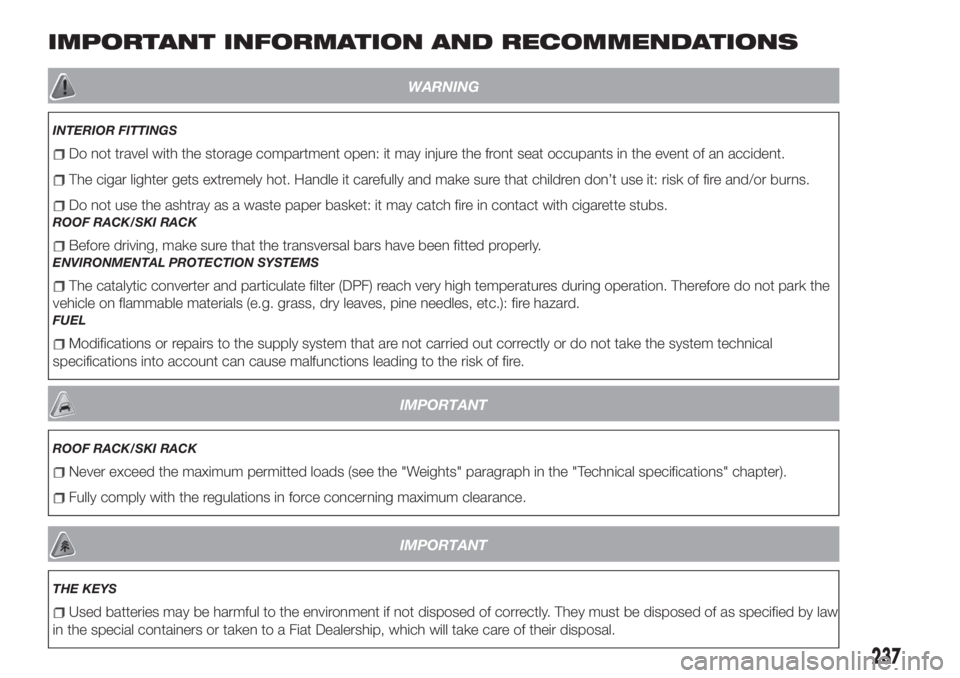

IMPORTANT INFORMATION AND RECOMMENDATIONS
WARNING
INTERIOR FITTINGS
Do not travel with the storage compartment open: it may injure the front seat occupants in the event of an accident.
The cigar lighter gets extremely hot. Handle it carefully and make sure that children don’t use it: risk of fire and/or burns.
Do not use the ashtray as a waste paper basket: it may catch fire in contact with cigarette stubs.
ROOF RACK/SKI RACK
Before driving, make sure that the transversal bars have been fitted properly.
ENVIRONMENTAL PROTECTION SYSTEMS
The catalytic converter and particulate filter (DPF) reach very high temperatures during operation. Therefore do not park the
vehicle on flammable materials (e.g. grass, dry leaves, pine needles, etc.): fire hazard.
FUEL
Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical
specifications into account can cause malfunctions leading to the risk of fire.
IMPORTANT
ROOF RACK/SKI RACK
Never exceed the maximum permitted loads (see the "Weights" paragraph in the "Technical specifications" chapter).
Fully comply with the regulations in force concerning maximum clearance.
IMPORTANT
THE KEYS
Used batteries may be harmful to the environment if not disposed of correctly. They must be disposed of as specified by law
in the special containers or taken to a Fiat Dealership, which will take care of their disposal.
