Warning light What it means
amberFIAT CODE SYSTEM FAILURE
The warning light or symbol switches on to indicate a failure of the Fiat CODE system. Contact a Fiat
Dealership as soon as possible.
amberPARKING SENSORS (PARK ASSIST) FAILURE
The warning light or yellow symbol switches on in the case of temporary failure of the parking sensors. If
the problem is still present after cleaning the parking sensor area, contact a Fiat Dealership.
amberWATER IN DIESEL FILTER (Diesel versions)
The warning light or symbol switches on constantly while driving (along with a message in the display), to
indicate the presence of water in the Diesel filter.
22)
amberENGINE OIL DETERIORATED
(where provided)
Diesel versions: the warning light or symbol turns on and is displayed for 3 minute cycles and intervals of
5 seconds until the oil is changed.
The symbol is displayed until the problem is solved.
Petrol versions: the warning light or symbol switches on and then is not displayed when the display cycle
is completed.
IMPORTANT After the first indication, each time the engine is started the symbol will continue to switch on
as described above until the oil is changed.
If the warning light or symbol flashes, this does not mean that there is a fault on the vehicle, rather it simply
reports that it is now necessary to change the oil as a result of regular use of the vehicle.
The deterioration of engine oil is accelerated by using the vehicle for short drives, preventing the engine
from reaching operating temperature.
Contact a Fiat Dealership as soon as possible.
23) 24)
59

Warning light What it means

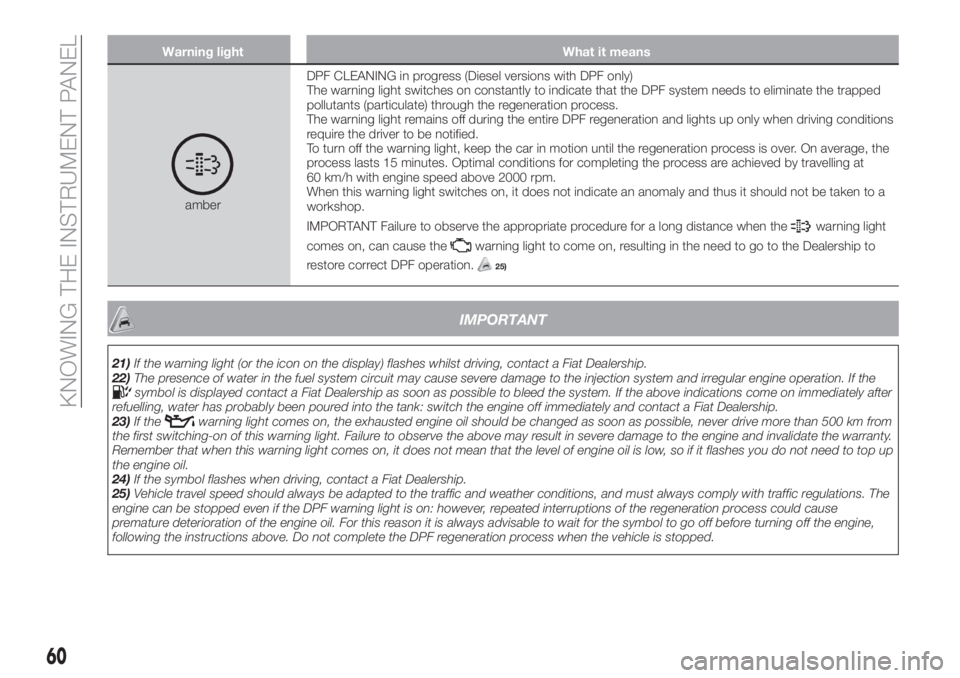

amberDPF CLEANING in progress (Diesel versions with DPF only)
The warning light switches on constantly to indicate that the DPF system needs to eliminate the trapped
pollutants (particulate) through the regeneration process.
The warning light remains off during the entire DPF regeneration and lights up only when driving conditions
require the driver to be notified.
To turn off the warning light, keep the car in motion until the regeneration process is over. On average, the
process lasts 15 minutes. Optimal conditions for completing the process are achieved by travelling at
60 km/h with engine speed above 2000 rpm.
When this warning light switches on, it does not indicate an anomaly and thus it should not be taken to a
workshop.
IMPORTANT Failure to observe the appropriate procedure for a long distance when the
warning light
comes on, can cause the
warning light to come on, resulting in the need to go to the Dealership to
restore correct DPF operation.
25)
IMPORTANT
21)If the warning light (or the icon on the display) flashes whilst driving, contact a Fiat Dealership.
22)The presence of water in the fuel system circuit may cause severe damage to the injection system and irregular engine operation. If the
symbol is displayed contact a Fiat Dealership as soon as possible to bleed the system. If the above indications come on immediately after
refuelling, water has probably been poured into the tank: switch the engine off immediately and contact a Fiat Dealership.
23)If the
warning light comes on, the exhausted engine oil should be changed as soon as possible, never drive more than 500 km from
the first switching-on of this warning light. Failure to observe the above may result in severe damage to the engine and invalidate the warranty.
Remember that when this warning light comes on, it does not mean that the level of engine oil is low, so if it flashes you do not need to top up
the engine oil.
24)If the symbol flashes when driving, contact a Fiat Dealership.
25)Vehicle travel speed should always be adapted to the traffic and weather conditions, and must always comply with traffic regulations. The
engine can be stopped even if the DPF warning light is on: however, repeated interruptions of the regeneration process could cause
premature deterioration of the engine oil. For this reason it is always advisable to wait for the symbol to go off before turning off the engine,
following the instructions above. Do not complete the DPF regeneration process when the vehicle is stopped.
60
KNOWING THE INSTRUMENT PANEL

Green warning lights
Warning light What it means

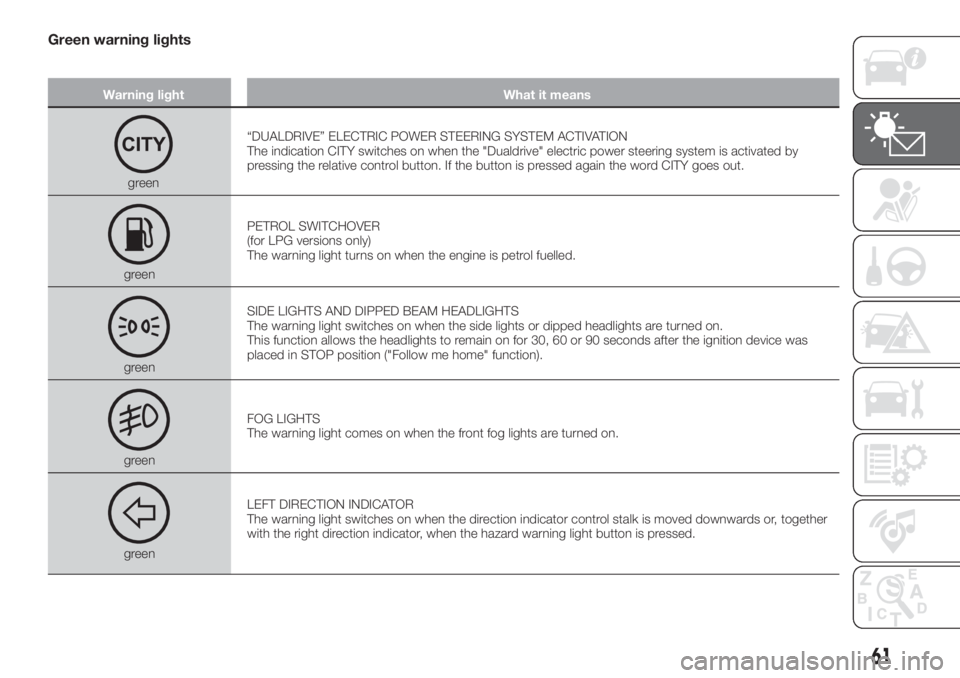

green“DUALDRIVE” ELECTRIC POWER STEERING SYSTEM ACTIVATION
The indication CITY switches on when the "Dualdrive" electric power steering system is activated by
pressing the relative control button. If the button is pressed again the word CITY goes out.
greenPETROL SWITCHOVER
(for LPG versions only)
The warning light turns on when the engine is petrol fuelled.
greenSIDE LIGHTS AND DIPPED BEAM HEADLIGHTS
The warning light switches on when the side lights or dipped headlights are turned on.
This function allows the headlights to remain on for 30, 60 or 90 seconds after the ignition device was
placed in STOP position ("Follow me home" function).
greenFOG LIGHTS
The warning light comes on when the front fog lights are turned on.
greenLEFT DIRECTION INDICATOR
The warning light switches on when the direction indicator control stalk is moved downwards or, together
with the right direction indicator, when the hazard warning light button is pressed.
61

Warning light What it means

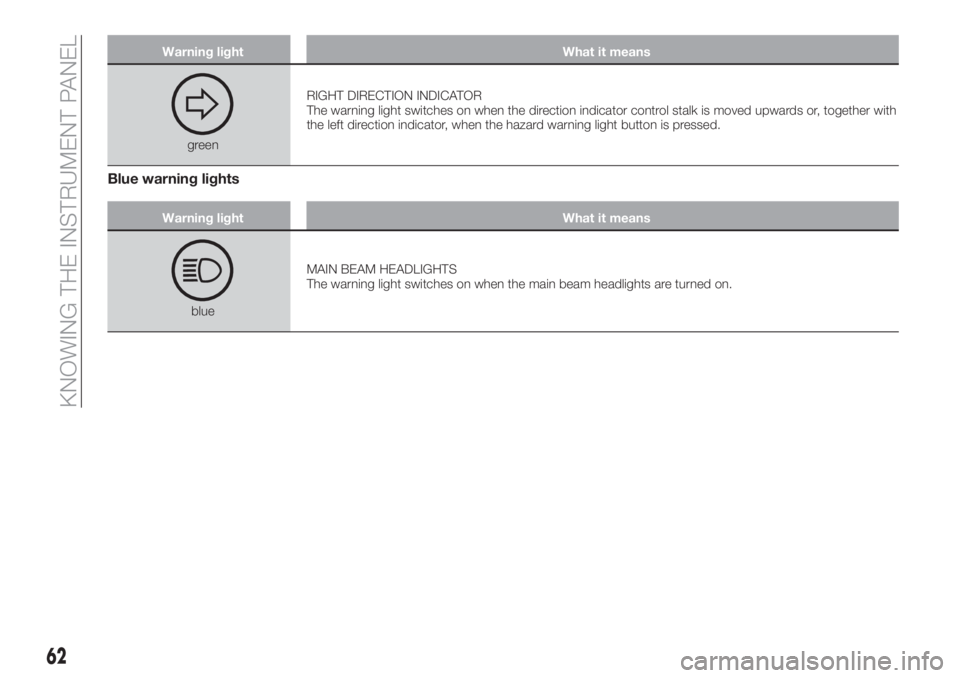

greenRIGHT DIRECTION INDICATOR
The warning light switches on when the direction indicator control stalk is moved upwards or, together with
the left direction indicator, when the hazard warning light button is pressed.
Blue warning lights
Warning light What it means
blueMAIN BEAM HEADLIGHTS
The warning light switches on when the main beam headlights are turned on.
62
KNOWING THE INSTRUMENT PANEL

SYMBOLS AND MESSAGES ON THE DISPLAY
Symbol What it means
redBONNET NOT PROPERLY SHUT
The symbol switches on when the engine bonnet is not properly shut (for versions/markets,
where provided). Close the bonnet properly.
redREAR FLAP NOT PROPERLY SHUT
The symbol switches on when the rear flap is not properly shut (for versions/markets, where
provided). Close the rear flap correctly.
amberENGINE OIL PRESSURE SENSOR FAILURE
The symbol switches on constantly together with the message in the display in the case of
engine oil pressure sensor failure.
amberRAIN SENSOR FAILURE
The symbol switches on in the case of failure of the rain sensor. Contact a Fiat Dealership as
soon as possible.
amberFUEL CUT-OFF SYSTEM OPERATION
The symbol switches on in the event of fuel cut-off system intervention.
For reactivating the fuel cut-off system, refer to the description in the "Fuel cut-off system"
section in the "In an emergency" chapter. If it is still not possible to restore the fuel supply,
contact a Fiat Dealership.
amberFUEL CUT-OFF SYSTEM FAILURE
The symbol switches on in the event of fuel cut-off system failure. Contact a Fiat Dealership as
soon as possible.
amberSTART&STOP SYSTEM FAILURE
(for versions/markets, where provided)
The symbol switches on to report a failure of the Start&Stop system. The display will show a
dedicated message. Contact a Fiat Dealership as soon as possible.
63

Symbol What it means
amberEXTERIOR LIGHTS FAILURE
The symbol switches on to indicate a failure on the following lights: daytime running lights
(DRLs); parking lights; side lights; direction indicators; rear fog light; reversing light; number
plate lights.
The anomaly may be caused by a blown bulb, a blown protection fuse or an interruption of the
electrical connection.
amberFUEL LEVEL SENSOR FAILURE
The symbol switches on in the event of fuel level sensor failure. Contact a Fiat Dealership.
amberLPG FUEL LEVEL SENSOR FAILURE
The symbol switches on in the event of LPG fuel level sensor failure. Contact a Fiat Dealership.
amberPOSSIBLE ICE ON ROAD
The symbol turns on when the outside temperature falls to or below 3°C.
IMPORTANT In the event of outside temperature sensor failure, the digits that indicate the value
are replaced by dashes.
amberDUSK SENSOR FAILURE
The symbol switches on along with a message on the display in the event of dusk sensor
failure. Contact a Fiat Dealership as soon as possible.
amberAUDIO SYSTEM FAILURE
The symbol switches on to report a failure of the audio system. Contact a Fiat Dealership as
soon as possible.
64
KNOWING THE INSTRUMENT PANEL

Symbol What it means
amber or redPARKING SENSORS (PARK ASSIST) FAILURE
The yellow symbol switches on in the case of temporary failure of the parking sensors. If the
problem is still present after cleaning the parking sensor area, contact a Fiat Dealership.
The red symbol switches on in the case of permanent failure of the parking sensors. The failed
operation of the system might be due to the insufficient voltage from the battery or other faults
on the electrical system. Contact a Fiat Dealership as soon as possible.
amber or redFULL BRAKE CONTROL SYSTEM FAILURE
The yellow symbol switch on temporarily (with the displayed message) in the case of failure of
the Full Brake Control system. Contact a Fiat Dealership as soon as possible.
The red symbol switch on permanently (with the displayed message) in the case of failure of the
Full Brake Control system. Contact a Fiat Dealership as soon as possible.
amberSPEED LIMITER FAILURE
The symbol switches on in the case of failure of the Speed Limiter device. Contact a Fiat
Dealership as soon as possible to have the failure eliminated.
amberSCHEDULED SERVICING (SERVICE)
The “Service Schedule” includes car maintenance at fixed intervals (refer to the "Maintenance
and care" chapter).
When the next scheduled service is approaching, the symbol will be displayed, followed by the
number of kilometres/miles or days (where provided) left, when the ignition device is turned to
MAR.
This is displayed automatically, with ignition device at MAR, 2000 km before servicing or, where
provided, 30 days before servicing. It is also displayed each time the ignition device is turned to
MAR. The display will be in km or miles according to the unit of measurement set.
Go to a Fiat Dealership, where the "Scheduled Servicing Plan" operations will be performed and
the message will be reset.
amberThis symbol lights up to indicate that the clutch pedal must be pressed to enable starting for
versions with manual gearbox. For versions with automatic transmission, it indicates to press
the brake pedal.
65

Symbol What it means

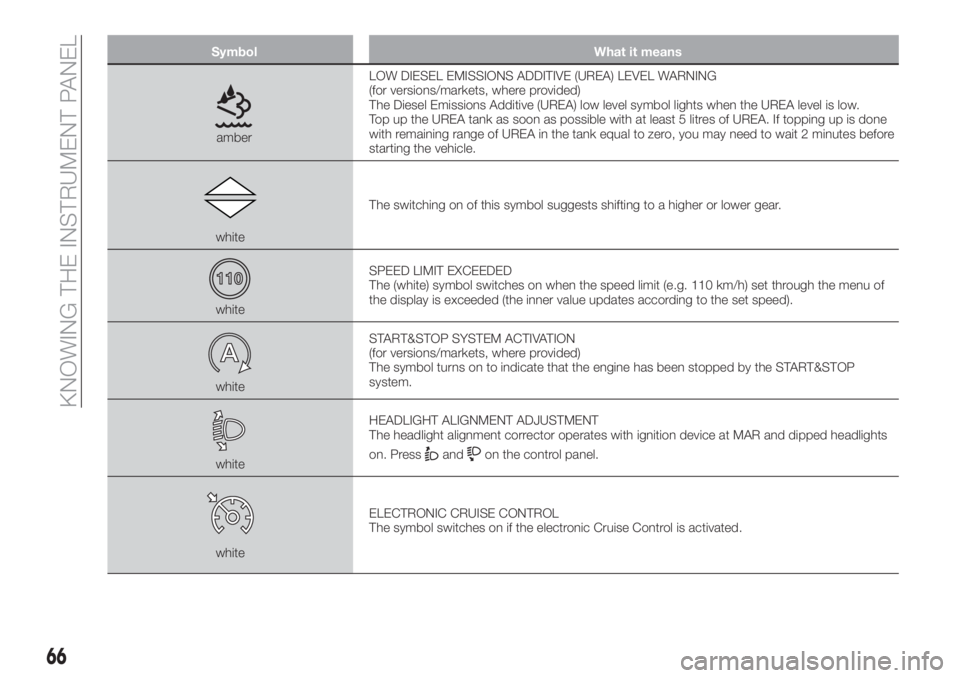

amberLOW DIESEL EMISSIONS ADDITIVE (UREA) LEVEL WARNING
(for versions/markets, where provided)
The Diesel Emissions Additive (UREA) low level symbol lights when the UREA level is low.
Top up the UREA tank as soon as possible with at least 5 litres of UREA. If topping up is done
with remaining range of UREA in the tank equal to zero, you may need to wait 2 minutes before
starting the vehicle.
whiteThe switching on of this symbol suggests shifting to a higher or lower gear.
whiteSPEED LIMIT EXCEEDED
The (white) symbol switches on when the speed limit (e.g. 110 km/h) set through the menu of
the display is exceeded (the inner value updates according to the set speed).
whiteSTART&STOP SYSTEM ACTIVATION
(for versions/markets, where provided)
The symbol turns on to indicate that the engine has been stopped by the START&STOP
system.
whiteHEADLIGHT ALIGNMENT ADJUSTMENT
The headlight alignment corrector operates with ignition device at MAR and dipped headlights
on. Pressandon the control panel.
whiteELECTRONIC CRUISE CONTROL
The symbol switches on if the electronic Cruise Control is activated.
66
KNOWING THE INSTRUMENT PANEL

Messages on display
What it means

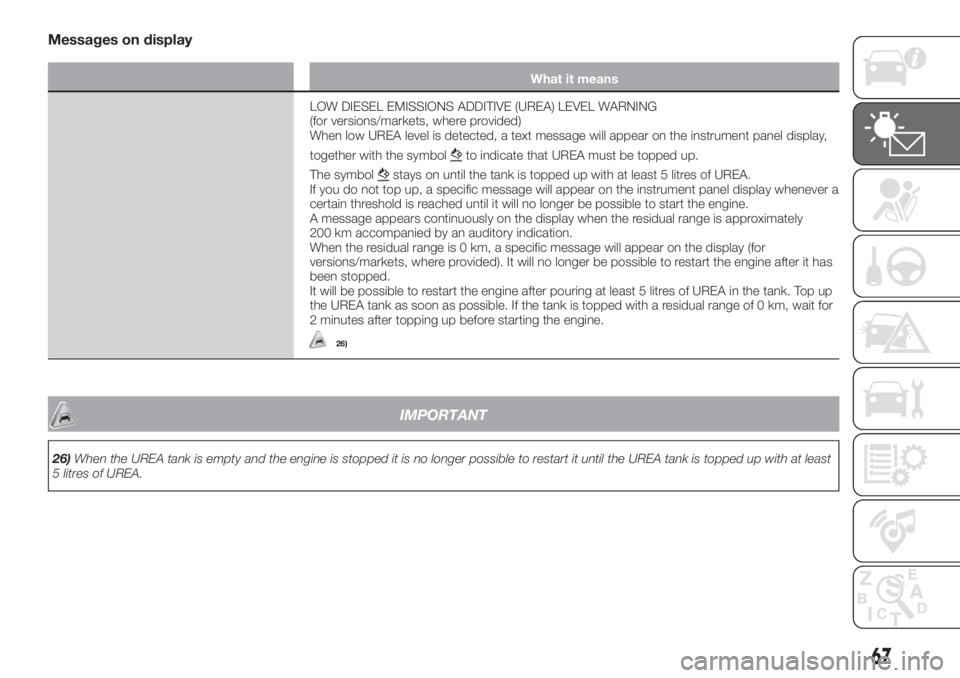

LOW DIESEL EMISSIONS ADDITIVE (UREA) LEVEL WARNING
(for versions/markets, where provided)
When low UREA level is detected, a text message will appear on the instrument panel display,
together with the symbol
to indicate that UREA must be topped up.
The symbol
stays on until the tank is topped up with at least 5 litres of UREA.
If you do not top up, a specific message will appear on the instrument panel display whenever a
certain threshold is reached until it will no longer be possible to start the engine.
A message appears continuously on the display when the residual range is approximately
200 km accompanied by an auditory indication.
When the residual range is 0 km, a specific message will appear on the display (for
versions/markets, where provided). It will no longer be possible to restart the engine after it has
been stopped.
It will be possible to restart the engine after pouring at least 5 litres of UREA in the tank. Top up
the UREA tank as soon as possible. If the tank is topped with a residual range of 0 km, wait for
2 minutes after topping up before starting the engine.
26)
IMPORTANT
26)When the UREA tank is empty and the engine is stopped it is no longer possible to restart it until the UREA tank is topped up with at least
5 litres of UREA.
67

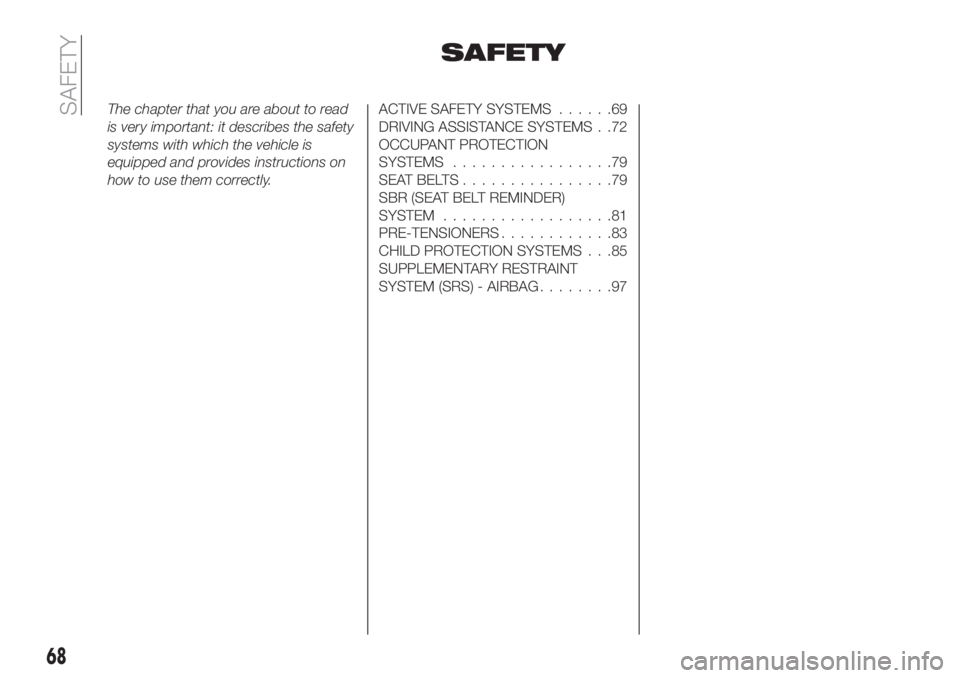

SAFETY
