headlight bulb FIAT TIPO 4DOORS 2020 Owner handbook (in English)

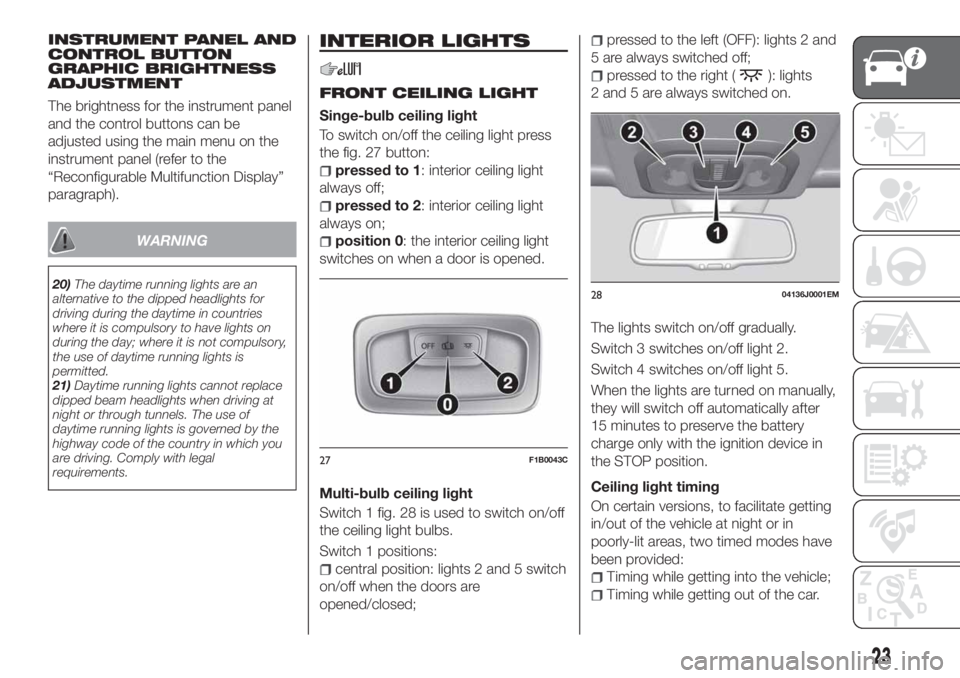

INSTRUMENT PANEL AND
CONTROL BUTTON
GRAPHIC BRIGHTNESS
ADJUSTMENT
The brightness for the instrument panel
and the control buttons can be
adjusted using the main menu on the
instrument panel (refer to the
“Reconfigurable Multifunction Display”
paragraph).
WARNING
20)The daytime running lights are an
alternative to the dipped headlights for
driving during the daytime in countries
where it is compulsory to have lights on
during the day; where it is not compulsory,
the use of daytime running lights is
permitted.
21)Daytime running lights cannot replace
dipped beam headlights when driving at
night or through tunnels. The use of
daytime running lights is governed by the
highway code of the country in which you
are driving. Comply with legal
requirements.
INTERIOR LIGHTS
FRONT CEILING LIGHT
Singe-bulb ceiling light
To switch on/off the ceiling light press
the fig. 27 button:
pressed to 1: interior ceiling light
always off;
pressed to 2: interior ceiling light
always on;
position 0: the interior ceiling light
switches on when a door is opened.
Multi-bulb ceiling light
Switch 1 fig. 28 is used to switch on/off
the ceiling light bulbs.
Switch 1 positions:
central position: lights 2 and 5 switch
on/off when the doors are
opened/closed;
pressed to the left (OFF): lights 2 and
5 are always switched off;
pressed to the right (): lights
2 and 5 are always switched on.
The lights switch on/off gradually.
Switch 3 switches on/off light 2.
Switch 4 switches on/off light 5.
When the lights are turned on manually,
they will switch off automatically after
15 minutes to preserve the battery
charge only with the ignition device in
the STOP position.
Ceiling light timing
On certain versions, to facilitate getting
in/out of the vehicle at night or in
poorly-lit areas, two timed modes have
been provided:
Timing while getting into the vehicle;
Timing while getting out of the car.
27F1B0043C
2804136J0001EM
23

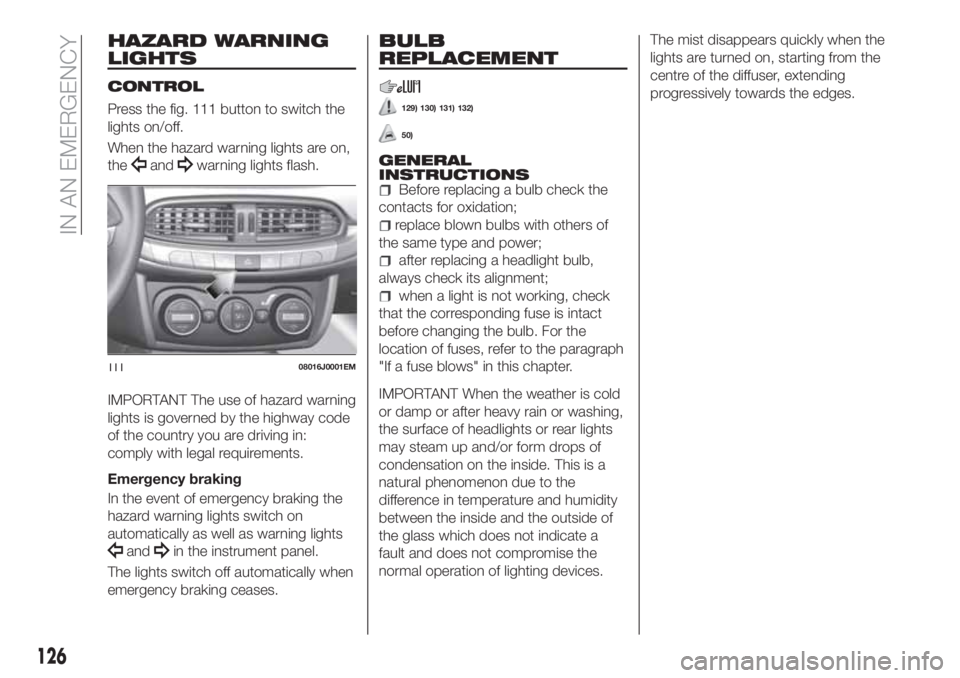

HAZARD WARNING
LIGHTS
CONTROL
Press the fig. 111 button to switch the
lights on/off.
When the hazard warning lights are on,
the
andwarning lights flash.
IMPORTANT The use of hazard warning
lights is governed by the highway code
of the country you are driving in:
comply with legal requirements.
Emergency braking
In the event of emergency braking the
hazard warning lights switch on
automatically as well as warning lights
andin the instrument panel.
The lights switch off automatically when
emergency braking ceases.
BULB
REPLACEMENT
129) 130) 131) 132)
50)
GENERAL
INSTRUCTIONS
Before replacing a bulb check the
contacts for oxidation;
replace blown bulbs with others of
the same type and power;
after replacing a headlight bulb,
always check its alignment;
when a light is not working, check
that the corresponding fuse is intact
before changing the bulb. For the
location of fuses, refer to the paragraph
"If a fuse blows" in this chapter.
IMPORTANT When the weather is cold
or damp or after heavy rain or washing,
the surface of headlights or rear lights
may steam up and/or form drops of
condensation on the inside. This is a
natural phenomenon due to the
difference in temperature and humidity
between the inside and the outside of
the glass which does not indicate a
fault and does not compromise the
normal operation of lighting devices.The mist disappears quickly when the
lights are turned on, starting from the
centre of the diffuser, extending
progressively towards the edges.
11108016J0001EM
126
IN AN EMERGENCY

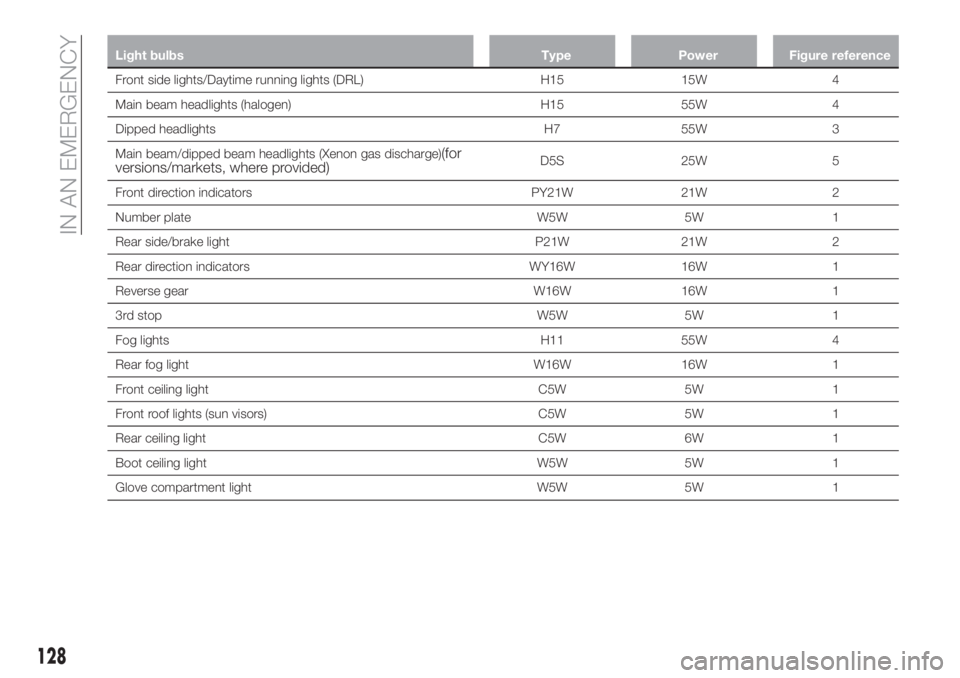

Light bulbs Type Power Figure reference
Front side lights/Daytime running lights (DRL) H15 15W 4
Main beam headlights (halogen) H15 55W 4
Dipped headlights H7 55W 3
Main beam/dipped beam headlights (Xenon gas discharge)
(for
versions/markets, where provided)D5S 25W 5
Front direction indicators PY21W 21W 2
Number plate W5W 5W 1
Rear side/brake light P21W 21W 2
Rear direction indicators WY16W 16W 1
Reverse gear W16W 16W 1
3rd stop W5W 5W 1
Fog lights H11 55W 4
Rear fog light W16W 16W 1
Front ceiling light C5W 5W 1
Front roof lights (sun visors) C5W 5W 1
Rear ceiling light C5W 6W 1
Boot ceiling light W5W 5W 1
Glove compartment light W5W 5W 1
128
IN AN EMERGENCY

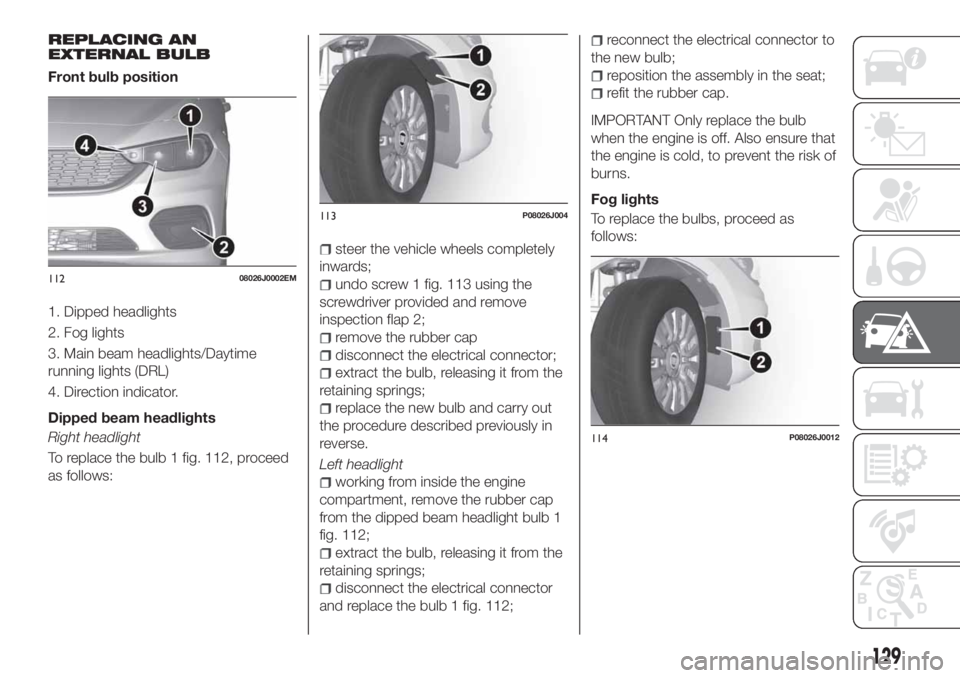

REPLACING AN
EXTERNAL BULB
Front bulb position
1. Dipped headlights
2. Fog lights
3. Main beam headlights/Daytime
running lights (DRL)
4. Direction indicator.
Dipped beam headlights
Right headlight
To replace the bulb 1 fig. 112, proceed
as follows:
steer the vehicle wheels completely
inwards;
undo screw 1 fig. 113 using the
screwdriver provided and remove
inspection flap 2;
remove the rubber cap
disconnect the electrical connector;
extract the bulb, releasing it from the
retaining springs;
replace the new bulb and carry out
the procedure described previously in
reverse.
Left headlight
working from inside the engine
compartment, remove the rubber cap
from the dipped beam headlight bulb 1
fig. 112;
extract the bulb, releasing it from the
retaining springs;
disconnect the electrical connector
and replace the bulb 1 fig. 112;
reconnect the electrical connector to
the new bulb;
reposition the assembly in the seat;
refit the rubber cap.
IMPORTANT Only replace the bulb
when the engine is off. Also ensure that
the engine is cold, to prevent the risk of
burns.
Fog lights
To replace the bulbs, proceed as
follows:
11208026J0002EM
113P08026J004
114P08026J0012
129

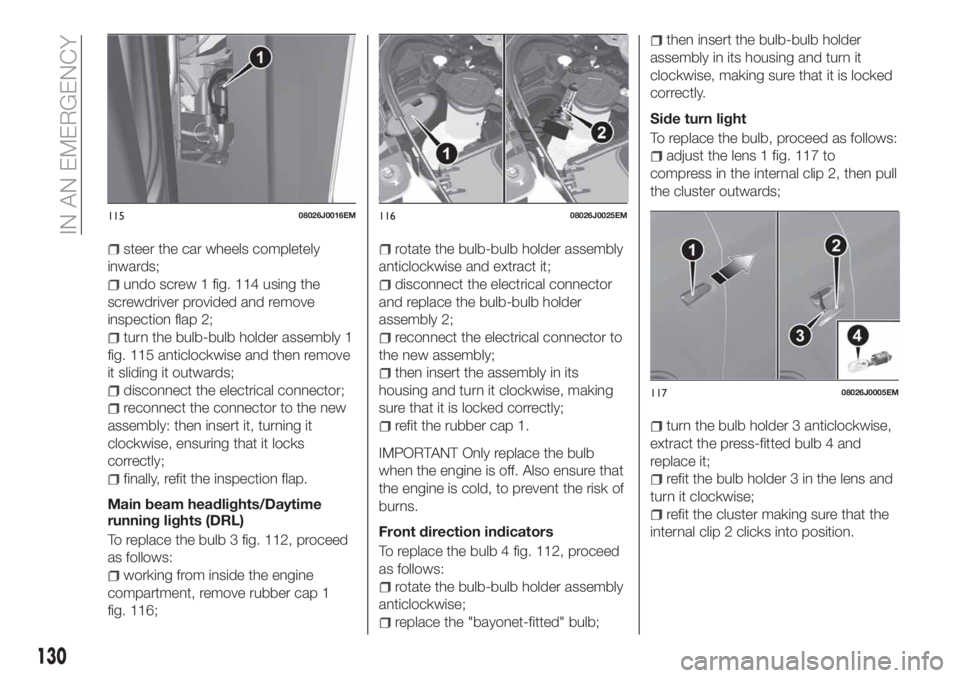

steer the car wheels completely
inwards;
undo screw 1 fig. 114 using the
screwdriver provided and remove
inspection flap 2;
turn the bulb-bulb holder assembly 1
fig. 115 anticlockwise and then remove
it sliding it outwards;
disconnect the electrical connector;
reconnect the connector to the new
assembly: then insert it, turning it
clockwise, ensuring that it locks
correctly;
finally, refit the inspection flap.
Main beam headlights/Daytime
running lights (DRL)
To replace the bulb 3 fig. 112, proceed
as follows:
working from inside the engine
compartment, remove rubber cap 1
fig. 116;
rotate the bulb-bulb holder assembly
anticlockwise and extract it;
disconnect the electrical connector
and replace the bulb-bulb holder
assembly 2;
reconnect the electrical connector to
the new assembly;
then insert the assembly in its
housing and turn it clockwise, making
sure that it is locked correctly;
refit the rubber cap 1.
IMPORTANT Only replace the bulb
when the engine is off. Also ensure that
the engine is cold, to prevent the risk of
burns.
Front direction indicators
To replace the bulb 4 fig. 112, proceed
as follows:
rotate the bulb-bulb holder assembly
anticlockwise;
replace the "bayonet-fitted" bulb;
then insert the bulb-bulb holder
assembly in its housing and turn it
clockwise, making sure that it is locked
correctly.
Side turn light
To replace the bulb, proceed as follows:
adjust the lens 1 fig. 117 to
compress in the internal clip 2, then pull
the cluster outwards;
turn the bulb holder 3 anticlockwise,
extract the press-fitted bulb 4 and
replace it;
refit the bulb holder 3 in the lens and
turn it clockwise;
refit the cluster making sure that the
internal clip 2 clicks into position.
11508026J0016EM11608026J0025EM
11708026J0005EM
130
IN AN EMERGENCY

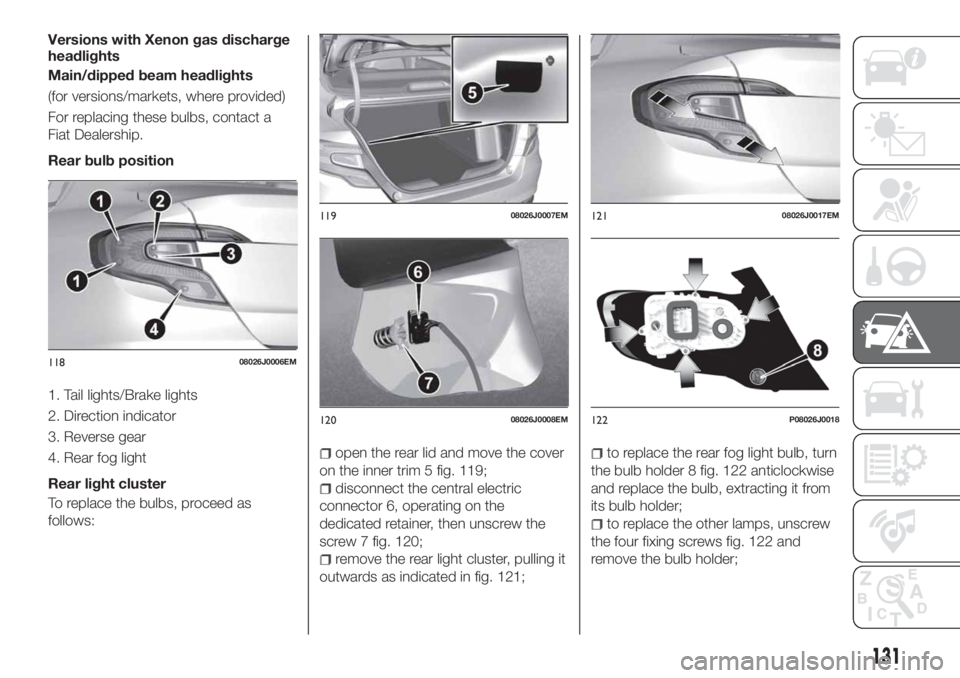

Versions with Xenon gas discharge
headlights
Main/dipped beam headlights
(for versions/markets, where provided)
For replacing these bulbs, contact a
Fiat Dealership.
Rear bulb position
1. Tail lights/Brake lights
2. Direction indicator
3. Reverse gear
4. Rear fog light
Rear light cluster
To replace the bulbs, proceed as
follows:
open the rear lid and move the cover
on the inner trim 5 fig. 119;
disconnect the central electric
connector 6, operating on the
dedicated retainer, then unscrew the
screw 7 fig. 120;
remove the rear light cluster, pulling it
outwards as indicated in fig. 121;
to replace the rear fog light bulb, turn
the bulb holder 8 fig. 122 anticlockwise
and replace the bulb, extracting it from
its bulb holder;
to replace the other lamps, unscrew
the four fixing screws fig. 122 and
remove the bulb holder;
11808026J0006EM
11908026J0007EM
12008026J0008EM
12108026J0017EM
122P08026J0018
131

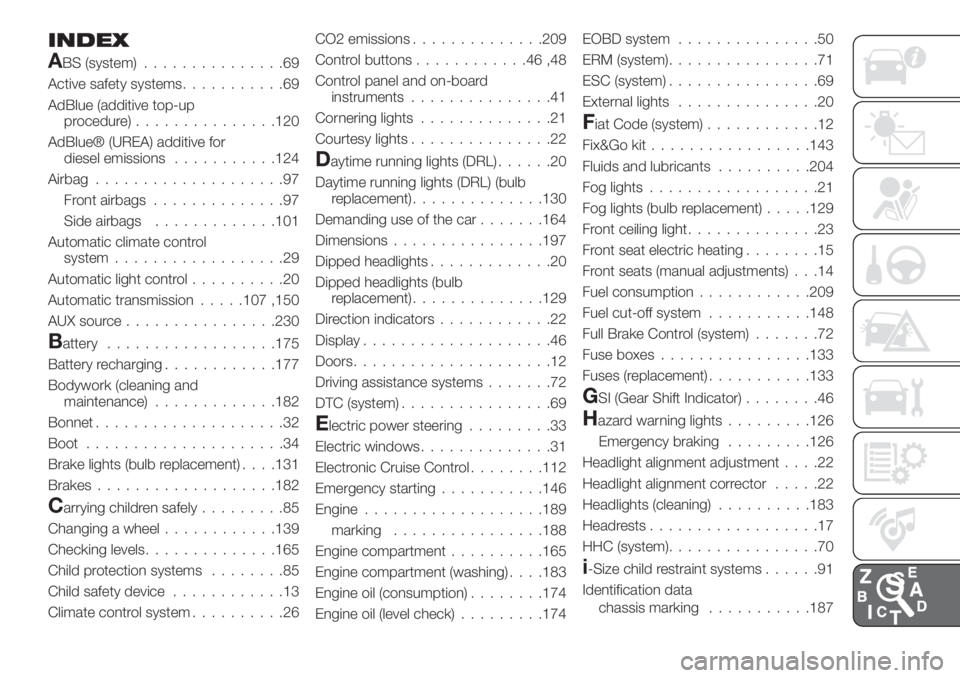

INDEX
ABS (system)...............69
Active safety systems...........69
AdBlue (additive top-up
procedure)...............120
AdBlue® (UREA) additive for
diesel emissions...........124
Airbag....................97
Front airbags..............97
Side airbags.............101
Automatic climate control
system..................29
Automatic light control..........20
Automatic transmission.....107 ,150
AUX source................230
Battery..................175
Battery recharging............177
Bodywork (cleaning and
maintenance).............182
Bonnet....................32
Boot.....................34
Brake lights (bulb replacement). . . .131
Brakes...................182
Carrying children safely.........85
Changing a wheel............139
Checking levels..............165
Child protection systems........85
Child safety device............13
Climate control system..........26CO2 emissions..............209
Control buttons............46,48
Control panel and on-board
instruments...............41
Cornering lights..............21
Courtesy lights...............22
Daytime running lights (DRL)......20
Daytime running lights (DRL) (bulb
replacement)..............130
Demanding use of the car.......164
Dimensions................197
Dipped headlights.............20
Dipped headlights (bulb
replacement)..............129
Direction indicators............22
Display....................46
Doors.....................12
Driving assistance systems.......72
DTC (system)................69
Electric power steering.........33
Electric windows..............31
Electronic Cruise Control........112
Emergency starting...........146
Engine...................189
marking................188
Engine compartment..........165
Engine compartment (washing). . . .183
Engine oil (consumption)........174
Engine oil (level check).........174EOBD system...............50
ERM (system)................71
ESC (system)................69
External lights...............20
Fiat Code (system)............12
Fix&Go kit.................143
Fluids and lubricants..........204
Fog lights..................21
Fog lights (bulb replacement).....129
Front ceiling light..............23
Front seat electric heating........15
Front seats (manual adjustments) . . .14
Fuel consumption............209
Fuel cut-off system...........148
Full Brake Control (system).......72
Fuse boxes................133
Fuses (replacement)...........133
GSI (Gear Shift Indicator)........46
Hazard warning lights.........126
Emergency braking.........126
Headlight alignment adjustment....22
Headlight alignment corrector.....22
Headlights (cleaning)..........183
Headrests..................17
HHC (system)................70
i-Size child restraint systems......91
Identification data
chassis marking...........187

engine marking............188
identification data plate.......187
Ignition device...............11
Important information and
recommendations..........237
Interior lights................23
Interiors (cleaning)............184
ISOFIX child restraint system
(installation)...............89
iTPMS (indirect Tyre Pressure
Monitoring System)..........76
Jump starting..............146
Key removal (automatic
transmission).............150
Keys.....................10
key with remote control.......10
Lever release
(automatic transmission)......150
Lifting the vehicle.............180
Light bulbs
Bulbs types..............127
Luggage compartment
(extension)................15
Main beam headlights..........22
Main beam headlights
(changing a bulb)...........130
Main menu...............47,48
Manual climate control..........27
Manual transmission..........106
Mopar Connect.............235Multi-functional display - Right
hand drive version...........44
Multi-Functional Reconfigurable
Display - Right hand drive
version..................45
Multifunction display...........41
Number plate lights
(bulb replacement)..........132
Occupant protection systems.....79
Official type approvals.........236
Paintwork (cleaning and
maintenance).............182
Parking Brake...............105
Parking lights................21
Parking sensors.............114
Parking the vehicle...........105
Passenger compartment air
diffusers.................26
Passive/active safety
(LPG system)..............36
PBA (system)................70
Performance (top speed)........208
Periodic checks
(scheduled servicing)........164
Pre-tensioners...............83
Load limiters..............84
Prescriptions for handling the
vehicle at the end of its life.....210
Rain sensor................25
Rear direction indicators
(bulb replacement)..........131Rear power socket............35
Rear seats..................15
Rear side lights (bulb
replacement)..............131
Rear view camera............116
Rear View Camera............116
Rear view mirrors.............19
Reconfigurable Multifunction
Display..................42
Refuelling.................200
Refuelling procedure..........120
Emergency refuelling........122
Refuelling the vehicle..........119
Replacing a bulb.............126
Replacing an external bulb......129
Rims and tyres (dimensions)......192
Saving fuel................118
SBR (Seat Belt Reminder)........81
SBR (Seat Belt Reminder)
system..................81
Scheduled servicing...........154
Screen wiper/washer...........24
Smart washing function.......24
Seat belts..................79
Seats.....................14
Service schedule.............155
Servicing procedures..........178
Side bag..................101
INDEX

Side direction indicators (bulb
replacement)..............130
Snow chains...............181
Speed limiter...............111
SRS (supplementary restraint
system)..................97
Starting the engine...........104
Steering lock................11
Steering wheel...............18
Stop/Start system............109
Suggestions for driving.........118
Symbols....................3
TC (system)................70
Technical data..............187
Third brake light (bulb
replacement)..............132
Towing the vehicle............152
Towing trailers..............117Trip Computer...............49
TSC (system)................71
Tyres (inflation pressure)........195
Uconnect™ 5" - Uconnect™ 5"
Nav ...................224
Uconnect™ 5” LIVE —
Uconnect™ 5” Nav LIVE
Bluetooth® source.........229
Controls on the front panel. . . .224
Controls on the steering wheel . .226
Settings................232
System on/off.............220
USB source..............230
Uconnect™ Radio............214
Controls on front panel.......214
Controls on the steering wheel . .217
Phone mode.............222Radio mode..............220
USB source..............221
Use of the Owner Handbook.......4Vehicle changes/alterations.......3
Version with LPG system........36
Warning lights and messages.....51
Weights..................198
Wheels...................192
Wheels and tyres.............181
Window bag...............101
Windows (cleaning)...........183
Windscreen wiper
replacing blades...........178
Xenon gas discharge main
beam/dipped beam headlights
(bulb replacement)..........131
