IDENTIFICATION
DATA

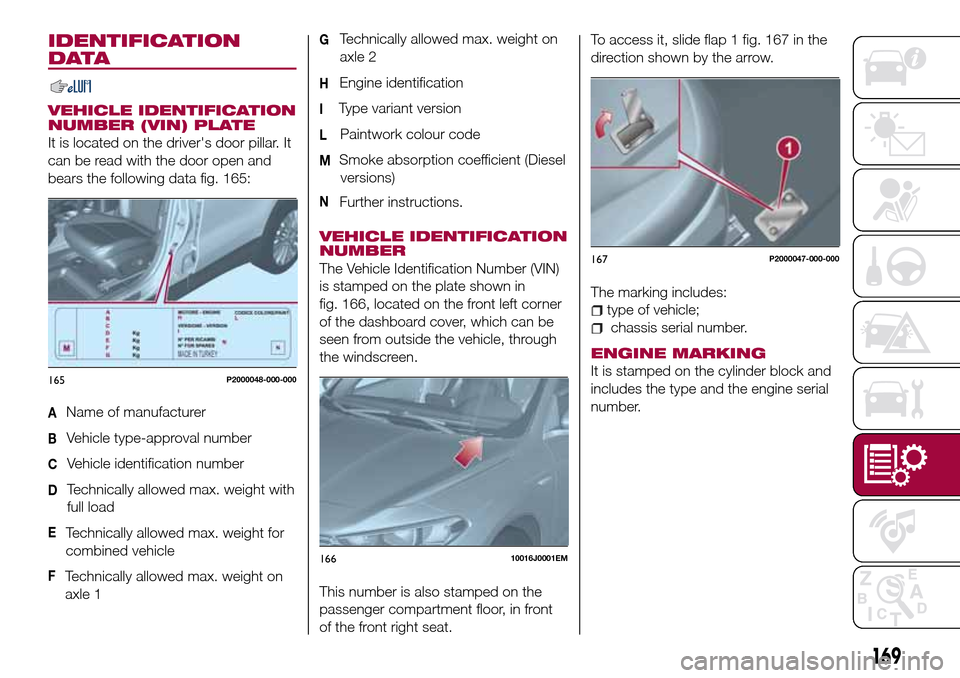

VEHICLE IDENTIFICATION
NUMBER (VIN) PLATE
It is located on the driver's door pillar. It
can be read with the door open and
bears the following data fig. 165:
AName of manufacturer
BVehicle type-approval number
CVehicle identification number
DTechnically allowed max. weight with
full load
ETechnically allowed max. weight for
combined vehicle
FTechnically allowed max. weight on
axle 1
GTechnically allowed max. weight on
axle 2
HEngine identification
IType variant version
LPaintwork colour code
MSmoke absorption coefficient (Diesel
versions)
NFurther instructions.
VEHICLE IDENTIFICATION
NUMBER
The Vehicle Identification Number (VIN)
is stamped on the plate shown in
fig. 166, located on the front left corner
of the dashboard cover, which can be
seen from outside the vehicle, through
the windscreen.
This number is also stamped on the
passenger compartment floor, in front
of the front right seat.To access it, slide flap 1 fig. 167 in the
direction shown by the arrow.
The marking includes:
type of vehicle;
chassis serial number.
ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.165P2000048-000-000
16610016J0001EM
167P2000047-000-000
169

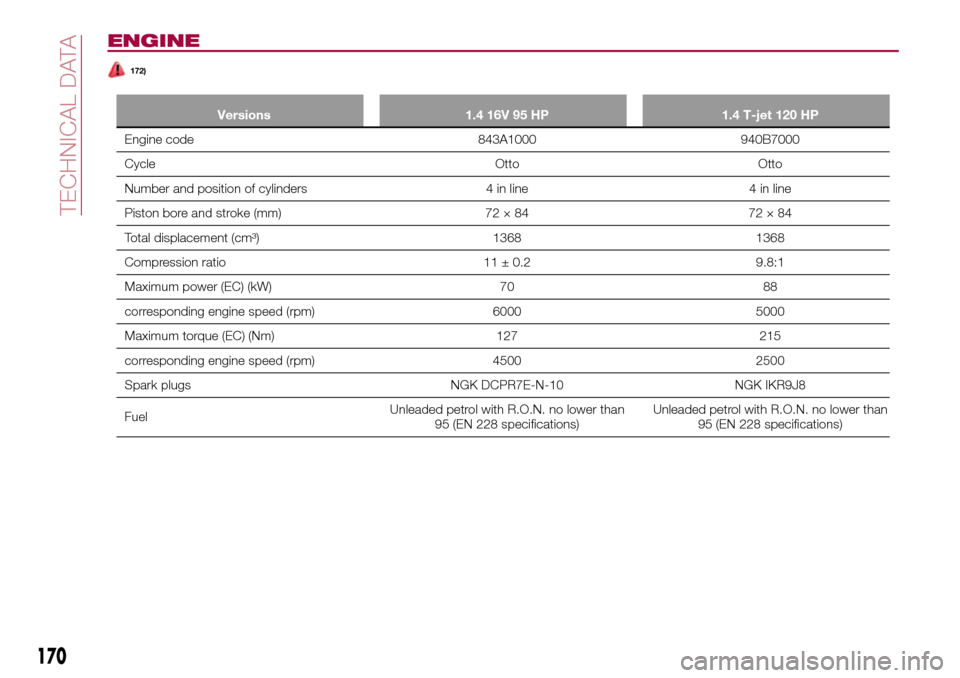

ENGINE
172)
Versions 1.4 16V 95 HP 1.4 T-jet 120 HP
Engine code 843A1000 940B7000
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72 × 84 72 × 84
Total displacement (cm³) 1368 1368
Compression ratio 11 ± 0.2 9.8:1
Maximum power (EC) (kW) 70 88
corresponding engine speed (rpm) 6000 5000
Maximum torque (EC) (Nm) 127 215
corresponding engine speed (rpm) 4500 2500
Spark plugs NGK DCPR7E-N-10 NGK IKR9J8
FuelUnleaded petrol with R.O.N. no lower than
95 (EN 228 specifications)Unleaded petrol with R.O.N. no lower than
95 (EN 228 specifications)
170
TECHNICAL DATA

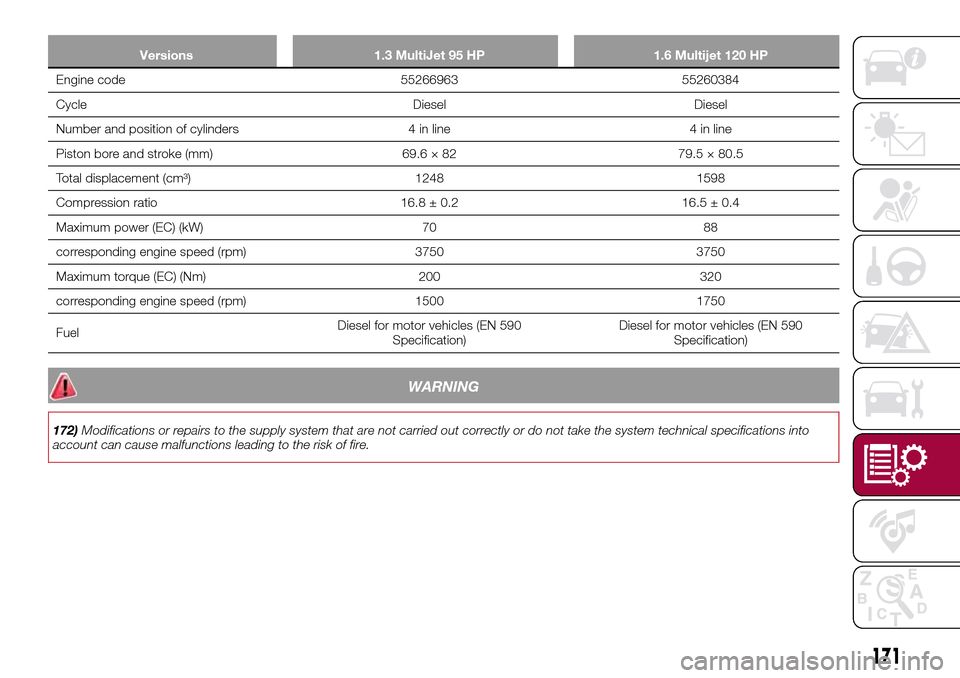

Versions 1.3 MultiJet 95 HP 1.6 Multijet 120 HP
Engine code 55266963 55260384
Cycle Diesel Diesel
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 69.6 × 82 79.5 × 80.5
Total displacement (cm³) 1248 1598
Compression ratio 16.8 ± 0.2 16.5 ± 0.4
Maximum power (EC) (kW) 70 88
corresponding engine speed (rpm) 3750 3750
Maximum torque (EC) (Nm) 200 320
corresponding engine speed (rpm) 1500 1750
FuelDiesel for motor vehicles (EN 590
Specification)Diesel for motor vehicles (EN 590
Specification)
WARNING
172)Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
171

WHEELS
SNOW TYRES
173)
Use snow tyres of the same size as the
standard tyres provided with the car.
The Fiat Dealership will be happy to
provide advice concerning the most
suitable type of tyre for the customer's
requirements.
For the type of snow tyre to be used,
inflation pressures and the
specifications of the tyres, carefully
follow the instructions given in this
chapter.
The winter features of these tyres are
reduced considerably when the tread
depth is below 4 mm. Replace them in
this case.
Due to the specific characteristics of
snow tyres, in normal weather
conditions or on long motorway
journeys, the performance of these
tyres is lower than that of standard
tyres.
Their usage should therefore be
restricted in accordance with their
type-approval; always comply with
specific local regulations relating to the
use of snow tyres.All four tyres should be the same (brand
and track) to ensure greater safety
when driving and braking as well as a
good manoeuvrability. Remember that
you should not change the rotation
direction of the tyres.
172
TECHNICAL DATA

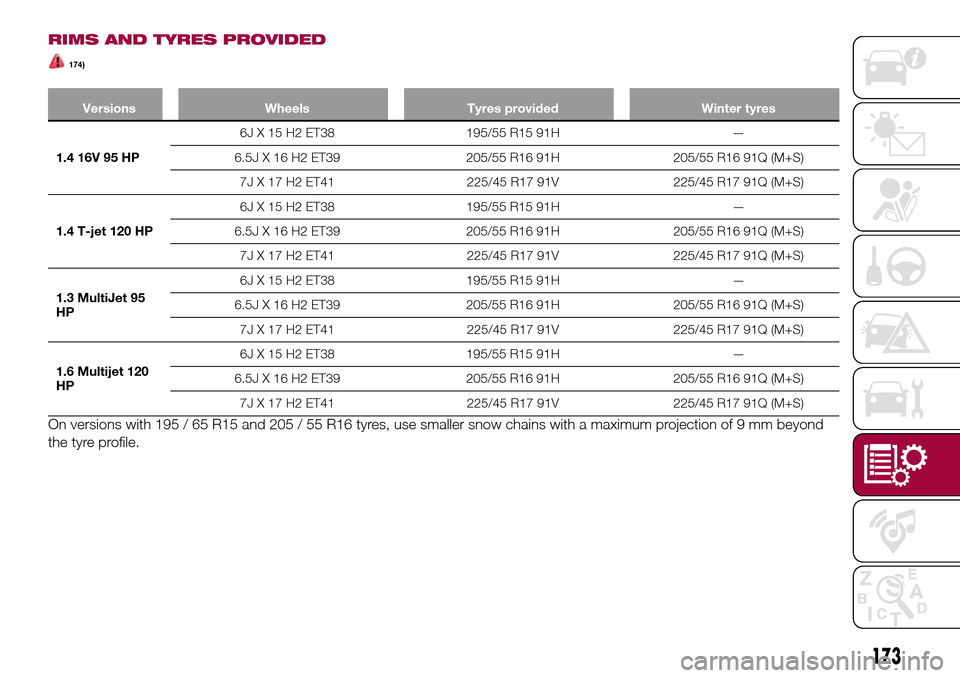

RIMS AND TYRES PROVIDED
174)
Versions Wheels Tyres provided Winter tyres
1.4 16V 95 HP6J X 15 H2 ET38 195/55 R15 91H —
6.5J X 16 H2 ET39 205/55 R16 91H 205/55 R16 91Q (M+S)
7J X 17 H2 ET41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.4 T-jet 120 HP6J X 15 H2 ET38 195/55 R15 91H —
6.5J X 16 H2 ET39 205/55 R16 91H 205/55 R16 91Q (M+S)
7J X 17 H2 ET41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.3 MultiJet 95
HP6J X 15 H2 ET38 195/55 R15 91H —
6.5J X 16 H2 ET39 205/55 R16 91H 205/55 R16 91Q (M+S)
7J X 17 H2 ET41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.6 Multijet 120
HP6J X 15 H2 ET38 195/55 R15 91H —
6.5J X 16 H2 ET39 205/55 R16 91H 205/55 R16 91Q (M+S)
7J X 17 H2 ET41 225/45 R17 91V 225/45 R17 91Q (M+S)
On versions with 195 / 65 R15 and 205 / 55 R16 tyres, use smaller snow chains with a maximum projection of 9 mm beyond
the tyre profile.
173

COLD TYRE INFLATION PRESSURE (bar)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
Versions TyresUnladen/medium load Full load
Full size
spare wheelSpace saver
spare
wheel(**)Front Rear Front Rear
1.4 16V 95
HP195 / 55 R15
2.2 2.1 2.6 2.5
(*)4.2 205 / 55 R16
225 / 45 R17
1.4 T-jet 120
HP / 1.3
Multijet 95
HP195 / 55 R15
2.3 2.1 2.6 2.5 205 / 55 R16
225 / 45 R17
1.6 Multijet
120 HP195 / 55 R15
2.4 2.1 2.6 2.5 205 / 55 R16
225 / 45 R17
(**) (where provided)
(*) After using the spare wheel in an emergency, where necessary, align the pressure of the wheel to the recommended value as soon as
possible.
WARNING
173)The maximum speed for snow tyres marked “Q” is 160 km/h, while it is 190 km/h for “T” tyres and 210 km/h for "H" tyres. The highway
code speed limits must however always be complied with.
174)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
174
TECHNICAL DATA

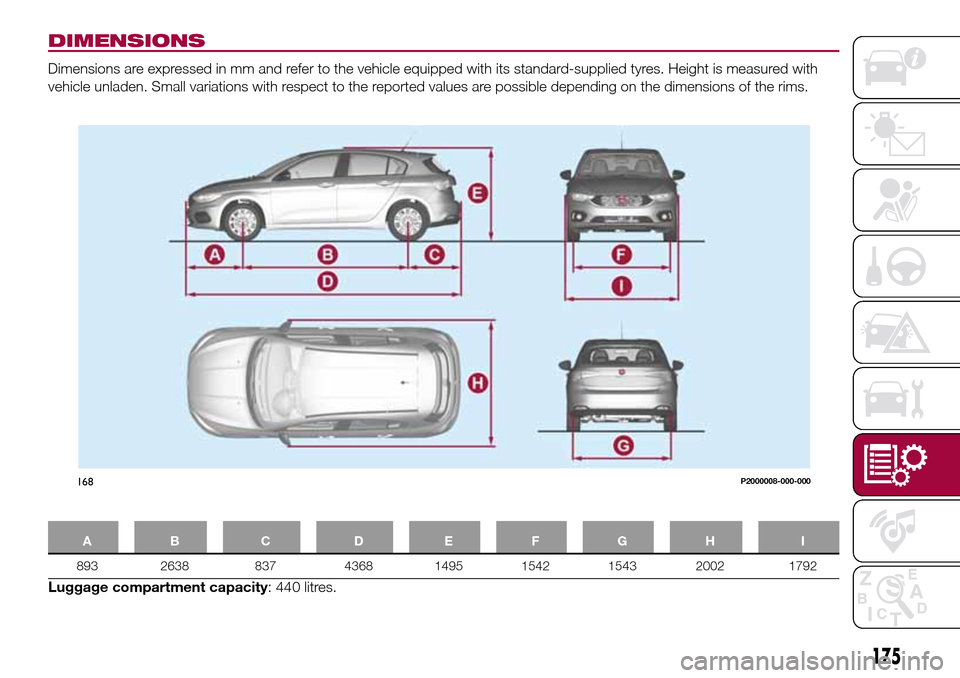

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D EFGH I
893 2638 837 4368 1495 1542 1543 2002 1792
Luggage compartment capacity: 440 litres.
168P2000008-000-000
175

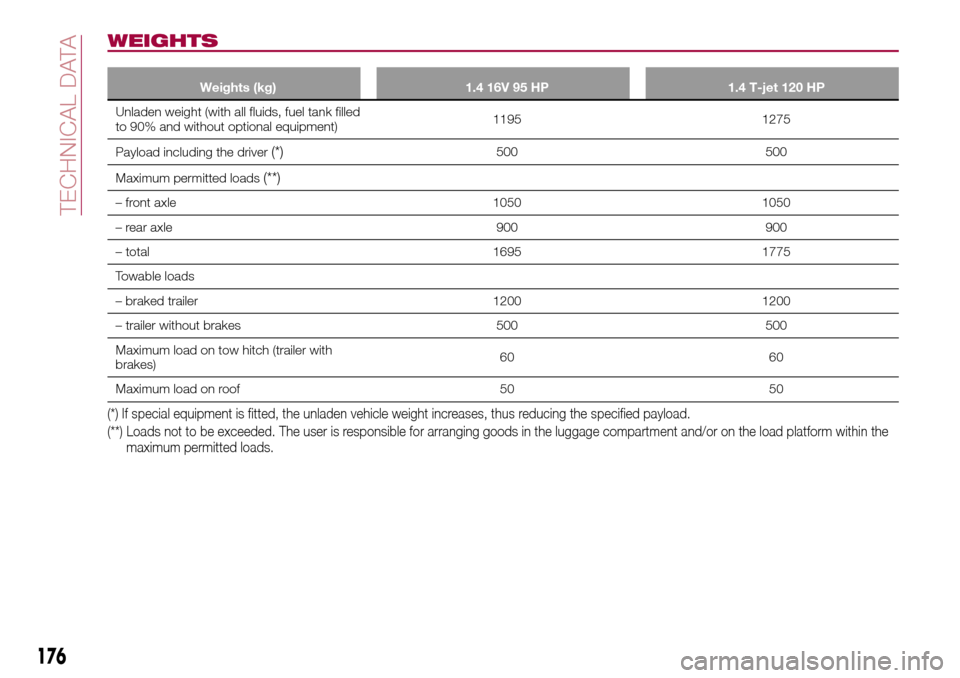

WEIGHTS
Weights (kg) 1.4 16V 95 HP 1.4 T-jet 120 HP
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1195 1275
Payload including the driver
(*)500 500
Maximum permitted loads
(**)
– front axle 1050 1050
– rear axle 900 900
– total 1695 1775
Towable loads
– braked trailer 1200 1200
– trailer without brakes 500 500
Maximum load on tow hitch (trailer with
brakes)60 60
Maximum load on roof 50 50
(*) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the
maximum permitted loads.
176
TECHNICAL DATA

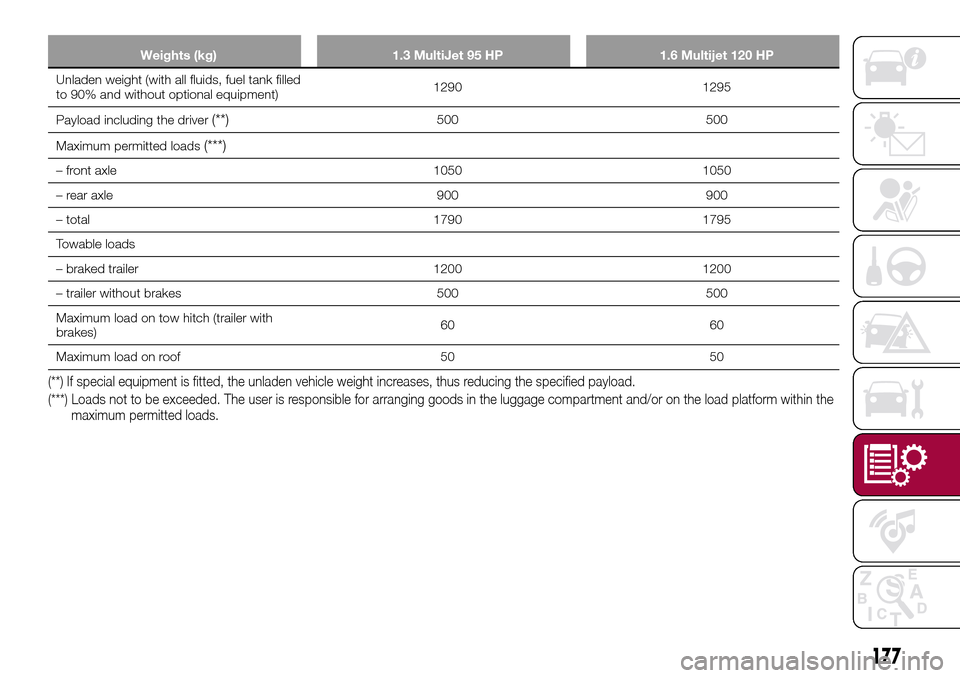

Weights (kg) 1.3 MultiJet 95 HP 1.6 Multijet 120 HP
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1290 1295
Payload including the driver
(**)500 500
Maximum permitted loads
(***)
– front axle 1050 1050
– rear axle 900 900
– total 1790 1795
Towable loads
– braked trailer 1200 1200
– trailer without brakes 500 500
Maximum load on tow hitch (trailer with
brakes)60 60
Maximum load on roof 50 50
(**) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the
maximum permitted loads.
177

REFUELLING
1.4 16V 95 HP 1.4 T-jet 120 HPPrescribed fuels and original
lubricants
Fuel tank (litres) 50 50Unleaded petrol with R.O.N. no
lower than 95 (EN 228
specifications)
(*)including a reserve of (litres) 7 7
Engine cooling system (litres) 4.6 5.2Mixture of distilled water and
PARAFLU
UPliquid at 50%(**)
Engine sump (litres) 2.8 2.8
SELENIA K P.E.
Engine sump and filter (litres) 2.95 3.4
Gearbox casing/differential
(litres)1.76 1.8TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit (kg) 0.74 0.74 TUTELA TOP 4/S
Windscreen washer fluid
reservoir (litres)33Mixture of water and TUTELA
PROFESSIONAL SC35
(*)The maximum engine power and the car’s performance can only be guaranteed with lead-free petrol with an R.O.N. of 95 or higher.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised
water.
