FIAT TIPO 5DOORS STATION WAGON 2019 Owner handbook (in English)

RIMS AND TYRES PROVIDED
190)
Alloy or pressed steel rims. Tubeless radial carcass tyres.
All approved tyres are listed in the Registration Document.
IMPORTANT If there are any discrepancies between the Owner Handbook and the Registration Document, take the information
from the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
IMPORTANT Do not use air chambers with tubeless tyres.
Versions Wheels Tyres provided Spare wheel(*)
1.4 16V 95 HP /
1.3 Multijet
95 HP6J X 15 H2 ET38 195/65 R15 91H 195/65 R15 91H
6.5J X 16 H2 ET39
205/55 R16 91H(**)205/55 R16 91H
7J X 17 H2 ET41
225/45 R17 91V
(**)205/55 R16 91H
191)
1.4 T-jet 120 HP /
1.6 E.TorQ(°)
6J X 15 H2 ET38(***)195/65 R15 91H(***)195/65 R15 91H(***)
6.5J X 16 H2 ET39
205/55 R16 91H(**)205/55 R16 91H
7J X 17 H2 ET41
225/45 R17 91V
(**)205/55 R16 91H
191)
7.5J X 18 H2 ET44
225/40 R18 92W XL GoodYear(****)205/55 R16 91H
191)
1.4 T-jet 120 HP
LPG6.5J X 16 H2 ET39
205/55 R16 91H
(**)—
7J X 17 H2 ET41
225/45 R17 91V
(**)—
7.5J X 18 H2 ET44
225/40 R18 92W XL GoodYear
(****)—
(*) A size 135/70 R16 space-saver spare wheel may be ordered as an alternative to the spare wheel for TIPO 5DOOR versions.
(**) M+S Goodyear Vector 4Seasons Gen-2 or equivalent tyres of the same size are available as optional for versions/markets, where provided
(°) where provided (***) For TIPO 5DOOR versions
(****) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
219

Versions Wheels Tyres provided Spare wheel(*)
1.6 Multijet
120 HP /
1.6 Multijet
115 HP
(*****)
6J X 15 H2 ET38 195/65 R15 91H 195/65 R15 91H
6.5J X 16 H2 ET39
205/55 R16 91H
(**)205/55 R16 91H
7J X 17 H2 ET41
225/45 R17 91V
(**)205/55 R16 91H
191)
7.5J X 18 H2 ET44
225/40 R18 92W XL GoodYear(****)205/55 R16 91H
191)
1.6 Multijet
120 HP ECO /
1.6 Multijet
115 HP ECO
(*****)
6.5J X 16 H2 ET39205/55 R16 91H Goodyear
EfficientGrip Performance(**) (****)205/55 R16 91H Goodyear
EfficientGrip Performance(****)
(*) A size 135/70 R16 space-saver spare wheel may be ordered as an alternative to the spare wheel for TIPO 5DOOR versions.
(**) M+S Goodyear Vector 4Seasons Gen-2 or equivalent tyres of the same size are available as optional for versions/markets, where provided
(****) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(*****) Version for specific markets
NOTE On versions with 195 / 65 R15 and 205 / 55 R16 tyres, use smaller snow chains with a maximum projection of 9 mm
beyond the tyre profile.
NOTE Low-profile snow chains with a maximum protrusion of 7 mm beyond the tyre profile can be mounted on versions
equipped with 225 / 45 R17 tyres.
NOTE Chains cannot be fitted on 225/40 R18 92W XL tyres.
220
TECHNICAL DATA

COLD TYRE INFLATION PRESSURE (bar)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
TIPO 5DOOR version
Versions TyresUnladen/medium load Full load
Spare wheelSpace saver
spare
wheel(**)Front Rear Front Rear
1.4 16V
95 HP195 / 65 R15
2.2 2.1 2.6 2.5
(*)
4.2 205 / 55 R16
225 / 45 R17
1.4 T-jet
120 HP /
1.6 E.TorQ
(**)/ 1.3 Multijet
95 HP195 / 65 R15
2.3 2.1 2.6 2.5 205 / 55 R16
225 / 45 R17
225/
40 R18 92W
XL
GoodYear
(***)
(****)2.5 2.2 2.5 2.5 3.5
(**) For versions/markets, where provided. (*) If the spare wheel is used in an emergency, check pressure and, if necessary, align it to the values prescribed for the tyre of the axle where it is used
.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(****) 1.4 T-jet 120 HP / 1.6 E.TorQ versions
221

Versions TyresUnladen/medium load Full load
Spare wheelSpace saver
spare
wheel(**)Front Rear Front Rear
1.4 T-jet
120 HP LPG205 / 55 R16
2.3 2.1 2.6
2.5 — — 225 / 45 R17
225/
40 R18 92W
XL GoodYear
(***)
2.5 2.2 2.5
1.6 Multijet
120 HP /
1.6 Multijet
115 HP
(*****)
195 / 65 R15
2.4 2.1 2.6 2.5
(*)
4.2 205 / 55 R16
225 / 45 R17
225/
40 R18 92W
XL GoodYear(***)
2.5 2.2 2.5 2.5 3.5
1.6 Multijet
120 HP ECO /
1.6 Multijet
115 HP ECO
(*****)
205/
55R16 91H
Goodyear
EfficientGrip
Performance
(***)
2.8 2.5 2.6 2.5(*)
(**) where provided
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(*****) Version for specific markets (*) If the spare wheel is used in an emergency, check pressure and, if necessary, align it to the values prescribed for the tyre of the axle where it is used
.
222
TECHNICAL DATA

TIPO STATION WAGON version
Versions TyresUnladen/medium load Full load
Spare wheel
Front Rear Front Rear
1.4 16V 95 HP
/ 1.3 Multijet
95 HP195 / 65 R15
2.3 2.3
2.5 2.7
(*)
205 / 55 R16
225 / 45 R17 2.3 2.2
1.4 T-jet 120 HP
/ 1.6 E.TorQ
(°)
205 / 55 R16 2.3 2.3
225 / 45 R17 2.3 2.2
225/
40 R18 92W XL
GoodYear
(**)2.5 2.2 2.5 2.5 3.5
1.4 T-jet 120 HP
LPG205 / 55 R16 2.3 2.3
2.52.7
— 225 / 45 R17 2.3
2.2 225/
40 R18 92W XL
GoodYear
(**)2.5 2.5
1.6 Multijet
120 HP /
1.6 Multijet
115 HP
(***)
195 / 65 R15 2.4 2.1 2.6 2.5
(*)205 / 55 R16 2.5 2.3
2.52.7
225 / 45 R17 2.4
2.2 225/
40 R18 92W XL
GoodYear
(**)2.5 2.5 3.5
(*) If the spare wheel is used in an emergency, check pressure and, if necessary, align it to the values prescribed for the tyre of the axle where it is used.
(°) For versions/markets, where provided. (**) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(***) Version for specific markets
223

Versions TyresUnladen/medium load Full load
Spare wheel
Front Rear Front Rear
1.6 Multijet
120 HP ECO /
1.6 Multijet
115 HP ECO
(***)
205/55R16 91H
Goodyear
EfficientGrip
Performance
(**)
2.8 2.5 2.5 2.7(*)
(***) Version for specific markets (**) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative. (*) If the spare wheel is used in an emergency, check pressure and, if necessary, align it to the values prescribed for the tyre of the axle where it is used
.
WARNING
189)The maximum speed for snow tyres marked “Q” is 160 km/h, while it is 190 km/h for “T” tyres and 210 km/h for "H" tyres. The highway
code speed limits must however always be complied with.
190)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
191)Observe the following instructions if the car is equipped with a spare wheel smaller than the normal size (a 16” spare wheel is provided
with 17" and 18" tyres) or a space-saver spare wheel. The space-saver wheel (for versions/markets where provided) is specific to your car, do
not use it on other models, or use the space-saver wheel of other models on your car. The space-saver spare wheel or spare wheel must be
used only in an emergency. Never use it for more than strictly necessary and never exceed 80 km/h. There is an orange sticker on the
space-saver spare wheel which summarises the main warnings regarding wheel usage restrictions. Never remove or cover the label. The label
contains the following indications in four languages: "Warning! For temporary use only! 80 km/h max! Replace with standard wheel as soon as
possible. Never cover this indication." Never apply a hub cup on a space-saver spare wheel or spare wheel. The driving characteristics of the
car will be modified with the space-saver spare wheel or spare wheel fitted. Avoid violent acceleration and braking, abrupt steering and fast
cornering. The overall duration of the space-saver wheel is about 3000 km, after which the relevant tyre must be replaced with another one of
the same type. Never install a traditional tyre on a rim designed to be used as a space-saver wheel. Have the wheel repaired and refitted as
soon as possible. Using two or more space-saver spare wheels or spare wheels at the same time is forbidden. Do not apply grease to the
bolt threads before fitting: they could come unscrewed.
224
TECHNICAL DATA

DIMENSIONS
TIPO 5DOOR version
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D EFGH I
893 2638 837 4368 1495 1542 1543 2002 1792
Luggage compartment capacity: 440 litres.
225P2000008-000-000
225

TIPO STATION WAGON version
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D EFGH I
893 2638 1040 4571 1512 1542 1543 2002 1792
Luggage compartment capacity: 550 litres.
226P2000108
226
TECHNICAL DATA

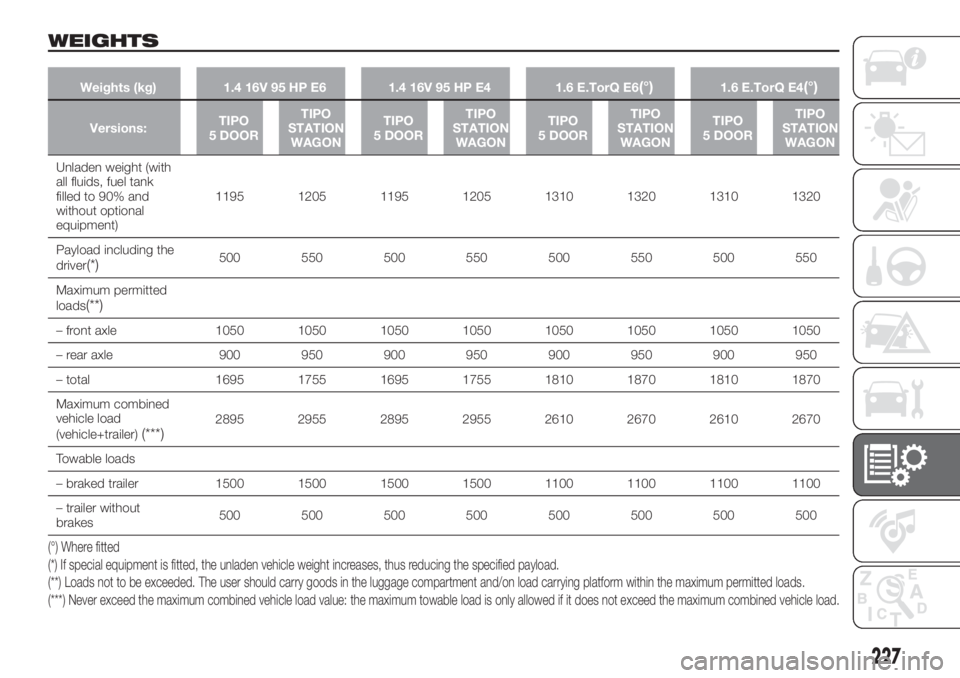

WEIGHTS
Weights (kg) 1.4 16V 95 HP E6 1.4 16V 95 HP E4 1.6 E.TorQ E6(°)1.6 E.TorQ E4(°)
Versions:TIPO
5 DOORTIPO
STATION
WAGONTIPO
5 DOORTIPO
STATION
WAGONTIPO
5 DOORTIPO
STATION
WAGONTIPO
5 DOORTIPO
STATION
WAGON
Unladen weight (with
all fluids, fuel tank
filled to 90% and
without optional
equipment)1195 1205 1195 1205 1310 1320 1310 1320
Payload including the
driver
(*)500 550 500 550 500 550 500 550
Maximum permitted
loads
(**)
– front axle 1050 1050 1050 1050 1050 1050 1050 1050
– rear axle 900 950 900 950 900 950 900 950
– total 1695 1755 1695 1755 1810 1870 1810 1870
Maximum combined
vehicle load
(vehicle+trailer)
(***)2895 2955 2895 2955 2610 2670 2610 2670
Towable loads
– braked trailer 1500 1500 1500 1500 1100 1100 1100 1100
– trailer without
brakes500 500 500 500 500 500 500 500
(°) Where fitted
(*) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads not to be exceeded. The user should carry goods in the luggage compartment and/on load carrying platform within the maximum permitted loads.
(***) Never exceed the maximum combined vehicle load value: the maximum towable load is only allowed if it does not exceed the maximum combined vehicleload.
227

Weights (kg) 1.4 16V 95 HP E6 1.4 16V 95 HP E4 1.6 E.TorQ E6(°)1.6 E.TorQ E4(°)
Versions:TIPO
5 DOORTIPO
STATION
WAGONTIPO
5 DOORTIPO
STATION
WAGONTIPO
5 DOORTIPO
STATION
WAGONTIPO
5 DOORTIPO
STATION
WAGON
Maximum load on tow
hitch (trailer with
brakes)60 60 60 60 60 60 60 60
Maximum load on roof
(****)55 75 55 75 55 75 55 75
(°) Where fitted
(****) The value shown includes the weight on the roof bars
228
