technical data FIAT TIPO 5DOORS STATION WAGON 2020 Owner handbook (in English)

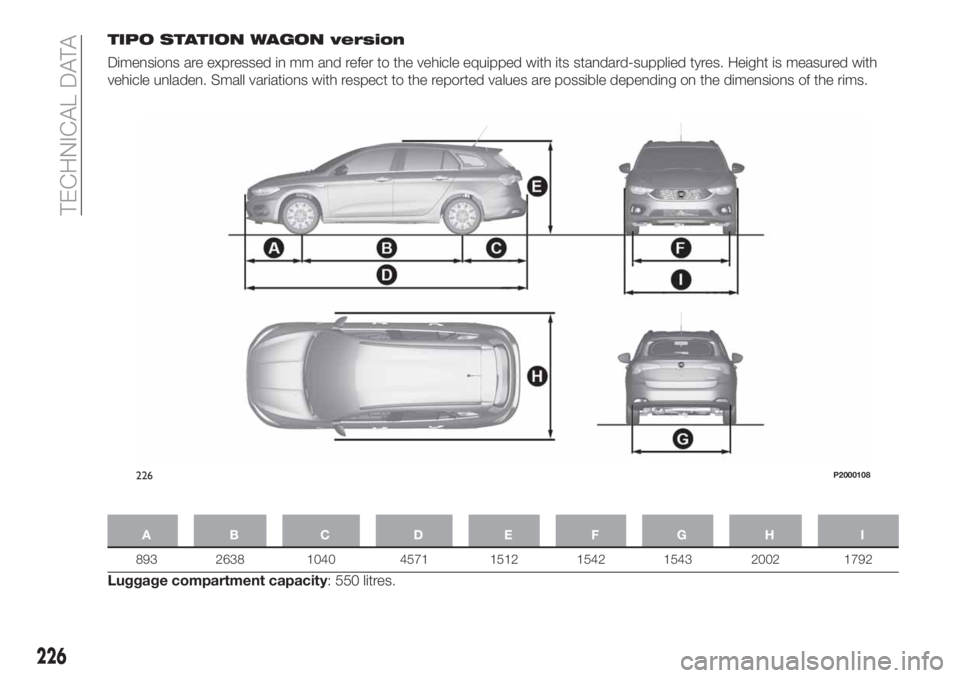

TIPO STATION WAGON version
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D EFGH I
893 2638 1040 4571 1512 1542 1543 2002 1792
Luggage compartment capacity: 550 litres.
226P2000108
226
TECHNICAL DATA

Weights (kg) 1.4 16V 95 HP E6 1.4 16V 95 HP E4 1.6 E.TorQ E6(°)1.6 E.TorQ E4(°)
Versions:TIPO
5 DOORTIPO
STATION
WAGONTIPO
5 DOORTIPO
STATION
WAGONTIPO
5 DOORTIPO
STATION
WAGONTIPO
5 DOORTIPO
STATION
WAGON
Maximum load on tow
hitch (trailer with
brakes)60 60 60 60 60 60 60 60
Maximum load on roof
(****)55 75 55 75 55 75 55 75
(°) Where fitted
(****) The value shown includes the weight on the roof bars
228
TECHNICAL DATA

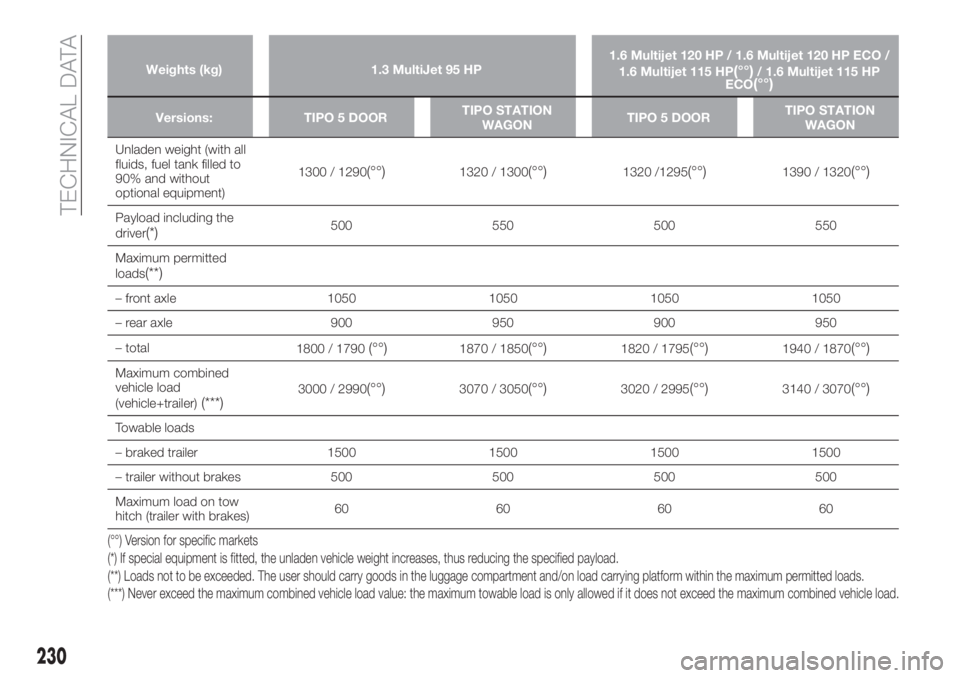

Weights (kg) 1.3 MultiJet 95 HP1.6 Multijet 120 HP / 1.6 Multijet 120 HP ECO /
1.6 Multijet 115 HP(°°)/ 1.6 Multijet 115 HP
ECO(°°)
Versions: TIPO 5 DOORTIPO STATION
WAGONTIPO 5 DOORTIPO STATION
WAGON
Unladen weight (with all
fluids, fuel tank filled to
90% and without
optional equipment)1300 / 1290
(°°)1320 / 1300(°°)1320 /1295(°°)1390 / 1320(°°)
Payload including the
driver(*)500 550 500 550
Maximum permitted
loads
(**)
– front axle 1050 1050 1050 1050
– rear axle 900 950 900 950
– total
1800 / 1790
(°°)1870 / 1850(°°)1820 / 1795(°°)1940 / 1870(°°)
Maximum combined
vehicle load
(vehicle+trailer)
(***)3000 / 2990(°°)3070 / 3050(°°)3020 / 2995(°°)3140 / 3070(°°)
Towable loads
– braked trailer 1500 1500 1500 1500
– trailer without brakes 500 500 500 500
Maximum load on tow
hitch (trailer with brakes)60 60 60 60
(°°) Version for specific markets
(*) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads not to be exceeded. The user should carry goods in the luggage compartment and/on load carrying platform within the maximum permitted loads.
(***) Never exceed the maximum combined vehicle load value: the maximum towable load is only allowed if it does not exceed the maximum combined vehicleload.
230
TECHNICAL DATA

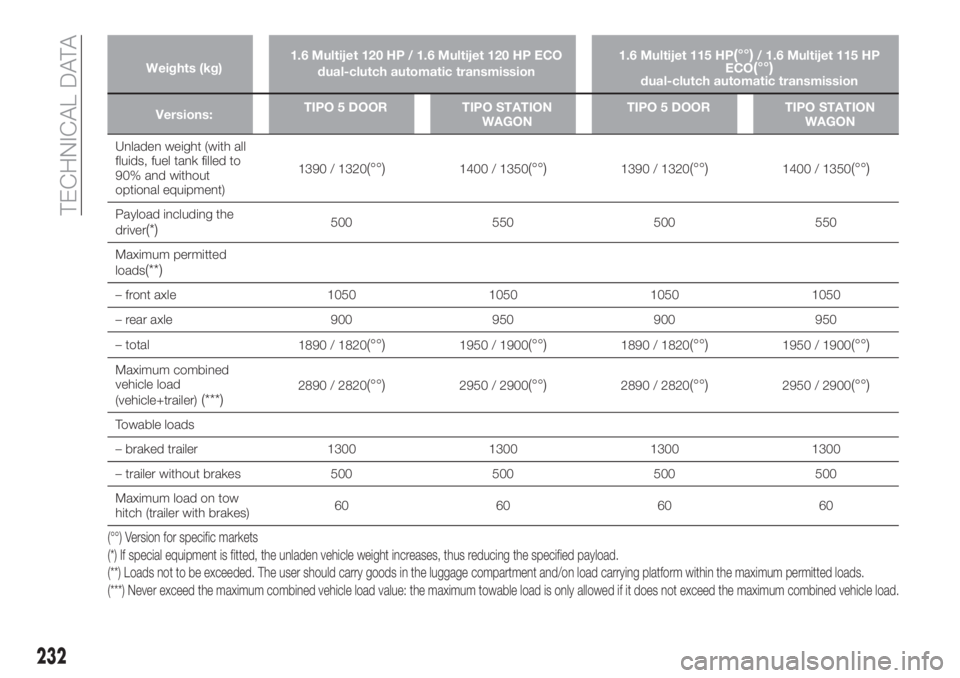

Weights (kg)1.6 Multijet 120 HP / 1.6 Multijet 120 HP ECO
dual-clutch automatic transmission1.6 Multijet 115 HP(°°)/ 1.6 Multijet 115 HP
ECO(°°)dual-clutch automatic transmission
Versions:TIPO 5 DOOR TIPO STATION
WAGONTIPO 5 DOOR TIPO STATION
WAGON
Unladen weight (with all
fluids, fuel tank filled to
90% and without
optional equipment)1390 / 1320
(°°)1400 / 1350(°°)1390 / 1320(°°)1400 / 1350(°°)
Payload including the
driver(*)500 550 500 550
Maximum permitted
loads
(**)
– front axle 1050 1050 1050 1050
– rear axle 900 950 900 950
– total
1890 / 1820
(°°)1950 / 1900(°°)1890 / 1820(°°)1950 / 1900(°°)
Maximum combined
vehicle load
(vehicle+trailer)
(***)2890 / 2820(°°)2950 / 2900(°°)2890 / 2820(°°)2950 / 2900(°°)
Towable loads
– braked trailer 1300 1300 1300 1300
– trailer without brakes 500 500 500 500
Maximum load on tow
hitch (trailer with brakes)60 60 60 60
(°°) Version for specific markets
(*) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads not to be exceeded. The user should carry goods in the luggage compartment and/on load carrying platform within the maximum permitted loads.
(***) Never exceed the maximum combined vehicle load value: the maximum towable load is only allowed if it does not exceed the maximum combined vehicleload.
232
TECHNICAL DATA

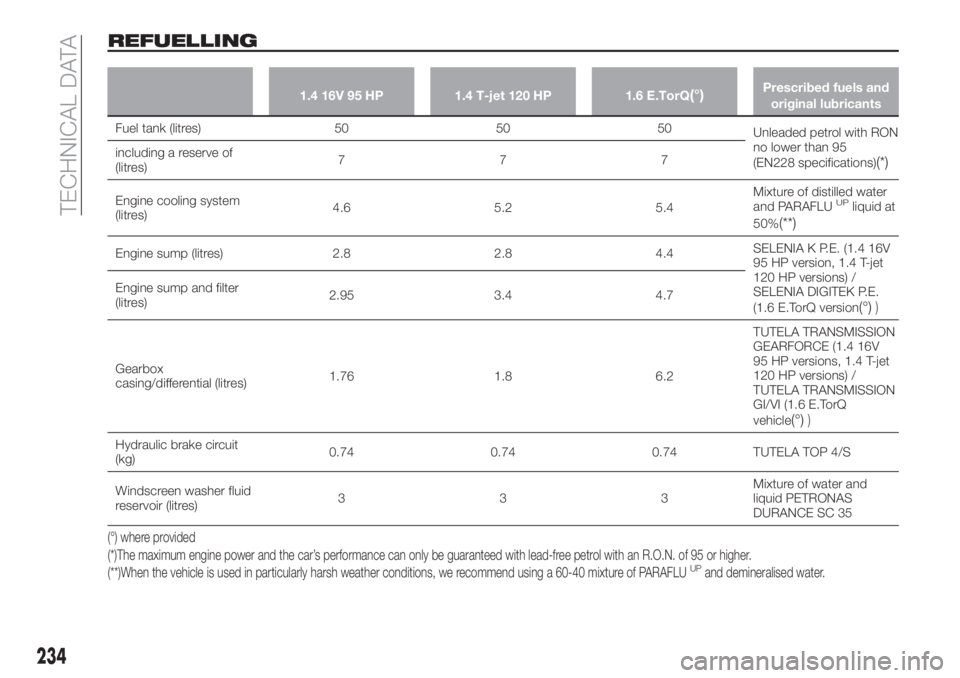

REFUELLING
1.4 16V 95 HP 1.4 T-jet 120 HP 1.6 E.TorQ(°)Prescribed fuels and
original lubricants
Fuel tank (litres) 50 50 50
Unleaded petrol with RON
no lower than 95
(EN228 specifications)
(*)including a reserve of
(litres)777
Engine cooling system
(litres)4.6 5.2 5.4Mixture of distilled water
and PARAFLU
UPliquid at
50%
(**)
Engine sump (litres) 2.8 2.8 4.4SELENIA K P.E. (1.4 16V
95 HP version, 1.4 T-jet
120 HP versions) /
SELENIA DIGITEK P.E.
(1.6 E.TorQ version
(°))
Engine sump and filter
(litres)2.95 3.4 4.7
Gearbox
casing/differential (litres)1.76 1.8 6.2TUTELA TRANSMISSION
GEARFORCE (1.4 16V
95 HP versions, 1.4 T-jet
120 HP versions) /
TUTELA TRANSMISSION
GI/VI (1.6 E.TorQ
vehicle
(°))
Hydraulic brake circuit
(kg)0.74 0.74 0.74 TUTELA TOP 4/S
Windscreen washer fluid
reservoir (litres)333Mixture of water and
liquid PETRONAS
DURANCE SC 35
(°) where provided
(*)The maximum engine power and the car’s performance can only be guaranteed with lead-free petrol with an R.O.N. of 95 or higher.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
234
TECHNICAL DATA

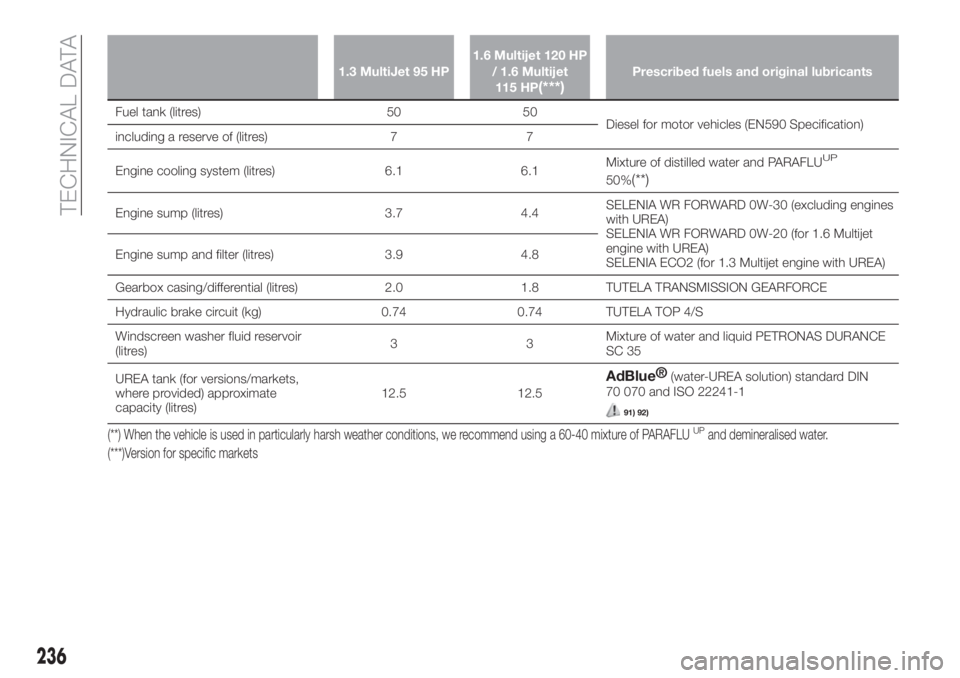

1.3 MultiJet 95 HP1.6 Multijet 120 HP
/ 1.6 Multijet
115 HP(***)Prescribed fuels and original lubricants
Fuel tank (litres) 50 50
Diesel for motor vehicles (EN590 Specification)
including a reserve of (litres) 7 7
Engine cooling system (litres) 6.1 6.1Mixture of distilled water and PARAFLU
UP
50%(**)
Engine sump (litres) 3.7 4.4SELENIA WR FORWARD 0W-30 (excluding engines
with UREA)
SELENIA WR FORWARD 0W-20 (for 1.6 Multijet
engine with UREA)
SELENIA ECO2 (for 1.3 Multijet engine with UREA) Engine sump and filter (litres) 3.9 4.8
Gearbox casing/differential (litres) 2.0 1.8 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.74 0.74 TUTELA TOP 4/S
Windscreen washer fluid reservoir
(litres)33Mixture of water and liquid PETRONAS DURANCE
SC 35
UREA tank (for versions/markets,
where provided) approximate
capacity (litres)12.5 12.5
AdBlue®(water-UREA solution) standard DIN
70 070 and ISO 22241-1
91) 92)
(***)Version for specific markets (**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
236
TECHNICAL DATA

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
93)
PRODUCT SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
engines (1.4 16V 95 HP,
1.4 T-jet 120 HP
versions)SAE 5W-40
ACEA C3 / API SN9.55535-S2SELENIA K P.E.
Contractual Technical
Reference N° F603.C07According to Scheduled
Servicing Plan
Lubricant for petrol
engines (1.6 E.TorQ
versions
(°))
SAE 0W-30
ACEA C2 / API SN9.55535-GS1SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Scheduled
Servicing Plan
Lubricant for diesel
engines without UREASAE 0W-30
ACEA C29.55535-DS1 or
MS.90047SELENIA WR
FORWARD
Contractual Technical
Reference N° F842.F13According to Scheduled
Servicing Plan
Lubricant for 1.6 Multijet
diesel engines with
UREASAE 0W-20
ACEA C29.55535-DSXSELENIA WR
FORWARD
Contractual Technical
Reference N° F013.K15According to Scheduled
Servicing Plan
Lubricant for 1.3 Multijet
engines with UREASAE 0W-20
ACEA C59.55535-DM1SELENIA ECO2
Contractual Technical
Reference N° F049.C18According to Scheduled
Servicing Plan
(°) where provided
238
TECHNICAL DATA

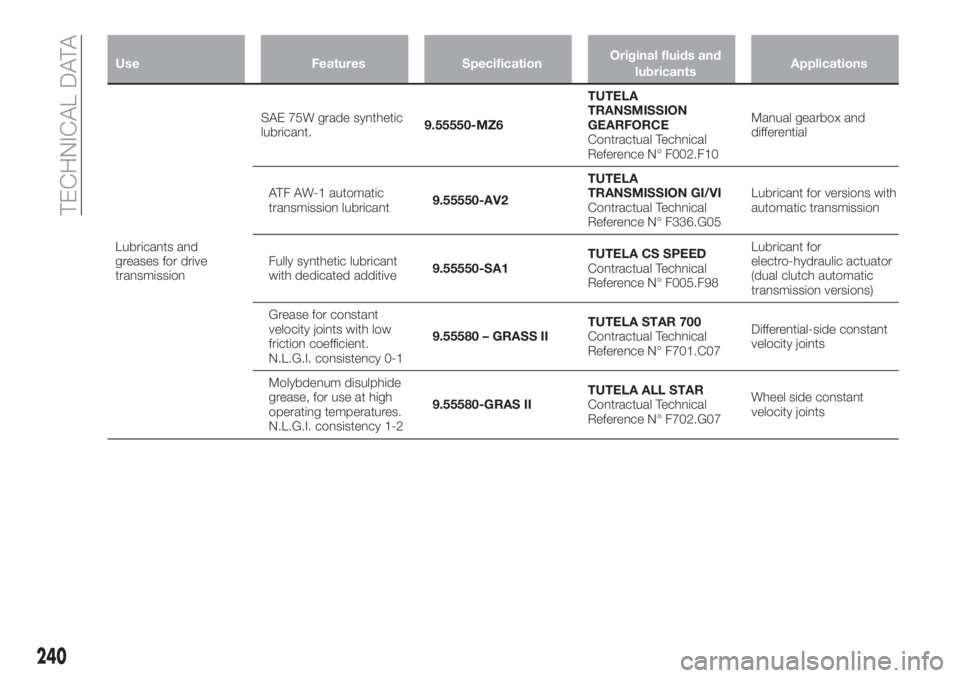

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSAE 75W grade synthetic
lubricant.9.55550-MZ6TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference N° F002.F10Manual gearbox and
differential
ATF AW-1 automatic
transmission lubricant9.55550-AV2TUTELA
TRANSMISSION GI/VI
Contractual Technical
Reference N° F336.G05Lubricant for versions with
automatic transmission
Fully synthetic lubricant
with dedicated additive9.55550-SA1TUTELA CS SPEED
Contractual Technical
Reference N° F005.F98Lubricant for
electro-hydraulic actuator
(dual clutch automatic
transmission versions)
Grease for constant
velocity joints with low
friction coefficient.
N.L.G.I. consistency 0-19.55580 – GRASS IITUTELA STAR 700
Contractual Technical
Reference N° F701.C07Differential-side constant
velocity joints
Molybdenum disulphide
grease, for use at high
operating temperatures.
N.L.G.I. consistency 1-29.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference N° F702.G07Wheel side constant
velocity joints
240
TECHNICAL DATA

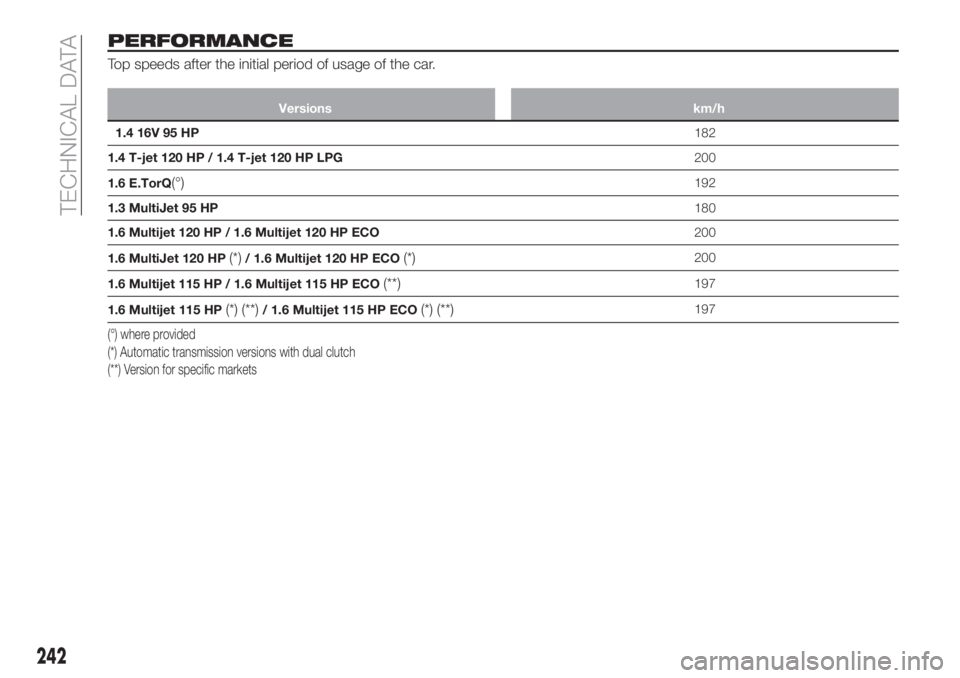

PERFORMANCE
Top speeds after the initial period of usage of the car.
Versions km/h
1.4 16V 95 HP182
1.4 T-jet 120 HP / 1.4 T-jet 120 HP LPG200
1.6 E.TorQ
(°)192
1.3 MultiJet 95 HP180
1.6 Multijet 120 HP / 1.6 Multijet 120 HP ECO200
1.6 MultiJet 120 HP
(*)/ 1.6 Multijet 120 HP ECO(*)200
1.6 Multijet 115 HP / 1.6 Multijet 115 HP ECO
(**)197
1.6 Multijet 115 HP
(*) (**)/ 1.6 Multijet 115 HP ECO(*) (**)197
(°) where provided
(*) Automatic transmission versions with dual clutch
(**) Version for specific markets
242
TECHNICAL DATA

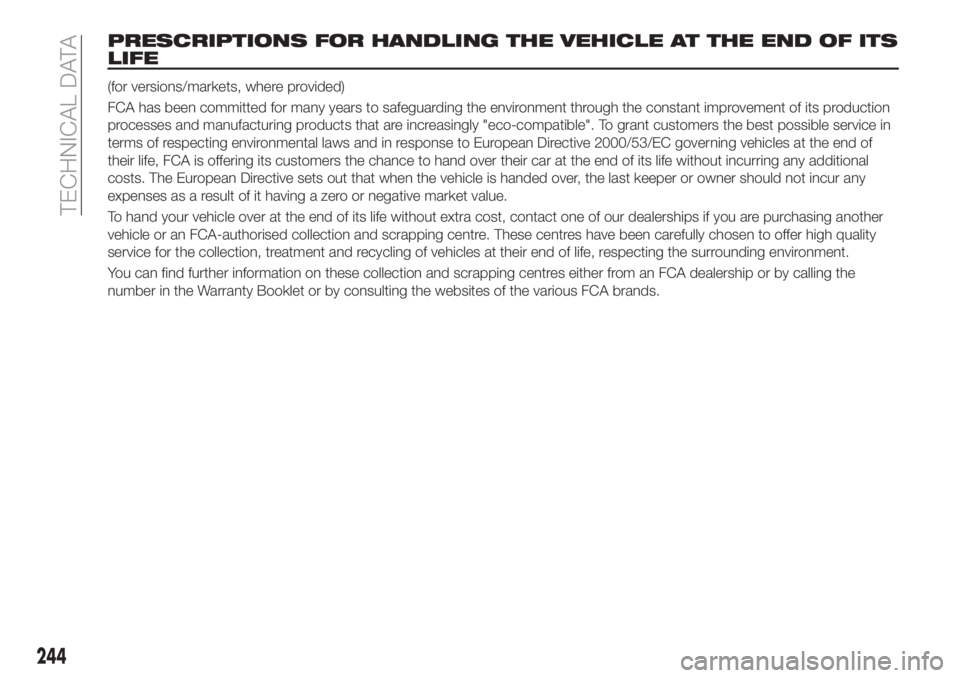

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS
LIFE
(for versions/markets, where provided)
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service in
terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their car at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
