FIAT TIPO 5DOORS STATION WAGON 2020 Owner handbook (in English)

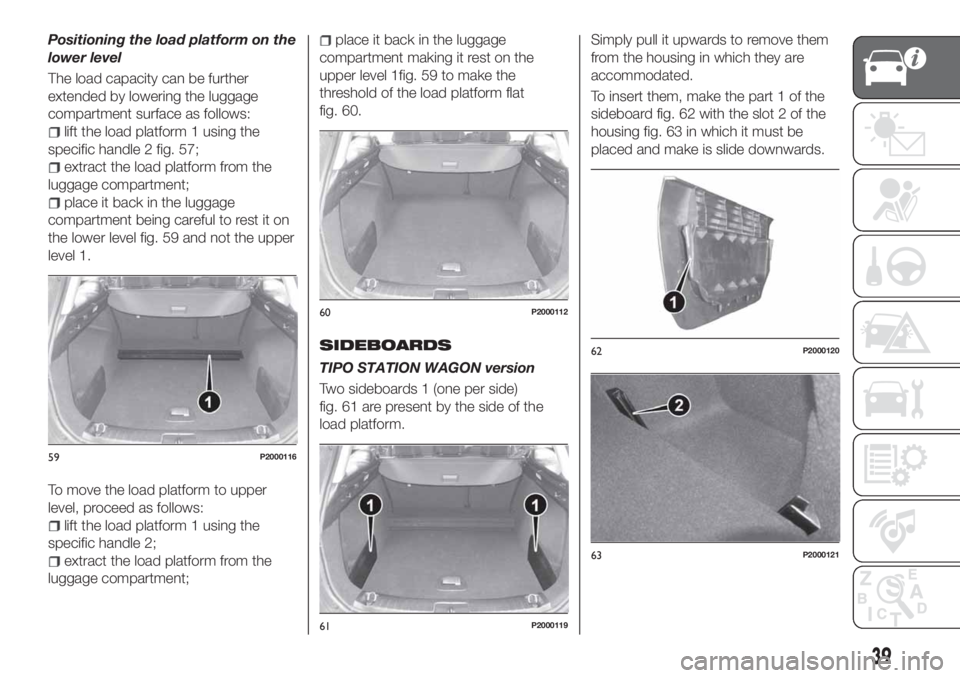

Positioning the load platform on the
lower level
The load capacity can be further
extended by lowering the luggage
compartment surface as follows:
lift the load platform 1 using the
specific handle 2 fig. 57;
extract the load platform from the
luggage compartment;
place it back in the luggage
compartment being careful to rest it on
the lower level fig. 59 and not the upper
level 1.
To move the load platform to upper
level, proceed as follows:
lift the load platform 1 using the
specific handle 2;
extract the load platform from the
luggage compartment;
place it back in the luggage
compartment making it rest on the
upper level 1fig. 59 to make the
threshold of the load platform flat
fig. 60.
SIDEBOARDS
TIPO STATION WAGON version
Two sideboards 1 (one per side)
fig. 61 are present by the side of the
load platform.Simply pull it upwards to remove them
from the housing in which they are
accommodated.
To insert them, make the part 1 of the
sideboard fig. 62 with the slot 2 of the
housing fig. 63 in which it must be
placed and make is slide downwards.
59P2000116
60P2000112
61P2000119
62P2000120
63P2000121
39

WARNING
30)Take care not to knock objects on the
roof rack when opening the tailgate.
31)In the event of an accident or sharp
braking, any object placed on the curtain
may be projected into the passenger
compartment, and risk hurting the
occupants.
IMPORTANT
9)The dimensions of the platform permit a
maximum distributed weight capacity of
95 kg: do not load objects with a greater
weight.

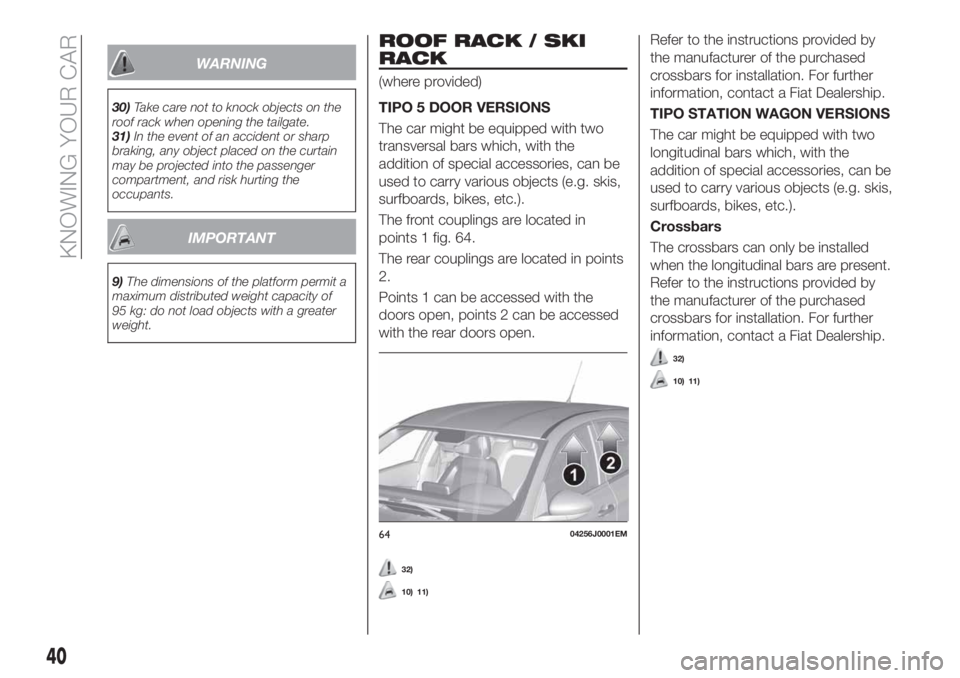

ROOF RACK / SKI
RACK
(where provided)
TIPO 5 DOOR VERSIONS
The car might be equipped with two
transversal bars which, with the
addition of special accessories, can be
used to carry various objects (e.g. skis,
surfboards, bikes, etc.).
The front couplings are located in
points 1 fig. 64.
The rear couplings are located in points
2.
Points 1 can be accessed with the
doors open, points 2 can be accessed
with the rear doors open.
32)
10) 11)
Refer to the instructions provided by
the manufacturer of the purchased
crossbars for installation. For further
information, contact a Fiat Dealership.
TIPO STATION WAGON VERSIONS
The car might be equipped with two
longitudinal bars which, with the
addition of special accessories, can be
used to carry various objects (e.g. skis,
surfboards, bikes, etc.).
Crossbars
The crossbars can only be installed
when the longitudinal bars are present.
Refer to the instructions provided by
the manufacturer of the purchased
crossbars for installation. For further
information, contact a Fiat Dealership.
32)
10) 11)
6404256J0001EM
40
KNOWING YOUR CAR

WARNING
32)Before driving, make sure that the
transversal bars have been fitted properly.
IMPORTANT
10)Never exceed the maximum permitted
loads (see the "Weights" paragraph in the
"Technical specifications" chapter).
11)Fully comply with the regulations in
force concerning maximum clearance.
VERSION WITH LPG
SYSTEM
(where provided)
33) 34)
12) 13) 14) 15)
INTRODUCTION
The LPG version features two fuel
supply systems: one for petrol and one
for LPG.
PASSIVE SAFETY /
ACTIVE SAFETY
Passive safety
The car has the same passive safety
specifications as other versions. In
particular, the mountings of the tank
(located in the space-saver wheel
housing) have been designed to comply
with the Fiat safety standards for impact
tests.
When running on LPG, the flow of gas
(in a liquid state) leaving the tank
passes through the specific piping to
the pressure regulator unit, where there
is a safety solenoid valve that stops the
flow of LPG when the ignition key is
removed or when the driver selects a
fuel change (decision to run on petrol).Together with the regulator solenoid
valve, a second solenoid valve, in the
tank, closes the LPG pipe at the tank
outlet.
The two solenoid valves are connected
to the fuel cut-off system (Fire
Protection System).
The LPG tank complies with the current
legal regulations of the countries where
the car is sold.
Active safety
The car has the same active safety
specifications as other versions.
Although the LPG system has
numerous safety features, it is advisable
to proceed as follows every time the car
is not in use for a long period or moved
in an emergency as a result of a
breakdown or accident:
unscrew the fixing devices 1 fig. 65,
then remove the cover 2;
close the LPG cock rotating the ring
1 fig. 66clockwise;
refit the cover and retighten the
fastening devices.
41

IMPORTANT If gas is smelt, switch from
LPG operation to petrol operation and
immediately go to the Fiat Dealership to
have the vehicle checked and possible
system faults excluded.LPG TANK
The car has a pressurised tank for
storing LPG in a liquid state. It is
toroidal and is located in the spare
wheel compartment with suitable
protection.
LPG tank certification
The LPG tank is certified in accordance
with the regulations in force.
In Italy, the tank has a life of 10 years
starting from the car registration date. If
the vehicle has been registered in a
country other than Italy, the duration
and the testing/inspection procedures
of the LPG tank can vary depending on
the national provisions in force in that
country. In all case, when the time limit
for your country has expired, go to a
Fiat Dealer to have the tank replaced.
LPG/PETROL SWITCH
This engine normally runs on LPG
except during starting when it runs on
petrol. Switching to LPG is automatic,
the warning light
1 fig. 67 on the
instrument panel, switches off.If you specifically want to use petrol,
press the button on the dashboard
fig. 68. If the LED located above the
button turns on, it indicates that
switching has taken place correctly.
Regardless of the last fuel system used,
at the following engine starting, after the
initial petrol stage, the system will
automatically switch to LPG.
65PGL00002
66PGL00003
67PGL00022
68PGL00001
42
KNOWING YOUR CAR

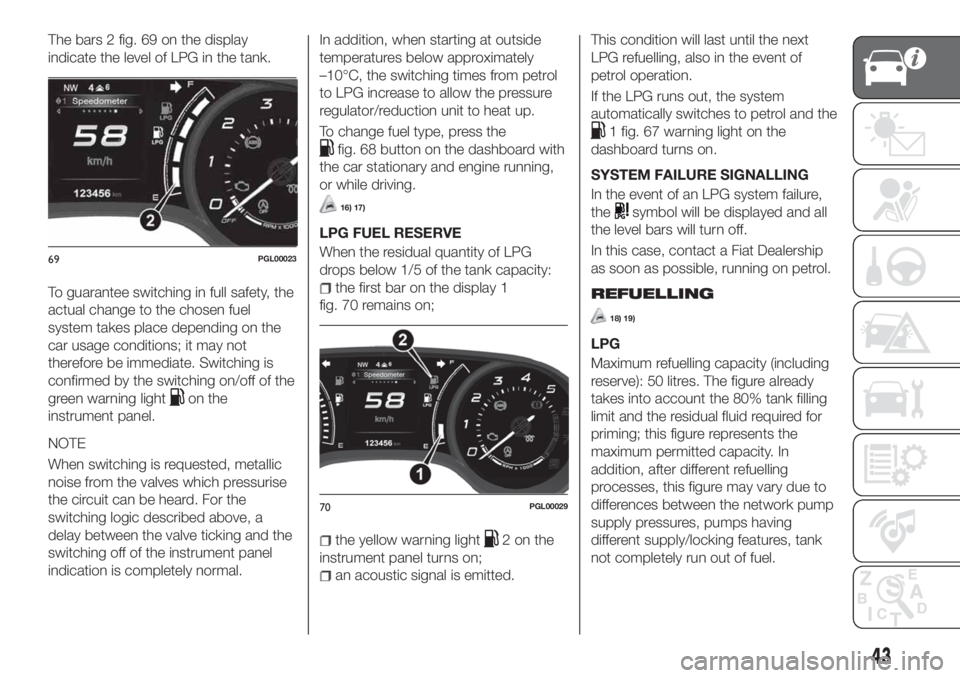

The bars 2 fig. 69 on the display
indicate the level of LPG in the tank.
To guarantee switching in full safety, the
actual change to the chosen fuel
system takes place depending on the
car usage conditions; it may not
therefore be immediate. Switching is
confirmed by the switching on/off of the
green warning light
on the
instrument panel.
NOTE
When switching is requested, metallic
noise from the valves which pressurise
the circuit can be heard. For the
switching logic described above, a
delay between the valve ticking and the
switching off of the instrument panel
indication is completely normal.In addition, when starting at outside
temperatures below approximately
–10°C, the switching times from petrol
to LPG increase to allow the pressure
regulator/reduction unit to heat up.
To change fuel type, press the
fig. 68 button on the dashboard with
the car stationary and engine running,
or while driving.
16) 17)
LPG FUEL RESERVE
When the residual quantity of LPG
drops below 1/5 of the tank capacity:
the first bar on the display 1
fig. 70 remains on;
the yellow warning light2onthe
instrument panel turns on;
an acoustic signal is emitted.This condition will last until the next
LPG refuelling, also in the event of
petrol operation.
If the LPG runs out, the system
automatically switches to petrol and the
1 fig. 67 warning light on the
dashboard turns on.
SYSTEM FAILURE SIGNALLING
In the event of an LPG system failure,
the
symbol will be displayed and all
the level bars will turn off.
In this case, contact a Fiat Dealership
as soon as possible, running on petrol.
REFUELLING
18) 19)
LPG
Maximum refuelling capacity (including
reserve): 50 litres. The figure already
takes into account the 80% tank filling
limit and the residual fluid required for
priming; this figure represents the
maximum permitted capacity. In
addition, after different refuelling
processes, this figure may vary due to
differences between the network pump
supply pressures, pumps having
different supply/locking features, tank
not completely run out of fuel.
69PGL00023
70PGL00029
43

IMPORTANT In order to avoid
inconsistent information by the LPG
gauge on the instrument panel, it is
recommended to refill with at least
10 litres each time.
WARNING
33)Note that in some countries (including
Italy) there are legal restrictions in force for
parking/garaging motor vehicles fuelled by
gas that is denser than air; LPG comes
under this category.
34)If gas is smelt, switch from LPG
operation to petrol operation and
immediately go to a Fiat Dealership to have
the vehicle checked and possible system
faults excluded.
IMPORTANT
12)The car is equipped with a gaseous
LPG injection system designed specifically
for it: it is therefore absolutely forbidden to
alter the configuration of the system or its
components. The use of other components
or materials could cause malfunctions and
lead to a reduction in safety; therefore, in
the case of problems, contact a Fiat
Dealership. To prevent damage to the gas
system parts when towing or raising the
vehicle, follow the instructions in the
"Towing the vehicle" paragraph of the
Owner Handbook.
13)The system operates at temperatures
ranging between −20°C and 100°C.14)When painting in an oven, the LPG tank
must be removed from the car and later
refitted by a Fiat Dealership. Although the
LPG system has numerous safety features,
it is advisable to proceed as follows every
time the vehicle is not in use for a long
period or moved in an emergency as a
result of a breakdown or accident: unscrew
the devices fastening the cover of the LPG
tank, then remove it. Close the LPG cock
rotating the ring nut clockwise (see
"Passive safety / active safety"). Refit the
cover and retighten the fastening devices.
15)When switching is requested, metallic
noise from the valves which pressurise the
circuit can be heard. For the switching logic
described above, a delay between the
valve ticking and the switching off of the
instrument panel indication is completely
normal.
16)Do not switch between the two
operating modes whilst starting the engine.17)In particular usage conditions, such as
starting and operation at low ambient
temperature or LPG supply with low
propane content, the system may switch
temporarily to petrol operation, without a
visual indication of switching on the
instrument panel. In the event of low LPG
levels in the tank or request for high
performance (e.g. overtaking, car fully
laden, steep hills) the system may
automatically switch to petrol operation to
guarantee the engine power requested; the
green warning light
on the instrument
panel switches on to indicate this. When
the above conditions are no longer present,
the system automatically restores LPG
operation; the green warning light
switches off. To achieve the automatic
switching described above, make sure that
there is always enough fuel in the petrol
tank.
18)It is strictly forbidden to use any
additive in the LPG. Periodically (at least
once every six months) it is advisable to let
the LPG in the tank run out and, at the first
refuelling, to check that it does not exceed
the maximum capacity of 42 litres (reserve
included) (with a tolerance of 1 litres
excess). If the level is above 42 litres
(reserve included) contact a Fiat Dealership
immediately.
19)Only use LPG for motor vehicles.
44
KNOWING YOUR CAR

ACTIVE GRILLE
SHUTTER
(where provided)
Your vehicle may be equipped with
Active Grille Shutter, an automatic
system with mobile flaps applied in front
of the cooling module, whose
automatic opening/closing movement
aims at improving the vehicle
aerodynamic efficiency and thus
reducing consumption while ensuring
optimal engine operating temperature
conditions.
When a greater air flow is required for
cooling (e.g. when driving in urban
traffic), the flaps open, whereas when
temperature is low or the air flow is
enough (for example when driving in
motorways), the grille closes.
In case of failure, the instrument panel
will show the warning light
.
ECO FUNCTION
(where provided)
To activate the function press the ECO
button fig. 71.
The ECO function only acts in
automatic mode and directs the shifting
logic towards a driving style that
optimises the fuel consumption.
The ECO function will be active
whenever the engine is started.
When the function is on, the
corresponding LED on the button lights.
This function is memorised, so when
the vehicle is started again, the system
keeps the setting it had before the
engine was stopped. Press the ECO
button again to deactivate the function
and restore the normal driving setting.
IMPORTANT If the battery is
disconnected/reconnected, the ECO
function will be turned off, restoring the
normal diving settings.
IMPORTANT For versions equipped
with Adaptive Cruise Control (ACC), the
ECO function also acts on the
acceleration responsiveness of the
Adaptive Cruise Control. If you prefer a
more responsive behaviour, you can
turn off the ECO function or operate the
accelerator pedal. In the latter case,
normal Adaptive Cruise Control
operation will resume when the pedal is
released.
71P2000155
45

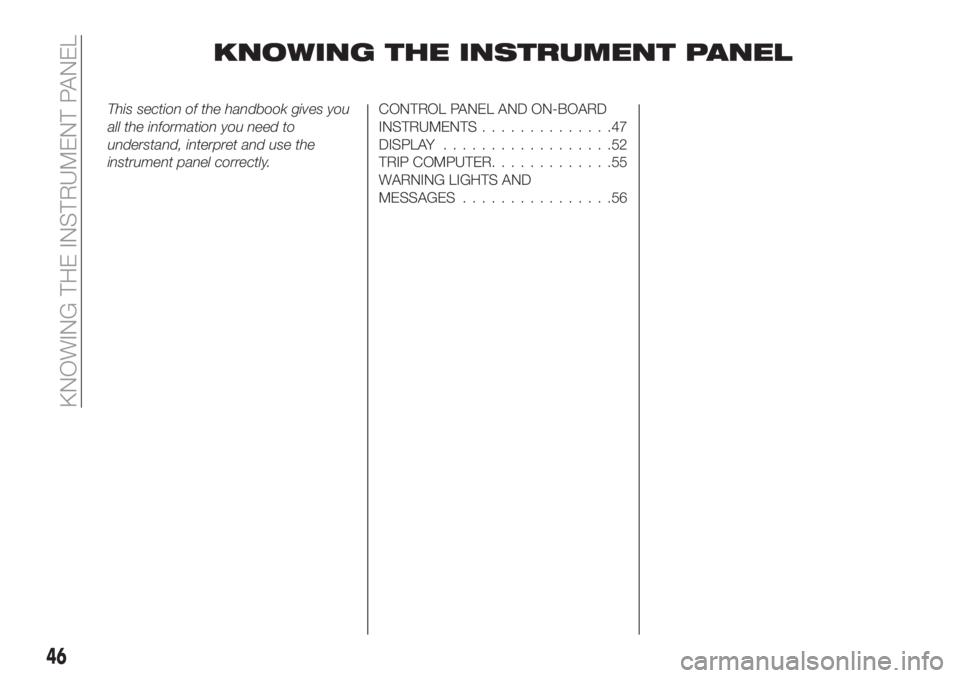

KNOWING THE INSTRUMENT PANEL
This section of the handbook gives you
all the information you need to
understand, interpret and use the
instrument panel correctly.CONTROL PANEL AND ON-BOARD
INSTRUMENTS..............47
DISPLAY..................52
TRIP COMPUTER.............55
WARNING LIGHTS AND
MESSAGES................56
46
KNOWING THE INSTRUMENT PANEL

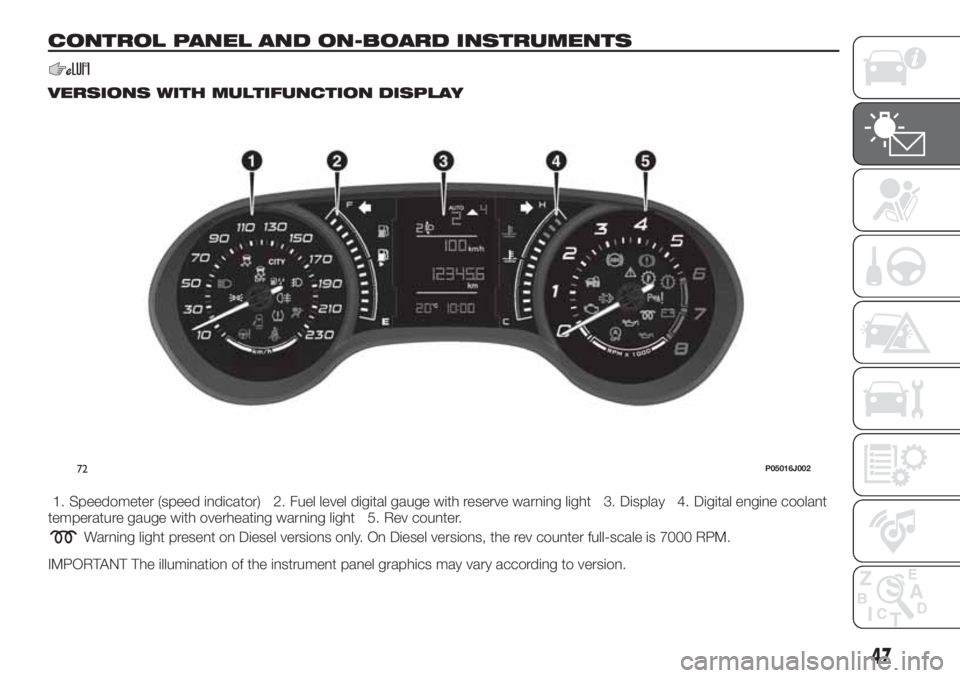

CONTROL PANEL AND ON-BOARD INSTRUMENTS
VERSIONS WITH MULTIFUNCTION DISPLAY
1. Speedometer (speed indicator) 2. Fuel level digital gauge with reserve warning light 3. Display 4. Digital engine coolant
temperature gauge with overheating warning light 5. Rev counter.
Warning light present on Diesel versions only. On Diesel versions, the rev counter full-scale is 7000 RPM.
IMPORTANT The illumination of the instrument panel graphics may vary according to version.
72P05016J002
47

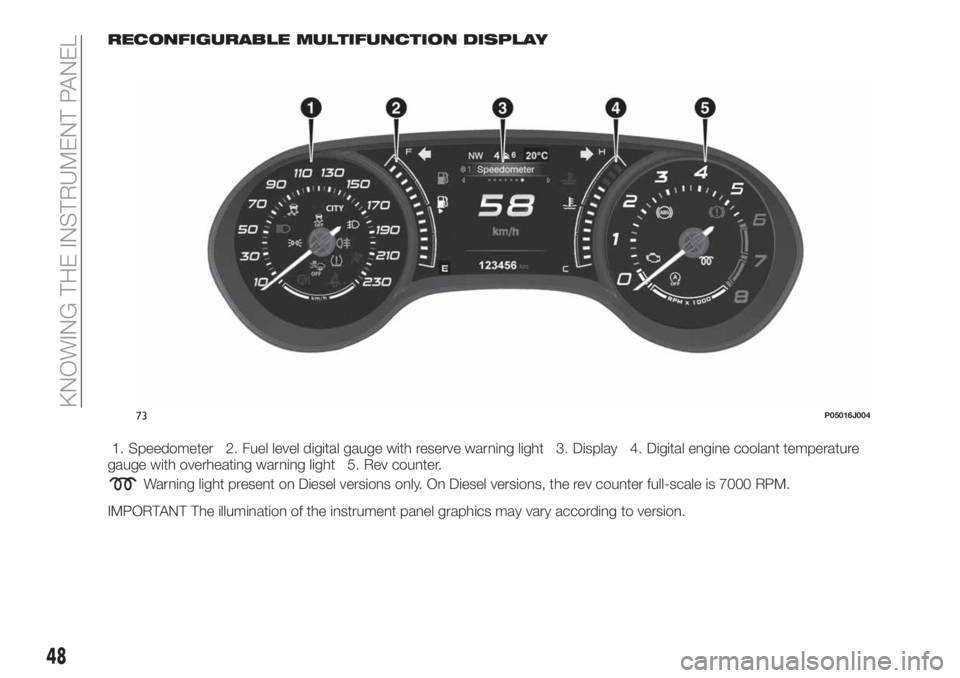

RECONFIGURABLE MULTIFUNCTION DISPLAY
1. Speedometer 2. Fuel level digital gauge with reserve warning light 3. Display 4. Digital engine coolant temperature
gauge with overheating warning light 5. Rev counter.
Warning light present on Diesel versions only. On Diesel versions, the rev counter full-scale is 7000 RPM.
IMPORTANT The illumination of the instrument panel graphics may vary according to version.
73P05016J004
48
KNOWING THE INSTRUMENT PANEL
