FIAT ULYSSE 2009 2.G Connect NavPlus Manual

50
Map orientation
Turn the knob (16 - 40) to select
and confirm this item and orient the
map in two different ways:
– “North direction”: the map is
shown with north up and the cursor
moves on the map;
– “Vehicle direction”: the cursor is
positioned in tihe middle of the map
and the map moves automatically ac-
cording to the direction of advance-
ment of the car.
– “3D view”: this function is used to
view the map in three dimensions.Map details
Use the knob (16 - 40) to select and
confirm this item for selecting services
(hotels, restaurants, sports centres,
etc.) from a list and display their po-
sition directly on the map.Map display
The map view (full screen or in win-
dow) may be selected in navigation
mode.
Select and confirm “Full screen map”
by turning and pressing the knob (16
- 40) to view the map full screen.
Select and confirm “Map in window”
by turning and pressing the knob (16
- 40) to view the map in a window.

51
fig. 12
F0B0293m
The AUDIO-VIDEO A-fig. 12sock-
et for connecting a camera to the
CONNECT Nav+ system is located
in the oddment compartment. This
connection may be used to view pre-
viously filmed pictures directly on the
system display.
The video function may only be
used when the car is not moving.Press the MENU(18 - 41) button
to access the general menu. Select the
“VIDEO” fig. 13icon by turning and
pressing the knob (16 - 40) to access
the following menus:
– “Activate video mode”: select and
confirm this function by rotating and
pressing the knob (16 - 40) to show
filmed pictures.– “Video parameters”: select and
confirm this function by turning and
pressing the knob (16 - 40) and access
the format, brightness, colour and
contrast adjustment menus.
fig. 13
F0B1006g
VIDEO FUNCTION

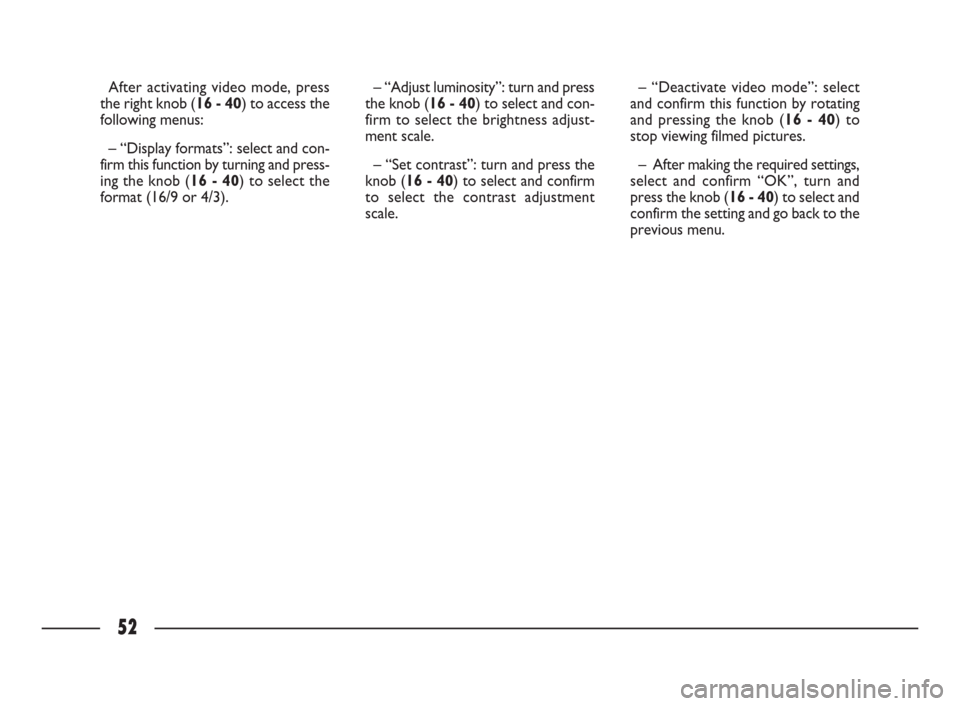

52
After activating video mode, press
the right knob (16 - 40) to access the
following menus:
– “Display formats”: select and con-
firm this function by turning and press-
ing the knob (16 - 40) to select the
format (16/9 or 4/3).– “Adjust luminosity”: turn and press
the knob (16 - 40) to select and con-
firm to select the brightness adjust-
ment scale.
– “Set contrast”: turn and press the
knob (16 - 40) to select and confirm
to select the contrast adjustment
scale.– “Deactivate video mode”: select
and confirm this function by rotating
and pressing the knob (16 - 40) to
stop viewing filmed pictures.
– After making the required settings,
select and confirm “OK”, turn and
press the knob (16 - 40) to select and
confirm the setting and go back to the
previous menu.

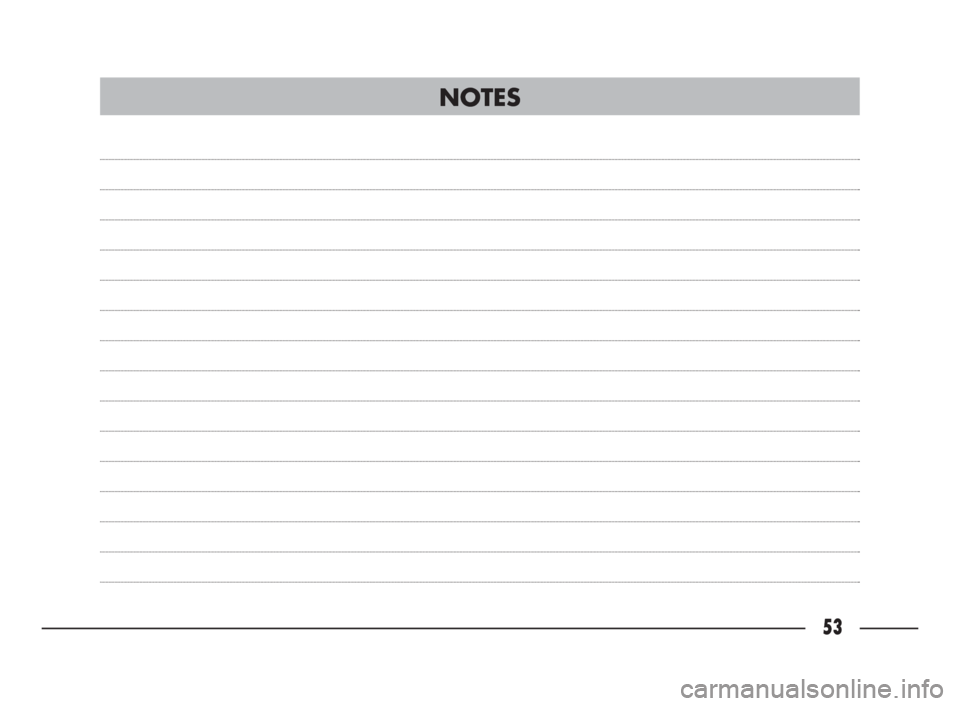

53
NOTES

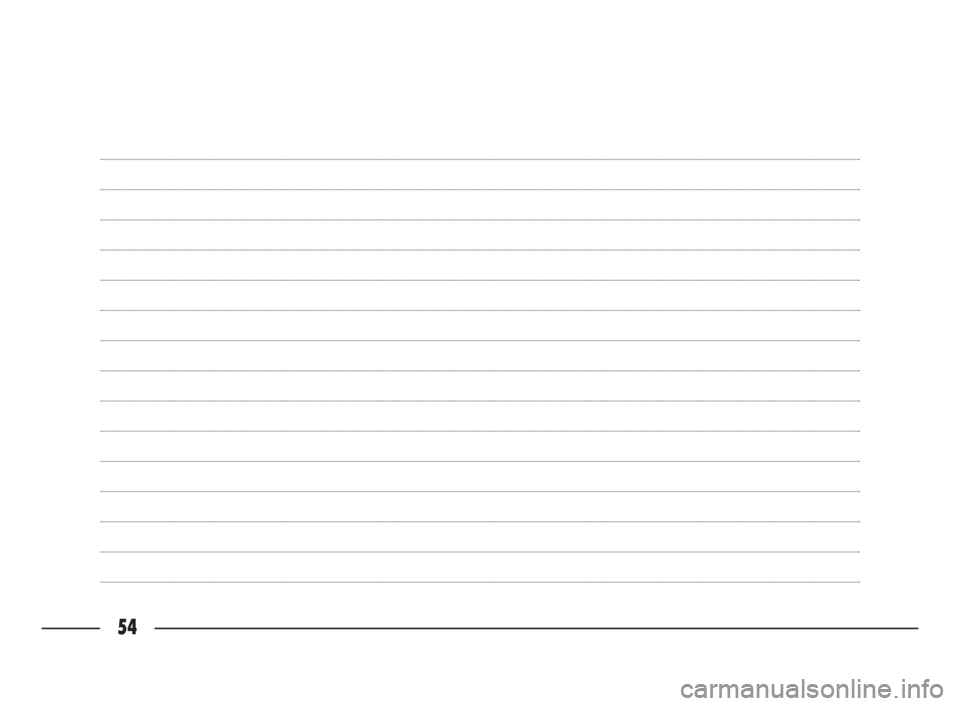

54

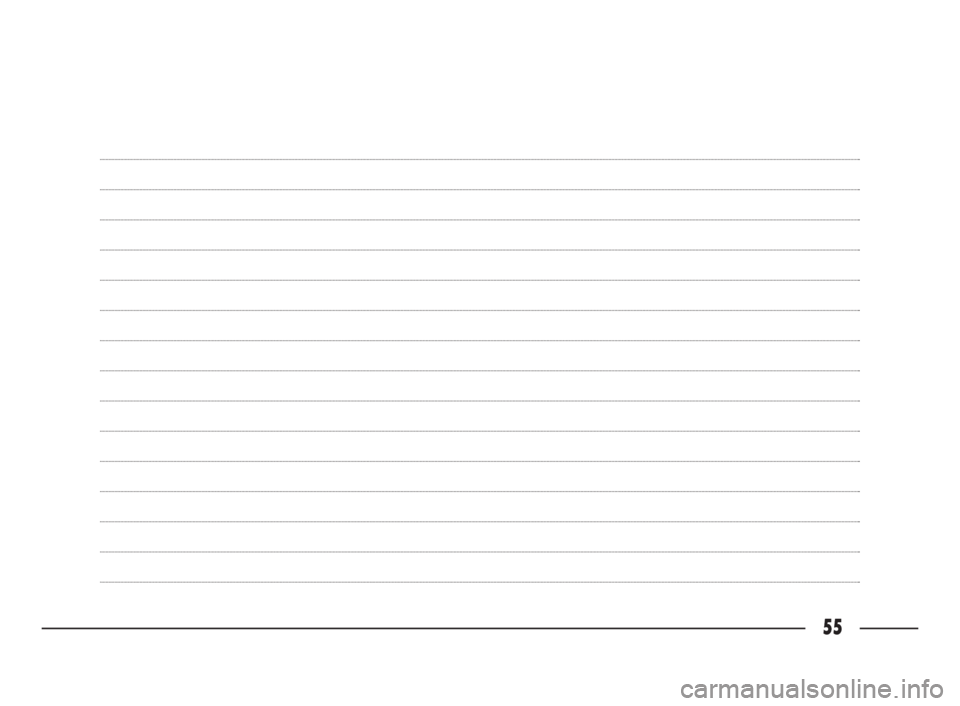

55

Fiat Group Automobiles S.p.A.
Customer Services - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print n. 603.83.757 - 03/2009 - 3rdEdition
