ECO mode FIAT ULYSSE 2009 2.G Connect NavPlus Manual

9
Some controls have multiple functions which depend on the active system mode. The activated function in some cases
depends on how long the button is pressed as shown in the following table:
Key Short press (less than 1 second) Long press (over 1 second)
1SOS
2˚
3SOURCE
4
5£
6
7•
8
9ESC
10N
11
–
–
–
–
–
–
–
–
–
Show active mode general information.
– Display emergency call menu
(medical emergency, breakdown, etc.).
Eject audio CD audio.
Select mode: radio, CD, CD changer.
System on/off.
Turn: adjust volume and audio settings
(treble, bass, balance, fader, loudness).
Telephone mode.
Dial set number.
Answer incoming call.
CONNECT Nav+ comprised system
multifunctional display
bCONNECT mode.
CD compartment/housing.
Quit selection menu or go from a submenu to a
higher level menu.
Radio mode: tune radio in 50 kHz (in FM) or 1 kHz
(in AM) steps to the next radio station from the
currently tuned station.
CD changer mode: select next CD.
Sound settings.

10
Key Short press (less than 1 second) Long press (over 1 second)
12
13
14
˜
15LIST
16
17O
18MENU
19
÷
20
21Ô
–
–
CD mode: fast forward by one track.
–
–
–
Show help menu.
CD mode: fast backward by one track.
Store current station (1 – 6).
– IR port.
SIM card housing adapter.
Radio mode: tune radio to the next station;
press twice: switch from LO mode to DX mode.
CD mode: go to next track.
CD changer mode: go to next track.
Radio mode: show receivable radio stations in
alphabetical order.
CD mode: show track list contained on CD.
MP3 mode: show folder list contained on CD.
Turn: select function.
Press: confirm selected functions.
Radio mode: tune radio in 50 kHz (in FM) or 1 kHz
(in AM) steps to the previous radio station from the
currently tuned station.
CD changer mode: select previous CD.
Access to function menus.
Radio mode: tune radio to the previous station;
press twice: switch from LO mode to DX mode.
CD mode: go to previous track.
CD changer mode: go to previous track.
Radio mode: recall preset station (1 – 6)
Telephone mode: dial telephone number (1 – 12).
CD changer mode: select CD (1 – 6).
Reject incoming call.
Hang up current call.

11
Key Short press (less than 1 second)Long press (over 1 second)
22BND AST
23TA/PTY
24DARK
25MODE
26
27MEMO
28˜
29
30SRC
31
32÷
33 MEMO
Automatic station store (in FMAST band).
PTY (Type Program): activate search filter
according to broadcasting station category.
–
–
Navigation mode: repeat last voice message
(supplied by system).
–
–
–
–
–
–
– Select frequency band FM1 – FM2 – FMAST
(autostore) – AM.
TA (Traffic Announcements): automatic
reception of traffic announcements.
Press once: partial dimming of display.
Press twice: dimming of display.
Press three times: normal display brightness.
Change current display.
Voice controls
Anticlockwise:
Radio mode: previous preset station.
CD changer mode: select previous CD.
Radio mode: manual tuning next station.
CD mode: select next track
Audio section: volume up.
Pressed with button 31: mute function
Select mode: radio, CD, CD changer.
Audio section: volume down.
Pressed with button 29: mute function
Radio mode: manual tuning previous station.
CD mode: select previous track
Clockwise.
Radio mode: next preset station.
CD changer mode: select next CD

12
Key Short press (less than 1 second)Long press (over 1 second)
34MUSIC
35MODE
36ESC
37TEL
38NAV
39MAIN
40
41MENUAudio settings: treble, bass, balance, fader, loudness
automatic volume adjustment according to speed.
Change current display.
Quit selection menu or go from a submenu to a higher
level menu.
Telephone mode.
Navigation mode.
Go to main menu.
Turn: select function.
Press: confirm selected function.
Access function menus.–
–
–
–
–
–
–
Show help menu.

15
With the key at M, the audio section
may be switched on and off by pres-
sing the knob (4).
VOLUME ADJUSTMENT
Turn the knob (4) clockwise to turn
the radio volume up and anticlockwi-
se to turn it down.
AUDIO SETTINGS
Sound settings (BASS/ TREBLE), ba-
lance (BAL), fader (FAD), loudness
(LOUD), automatic volume and type
of sound (musical ambiance) may be
adjusted. The balance and fader func-
tions emphasise the sound from the
left/right and the front/rear speakers.
The loudness function is used to
emphasise the bass and treble tone
when the volume is low. To access the
audio settings function, repeatedly
press
(11) to adjust bass (BASS),
treble (TREB), loudness (LOUD), fa-
der (FAD), balance (BAL), automatic
volume and sound type (musical am-
bience).The system will deactivate the audio
adjustment system after a few seconds
if no action is performed or if the ESC
(9 - 36) is pressed after making the
setting.
IMPORTANTThe bass and treble
settings are source specific. They may
be adjusted separately in RADIO, CD
or CD changer mode.
Bass settings (BASS)
When the message “BASS” appears
on the display, turn the knob (4) to
adjust the setting as follows:
– “BASS -9” for setting bass to mi-
nimum level;
– “BASS 0” for setting bass to me-
dium level;
– “BASS +9” for setting bass to maxi-
mum level.Treble setting (TREB)
When the message “TREB” appears
on the display, turn the knob (4) to
adjust the setting as follows:
– “TREB -9” for setting treble to mi-
nimum level;
– “TREB 0” for setting treble to me-
dium level;
– “TREB +9” for setting treble to
maximum level.
Loudness function (LOUD)
This function allows to automatical-
ly emphasise bass and treble settings
when the volume is low. Simply turn
the knob (4) to switch the function on
and off.
AUDIO

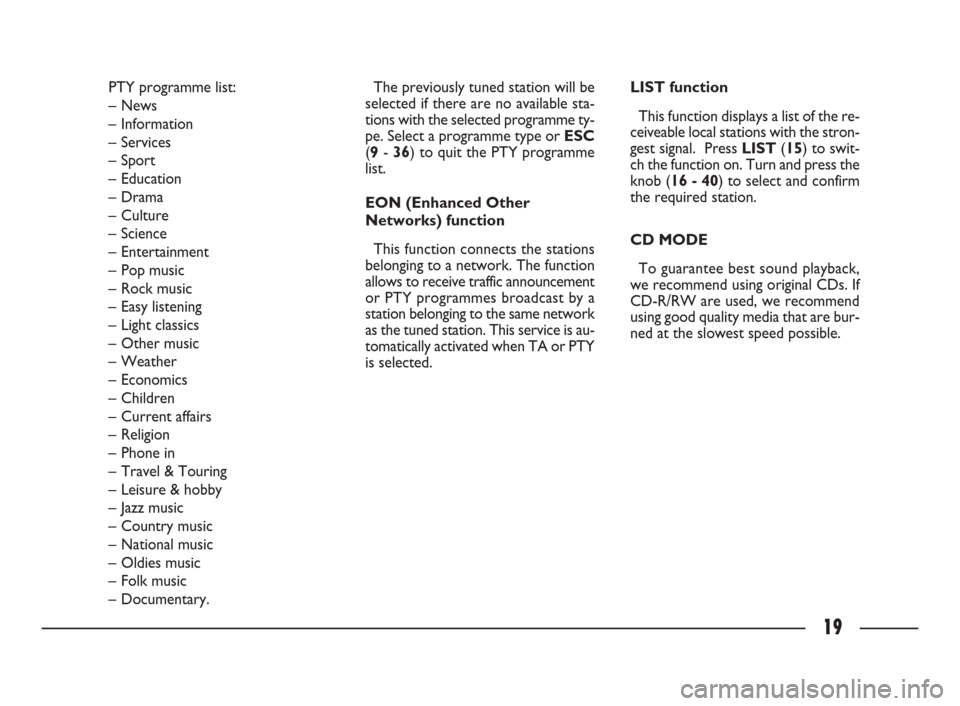

19
PTY programme list:
– News
– Information
– Services
– Sport
– Education
– Drama
– Culture
– Science
– Entertainment
– Pop music
– Rock music
– Easy listening
– Light classics
– Other music
– Weather
– Economics
– Children
– Current affairs
– Religion
– Phone in
– Travel & Touring
– Leisure & hobby
– Jazz music
– Country music
– National music
– Oldies music
– Folk music
– Documentary.The previously tuned station will be
selected if there are no available sta-
tions with the selected programme ty-
pe. Select a programme type or ESC
(9- 36) to quit the PTY programme
list.
EON (Enhanced Other
Networks) function
This function connects the stations
belonging to a network. The function
allows to receive traffic announcement
or PTY programmes broadcast by a
station belonging to the same network
as the tuned station. This service is au-
tomatically activated when TA or PTY
is selected.LIST function
This function displays a list of the re-
ceiveable local stations with the stron-
gest signal. Press LIST(15) to swit-
ch the function on. Turn and press the
knob (16 - 40) to select and confirm
the required station.
CD MODE
To guarantee best sound playback,
we recommend using original CDs. If
CD-R/RW are used, we recommend
using good quality media that are bur-
ned at the slowest speed possible.

21
– “Program tracks”: this function is
used to play the tracks on the CD. Se-
lect and confirm the function. A keypad
will appear on the display for entering
the number of tracks to be program-
med: “reset” cancels all selected tracks,
“delete” cancels the last selected track,
“OK” confirms the selection.
LIST function
This function is used to display the li-
st of tracks on the CD. Press LIST
(15) while playing a CD to activate the
function. Turn and press the knob (16
- 40) to select and start playback.CD CHANGER MODE
(where provided)
(not compatible with MP3 CDs)
To guarantee best sound playback,
we recommend using original CDs. If
CD-R/RW are used, we recommend
using good quality media that are bur-
ned at the slowest speed possible.
IMPORTANT Do not use 8-cm
audio CDs even with a specific adap-
ter. This type of disk may damage the
system.
Select radio mode and repeatedly
press SOURCE(3) or SRC(30) to
select CD changer mode.
How to select a CD
Press buttons from 1 to 6 on the
keypad (20) to select the required
CD.How to select a track
Proceed as follows to select a track
on a CD in the CD changer:
– briefly press ˜(14) to select
the next track;
– briefly press ÷(19) to play the
current track from the beginning and
press it again to go to the previous
track.
Fast track search
(forward/backward)
Hold ˜(14) or ÷(19) press
to play the CD tracks at fast speed
either forwards or backwards. Relea-
se the button to return to normal
playback speed.
CD changer mode menu
Repeatedly press MODE(25- 35)
to display audio mode.
Press (16 - 40) until the following
menu appears on the display:

34
BLUETOOTH SYSTEM
(where provided)
Bluetooth technology allows wireless
communication without any electrical
connections between your mobile
phone and the hands-free set on the
vehicle.
The Bluetooth services offered
depend on your phone provider,
your SIM card and compatibility
between the devices used; check
the available services in your mo-
bile phone user handbook and
with your service provider.To activate the Bluetooth function,
proceed as follows:
– press MENU(18 - 41);
– Select the “TELEMATICS” icon by
turning and pressing knob (16 – 40).
– select “BLUETOOTH FUNC-
TIONS” by turning and pressing knob
(16 – 40).
the following menu will appear:
– “Activation mode”: allows selec-
tion of the following functions: “deac-
tivated” (the system is deactivated and
allows the use only of the internal
phone), “active and visible” (Blue-
tooth system active and visible to all
phones), “active and not visible” (Blue-
tooth system active but not visible to
the other phones); activate the re-
quired function by turning/pressing
knob (16 – 40).
– “List connected phones”: shows a
list of previously connected phones
(up to 10); turn/press knob (16 - 40)
to select the required phone, then se-
lect and confirm “CONNECT”– “Change name of radiophone”: al-
lows you to alter the name of the ve-
hicle system displayed.
– “Authentication code”: allows you
to change/record the selected au-
thentication code (code preset by the
manufacturer: 0000).
– “Radiophone synchronisation mode”:
allows you to synchronise the contact
list and the list of calls between the
phone and vehicle system; the syn-
chronisation procedure could take a
few minutes.
For safety reasons, the
Bluetooth connection pro-
cedure between the mobile phone
and the hands-free system must be
carried out only with the vehicle
parked and the ignition key turned
to M.
WARNING
