TIPS, CONTROLS
AND GENERAL
INFORMATION
...........................4
TIPS ........................................................ 4
CONTROLS ........................................ 8
GENERAL INFORMATION ........... 13
Important instructions
and road safety ................................... 13
Switching the system
on and off.............................................. 14
Antitheft protection .......................... 14
Configuration ....................................... 14
AUDIO............................................... 15
Volume adjustments........................... 15
Audio adjustments ............................ 15
Radio mode ......................................... 16
CD mode ............................................ 19
CD changer mode .............................. 21
CD charger .......................................... 22
MP3 mode ........................................... 23AUDIO FUNCTIONS ................ 24
Jukebox function ................................. 24
MOBILE TELEPHONE............. 26
Introduction ......................................... 26
Alphanumeric codes ......................... 28
How to insert the SIM card ............. 29
How to enter the PIN code............. 29
How to make a call ........................... 30
How to call a service number.......... 30
How to answer a call ........................ 31
How to reject a call .......................... 31
Directory ............................................. 31
Text messages (SMS) ......................... 33
Bluetooth system ................................ 34
bCONNECT SERVICES.......... 35
“SOS” function .................................... 35
“Emergency” function ........................ 35
“Breakdown” function ...................... 36
– Emergency and breakdown
calls ..................................................... 36
Infomobility services .......................... 37– “Connect” function ....................... 37
– “Breakdown” function ................... 38
– “Operator services” function....... 38
– “Messages received” function ..... 38
– Traffic information ......................... 38
– Information on centres of
interest .............................................. 39
– Generic information ...................... 39
VOICE CONTROLS.................. 40
NAVIGATOR................................. 43
Main menu ............................................ 44
Select destination .............................. 45
Guidance options................................ 46
TMC traffic info................................... 47
Map ....................................................... 49
VIDEO FUNCTION..................... 51
CONNECT Nav+

4
TIPS
ROAD SAFETY
We recommend that you learn to
use the various car radio and naviga-
tor functions (for example, storing sta-
tions) before starting to drive.RECEPTION CONDITIONS
Reception conditions change con-
stantly while driving. Reception may be
disturbed near mountains, buildings or
bridges especially when you are far
away from the broadcaster’s tran-
smitter.
IMPORTANTWhen receiving
traffic information, there may be an in-
crease in volume with respect to nor-
mal.MAINTENANCE AND CARE
The constructive structure of the ra-
dio and navigation system guarantees
a long life without any need for parti-
cular maintenance. In the case of da-
mage, contact a Fiat Dealership.
The following precautions will ensu-
re fully efficient operation of the radio
and navigation system:
– the monitor may be scratched and
damaged by liquid detergents and UV
radiation;
– the device could be damaged
beyond repair if fluids penetrate insi-
de.
Use a clean, dry, antistatic, soft cloth
to clean the front panel and the display
only. Cleaning and polishing products
could damage the surface.
TIPS, CONTROLS AND GENERAL INFORMATION
Excessively high volume
while you are driving may
endanger your life and that of
others. Always adjust the volume so
you are able to hear the surroun-
ding noises (for example, horns,
ambulances, police cars, etc.).
WARNING

5
NOTES
– Contact a Fiat Dealership only
for repairs to the radio and navigation
system, if required.
– The display may take some time to
reach optimal brightness in the event
of particularly low temperatures.
– The overheat protection device of
the system may trip if the car is parked
for a long time and the outside tem-
perature is high. The system will start
working again when the temperature
in the passenger compartment returns
to acceptable levels.CD
When using the audio CD player, re-
member that dirt or scratches on a CD
may make it skip and cause poor play-
back quality. The same things may hap-
pen if the CDs are bent.
IMPORTANT Do not use 8-cm
audio CDs or MP3 CDs even with a
specific adapter. This type of disk may
damage the system.
To achieve optimal playing condi-
tions, we recommend the following:
– Only use audio CDs with the fol-
lowing trademark:– Do not use chemical cleaning pro-
ducts (e.g. antistatic products, sprays,
or thinners) to prevent damage to the
CD surface.
– After playing a CD, put it back it
case to prevent marks and scratches
which could make it skip during play-
back.
– Keep CDs away from direct sunli-
ght, high temperatures and prolonged
humidity to prevent bending them.
– Do not stick labels or write on the
recorded side of a CD.
To extract a CD from its case, press
onto the middle of the case and lift the
CD holding it from its edges.
Proper way to hold
the compact discRemoving the disc
– Carefully clean each CD with soft
cloth. Remove fingerprints and dust.
Hold the CD from the edges and clean
it from the middle to the edges.
Be careful not to scratch
the display with sharp or ri-
gid objects. Avoid touching it
with your fingers. Do not press on
the display when cleaning it.

9
Some controls have multiple functions which depend on the active system mode. The activated function in some cases
depends on how long the button is pressed as shown in the following table:
Key Short press (less than 1 second) Long press (over 1 second)
1SOS
2˚
3SOURCE
4
5£
6
7•
8
9ESC
10N
11
–
–
–
–
–
–
–
–
–
Show active mode general information.
– Display emergency call menu
(medical emergency, breakdown, etc.).
Eject audio CD audio.
Select mode: radio, CD, CD changer.
System on/off.
Turn: adjust volume and audio settings
(treble, bass, balance, fader, loudness).
Telephone mode.
Dial set number.
Answer incoming call.
CONNECT Nav+ comprised system
multifunctional display
bCONNECT mode.
CD compartment/housing.
Quit selection menu or go from a submenu to a
higher level menu.
Radio mode: tune radio in 50 kHz (in FM) or 1 kHz
(in AM) steps to the next radio station from the
currently tuned station.
CD changer mode: select next CD.
Sound settings.

10
Key Short press (less than 1 second) Long press (over 1 second)
12
13
14
˜
15LIST
16
17O
18MENU
19
÷
20
21Ô
–
–
CD mode: fast forward by one track.
–
–
–
Show help menu.
CD mode: fast backward by one track.
Store current station (1 – 6).
– IR port.
SIM card housing adapter.
Radio mode: tune radio to the next station;
press twice: switch from LO mode to DX mode.
CD mode: go to next track.
CD changer mode: go to next track.
Radio mode: show receivable radio stations in
alphabetical order.
CD mode: show track list contained on CD.
MP3 mode: show folder list contained on CD.
Turn: select function.
Press: confirm selected functions.
Radio mode: tune radio in 50 kHz (in FM) or 1 kHz
(in AM) steps to the previous radio station from the
currently tuned station.
CD changer mode: select previous CD.
Access to function menus.
Radio mode: tune radio to the previous station;
press twice: switch from LO mode to DX mode.
CD mode: go to previous track.
CD changer mode: go to previous track.
Radio mode: recall preset station (1 – 6)
Telephone mode: dial telephone number (1 – 12).
CD changer mode: select CD (1 – 6).
Reject incoming call.
Hang up current call.

11
Key Short press (less than 1 second)Long press (over 1 second)
22BND AST
23TA/PTY
24DARK
25MODE
26
27MEMO
28˜
29
30SRC
31
32÷
33 MEMO
Automatic station store (in FMAST band).
PTY (Type Program): activate search filter
according to broadcasting station category.
–
–
Navigation mode: repeat last voice message
(supplied by system).
–
–
–
–
–
–
– Select frequency band FM1 – FM2 – FMAST
(autostore) – AM.
TA (Traffic Announcements): automatic
reception of traffic announcements.
Press once: partial dimming of display.
Press twice: dimming of display.
Press three times: normal display brightness.
Change current display.
Voice controls
Anticlockwise:
Radio mode: previous preset station.
CD changer mode: select previous CD.
Radio mode: manual tuning next station.
CD mode: select next track
Audio section: volume up.
Pressed with button 31: mute function
Select mode: radio, CD, CD changer.
Audio section: volume down.
Pressed with button 29: mute function
Radio mode: manual tuning previous station.
CD mode: select previous track
Clockwise.
Radio mode: next preset station.
CD changer mode: select next CD

15
With the key at M, the audio section
may be switched on and off by pres-
sing the knob (4).
VOLUME ADJUSTMENT
Turn the knob (4) clockwise to turn
the radio volume up and anticlockwi-
se to turn it down.
AUDIO SETTINGS
Sound settings (BASS/ TREBLE), ba-
lance (BAL), fader (FAD), loudness
(LOUD), automatic volume and type
of sound (musical ambiance) may be
adjusted. The balance and fader func-
tions emphasise the sound from the
left/right and the front/rear speakers.
The loudness function is used to
emphasise the bass and treble tone
when the volume is low. To access the
audio settings function, repeatedly
press
(11) to adjust bass (BASS),
treble (TREB), loudness (LOUD), fa-
der (FAD), balance (BAL), automatic
volume and sound type (musical am-
bience).The system will deactivate the audio
adjustment system after a few seconds
if no action is performed or if the ESC
(9 - 36) is pressed after making the
setting.
IMPORTANTThe bass and treble
settings are source specific. They may
be adjusted separately in RADIO, CD
or CD changer mode.
Bass settings (BASS)
When the message “BASS” appears
on the display, turn the knob (4) to
adjust the setting as follows:
– “BASS -9” for setting bass to mi-
nimum level;
– “BASS 0” for setting bass to me-
dium level;
– “BASS +9” for setting bass to maxi-
mum level.Treble setting (TREB)
When the message “TREB” appears
on the display, turn the knob (4) to
adjust the setting as follows:
– “TREB -9” for setting treble to mi-
nimum level;
– “TREB 0” for setting treble to me-
dium level;
– “TREB +9” for setting treble to
maximum level.
Loudness function (LOUD)
This function allows to automatical-
ly emphasise bass and treble settings
when the volume is low. Simply turn
the knob (4) to switch the function on
and off.
AUDIO

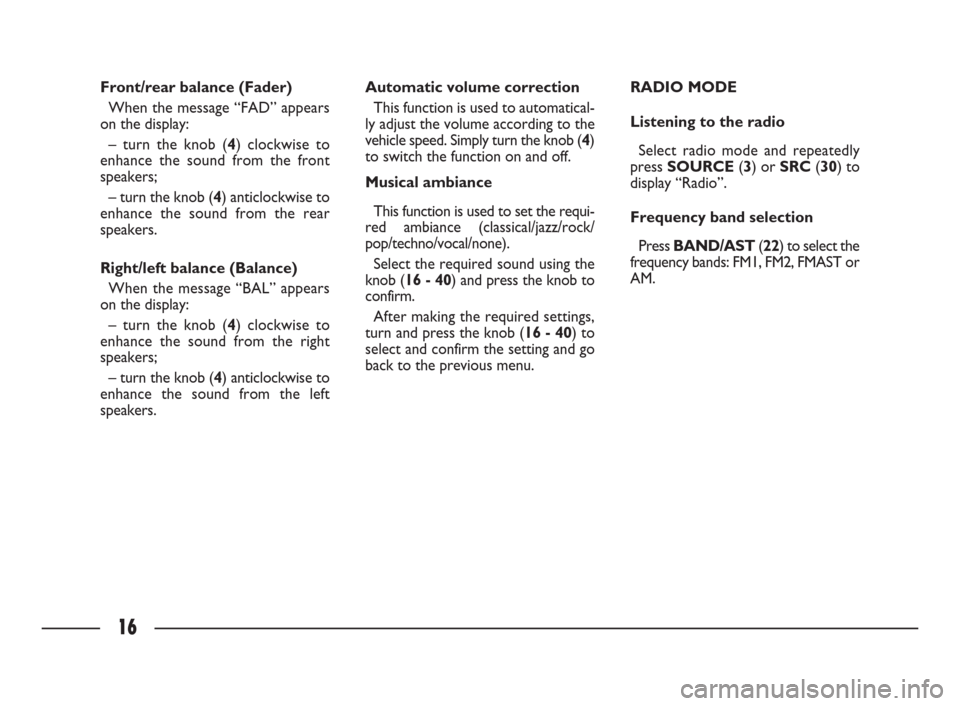

16
Front/rear balance (Fader)
When the message “FAD” appears
on the display:
– turn the knob (4) clockwise to
enhance the sound from the front
speakers;
– turn the knob (4) anticlockwise to
enhance the sound from the rear
speakers.
Right/left balance (Balance)
When the message “BAL” appears
on the display:
– turn the knob (4) clockwise to
enhance the sound from the right
speakers;
– turn the knob (4) anticlockwise to
enhance the sound from the left
speakers.Automatic volume correction
This function is used to automatical-
ly adjust the volume according to the
vehicle speed. Simply turn the knob (4)
to switch the function on and off.
Musical ambiance
This function is used to set the requi-
red ambiance (classical/jazz/rock/
pop/techno/vocal/none).
Select the required sound using the
knob (16 - 40) and press the knob to
confirm.
After making the required settings,
turn and press the knob (16 - 40) to
select and confirm the setting and go
back to the previous menu.RADIO MODE
Listening to the radio
Select radio mode and repeatedly
press SOURCE (3) or SRC(30) to
display “Radio”.
Frequency band selection
Press BAND/AST(22) to select the
frequency bands: FM1, FM2, FMAST or
AM.

17
Automatic station search
Briefly press ÷(19) or ˜(14)
to select either the previous or the
next station.
Hold the button corresponding the
chosen direction pressed to change
frequency continuously.
Tuning will stop at the first recei-
veable station when the button is re-
leased.
Only the stations transmitting traf-
fic information will be selected if the
TA function is on.
Station search is firstly run with “LO”
sensitivity (most powerful stations)
and then with “DX” sensitivity
(weaker stations).
To perform a search with “DX” sen-
sitivity directly, press ÷(19) or
˜(14) twice.Manual station search
Briefly press
▲ (10) or ▼(17). Hold
the button corresponding the chosen
direction pressed to change frequency
continuously. Tuning will end as soon
as the button is released.
Manual stations store
Proceed as follows to manually sto-
re stations:
– tune to the required station;
– press one of the buttons from 1to
6(20) and hold the button pressed
until you hear the acoustic tone.
Automatic FM station store
(Autostore)
Hold BAND/AST(22) pressed to
activate the “Autostore” function.
When this function is on, the radio will
automatically store the six FM band
stations with the strongest signal.The message “FMAST” will appear
on the display during automatic tuning.
The stations will be automatically sa-
ved under buttons from 1 to 6 of key-
pad (20). After saving, the radio will
be automatically tuned to the first sta-
tion in the FMAST band, correspon-
ding to the frequency stored under se-
lection button 1 of keypad (20).
Each station is stored only one. Re-
gional programmes may be stored twi-
ce.
The system will work as follows
when the Autostore function is on:
– all other functions are off when Au-
tostore starts;
– Autostore is stopped when the
source is changed (radio, CD, CD
changer) during the function;
– volume adjustments will not ap-
pear on the display.

18
IMPORTANTIf Autostore cannot
find six strong stations only the sta-
tions found will be stored.
IMPORTANTWhen the Auto-
store function is activated, the stations
that were previously stored in the
FMAST band are deleted.
TA (Traffic Announcement)
function
Press TA/PTY(23) to switch the
function on and off.
Traffic announcements may be recei-
ved with the TA function on.
When a traffic announcement is
broadcast, the radio will automatical-
ly tune to the station broadcasting the
announcement. The radio will switch
back to the audio source being played
when the traffic announcement is
over.The message “TA” appears on the di-
splay when the TA function is on. The
wording “TA” will appear shaded in
grey if the function is not available on
the tuned display. All traffic announ-
cements will have higher priority over
any only sound system use (RADIO,
CD or CD Changer).
IMPORTANTThe volume of traf-
fic announcements is independent
from the normal playing volume of the
sound system. The volume may be
adjusted using the knob during play-
back. This setting will be stored and
used for the next traffic announce-
ment. Press TA/PTY(23) while re-
ceiving a traffic announcement to stop
the announcement and switch the TA
function off. PTY (Type Program) function
The PTY function (where present)
may be used to give higher priority to
stations broadcasting specific pro-
gramme types. The PTY function in-
cludes emergency messages and va-
rious topics (music, news, etc.).
IMPORTANTThe PTY function is
available on the FM band only.
Proceed as follows to access the PTY
program list:
– Hold the TA/PTY(23) button
pressed. The PTY programme list will
appear on the display.
– Turn the knob (16- 40) to scroll
the list.
– Select the programme type and
press the knob (16- 40) to confirm.
The message “PTY” will appear on
the “Radio” page when the PTY func-
tion is on.
