IN AN EMERGENCY
171

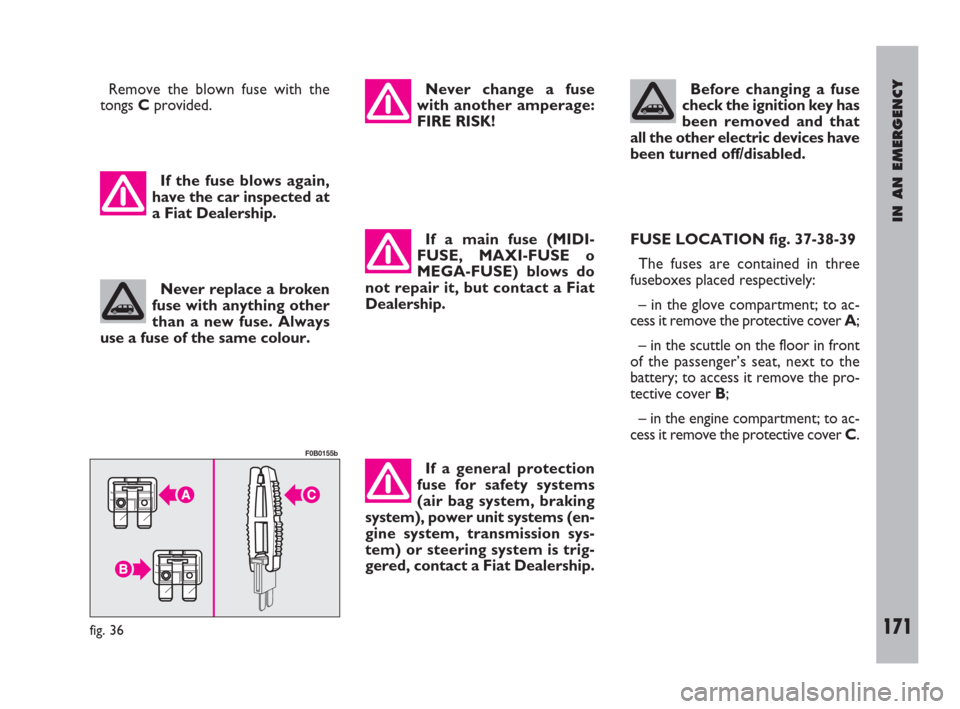

Remove the blown fuse with the
tongs Cprovided.
If a main fuse (MIDI-
FUSE, MAXI-FUSE o
MEGA-FUSE) blows do
not repair it, but contact a Fiat
Dealership.FUSE LOCATION fig. 37-38-39
The fuses are contained in three
fuseboxes placed respectively:
– in the glove compartment; to ac-
cess it remove the protective cover A;
– in the scuttle on the floor in front
of the passenger’s seat, next to the
battery; to access it remove the pro-
tective cover B;
– in the engine compartment; to ac-
cess it remove the protective cover C. Never replace a broken
fuse with anything other
than a new fuse. Always
use a fuse of the same colour.Before changing a fuse
check the ignition key has
been removed and that
all the other electric devices have
been turned off/disabled.Never change a fuse
with another amperage:
FIRE RISK!
If a general protection
fuse for safety systems
(air bag system, braking
system), power unit systems (en-
gine system, transmission sys-
tem) or steering system is trig-
gered, contact a Fiat Dealership.
fig. 36
F0B0155b
If the fuse blows again,
have the car inspected at
a Fiat Dealership.
153-183 ULYSSE ING:153-183 ULYSSE ING 13-11-2009 10:07 Pagina 171

IN AN EMERGENCY
174

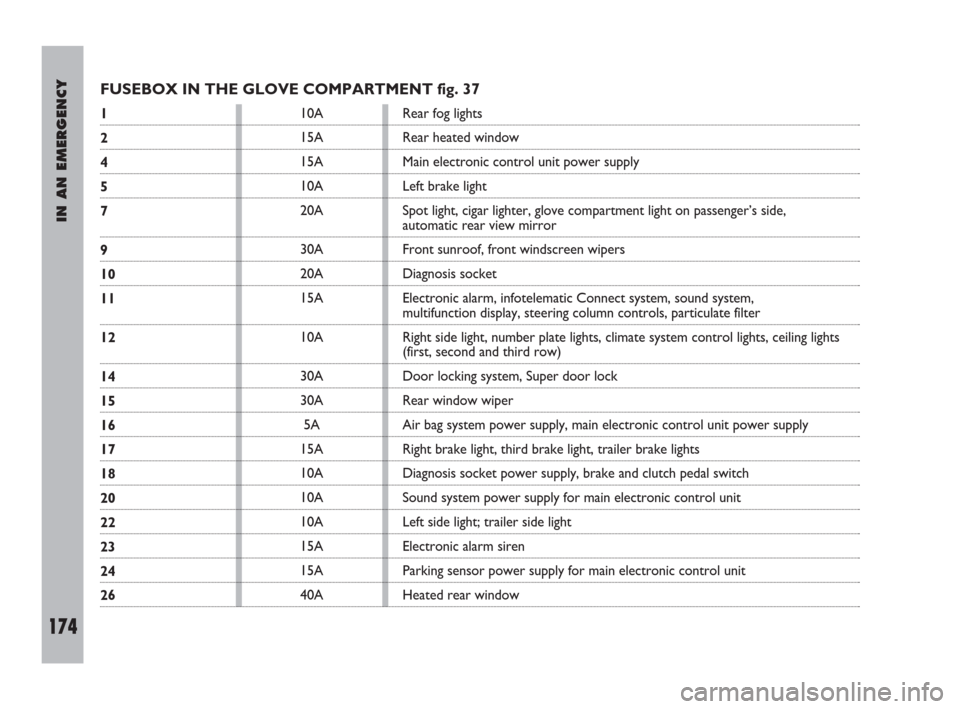

FUSEBOX IN THE GLOVE COMPARTMENT fig. 37
1
2
4
5
7
9
10
11
12
14
15
16
17
18
20
22
23
24
2610A
15A
15A
10A
20A
30A
20A
15A
10A
30A
30A
5A
15A
10A
10A
10A
15A
15A
40ARear fog lights
Rear heated window
Main electronic control unit power supply
Left brake light
Spot light, cigar lighter, glove compartment light on passenger’s side,
automatic rear view mirror
Front sunroof, front windscreen wipers
Diagnosis socket
Electronic alarm, infotelematic Connect system, sound system,
multifunction display, steering column controls, particulate filter
Right side light, number plate lights, climate system control lights, ceiling lights
(first, second and third row)
Door locking system, Super door lock
Rear window wiper
Air bag system power supply, main electronic control unit power supply
Right brake light, third brake light, trailer brake lights
Diagnosis socket power supply, brake and clutch pedal switch
Sound system power supply for main electronic control unit
Left side light; trailer side light
Electronic alarm siren
Parking sensor power supply for main electronic control unit
Heated rear window
153-183 ULYSSE ING:153-183 ULYSSE ING 13-11-2009 10:07 Pagina 174

IN AN EMERGENCY
175

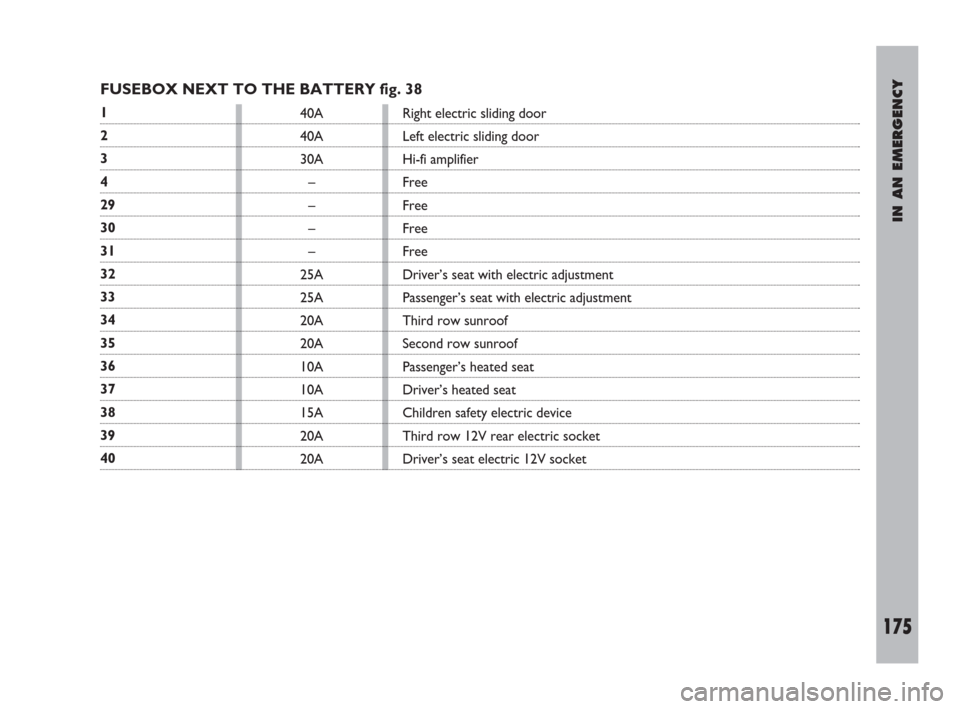

FUSEBOX NEXT TO THE BATTERY fig. 38
1
2
3
4
29
30
31
32
33
34
35
36
37
38
39
4040A
40A
30A
–
–
–
–
25A
25A
20A
20A
10A
10A
15A
20A
20ARight electric sliding door
Left electric sliding door
Hi-fi amplifier
Free
Free
Free
Free
Driver’s seat with electric adjustment
Passenger’s seat with electric adjustment
Third row sunroof
Second row sunroof
Passenger’s heated seat
Driver’s heated seat
Children safety electric device
Third row 12V rear electric socket
Driver’s seat electric 12V socket
153-183 ULYSSE ING:153-183 ULYSSE ING 13-11-2009 10:07 Pagina 175

IN AN EMERGENCY
176

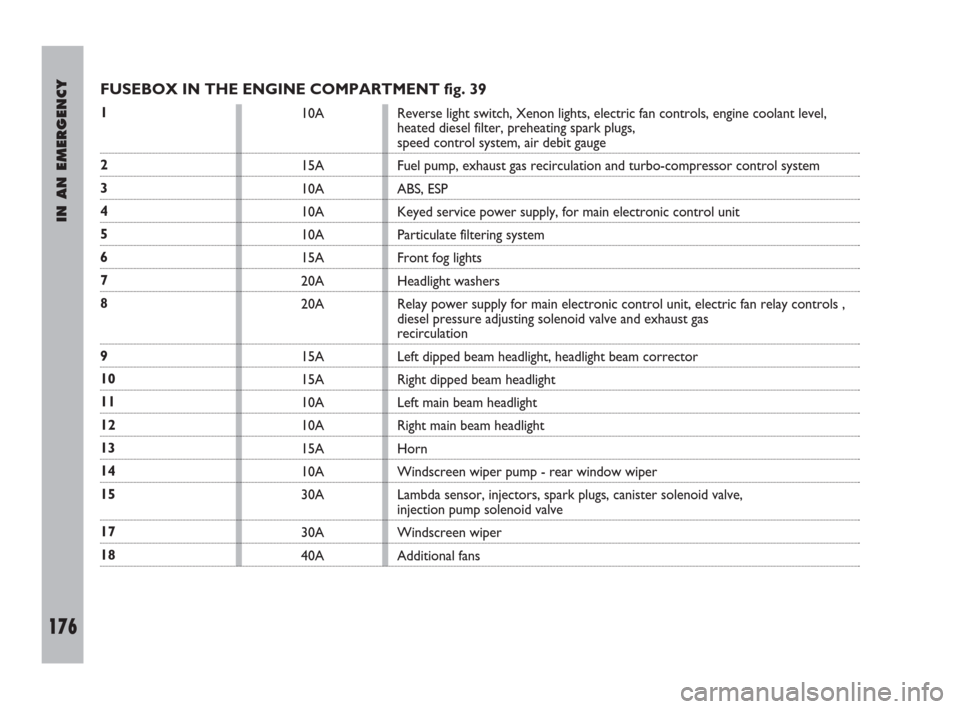

FUSEBOX IN THE ENGINE COMPARTMENT fig. 39
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
1810A
15A
10A
10A
10A
15A
20A
20A
15A
15A
10A
10A
15A
10A
30A
30A
40AReverse light switch, Xenon lights, electric fan controls, engine coolant level,
heated diesel filter, preheating spark plugs,
speed control system, air debit gauge
Fuel pump, exhaust gas recirculation and turbo-compressor control system
ABS, ESP
Keyed service power supply, for main electronic control unit
Particulate filtering system
Front fog lights
Headlight washers
Relay power supply for main electronic control unit, electric fan relay controls ,
diesel pressure adjusting solenoid valve and exhaust gas
recirculation
Left dipped beam headlight, headlight beam corrector
Right dipped beam headlight
Left main beam headlight
Right main beam headlight
Horn
Windscreen wiper pump - rear window wiper
Lambda sensor, injectors, spark plugs, canister solenoid valve,
injection pump solenoid valve
Windscreen wiper
Additional fans
153-183 ULYSSE ING:153-183 ULYSSE ING 13-11-2009 10:07 Pagina 176

IN AN EMERGENCY
177

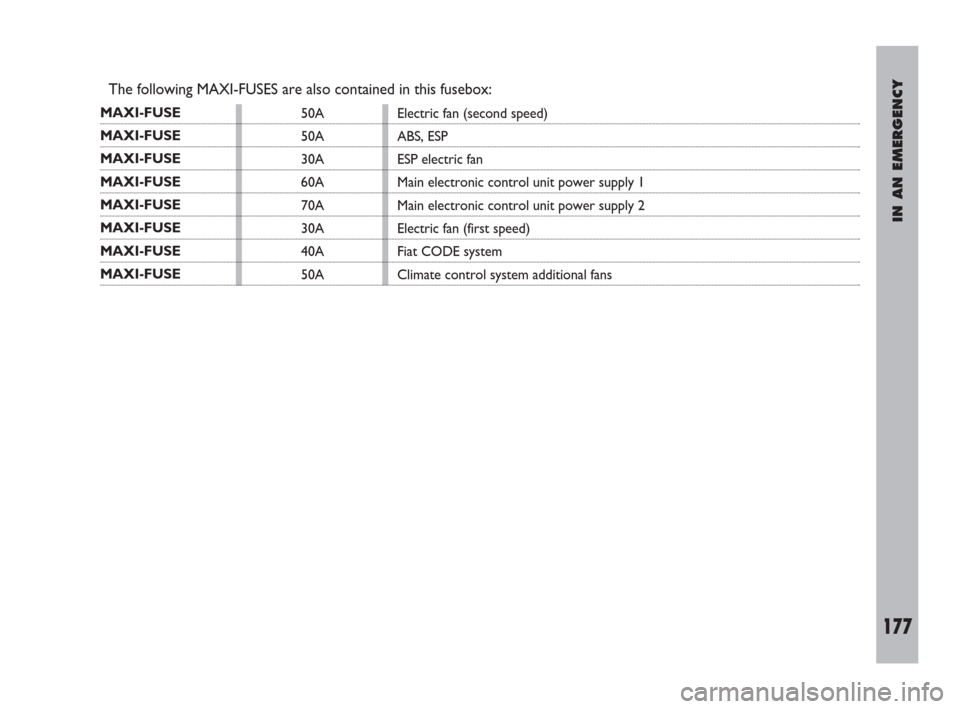

The following MAXI-FUSES are also contained in this fusebox:
MAXI-FUSE
MAXI-FUSE
MAXI-FUSE
MAXI-FUSE
MAXI-FUSE
MAXI-FUSE
MAXI-FUSE
MAXI-FUSE 50A
50A
30A
60A
70A
30A
40A
50AElectric fan (second speed)
ABS, ESP
ESP electric fan
Main electronic control unit power supply 1
Main electronic control unit power supply 2
Electric fan (first speed)
Fiat CODE system
Climate control system additional fans
153-183 ULYSSE ING:153-183 ULYSSE ING 13-11-2009 10:07 Pagina 177

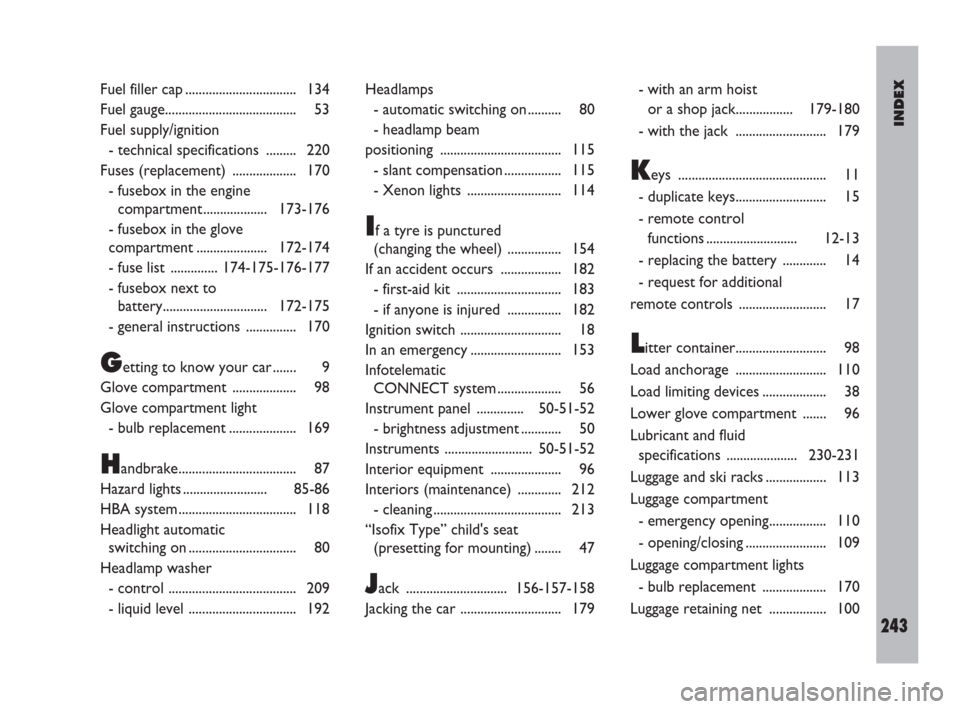

INDEX
