Page 62 of 254
GETTING TO KNOW YOUR CAR
61
LEFT DIRECTION
INDICATOR (Green)
The warning light starts
flashing when the direction indicator
control stalk is lifted or together with
the right direction indicator, when the
hazard light button is pressed.
FRONT FOG LIGHTS
(Green)
When the front fog lights
are turned on.
FULL BEAM
HEADLAMPS (Blue)
When the full-beam head-
lamps are turned on or when the “Fol-
low me home” device is on (see the
relative chapter).
R
5
1
FLAT TYRES
The warning light on the di-
al turns on (together with
message on the display and the
buzzer), when there is a pressure drop
in one or more tyres.
In this way the T.P.M.S. system warns
the driver that one or more tyre/s
is/are flat (i.e. punctured).
IMPORTANTStop travelling with
one or more flat tyre/s since road
holding could be jeopardised. Stop the
car without braking or steering
sharply. Change immediately punc-
tured wheel with space-saver spare
wheel (for versions/markets, where
provided - see section “In an emer-
gency”) and contact Fiat Dealership
as soon as possible.TYRE PRESSURE
MONITORING
SYSTEM FAILURE
The warning light on the dial turns
on (together with the message on the
display) when a failure is detected in
the T.P.M.S. system (for ver-
sions/markets, where provided).
Contact Fiat Dealershipas soon as
possible.
Should one or more wheels without
sensor be fitted, the instrument pan-
el warning light will come on (togeth-
er with the message on the display)
and stay on until fitting again the four
wheels with sensors.
ìè
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 61
Page 123 of 254
GETTING TO KNOW YOUR CAR
122
EOBD SYSTEM
The EOBD (European On Board
Diagnosis) system fitted in this car
complies with Directive 98/69/CE
(EURO 3).
This system continuously monitors
the engine emission system compo-
nents. Furthermore, the system warns
the driver of deterioration concerning
the emission system components by
means of
Uwarning light on the in-
strument panel.
The objective is to:
– monitor system efficiency;
– warn when failures can increase
emissions over the threshold estab-
lished by the European regulations;
– warn of the need to replace dete-
riorated components.
Furthermore, the system is equipped
with a connector for interfacing with
specific tools used to read the error
codes stored in the control unit mem-
ory along with a set of diagnostic and
engine specific parameters. This check can also be performed by
traffic controller agents.
If, turning the ignition
key to M, the warning
light
Udoes not turn on
or if, while travelling it turns on
glowing steadily or flashing, con-
tact a Fiat Dealership as soon as
possible. Dealership as soon as
possible. Warning light
Uoper-
ation can be checked by traffic
controller agents by means of
special equipment. Always com-
ply with the traffic regulations in
force in the country where you
are travelling.
IMPORTANTAfter eliminating the
problem, your Fiat Dealershipwill
run a bench test to fully check the sys-
tem. In some cases, a long road test
may be required.
TYRE PRESSURE
MONITORING
SYSTEM - T.P.M.S.
(for versions/markets, where provided)
The car can be equipped with the
T.P.M.S. (Tyre Pressure Monitoring
System). This system consists of a ra-
dio-frequency sensor, installed on each
wheel (on the rim inside the tyre) that
sends pressure information to the
control unit.
IMPORTANTSystem control unit
monitors the pressure of the four car
tyres but not the space-saver spare
wheel. It is therefore recommended
to always check also the space-saver
spare wheel pressure.
IMPORTANTPay the attention
when checking or inflating tyres. Ex-
cessive pressure impairs road holding,
increases suspension and wheel stress
and causes abnormal tyre wear.
078-135 ULYSSE ING 10-03-2009 11:39 Pagina 122
Page 124 of 254
The T.P.M.S. system
does not exempt the dri-
ver to check tyre and
space-saver spare wheel pressure
at regular intervals.
GETTING TO KNOW YOUR CAR
123
IMPORTANTTyre pressure
should be checked with tyres rested
and cold. Should it become necessary
for whatever reason to check pres-
sure with hot tyres, do not reduce
pressure although it is higher than the
prescribed value but repeat the check
when tyres are cold.IMPORTANT NOTES ABOUT
THE T.P.M.S. SYSTEM
Failure indications will not be stored
and therefore will not be displayed
when turning the engine off and on
again. If failure persists, the control
unit will send warning indications to
the instrument panel only after a few
seconds when the car is moving.
IMPORTANTT.P.M.S. system can-
not indicate sudden tyre pressure
drops (e.g.: tyre burst). In this event,
brake the car cautiously and avoid sud-
den steering.
IMPORTANTReplacing standard
tyres with winter tyres and vice ver-
sa involves T.P.M.S. system set-up that
shall be performed at Fiat Dealer-
ships only.
IMPORTANT The T.P.M.S. system
requires special equipment. Consult
Fiat Dealership to know what type
of accessories are compatible with the
system (wheels, wheel caps, etc.). Us-
ing other accessories could cause sys-
tem malfunctioning.IMPORTANTTyre pressure could
change according to outside temper-
ature. For this reason the T.P.M.S. sys-
tem could temporarily indicate low
tyre pressure. In this event check pres-
sure with cold tyres and restore prop-
er inflation values if required.
IMPORTANTIf the car is fitted
with T.P.M.S. system, tyre and/or rim
removal and refitting operations in-
volve special precautions; to prevent
damages or wrong sensor refitting,
contact Fiat Dealership to have tyre
and/or rim changed.
IMPORTANTIf the car is fitted
with T.P.M.S. system, when changing a
tyre, change also the rubber seal of the
valve. Contact a Fiat Dealership.
IMPORTANT Strong radio-fre-
quency disturbances could inhibit
proper TPMS system operation. This
condition is indicated by a dedicated
massage on the display. This indication
will go off automatically as soon as the
radio-frequency disturbance ceases.
078-135 ULYSSE ING 10-03-2009 11:39 Pagina 123
Page 156 of 254
IN AN EMERGENCY
155
An incorrectly posi-
tioned jack may cause the
vehicle to fall. Do not use
the jack to lift loads exceeding
that indicated on the label at-
tached to the jack itself.Do not lubricate the bolt
threads before fitting
them back: they could
come loose.
Never start the engine when the
vehicle is jacked up.
If you are towing a trailer, re-
move the trailer before jacking
up the vehicle.Never tamper with the
inflation valve. Never
place tools between the
rim and the tyre.
Check the tyre and space-saver
spare wheel pressure regularly.
The tyre inflation pressure is
shown in the “Technical specifi-
cations” chapter.
The jack should only be
used to change a wheel
on the vehicle for which it
was designed. It should not be put
to other uses or employed to
raise other models. Under no cir-
cumstances should it be used
when carrying out repairs under
the vehicle.
Check the inflation pres-
sure of the tyres and the
spare wheel regularly. If
you change the type of wheels (al-
loy rims instead of steel rims) you
will have to change the entire set
of fastening bolts with another
set of suitably sized bolts.
You should keep the bolts in
case you decide to use the origi-
nal type of wheel later on.Signal the presence of
the stopped car according
to the laws in force: haz-
ard lights, reflecting triangle, etc.
Any passengers on board should
leave the car, especially if it is
heavily laden. Passengers should
stay away from oncoming traffic
while the wheel is being changed.
If the wheel is being changed on
a steep or badly surfaced road,
place wedges or other suitable
material under the wheels to
stop the car.
GENERAL INSTRUCTIONS
Observe the instructions on this and
the following pages to use the jack and
space-saver spare wheel correctly.
153-183 ULYSSE ING:153-183 ULYSSE ING 13-11-2009 10:07 Pagina 155
Page 157 of 254
IN AN EMERGENCY
156
CHANGING A WHEEL
Please note:
– the jack weighs 3.4 kg;
– the jack requires no adjustments;
– the jack cannot be repaired. If it
breaks it must be replaced with a new
jack;
– no tool with the exception of the
handle can be fitted on the jack.
Proceed as follows:
1) Stop the car in a position that is
not dangerous for oncoming traffic
where you can change the wheel safe-
ly. The ground should be flat and ad-
equately firm. 2) Turn the engine off and pull up the
handbrake.
3) Engage first gear or reverse or, for
versions with automatic electronic
gear, select P.
4) Lift the boot mat (see the relative
instructions in the “Bonnet” paragraph
of “Getting to know your car” chap-
ter).
5) Remove lever A-fig. 3.6) Remove protective cover Band
use ring Cto release the elastic band
D, then extract jack E.
7) Close the bonnet and place the
tools next to the wheel to be changed.
8) Open the tailgate and use ringA-
fig. 4to lift and turn cap Bprotect-
ing the spare wheel lock bolt C.
fig. 3
F0B0118b
fig. 4
F0B0119b
153-183 ULYSSE ING:153-183 ULYSSE ING 13-11-2009 10:07 Pagina 156
Page 158 of 254
IN AN EMERGENCY
157
9) Use handle A-fig. 5to loosen the
spare wheel bolt B.
10) Release support Cto remove
the spare wheel and close the tailgate.11)Remove the wheel cap A-fig. 6
(for versions with steel rims) or the
clipped wheel hub cap (for versions
with alloy rims) by means of tool B
supplied with the car and housed in
the jack container.
12)Loosen the bolts fastening the
wheel to be changed by approximate-
ly one turn. Use the specific supplied
tool A-fig. 7to remove the antitheft
bolt.13) Turn the jack handle to open it
partially and position the jack near the
wheel to be changed.
14)Make sure that the groove A-
fig. 8on the jack is well fitted on the
ribbing Bon the side member.
fig. 5
F0B0120b
fig. 6
F0B0121b
fig. 7
F0B0122b
153-183 ULYSSE ING:153-183 ULYSSE ING 13-11-2009 10:07 Pagina 157
Page 159 of 254
IN AN EMERGENCY
158
15)Warn other passengers that the
vehicle is about to be raised; all per-
sons should be kept away from the ve-
hicle until it has been lowered.
16)Turn the jack handle and raise
the vehicle until the wheel is a few
inches off the ground. Make sure the
jack handle can be turned easily and
take care not to scrape your hand
against the ground.17)The moving parts of the jack
(screw and joints) may also cause in-
jury if touched. Clean off any grease.
18)Loosen the five bolts complete-
ly and remove the wheel.
19)When fitting the spare wheel,
make sure the hub is clean so that the
bolts will not loosen.
20)Fit the spare wheel making one
of the holes A-fig. 9coincide with pin
B. Now tighten the five wheel bolts
with the handle .
21)Lower the vehicle by turning the
handle and remove the jack.22)Fasten bolts completely, work-
ing in a criss-cross fashion as shown in
fig. 10.
23)Refit the wheel cap (for ver-
sions/markets, where provided) and
make groove A-fig. 11match with the
wheel inflation valve.
fig. 8
F0B0123bfig. 9
F0B0124b
fig. 10
F0B0125b
153-183 ULYSSE ING:153-183 ULYSSE ING 13-11-2009 10:07 Pagina 158
Page 206 of 254
CAR MAINTENANCE
205
– do not check polarity through
sparking.
– disconnect the electronic units if
you are electrically welding the car
body. Remove the units if tempera-
tures exceed 80°C.WHEELS AND TYRES

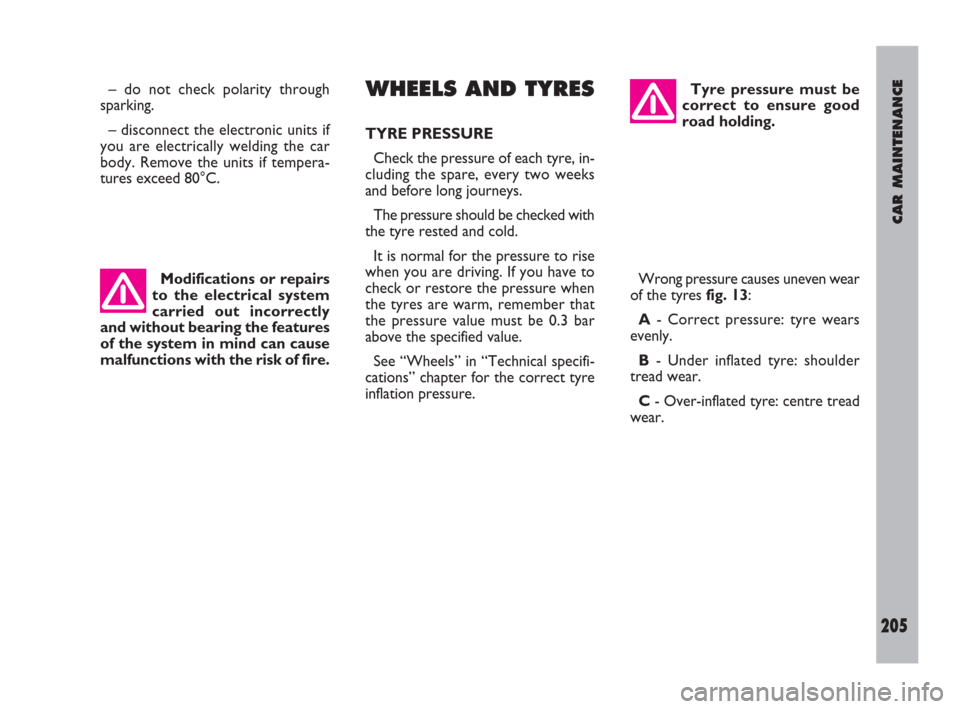

TYRE PRESSURE
Check the pressure of each tyre, in-
cluding the spare, every two weeks
and before long journeys.
The pressure should be checked with
the tyre rested and cold.
It is normal for the pressure to rise
when you are driving. If you have to
check or restore the pressure when
the tyres are warm, remember that
the pressure value must be 0.3 bar
above the specified value.
See “Wheels” in “Technical specifi-
cations” chapter for the correct tyre
inflation pressure.Tyre pressure must be
correct to ensure good
road holding.
Wrong pressure causes uneven wear
of the tyres fig. 13:
A- Correct pressure: tyre wears
evenly.
B- Under inflated tyre: shoulder
tread wear.
C- Over-inflated tyre: centre tread
wear. Modifications or repairs
to the electrical system
carried out incorrectly
and without bearing the features
of the system in mind can cause
malfunctions with the risk of fire.
184-213 ULYSSE ING:184-213 ULYSSE ING 13-11-2009 10:13 Pagina 205
Page 207 of 254
CAR MAINTENANCE
206

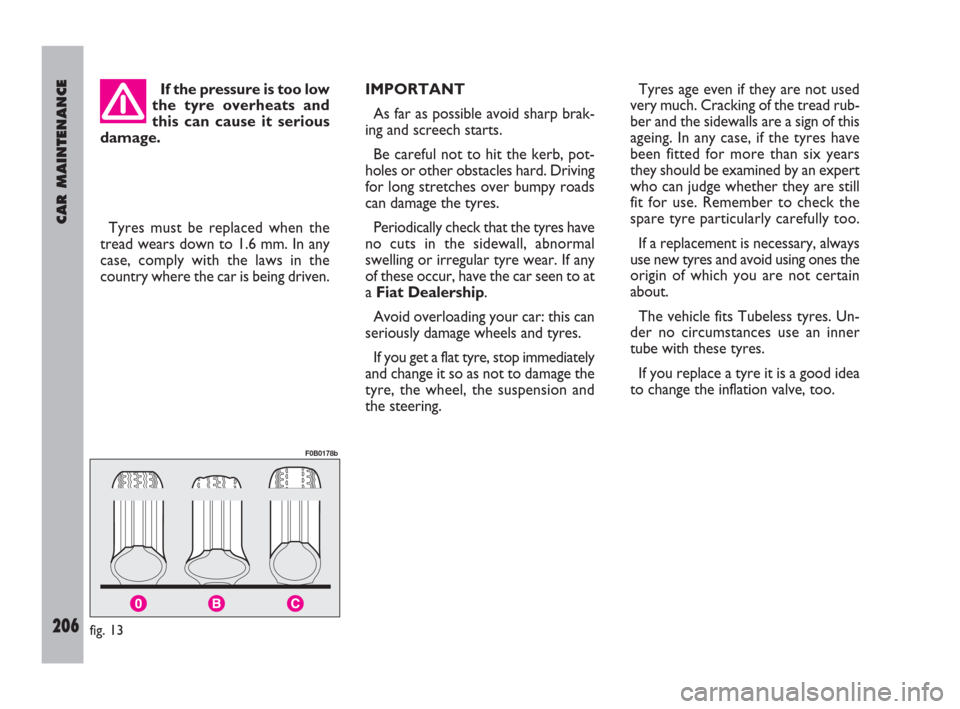

If the pressure is too low
the tyre overheats and
this can cause it serious
damage.
Tyres must be replaced when the
tread wears down to 1.6 mm. In any
case, comply with the laws in the
country where the car is being driven.IMPORTANT
As far as possible avoid sharp brak-
ing and screech starts.
Be careful not to hit the kerb, pot-
holes or other obstacles hard. Driving
for long stretches over bumpy roads
can damage the tyres.
Periodically check that the tyres have
no cuts in the sidewall, abnormal
swelling or irregular tyre wear. If any
of these occur, have the car seen to at
a Fiat Dealership.
Avoid overloading your car: this can
seriously damage wheels and tyres.
If you get a flat tyre, stop immediately
and change it so as not to damage the
tyre, the wheel, the suspension and
the steering.Tyres age even if they are not used
very much. Cracking of the tread rub-
ber and the sidewalls are a sign of this
ageing. In any case, if the tyres have
been fitted for more than six years
they should be examined by an expert
who can judge whether they are still
fit for use. Remember to check the
spare tyre particularly carefully too.
If a replacement is necessary, always
use new tyres and avoid using ones the
origin of which you are not certain
about.
The vehicle fits Tubeless tyres. Un-
der no circumstances use an inner
tube with these tyres.
If you replace a tyre it is a good idea
to change the inflation valve, too.
fig. 13
F0B0178b
184-213 ULYSSE ING:184-213 ULYSSE ING 13-11-2009 10:13 Pagina 206
Page 223 of 254
TECHNICAL SPECIFICATIONS
222
STEERING
Energy-absorbing jointed steering
wheel.
Jointed steering column with angle
and longitudinal adjustment system.
Rack and pinion with hydraulic pow-
er steering.
Minimum steering circle between
pavements: 11.60 m.
WHEELS
RIMS AND TYRES
Steel or alloy rims on request.
Tubeless tyres with radial carcass.
Standard size spare wheel with steel
rim.
The homologated tyres are listed in
the log book.IMPORTANTIn the event of dis-
crepancies between the information
provided in this Owner Handbook and
the Log Book, consider the specifica-
tions shown in the Log Book only.
To ensure safety of the car in move-
ment, it must be fitted with tyres of
specified size and of the same brand
and type on all wheels.
IMPORTANTDo not use inner
tubes with tubeless tyres.
WHEEL GEOMETRY
Front wheel toe-in measured from
rim to rim with vehicle empty:
– toe-in: 2 mm.
214-233 ULYSSE ING:214-233 ULYSSE ING 13-11-2009 10:21 Pagina 222
