To engage the reverse gear (R) from
the neutral position:
– lift the sliding ring A-fig. 111-112
under the knob and move the lever on
the left and then forward.Press the clutch pedal
fully when changing gear.
The floor under the ped-
al must therefore be clear and
any floor mats must lie flat and
not get in the way of the pedals.ELECTRONIC
AUTOMATIC
TRANSMISSION
It has six gears and a reverse which
adapt to the driver’s driving style ac-
cording to the road conditions and the
vehicle load.
IMPORTANTTo use the auto-
matic electronic gear (and the relative
Shift-lock safety device) in the correct
way, read carefully the following in-
structions.
fig. 111
F0B0075b
fig. 112
F0B0302b
078-135 ULYSSE ING 10-03-2009 11:39 Pagina 90
Page 134 of 254
GETTING TO KNOW YOUR CAR
133

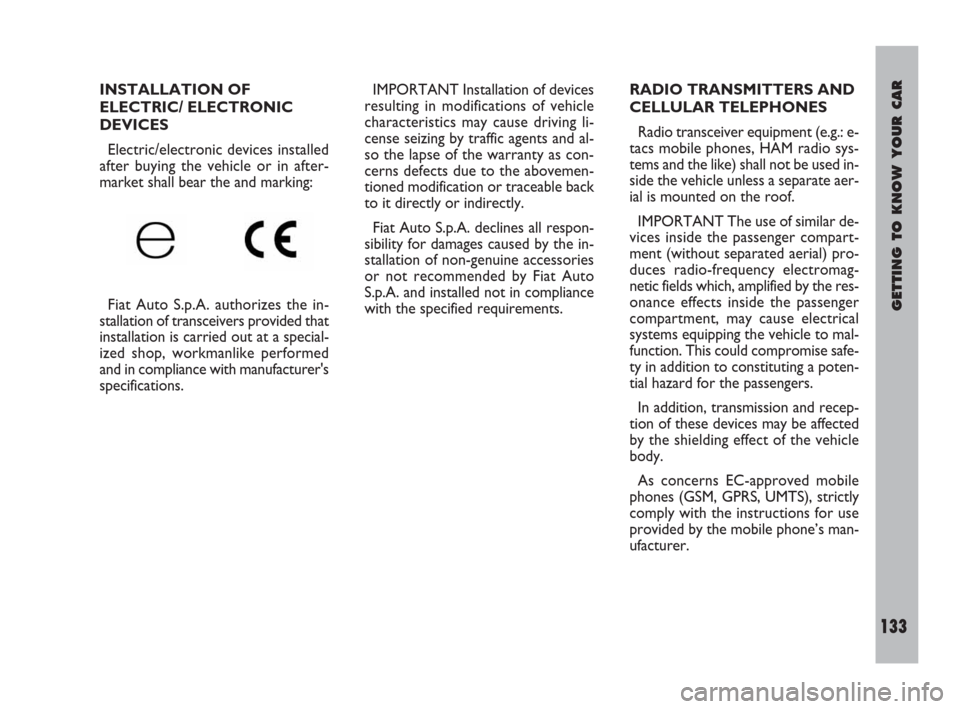

INSTALLATION OF
ELECTRIC/ ELECTRONIC
DEVICES
Electric/electronic devices installed
after buying the vehicle or in after-
market shall bear the and marking:
Fiat Auto S.p.A. authorizes the in-
stallation of transceivers provided that
installation is carried out at a special-
ized shop, workmanlike performed
and in compliance with manufacturer's
specifications.IMPORTANT Installation of devices
resulting in modifications of vehicle
characteristics may cause driving li-
cense seizing by traffic agents and al-
so the lapse of the warranty as con-
cerns defects due to the abovemen-
tioned modification or traceable back
to it directly or indirectly.
Fiat Auto S.p.A. declines all respon-
sibility for damages caused by the in-
stallation of non-genuine accessories
or not recommended by Fiat Auto
S.p.A. and installed not in compliance
with the specified requirements.RADIO TRANSMITTERS AND
CELLULAR TELEPHONES
Radio transceiver equipment (e.g.: e-
tacs mobile phones, HAM radio sys-
tems and the like) shall not be used in-
side the vehicle unless a separate aer-
ial is mounted on the roof.
IMPORTANT The use of similar de-
vices inside the passenger compart-
ment (without separated aerial) pro-
duces radio-frequency electromag-
netic fields which, amplified by the res-
onance effects inside the passenger
compartment, may cause electrical
systems equipping the vehicle to mal-
function. This could compromise safe-
ty in addition to constituting a poten-
tial hazard for the passengers.
In addition, transmission and recep-
tion of these devices may be affected
by the shielding effect of the vehicle
body.
As concerns EC-approved mobile
phones (GSM, GPRS, UMTS), strictly
comply with the instructions for use
provided by the mobile phone’s man-
ufacturer.
078-135 ULYSSE ING 10-03-2009 11:39 Pagina 133
Page 172 of 254
IN AN EMERGENCY
171
Remove the blown fuse with the
tongs Cprovided.
If a main fuse (MIDI-
FUSE, MAXI-FUSE o
MEGA-FUSE) blows do
not repair it, but contact a Fiat
Dealership.FUSE LOCATION fig. 37-38-39
The fuses are contained in three
fuseboxes placed respectively:
– in the glove compartment; to ac-
cess it remove the protective cover A;
– in the scuttle on the floor in front
of the passenger’s seat, next to the
battery; to access it remove the pro-
tective cover B;
– in the engine compartment; to ac-
cess it remove the protective cover C. Never replace a broken
fuse with anything other
than a new fuse. Always
use a fuse of the same colour.Before changing a fuse
check the ignition key has
been removed and that
all the other electric devices have
been turned off/disabled.Never change a fuse
with another amperage:
FIRE RISK!
If a general protection
fuse for safety systems
(air bag system, braking
system), power unit systems (en-
gine system, transmission sys-
tem) or steering system is trig-
gered, contact a Fiat Dealership.
fig. 36
F0B0155b
If the fuse blows again,
have the car inspected at
a Fiat Dealership.
153-183 ULYSSE ING:153-183 ULYSSE ING 13-11-2009 10:07 Pagina 171
Page 189 of 254
CAR MAINTENANCE
188
Should prevailing use of the vehicle
be under one of the following special-
ly heavy conditions:
– trailer or caravan towing;
– dusty roads;
– short distances (less than 7-8 km)
repeated and with external tempera-
tures below zero;– frequently idling engines or long
distance low speed driving (e.g. door-
to-door deliveries) or in case of a long
term inactivity;
– driving in the city;
carry out the following checks more
frequently than required in the Service
Schedule:
– check front disk brake pad condi-
tions and wear;– check cleanness of locks, bonnet
and boot and lever cleanness and lu-
brication;
– sight inspect the conditions of: en-
gine, gearbox, transmission, pipes and
hoses (exhaust - fuel - brakes), rubber
parts (boots, sleeves, bushes, etc.);
– check battery charge and fluid lev-
el (electrolyte);
– visual check on various drive belt
conditions;
– check and replace pollen filter, if re-
quired;
– check and replace air cleaner, if re-
quired.
HEAVY-DUTY
184-213 ULYSSE ING:184-213 ULYSSE ING 13-11-2009 10:13 Pagina 188
Page 221 of 254
TECHNICAL SPECIFICATIONS
220
FUEL SUPPLY
MULTIJET Common Rail direct in-
jection with overboost and intercool-
er.TRANSMISSION
CLUTCH
Hydraulically controlled.
MANUAL GEARBOX
Five forward gears and reverse with
synchromesh for front gear engage-
ment.
ELECTRONIC AUTOMATIC
GEARBOX
Two driving methods:
– sequence;
– automatic. Modifications or repairs
to the fuel feed system
that are not carried out
properly or do not take the sys-
tem’s technical specifications in-
to account can cause malfunc-
tions leading to the risk of fire.
214-233 ULYSSE ING:214-233 ULYSSE ING 13-11-2009 10:21 Pagina 220
Page 232 of 254
TECHNICAL SPECIFICATIONS
231
Use
AVVERTENZA Non rabboccare o miscelare con altri liquidi aventi caratteristiche diverse da quelle descritte.Replacement
interval
Transmissions and
differentials mechanical
Hydraulic power steering
Automatic transmission
electronic
Homokinetic joints on
wheel side
Hydraulic brakes and
clutch hydraulic controls
Cooling circuits
Percentage of use:
'50% water
50% PARAFLU
UP
To mix with diesel fuel
(25cc per 10 litri)
To use pure
or diluted in the systems
of windshield wipers Original
fluids and lubricants
TUTELA CAR
EXPERYA
Contractual Technical
Reference N° F178.B06
TUTELA GI/E
Contractual Technical
Reference N° F001.C94
TUTELA ALL STAR
Contractual Technical
Reference N° F702.G07
TUTELA TOP 4
Contractual Technical
Reference N° F001.A93
PARAFLU
UP
Contractual Technical
Reference N° F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference N° F601.L06
TUTELA
PROFESSIONAL
SC 35
Contractual Technical
Reference N° F201.D02 Quality characteristics of the fluids and lubricants
for proper vehicle operation
Synthetic lubricant with SAE 75W-80 grading
Exceeds API GL-4 specifications
Qualification FIAT 9.55550-MZ2.
Lubricant for automatic transmissions
Exceeds "ATF DEXRON III" specifications
Qualification FIAT 9.55550-AG2.
Molybdenum sulphur compound grease,
for high temepratures, Consistency NLGI 1-2
Qualification FIAT 9.55580.
Synthetic fluid for brake and clutch systems
Exceeds specifications: FMVSS n° 116 DOT 4,
ISO 4925, SAE J 1704
Qualification FIAT 9.55597.
Protective with antifreeze action red with base of
Glycol mono ethyl inhibited with organic formulation
Exceeds specifications CUNA NC 956-16, ASTM D 3306
Qualification FIAT 9.55523.
Additive for diesel fuel wih protective action for Diesel engines
Mix of alcohol and tensioactives CUNA NC 956-11,
Qualification FIAT 9.55522. Lubricants and
greases for the
motion
transmission
Liquid for brakes
Protective
for radiators
Fuel additive
Liquid for rwind-
shield wiper and
rear window wiper
214-233 ULYSSE ING:214-233 ULYSSE ING 13-11-2009 10:21 Pagina 231
Page 241 of 254
INDEX
240

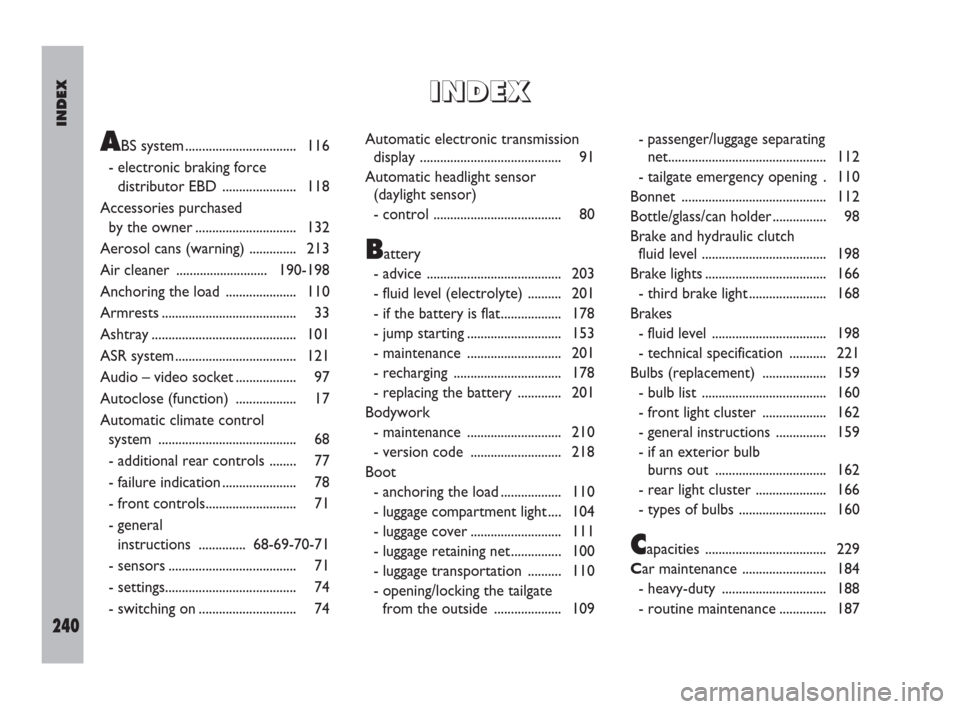

ABS system ................................. 116
- electronic braking force
distributor EBD ...................... 118
Accessories purchased
by the owner .............................. 132
Aerosol cans (warning) .............. 213
Air cleaner ........................... 190-198
Anchoring the load ..................... 110
Armrests ........................................ 33
Ashtray ........................................... 101
ASR system .................................... 121
Audio – video socket .................. 97
Autoclose (function) .................. 17
Automatic climate control
system ......................................... 68
- additional rear controls ........ 77
- failure indication ...................... 78
- front controls........................... 71
- general
instructions .............. 68-69-70-71
- sensors ...................................... 71
- settings....................................... 74
- switching on ............................. 74Automatic electronic transmission
display .......................................... 91
Automatic headlight sensor
(daylight sensor)
- control ...................................... 80
Battery
- advice ........................................ 203
- fluid level (electrolyte) .......... 201
- if the battery is flat.................. 178
- jump starting ............................ 153
- maintenance ............................ 201
- recharging ................................ 178
- replacing the battery ............. 201
Bodywork
- maintenance ............................ 210
- version code ........................... 218
Boot
- anchoring the load .................. 110
- luggage compartment light .... 104
- luggage cover ........................... 111
- luggage retaining net............... 100
- luggage transportation .......... 110
- opening/locking the tailgate
from the outside .................... 109- passenger/luggage separating
net............................................... 112
- tailgate emergency opening . 110
Bonnet ........................................... 112
Bottle/glass/can holder ................ 98
Brake and hydraulic clutch
fluid level ..................................... 198
Brake lights .................................... 166
- third brake light ....................... 168
Brakes
- fluid level .................................. 198
- technical specification ........... 221
Bulbs (replacement) ................... 159
- bulb list ..................................... 160
- front light cluster ................... 162
- general instructions ............... 159
- if an exterior bulb
burns out ................................. 162
- rear light cluster ..................... 166
- types of bulbs .......................... 160
Capacities .................................... 229
Car maintenance ......................... 184
- heavy-duty ............................... 188
- routine maintenance .............. 187
I I
N N
D D
E E
X X
240-252 ULYSSE ING:240-252 ULYSSE ING 5-11-2009 12:13 Pagina 240
Page 243 of 254
INDEX
242
- switching the alarm
system off.................................. 16
- when the alarm is triggered.. 16
Electronic automatic
transmission ............................... 90
- display ....................................... 91
- driving in automatic mode .... 94
- driving in sequence mode ..... 94
- failure indication ..................... 95
- lever position ........................... 91
- moving the car ......................... 93
- selection lever.......................... 91
- sound warnings (buzzers) .... 96
- starting the engine ................. 93
- stopping the engine ................ 96
- technical specifications ......... 221
- towing the car ........................ 180
Electronic braking force
distributor EBD ......................... 118
Electronic control units
(warnings) ................................... 204
Engine
- engine marking ....................... 218
- identification code ................. 219
- technical specifications ......... 219
Engine compartment
(washing) ..................................... 212Engine coolant level .................... 194
Engine coolant temperature
gauge ............................................ 53
Engine oil
- checking the level .................. 193
Engine oil consumption ............. 193
Engine oil level .............................. 193
EOBD system .............................. 122
ESP system .................................... 119
- ASR function ........................... 121
- ESP action ................................. 121
- failure indication ...................... 121
- MSR function ........................... 122
- operation ................................. 120
- TC function ............................. 121
Exterior lights (controls) ........... 79
Fiat CODE system ..................... 11
- CODE card ............................. 14
Flashing
(main beam headlights) ............ 81
Follow me home .......................... 79
Front and side airbags ................ 124
- deactivating the passenger’s
front air bag manually............. 127
- general notes .......................... 128
- passenger’s front airbag ........ 125- side airbags
(side bag -window bag) ......... 127
Front ceiling light ........................ 102
- bulb replacement ................... 168
Front doors
- autoclose ................................... 19
- opening/closing ........................ 19
- super lock ................................. 22
Front fog lights
- bulb replacement .................... 165
- control ...................................... 81
Front seats .................................... 24
- adjustment ....................... 24-25
- armrests ................................... 33
- head restraints ........................ 32
- heating ...................................... 25
- interior settings .............. 31-32
- storing the driver’s
seat position ............................ 25
- swivel ......................................... 26
Fuel
- consumption ........................... 232
- fuel cut off switch.................... 87
- fuel filler cap ............................ 134
- fuel level gauge ....................... 53
Fuel consumption ........................ 232
Fuel cut off switch ....................... 87
240-252 ULYSSE ING:240-252 ULYSSE ING 5-11-2009 12:13 Pagina 242
Page 246 of 254
INDEX
245
Safe driving ................................. 139
- before getting behind the
wheel ........................................ 140
- driving at night ........................ 142
- driving in the fog .................... 143
- driving in the mountains ....... 143
- driving in the rain ................... 142
- driving on snow and ice ....... 144
- driving with ABS ..................... 144
- when travelling ....................... 140
Seat belts
- general instructions ............... 40
- height adjustment.................... 37
- load limiting devices .............. 40
- maintenance ............................. 42
- pretensioners ........................... 39
- use .................................... 36-38-39
Side lights
- control ...................................... 79
- front bulb replacement .......... 165
Sliding doors
- opening/closing ........................ 20
Snow chains .................................. 150
Spectacles holder ......................... 98
Speedometer .............. 51-52-53
Starting the engine ...................... 136
- bump starting ................. 138-154- ignition switch ......................... 16
- jump starting ........................... 153
- stopping the engine ................ 138
- warming up the engine ......... 138
Steering
- technical specifications........... 222
Steering column lock .................. 18
Steering column stalks ............... 79
- left-hand stalk ......................... 79
- right-hand stalk ....................... 82
Steering wheel
-adjustment ................................ 34
Stopping the engine .................... 138
Storing the car ............................. 151
- restarting the car after
storage ....................................... 151
Sunroof (electric) ......................... 107
- opening/closing .............. 107-108
Sun curtains ................................... 100
Sun visors ...................................... 99
Suspensions
- specifications ........................... 221
Symbols ......................................... 6
TC system .................................... 121
Technical specifications ............. 214The signs to help you drive
correctly ...................................... 5
Tilting loading shelf ...................... 99
Toggles .......................................... 100
Tools .............................................. 156
Total and partial kilometre
counter ....................................... 54
Total and partial kilometre
counter display ........................... 54
Towing a trailer ........................... 148
Towing the car ............................ 180
Transmission
- technical specifications........... 221
Transporting children
in safety ....................................... 40
Transporting luggage ................... 110
- luggage cover ........................... 111
Trip computer .............................. 85
Tyre pressure .............................. 205
Tyres
- changing a wheel .................... 156
- general notes............................ 205
- maintenance ............................ 205
- snow chains .............................. 150
- tyre pressure............................ 225
- understanding tyre marking .. 223
- winter tyres ............................. 149
240-252 ULYSSE ING:240-252 ULYSSE ING 5-11-2009 12:13 Pagina 245
