Downloaded from www.Manualslib.com manuals search engine TOWING A TRAILER
WARNINGS
Do not exceed 62 mph (100 km/h).
The rear tyre pressures must beincreased by 3 psi (0.2 bar) abovespecification. See TechnicalSpecifications (page 164).
Do not exceed the maximum grosstrain weight stated on your vehicleidentification plate. See VehicleIdentification Plate (page 167).
Do not exceed the maximumpermissible nose weight, i.e. verticalweight on the tow ball, of 110 pounds(50 kilogrammes).
The electrical system is not suitablefor towing trailers with more thanone rear fog lamp.
Note:Not all vehicles are suitable orapproved to have tow bars fitted. Checkwith your dealer first.
Place loads as low and central to theaxle(s) of the trailer as possible. If you aretowing with an unladen vehicle, the loadin the trailer should be placed toward thenose, within the maximum nose load, asthis gives the best stability.
The stability of your vehicle to trailercombination is very much dependant onthe quality of the trailer.
In high altitude regions above 3 281 feet (1000 metres), the stipulated maximumpermitted gross train weight must bereduced by 10% for every additional 3 281feet (1 000 metres).
Steep Gradients
WARNING
The anti-lock braking system doesnot control the overrun brake on thetrailer.
Change down a gear before you reach asteep downhill gradient.
TOW BALL
WARNINGS
When not in use, always transportthe tow ball arm securely fastenedin the luggage compartment.
Take special care when fitting thetow ball arm as the safety of yourvehicle and the trailer depends onthis.
Do not use any tools for mounting ordismounting the tow ball arm.
Do not modify the trailer coupling.
Do not disassemble or repair the towball arm.
A 13-pin trailer socket and the tow ball armseat are provided under the rear bumper.Turn the trailer socket down through 90degrees until it engages in the end position.
116Towing

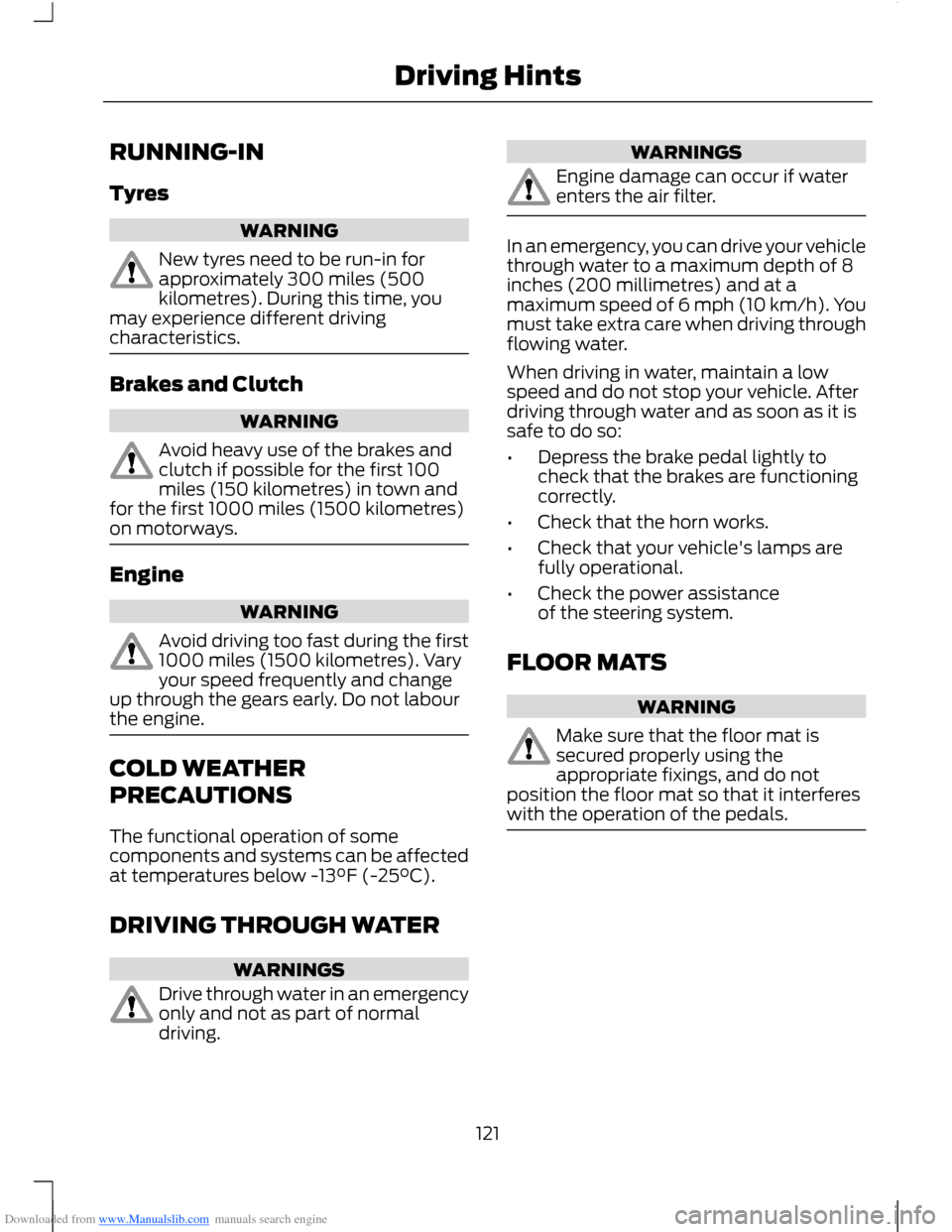

Downloaded from www.Manualslib.com manuals search engine RUNNING-IN
Tyres
WARNING
New tyres need to be run-in forapproximately 300 miles (500kilometres). During this time, youmay experience different drivingcharacteristics.
Brakes and Clutch
WARNING
Avoid heavy use of the brakes andclutch if possible for the first 100miles (150 kilometres) in town andfor the first 1000 miles (1500 kilometres)on motorways.
Engine
WARNING
Avoid driving too fast during the first1000 miles (1500 kilometres). Varyyour speed frequently and changeup through the gears early. Do not labourthe engine.
COLD WEATHER
PRECAUTIONS
The functional operation of somecomponents and systems can be affectedat temperatures below -13°F (-25°C).
DRIVING THROUGH WATER
WARNINGS
Drive through water in an emergencyonly and not as part of normaldriving.
WARNINGS
Engine damage can occur if waterenters the air filter.
In an emergency, you can drive your vehiclethrough water to a maximum depth of 8inches (200 millimetres) and at amaximum speed of 6 mph (10 km/h). Youmust take extra care when driving throughflowing water.
When driving in water, maintain a lowspeed and do not stop your vehicle. Afterdriving through water and as soon as it issafe to do so:
•Depress the brake pedal lightly tocheck that the brakes are functioningcorrectly.
•Check that the horn works.
•Check that your vehicle's lamps arefully operational.
•Check the power assistanceof the steering system.
FLOOR MATS
WARNING
Make sure that the floor mat issecured properly using theappropriate fixings, and do notposition the floor mat so that it interfereswith the operation of the pedals.
121Driving Hints

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Have your vehicle serviced regularly to helpmaintain its roadworthiness and resalevalue. There is a large network of Fordauthorised repairers that are there to helpyou with their professional servicingexpertise. Authorised repairers are bestqualified to service your vehicle properlyand expertly, with a wide range of highlyspecialised tools.
In addition to regular servicing, werecommend that you carry out thefollowing checks.
WARNINGS
Switch the ignition off beforetouching or attempting adjustmentof any kind.
Do not touch the electronic ignitionsystem parts after you have switchedthe ignition on or when the engine isrunning. The system operates at highvoltage.
Keep your hands and clothing clearof the engine cooling fan. Undercertain conditions, the fan maycontinue to run for several minutes afteryou have switched the engine off.
Make sure that you fit filler capssecurely after carrying outmaintenance checks.
Daily Checks
•Exterior lamps.
•Interior lamps.
•Warning lamps and indicators.
Check When Refuelling
•Engine oil level. See Engine Oil Check(page 139).
•Brake fluid level. See Brake andClutch Fluid Check (page 141).
•Washer fluid level. See Washer FluidCheck (page 141).
•Tyre pressures (when cold). SeeTechnical Specifications (page 164).
•Tyre condition. See Wheels and Tyres(page 155).
Monthly Checks
•Engine coolant level (engine cold). SeeEngine Coolant Check (page 140).
•Pipes, hoses and reservoirs for leaks.
•Air conditioning operation.
•Parking brake operation.
•Horn operation.
•Tightness of wheel nuts. SeeTechnical Specifications (page 164).
OPENING AND CLOSING THE
BONNET
Opening the Bonnet
1.Pull the bonnet release handle.
134Maintenance

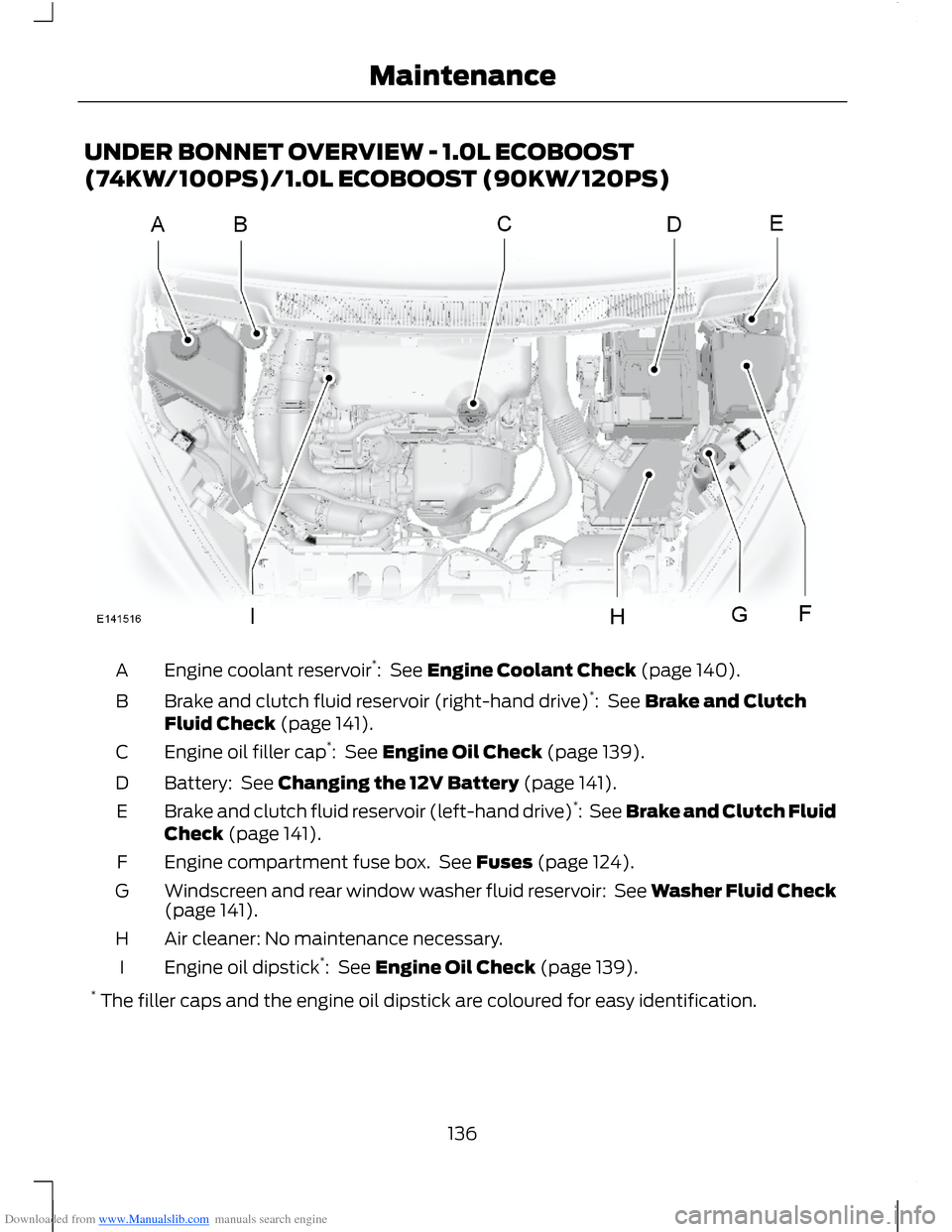

Downloaded from www.Manualslib.com manuals search engine UNDER BONNET OVERVIEW - 1.0L ECOBOOST
(74KW/100PS)/1.0L ECOBOOST (90KW/120PS)
Engine coolant reservoir*: See Engine Coolant Check (page 140).A
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and ClutchFluid Check (page 141).B
Engine oil filler cap*: See Engine Oil Check (page 139).C
Battery: See Changing the 12V Battery (page 141).D
Brake and clutch fluid reservoir (left-hand drive)*: See Brake and Clutch FluidCheck (page 141).E
Engine compartment fuse box. See Fuses (page 124).F
Windscreen and rear window washer fluid reservoir: See Washer Fluid Check(page 141).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine Oil Check (page 139).I
* The filler caps and the engine oil dipstick are coloured for easy identification.
136Maintenance

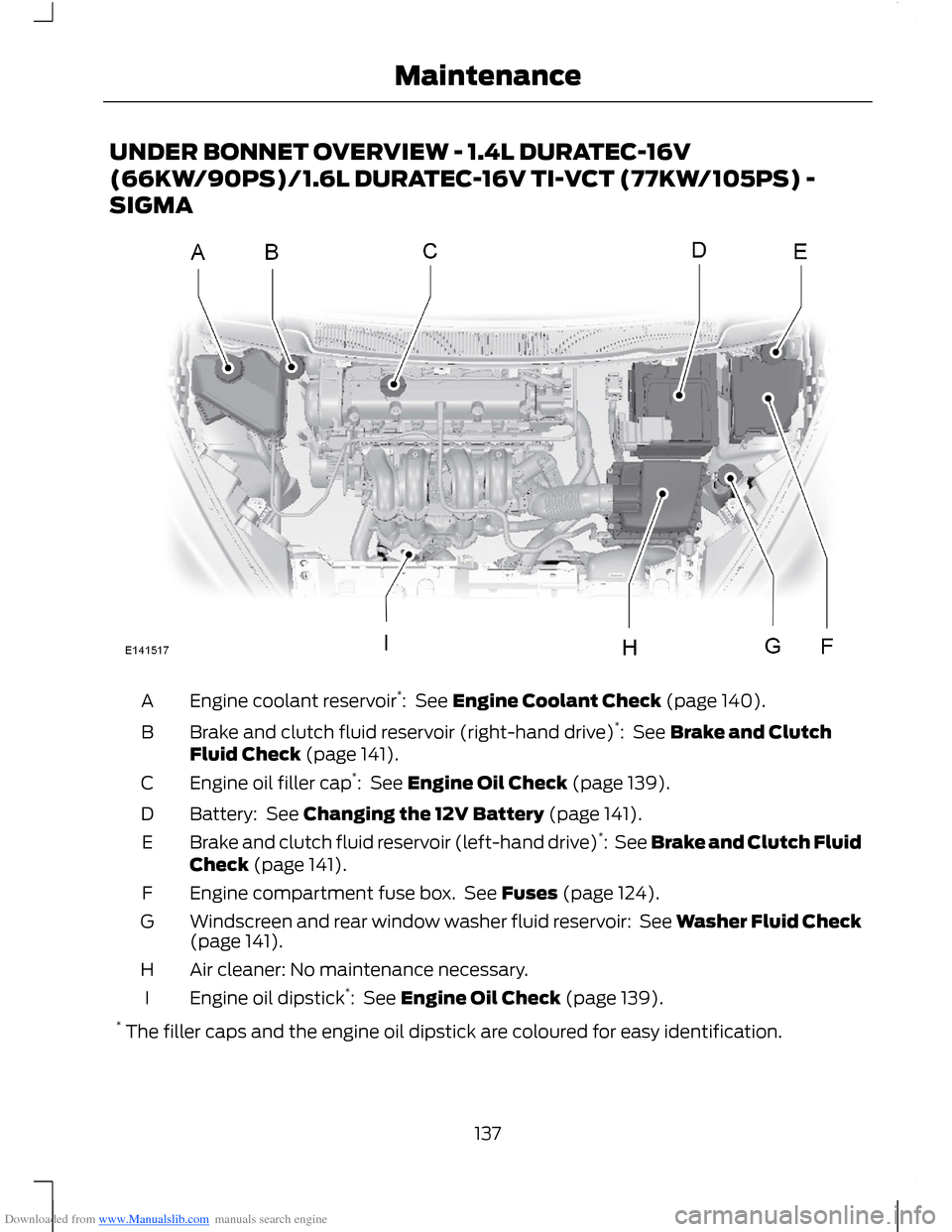

Downloaded from www.Manualslib.com manuals search engine UNDER BONNET OVERVIEW - 1.4L DURATEC-16V
(66KW/90PS)/1.6L DURATEC-16V TI-VCT (77KW/105PS) -
SIGMA
Engine coolant reservoir*: See Engine Coolant Check (page 140).A
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and ClutchFluid Check (page 141).B
Engine oil filler cap*: See Engine Oil Check (page 139).C
Battery: See Changing the 12V Battery (page 141).D
Brake and clutch fluid reservoir (left-hand drive)*: See Brake and Clutch FluidCheck (page 141).E
Engine compartment fuse box. See Fuses (page 124).F
Windscreen and rear window washer fluid reservoir: See Washer Fluid Check(page 141).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine Oil Check (page 139).I
* The filler caps and the engine oil dipstick are coloured for easy identification.
137Maintenance

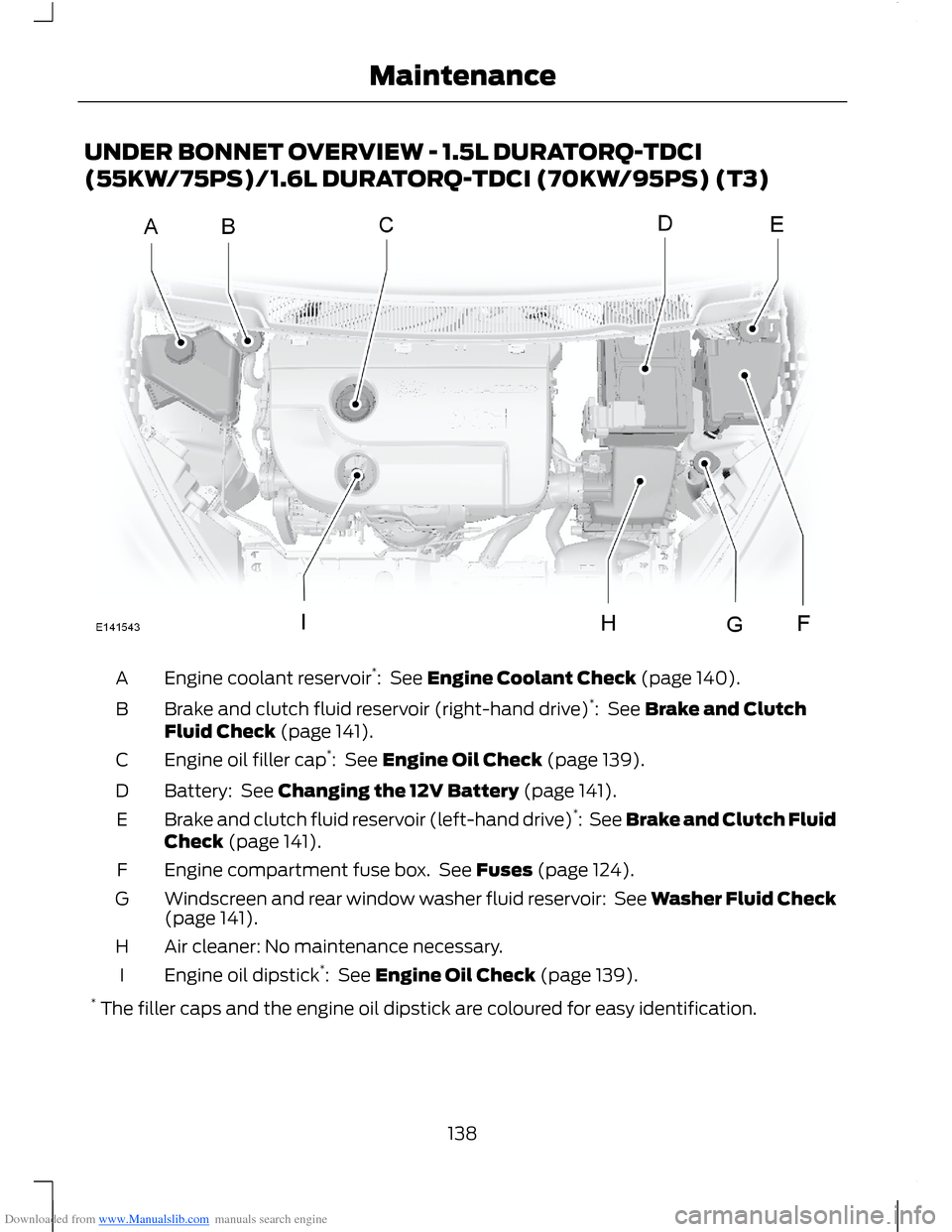

Downloaded from www.Manualslib.com manuals search engine UNDER BONNET OVERVIEW - 1.5L DURATORQ-TDCI
(55KW/75PS)/1.6L DURATORQ-TDCI (70KW/95PS) (T3)
Engine coolant reservoir*: See Engine Coolant Check (page 140).A
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and ClutchFluid Check (page 141).B
Engine oil filler cap*: See Engine Oil Check (page 139).C
Battery: See Changing the 12V Battery (page 141).D
Brake and clutch fluid reservoir (left-hand drive)*: See Brake and Clutch FluidCheck (page 141).E
Engine compartment fuse box. See Fuses (page 124).F
Windscreen and rear window washer fluid reservoir: See Washer Fluid Check(page 141).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine Oil Check (page 139).I
* The filler caps and the engine oil dipstick are coloured for easy identification.
138Maintenance

Downloaded from www.Manualslib.com manuals search engine BRAKE AND CLUTCH FLUID
CHECK
WARNINGS
Use of any fluid other than therecommended brake fluid mayreduce brake efficiency and not meetFord's performance standards.
Do not allow the fluid to touch yourskin or eyes. If this happens, rinse theaffected areas immediately withplenty of water and contact your doctor.
If the level is at the MIN mark, havethe system checked by an authoriseddealer as soon as possible.
Note:Keep brake fluid clean and dry.Contamination with dirt, water, petroleumproducts or other materials may result inbrake system damage and possible failure.
Note:The brake and the clutch systems aresupplied from the same reservoir.
Add fluid that meets the Ford specification.See Technical Specifications (page 150).
WASHER FLUID CHECK
Note:The reservoir supplies the front andrear washer systems.
When adding fluid, use a mixture of washerfluid and water to help prevent freezing incold weather and improve the cleaningcapability. We recommend that you useonly high quality washer fluid.
For information on fluid dilution, refer tothe product instructions.
CHANGING THE 12V BATTERY
WARNING
For vehicles with start-stop thebattery requirement is different. Youmust replace the battery with one ofexactly the same specification.
Note:Where applicable you mustreprogram the audio system using thekeycode.
The battery is located in the enginecompartment. See Maintenance (page134).
CHECKING THE WIPER
BLADES
Run the tip of your fingers over the edge ofthe blade to check for roughness.
Clean the wiper blades with washer fluidor water applied with a soft sponge orcloth.
CHANGING THE WIPER
BLADES
Windscreen Wiper Blades
Note:The windscreen wiper blades aredifferent in length. See TechnicalSpecifications (page 150). If you installwiper blades of the wrong length, the rainsensor may not work correctly.
141Maintenance

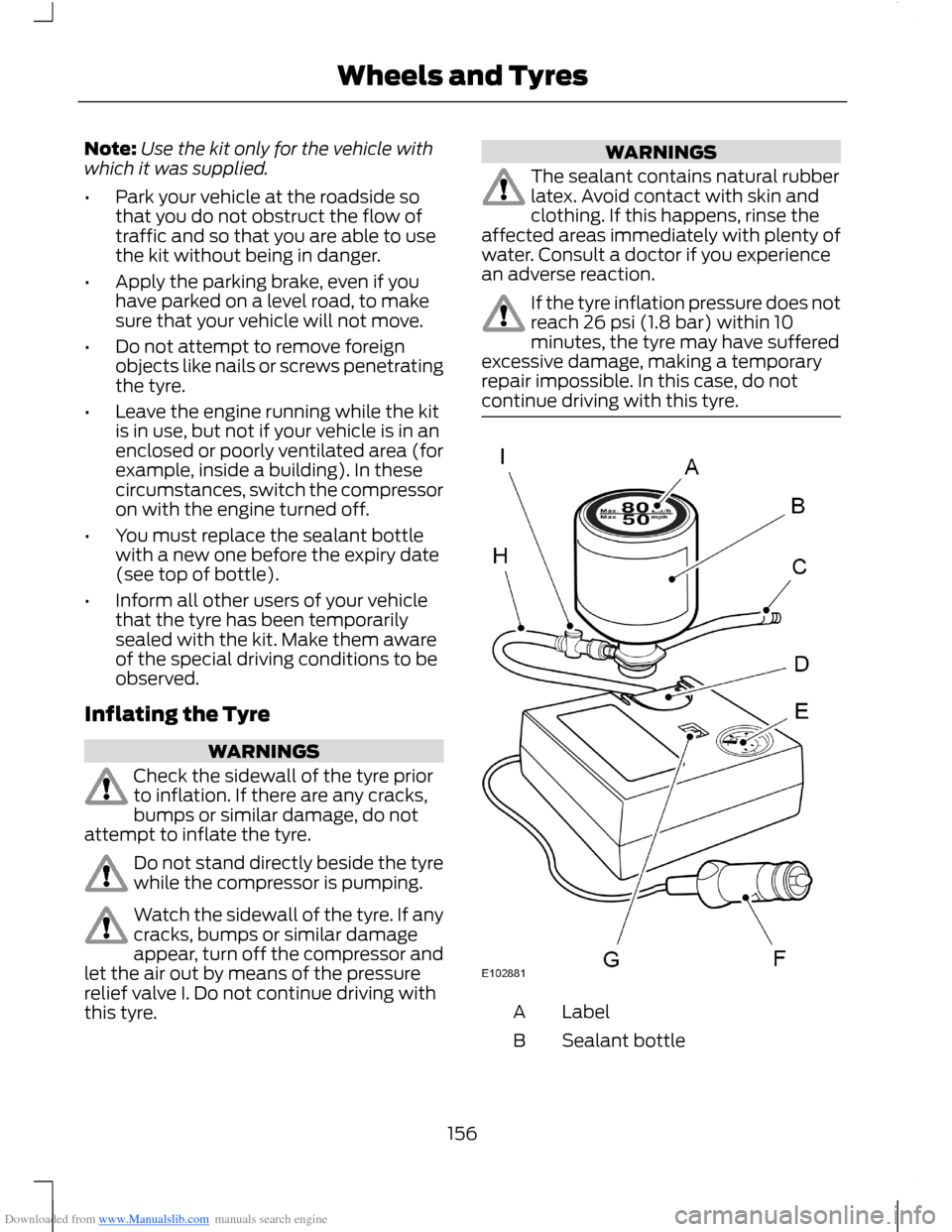

Downloaded from www.Manualslib.com manuals search engine Note:Use the kit only for the vehicle withwhich it was supplied.
•Park your vehicle at the roadside sothat you do not obstruct the flow oftraffic and so that you are able to usethe kit without being in danger.
•Apply the parking brake, even if youhave parked on a level road, to makesure that your vehicle will not move.
•Do not attempt to remove foreignobjects like nails or screws penetratingthe tyre.
•Leave the engine running while the kitis in use, but not if your vehicle is in anenclosed or poorly ventilated area (forexample, inside a building). In thesecircumstances, switch the compressoron with the engine turned off.
•You must replace the sealant bottlewith a new one before the expiry date(see top of bottle).
•Inform all other users of your vehiclethat the tyre has been temporarilysealed with the kit. Make them awareof the special driving conditions to beobserved.
Inflating the Tyre
WARNINGS
Check the sidewall of the tyre priorto inflation. If there are any cracks,bumps or similar damage, do notattempt to inflate the tyre.
Do not stand directly beside the tyrewhile the compressor is pumping.
Watch the sidewall of the tyre. If anycracks, bumps or similar damageappear, turn off the compressor andlet the air out by means of the pressurerelief valve I. Do not continue driving withthis tyre.
WARNINGS
The sealant contains natural rubberlatex. Avoid contact with skin andclothing. If this happens, rinse theaffected areas immediately with plenty ofwater. Consult a doctor if you experiencean adverse reaction.
If the tyre inflation pressure does notreach 26 psi (1.8 bar) within 10minutes, the tyre may have sufferedexcessive damage, making a temporaryrepair impossible. In this case, do notcontinue driving with this tyre.
LabelA
Sealant bottleB
156Wheels and Tyres
