Downloaded from www.Manualslib.com manuals search engine Interior Lamps..................................................51
Windows and Mirrors
Power Windows..............................................53
Exterior Mirrors................................................54
Interior Mirror...................................................55
Childminder Mirror.........................................56
Global Opening and Closing......................56
Instrument Cluster
Gauges...............................................................58
Warning Lamps and Indicators................58
Audible Warnings and Indicators..............61
Information Displays
General Information......................................63
Clock...................................................................66
Trip Computer.................................................66
Personalized Settings...................................67
Information Messages..................................67
Climate Control
Principle of Operation...................................75
Air Vents.............................................................75
Manual Climate Control..............................76
Automatic Climate Control.........................77
Hints on Controlling the InteriorClimate...........................................................79
Heated Windows and Mirrors....................82
Seats
Sitting in the Correct Position...................83
Head Restraints..............................................83
Manual Seats..................................................85
Rear Seats........................................................86
Heated Seats...................................................87
Front Seat Armrest........................................87
Auxiliary Power Points
Auxiliary Power Points.................................88
Cigar Lighter.....................................................88
Storage Compartments
Cup Holders.....................................................89
Glasses Holder................................................89
Starting and Stopping theEngine
General Information.....................................90
Ignition Switch................................................90
Keyless Starting.............................................90
Steering Wheel Lock - Vehicles Without:Keyless Entry and Push ButtonStart/Push Button Start..........................92
Steering Wheel Lock - Vehicles With:Keyless Entry and Push ButtonStart/Push Button Start..........................92
Starting a Gasoline Engine.........................93
Starting a Diesel Engine..............................94
Diesel Particulate Filter...............................94
Switching Off the Engine............................95
Unique Driving Character-istics
Auto-Start-Stop.............................................96
Fuel and Refueling
Safety Precautions........................................98
Fuel Quality - Gasoline................................99
Fuel Quality - Diesel.....................................99
Running Out of Fuel......................................99
Catalytic Converter.....................................100
Refueling...........................................................101
Fuel Consumption.......................................102
Technical Specifications............................103
Transmission
Manual Transmission.................................104
2B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Table of Contents
Page 14 of 298
Downloaded from www.Manualslib.com manuals search engine Right-Hand Drive
Air vents. See Air Vents (page 75).A
Direction indicators. See Direction Indicators (page 51). High beam. SeeLighting Control (page 47).B
Instrument cluster. See Gauges (page 58). See Warning Lamps andIndicators (page 58).C
Start button. See Starting and Stopping the Engine (page 90).D
Wiper lever. See Wipers and Washers (page 44).E
Information and entertainment display. See Information Displays (page 63).F
Audio unit. See Audio System (page 190).G
Power door lock button. See Locking and Unlocking (page 34).H
Hazard warning flasher switch. See Hazard Warning Flashers (page 132).I
Climate controls. See Climate Control (page 75).J
Heated rear window switch. See Climate Control (page 75).J
Heated windshield switch. See Climate Control (page 75).J
12B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013At a Glance
Page 21 of 298
Downloaded from www.Manualslib.com manuals search engine ISOFIX Child Seats
Mass group categories
Seating positions10+
Forward facingRear facing
20 - 40 lbs (9 - 18 kg)Up to 29 lbs (13 kg)
Not ISOFIX equippedSize classFront seat
Seat type
A, B, B11C, D, E1Size classRear outboard seat ISOFIX
IL, IUF3IL2Seat type
Not ISOFIX equippedSize classRear center seat
Seat type
IL Suitable for particular ISOFIX child seat systems of the semi-universal category. Pleasesee child seat systems suppliers' vehicle recommendation lists.
IUF Suitable for ISOFIX forward facing child seat systems of universal category approvedfor use in this mass group and ISOFIX size class.1The ISOFIX size class for both universal and semi-universal child seat systems is definedby the capital letters A to G. These identification letters are displayed on the ISOFIX childseat.2At time of publishing the recommended Group O+ ISOFIX baby safety seat is the BritaxRomer Baby Safe. See an authorized dealer for the latest details relating to ourrecommended child seats.3At time of publishing the recommended Group 1 ISOFIX child seat is the Britax RomerDuo. See an authorized dealer for the latest details relating to our recommended childseats.
19B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Child Safety
Page 32 of 298
Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF OPERATION
The system allows you to program keyswith restricted driving modes to promotegood driving habits. You can use all but oneof the keys programmed to your vehiclewith these restricted modes.
Any keys that have not been programmedare referred to as an administrator key oradmin key. These can be used to:
•create a MyKey
•program optional MyKey settings
•clear all MyKey features.
When you have programmed a MyKey, youcan access the following information usingthe information display:
•How many admin keys and MyKeys areprogrammed to your vehicle.
•The total distance your vehicle hastraveled using a MyKey.
Note:Switch the ignition on to use thesystem.
Note:All MyKeys are programmed to thesame settings. You cannot program themindividually.
Standard Settings
The following settings cannot be changed:
•Safety belt minder. You cannot disablethis feature. The audio system willmute when this feature is activated.
•Low fuel level warning. When the fuellevel is low, warnings will be shown inthe display followed by an audibletone.
•Driver assist features, for examplenavigation and parking aids. Thesesystems turn on automaticallywhenever you switch the ignition on.
Optional Settings
You can configure MyKey settings whenyou first create a MyKey. You can alsochange the settings afterward with anadmin key.
The following settings can be configuredusing an admin key:
•Various vehicle speed limits can be set.Warnings will be shown in the displayfollowed by an audible tone when yourvehicle reaches the set speed. Youcannot override the set speed by fullydepressing the accelerator pedal.
•Various vehicle speed reminders canbe set. Warnings will be shown in thedisplay followed by an audible tonewhen the set vehicle speed isexceeded.
•Audio system maximum volume of45%. A message will be shown in thedisplay when you attempt to exceedthe limited volume. Automatic volumecontrol will be disabled.
•Always on setting. When this isselected you will not be able to disableemergency assistance or the do notdisturb feature.
Vehicles with Keyless Entry
If a MyKey and an admin key are present,your vehicle will recognize the admin keyonly.
CREATING A MYKEY
Vehicles without Keyless Starting
1.Insert the key you want to program intothe ignition.
2.Switch the ignition on.
3.Access the main menu using theinformation display. Select MyKey andpress OK or the right arrow button.
30B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013MyKey™
Page 33 of 298
Downloaded from www.Manualslib.com manuals search engine 4.Select Create MyKey and press OK.
5.When prompted, press and hold OKuntil you see a message informing youto label this key as a MyKey. The keywill be restricted the next time you useit.
Note:Make sure you label the MyKey soyou can distinguish it from the admin keys.
Vehicles with Keyless Starting
1.Switch the ignition on using an adminkey.
2.Access the main menu using theinformation display. Select MyKey andpress OK or the right arrow button.
3.Hold the key you want to program nextto the steering column exactly asshown.
4.Select Create MyKey and press OK.
5.When prompted, press and hold OKuntil you see a message informing youto label this key as a MyKey. The keywill be restricted the next time you useit.
Note:Make sure you label the MyKey soyou can distinguish it from the admin keys.
PROGRAMMING A MYKEY
Optional Settings
1.Switch the ignition on using an adminkey.
2.Access the main menu using theinformation display. Select MyKey andpress OK or the right arrow button.
3.Use the arrow buttons to scroll to anoptional feature.
4.Press OK or the right arrow button toscroll through the settings.
5.Press OK or the right arrow button tomake a selection.
CLEARING ALL MYKEYS
Note:Clearing all MyKeys will return theadmin key to its default setting and resetthe Mykey distance to zero.
1.Switch the ignition on using an adminkey.
2.Access the main menu using theinformation display. Select MyKey andpress OK or the right arrow button.
3.Scroll to Clear All and press OK.
4.Press and hold OK until you see amessage informing you that all MyKeyshave been cleared.
CHECKING MYKEY SYSTEM
STATUS
You can find information about yourprogrammed MyKeys by using theinformation display.
31B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013MyKey™
Page 42 of 298
Downloaded from www.Manualslib.com manuals search engine Triggering the Alarm
Once armed, the alarm is triggered in anyof the following ways:
•If someone opens a door, the liftgateor the hood without a valid key orremote control.
•If someone removes the audio ornavigation system.
•If you switch the ignition on without avalid key.
•If the interior sensors detect movementwithin your vehicle.
•On vehicles with a battery back-upsounder, if someone disconnects yourvehicle battery or the battery back-upsounder itself.
If the alarm is triggered, the alarm horn willsound for 30 seconds and the hazardwarning flasher will flash for five minutes.
Any further attempts to perform one of theabove will trigger the alarm again.
Full and Reduced Guard
Full Guard
Full guard is the standard setting.
In full guard, the interior sensors are onwhen you arm the alarm.
Note:This may result in false alarms ifanimals or moving objects are inside yourvehicle.
Reduced Guard
In reduced guard, the interior sensors areoff when you arm the alarm.
Note:You can set the alarm to reducedguard for the current ignition cycle only. Thealarm will reset to full guard the next timeyou switch the ignition on.
Ask on Exit (If Equipped)
You can set the information display to askyou each time which level of guard youwish to set.
If you select Ask on Exit, the messageReduced guard? appears in theinformation display each time you switchthe ignition off. See InformationMessages (page 67).
If you wish to arm the alarm with reducedguard, press the OK button when thismessage appears.
If you wish to arm the alarm with full guard,leave your vehicle without pressing the OKbutton.
Selecting Full or Reduced Guard
Note:Selecting Reduced does not set thealarm permanently to reduced guard. It setsit to reduced guard only for the currentignition cycle. If you regularly set the alarmto reduced guard, select Ask on Exit.
You can select full or reduced guard usingthe information display. See GeneralInformation (page 67).
Arming the Alarm
To arm the alarm, lock your vehicle. SeeLocks (page 34).
Disarming the Alarm
Vehicles Without Keyless Entry
Perimeter Alarm
Disarm and silence the alarm by unlockingthe doors with the key and switching theignition on with a correctly coded key orunlocking the doors with the remotecontrol.
40B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Security
Page 47 of 298
Downloaded from www.Manualslib.com manuals search engine In these conditions, you can do thefollowing to help keep your windshieldclear:
•Lower the sensitivity of the autowipers.
•Change the wiper speed to normal orhigh speed wipe as necessary.
•Switch the autowipers off.
Maximum autowipeA
OnB
Minimum autowipeC
The wipers will function when water isdetected on the windshield. The rainsensor will continue to monitor the amountof water on the windshield and adjust thespeed of the wipers automatically. Thisfeature can be switched on or off in theinformation display. See GeneralInformation (page 63).
Note:When you switch this feature off, thewipers will return to the variable intermittentsetting based on the sensitivity you haveset.
Use the rotary control to adjust thesensitivity of the rain sensor. On minimumautowipe, the wipers will operate when thesensor detects a large amount of water onthe windshield. On maximum autowipe,the wipers will operate when the sensordetects a small amount of water on thewindshield.
Keep the outside of the windshield clean.Sensor performance will be affected if thearea around the interior mirror is dirty. Therain sensor is very sensitive and the wipersmay operate if dirt, mist or flies hit thewindshield.
WINDSHIELD WASHERS
Note:Do not operate the washers whenthe washer reservoir is empty. This maycause the washer pump to overheat.
Push the button to operate the washers.When you release the button, the wiperswill operate for a short time.
REAR WINDOW WIPER AND
WASHERS
Intermittent Wipe
Pull the lever toward you.
45B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Wipers and Washers
Page 50 of 298
Downloaded from www.Manualslib.com manuals search engine High Beams
Pull the lever fully toward you to switchthe high beams on.
Push the lever forward to switch the highbeams off.
Headlamp Flasher
Pull the lever toward you slightly andrelease it to flash the headlamps.
AUTOLAMPS
Note:It may be necessary to switch yourheadlamps on manually in severe weatherconditions.
Note:If you have autolamps on, you canonly switch the high beam on onceautolamps has switched the headlamps on.
Note:If you have autolamps on, you canonly switch the front fog lamps on onceautolamps has switched the headlamps on.
The headlamps will switch on and offautomatically in low light situations orduring inclement weather.
The headlamps will remain on for a periodof time after you switch the ignition off.You can adjust the time delay using theinformation display controls. SeeInformation Displays (page 63).

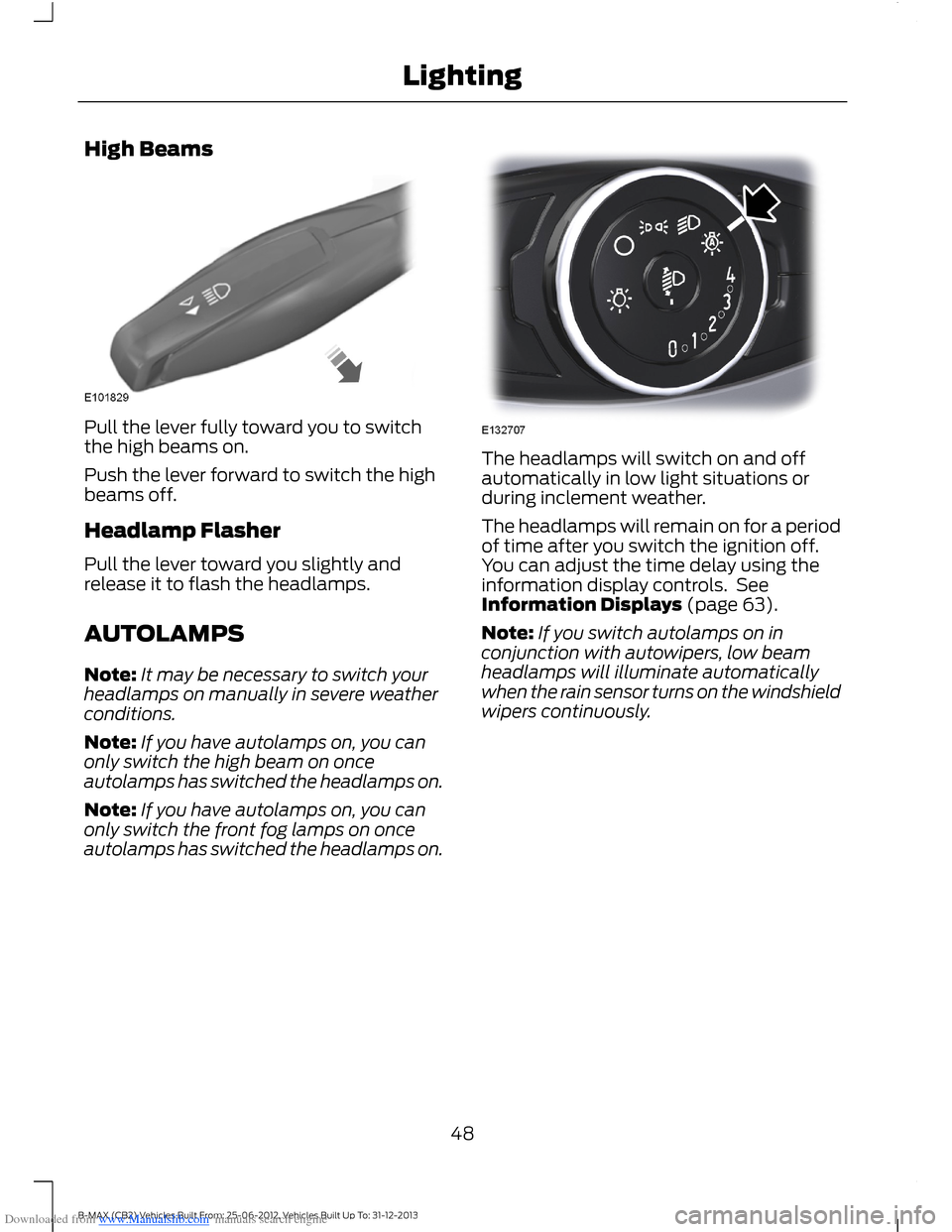

Note:If you switch autolamps on inconjunction with autowipers, low beamheadlamps will illuminate automaticallywhen the rain sensor turns on the windshieldwipers continuously.
48B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Lighting
Page 60 of 298
Downloaded from www.Manualslib.com manuals search engine GAUGES

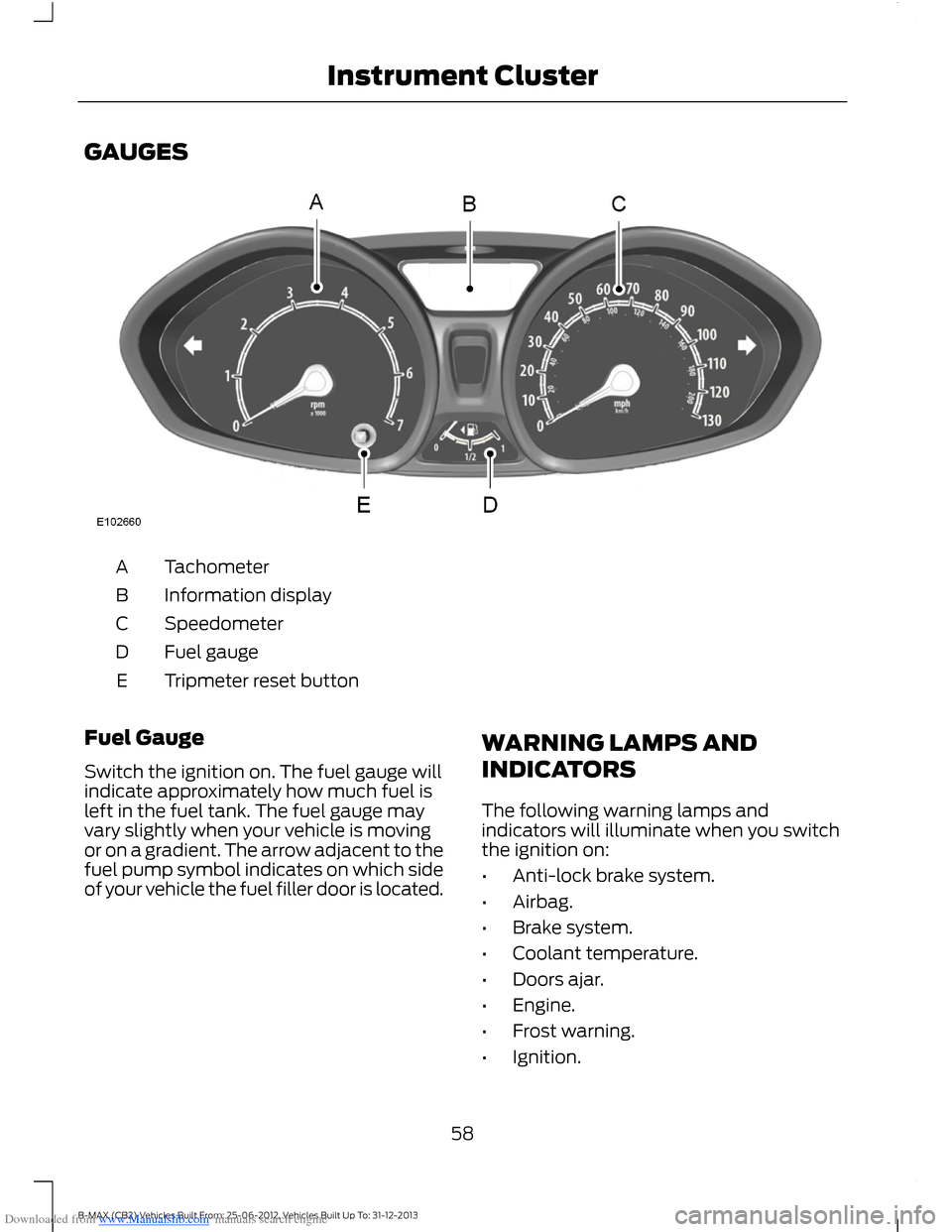

TachometerA
Information displayB
SpeedometerC
Fuel gaugeD
Tripmeter reset buttonE
Fuel Gauge
Switch the ignition on. The fuel gauge willindicate approximately how much fuel isleft in the fuel tank. The fuel gauge mayvary slightly when your vehicle is movingor on a gradient. The arrow adjacent to thefuel pump symbol indicates on which sideof your vehicle the fuel filler door is located.
WARNING LAMPS AND
INDICATORS
The following warning lamps andindicators will illuminate when you switchthe ignition on:
•Anti-lock brake system.
•Airbag.
•Brake system.
•Coolant temperature.
•Doors ajar.
•Engine.
•Frost warning.
•Ignition.
58B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Instrument Cluster
Page 62 of 298

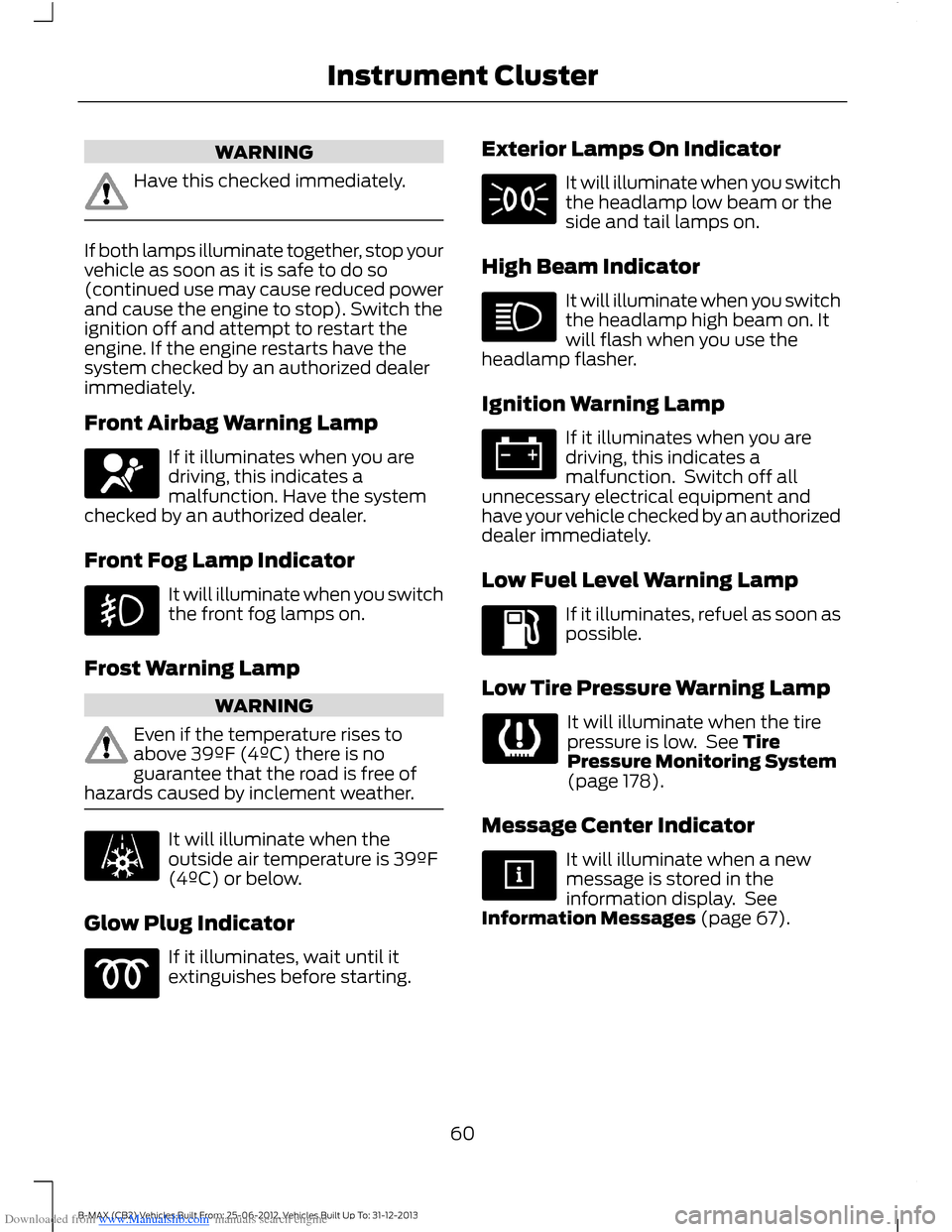

Downloaded from www.Manualslib.com manuals search engine WARNING
Have this checked immediately.
If both lamps illuminate together, stop yourvehicle as soon as it is safe to do so(continued use may cause reduced powerand cause the engine to stop). Switch theignition off and attempt to restart theengine. If the engine restarts have thesystem checked by an authorized dealerimmediately.
Front Airbag Warning Lamp
If it illuminates when you aredriving, this indicates amalfunction. Have the systemchecked by an authorized dealer.
Front Fog Lamp Indicator
It will illuminate when you switchthe front fog lamps on.
Frost Warning Lamp
WARNING
Even if the temperature rises toabove 39ºF (4ºC) there is noguarantee that the road is free ofhazards caused by inclement weather.
It will illuminate when theoutside air temperature is 39ºF(4ºC) or below.
Glow Plug Indicator
If it illuminates, wait until itextinguishes before starting.
Exterior Lamps On Indicator
It will illuminate when you switchthe headlamp low beam or theside and tail lamps on.
High Beam Indicator
It will illuminate when you switchthe headlamp high beam on. Itwill flash when you use theheadlamp flasher.
Ignition Warning Lamp
If it illuminates when you aredriving, this indicates amalfunction. Switch off allunnecessary electrical equipment andhave your vehicle checked by an authorizeddealer immediately.
Low Fuel Level Warning Lamp
If it illuminates, refuel as soon aspossible.
Low Tire Pressure Warning Lamp
It will illuminate when the tirepressure is low. See TirePressure Monitoring System(page 178).
Message Center Indicator
It will illuminate when a newmessage is stored in theinformation display. SeeInformation Messages (page 67).
60B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Instrument Cluster
