fuse box FORD BRONCO 1988 Owners Manual

326 [SV40700(B )05/94]
twenty-two pica chart:0020396-F
*
[SV41300( ALL)10/92]
Power distribution box
*
[SV41400( ALL)10/92]
The high current fuses contained in the Power
Distribution Box protect your vehicle's main
electrical systems from overloads; these fuses
provide the connection between the battery and
your vehicle's electrical systems.
*
[SV41500( ALL)10/92]
The high current fuses are coded as follows: 30
amp -light green, 40 amp - orange, 50 amp - red,
60 amp -blue.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

327
*
[SV41600( ALL)05/95]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[SV41620( ALL)05/95]
Ford recommends that high current fuses be
replaced by a qualified technician.
*
[SV41700( ALL)03/93]
RWARNING
Always replace the cover to the Power
Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
*
[SV41800( ALL)04/95]
A blown high current fuse may be replaced but
will continue to blow until the cause of the
overload condition is corrected.
*
[SV41900( ALL)05/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

370 Index
Four-Wheel Drive vehicles (continued)
lever operated............ 189
special notice.............. 5
towing..............252±253
Four-wheeling with Ford supplement.... 5
French owner guides, how to obtain.... 3
Fuel
calculating fuel economy........ 289
capacity............... 344
choosing the right fuel......... 283
comparisons with EPA fuel economy
estimates.............. 289
filling your vehicle with fuel...... 281
filter, specifications.......... 346
fuel gauge............... 84
improving fuel economy........ 290
octane rating............. 284
quality................ 284
running out of fuel.......... 288
storing your vehicle.......... 352
treating emergencies.......... 286
Fuel cap
removing............... 282
replacing.............282, 288
Fuel filler door............. 282
Fuel filter, specifications......... 346
Fuel gauge................ 84
Fuel pump shut-off switch, starting after a
collision................ 69

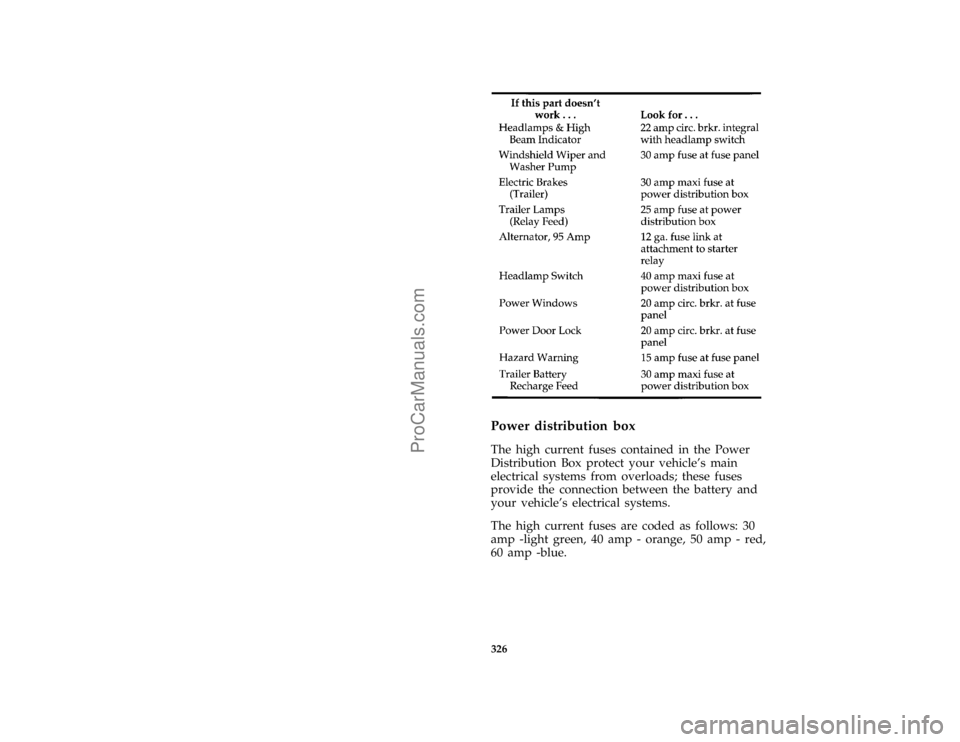

Fuse panels
instrument panel........... 323
power distribution box........ 326
Fuses
checking and replacing........ 330
circuit breakers............ 332
G
Gas cap (see Fuel cap).......... 281
Gas mileage (see Fuel economy) . . . 283, 289
Gasoline (see Fuel)............ 281
File:ltixb.ex
Update:Fri Jun 9 15:21:14 1995
ProCarManuals.com

Index 375
Overhead console
compass/temperature display..... 142
map lamps.............. 145
storage compartment......... 146
P
Panic alarm feature, remote entry system . 122
Parking brake
operation.............. 208
warning light.............. 76
Parts (see Motorcraft Parts)....... 346
PCV valve, specifications........ 346
Power distribution box (see Fuses).... 326
Power door locks............ 121
Power features
door locks.............. 121
lumbar support............ 134
mirrors............... 139
windows.............126±127
Power point electrical outlet....... 148
Power steering
dipstick............... 320
driving with power steering...... 187
fluid, checking and adding...... 320
fluid, refill capacity.......... 344
fluid, specifications.......... 321
servicing............... 187
Prop rod, hood............. 278
R
Radio (see Electronic sound systems) . . . 149
Rear axle
lubricant specification......... 347
traction lok............212, 305
Rearview mirror............ 136
Rear window.............. 126
defroster................ 97
Refill capacities for fluids........ 344
File:ltixb.ex
Update:Fri Jun 9 15:21:14 1995
ProCarManuals.com
