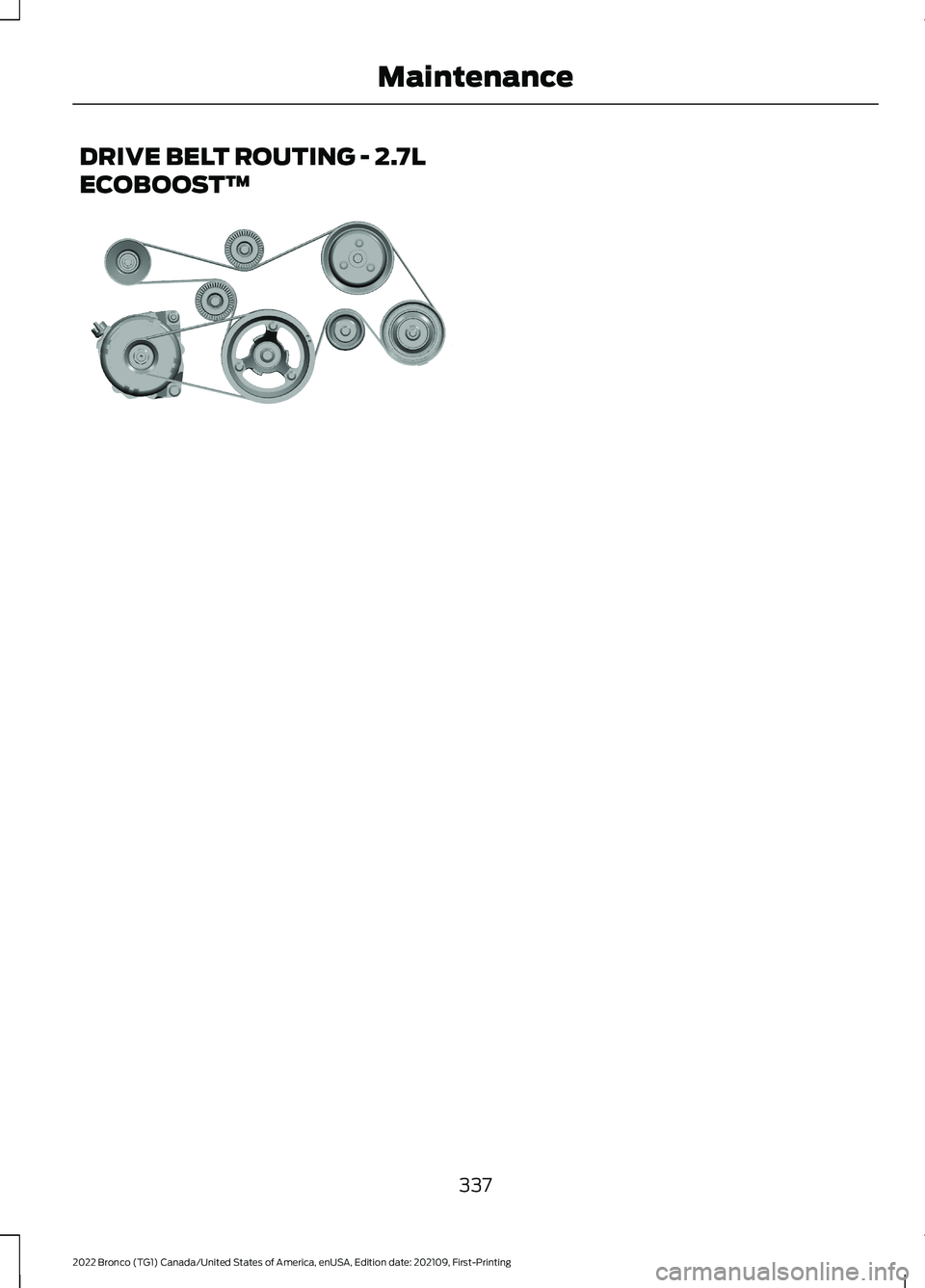

DRIVE BELT ROUTING - 2.7L
ECOBOOST™
337
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingMaintenanceE340713

REMOVABLE WINDOWS (IF
EQUIPPED)
REMOVABLE WINDOWSPRECAUTIONS
WARNING: Do not drive unless allrear windows are removed or securelyinstalled. Failure to follow theseinstructions could result in personalinjury.
Note:Use caution when moving or handlingthe windows. Do not drop the windows.
Note:Do not place the windows directly onhard or sharp surfaces. This could causedamage to the window.
REMOVING AND INSTALLING THEREAR QUARTER WINDOWS -VEHICLES WITH: SOFT TOP
The following procedure shows the driverside rear window, passenger side similar.

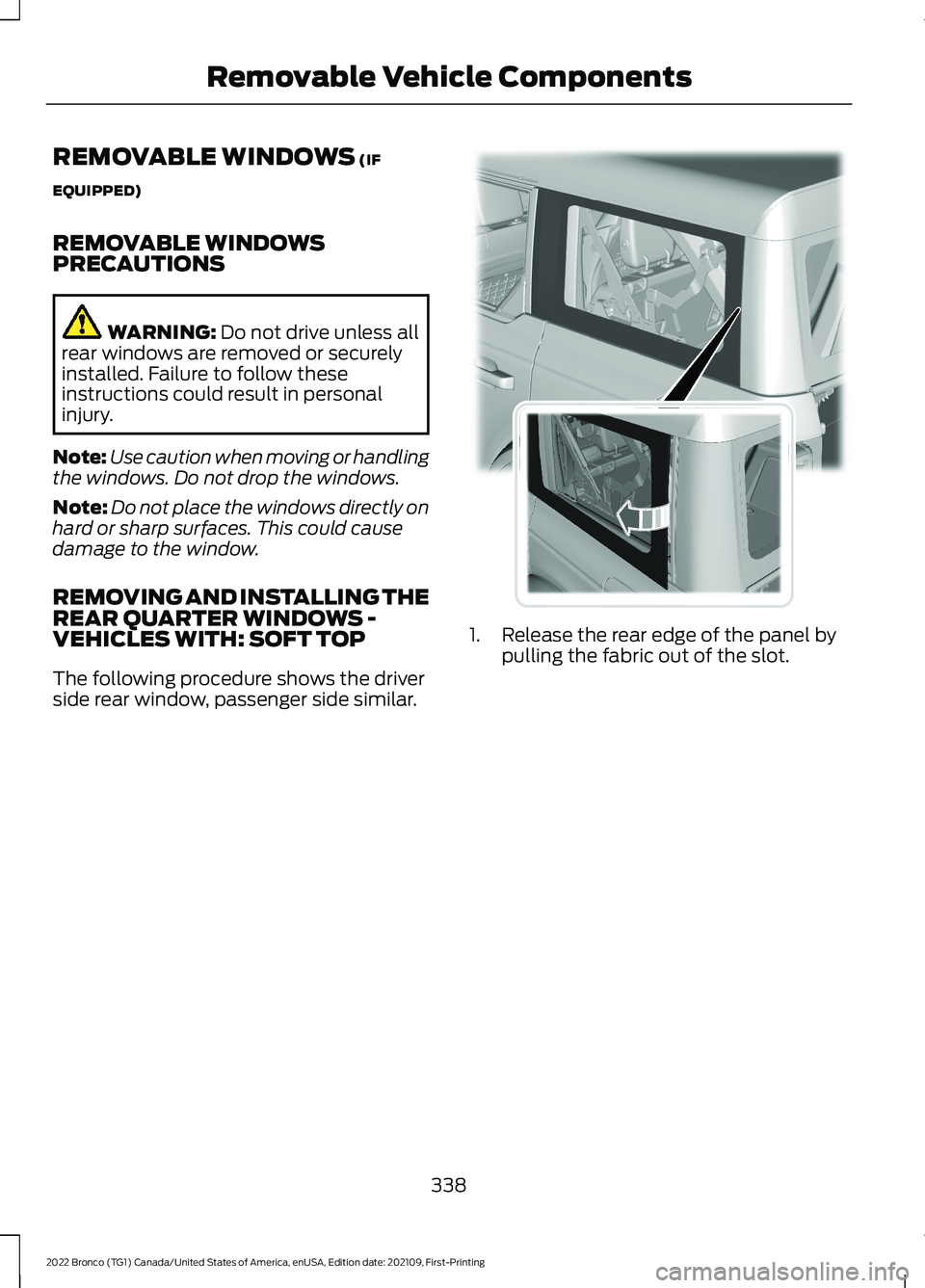

1.Release the rear edge of the panel bypulling the fabric out of the slot.
338
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRemovable Vehicle ComponentsE347134

2.Unbuckle the three clips at the top.
3.Release the front edge of the panel bypulling the fabric out of the slot toremove.
4.Slide the bottom panel forward out ofthe slot to remove.
5.To install the rear quarter window,perform the steps above in reverseorder.
6.When installing the rear quarterwindows, make sure the window istucked under the tension cable.
339
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRemovable Vehicle ComponentsE347135 E347136 E347137 E347138

Note:When installing the rear edge of therear quarter window into the slot, you canunlatch the soft top for easier installation.See Opening and Closing the Soft Top(page 354).
7.After installing the rear quarterwindows, press along the top of thewindow to secure the hook and loopfastener strips.
Note:The buckles snap together andwindows are flush when correctly installed.If the parts have visible gaps or stick outthey are not correctly secured.
REMOVING AND INSTALLING THEREAR WINDOW - VEHICLES WITH:SOFT TOP
1.If not already removed, remove the rearquarter windows. See Removing andInstalling the Rear QuarterWindows (page 338).
2.Release the hook and loop fastenerstrip along the top of the rear windowand flip the fabric upward.
3.Pull both bottom corners of thebacklight rearward to disengage theclips.
340
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRemovable Vehicle ComponentsE347139 E347143

4.Remove both top corners from theslots.5.Unbuckle the four clips at the top.
6.Make sure all clips are unbuckled. Grabthe plastic behind the fabric at thebottom corners of the backlight andthen slide the bottom left or right outof the slot to remove.
341
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRemovable Vehicle ComponentsE347144 E347145 E347146

7.To install the rear window, perform theabove steps in reverse order.
8.After installing the rear window, pressalong the top of the window to securethe hook and loop fastener strip.
Note:The buckles snap together andwindow is flush when correctly installed. Ifthe parts have visible gaps or stick out theyare not correctly secured.
REMOVABLE DOORS
REMOVING AND INSTALLING THEDOORS - VEHICLES WITHOUT:TUBE DOORS
Removing the Doors
WARNING: Removal of doors foroff-road use only. Removing the doorsfrom the vehicle will affect protectionprovided by the doors and may affectsafety system performance, includingsafety canopy and front seat mountedside airbags, during a crash or rollover.
WARNING: Vehicle needs to beturned off before reconnecting doors toverify all electrical connections havebeen properly connected. Failure tofollow these instructions may affectsafety system performance, includingsafety canopy and front seat mountedside airbags, during a crash or rollover.
1.Fully open the windows on the doorsyou are removing.
2.Switch your vehicle off.
3.Fold the mirrors toward the front ofyour vehicle before removing the frontdoors.
4.Fully open the door you are removing.
5.Locate the fender protector in the toolpouch and install it over the fenderedge near the top door hinge.
6.To release the door harness connector,open the connector door and pull theconnector straight out.
342
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRemovable Vehicle ComponentsE347147 E347602 E328722

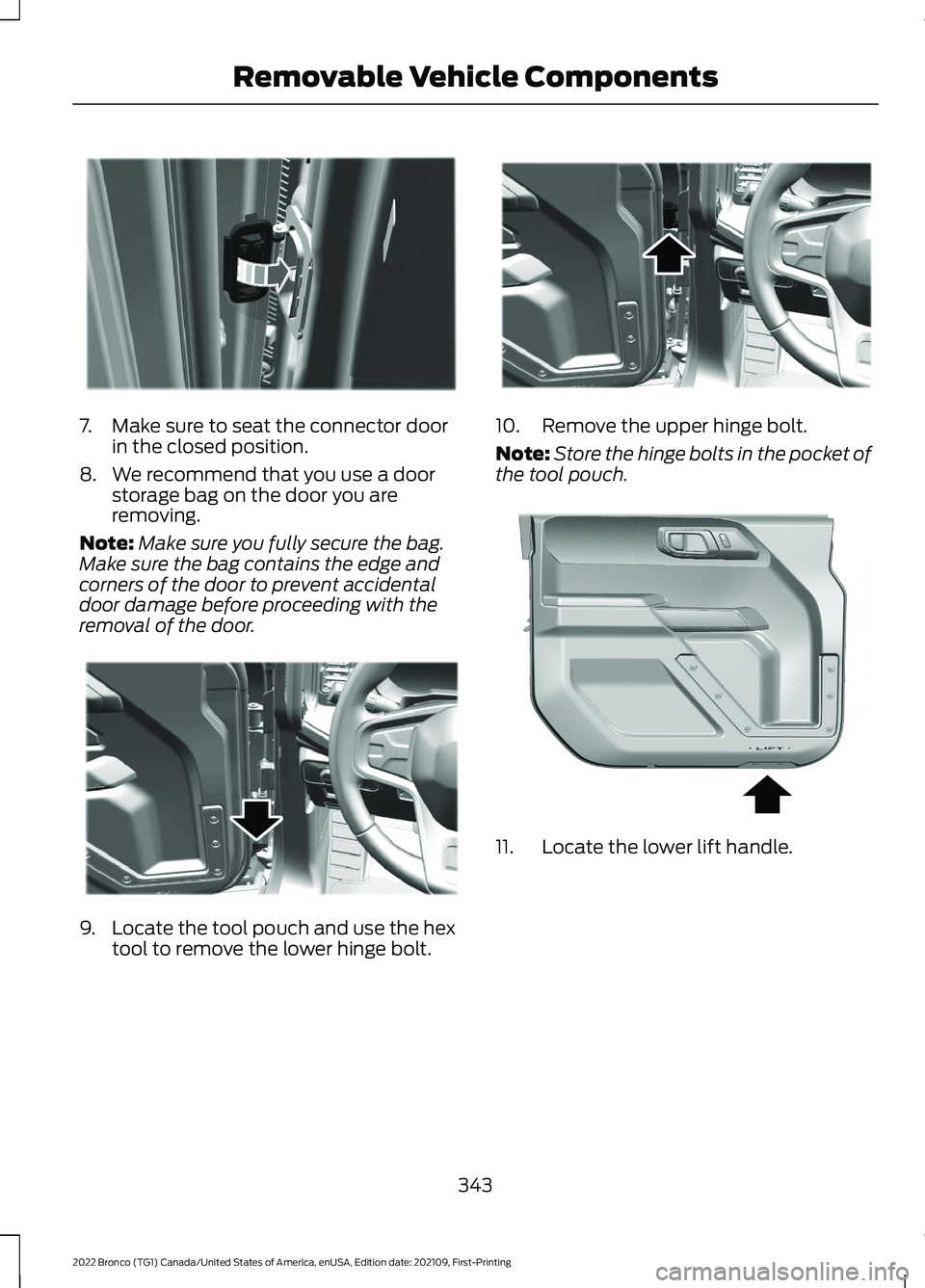

7.Make sure to seat the connector doorin the closed position.
8.We recommend that you use a doorstorage bag on the door you areremoving.
Note:Make sure you fully secure the bag.Make sure the bag contains the edge andcorners of the door to prevent accidentaldoor damage before proceeding with theremoval of the door.
9.Locate the tool pouch and use the hextool to remove the lower hinge bolt.
10.Remove the upper hinge bolt.
Note:Store the hinge bolts in the pocket ofthe tool pouch.
11.Locate the lower lift handle.
343
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRemovable Vehicle ComponentsE328724 E328730 E328731 E346853

12.Use the door handle as the upper lifthandle.
13.With the help of another person, liftthe door vertically to separate it fromthe vehicle.
Note:Use caution when removing the doorsas they are heavy.
Note:Store the doors out of the elementsto prevent damage.
14.To remove additional doors, repeatSteps 4 – 13.
15.Return the hex tool to the tool pouchand secure it in vehicle.
16.Return mirrors to the driving position.
Note:When you remove the doors, the rearseat occupant alert no longer functions.
Installing the Doors
1.Switch your vehicle off.
2.Fold the mirrors towards the front ofthe vehicle before installing the frontdoors.
3.Inspect and clean debris from thebodyside and door hinges.
4.If you are using a storage bag, unzip itfar enough to allow access to thehinges.
5.Locate the fender and door protectorsin the tool pouch. Install one over thefender edge near the upper door hingeand the other on the door edge nearthe bottom door hinge.
6.Locate the lower bodyside hinge andloosely install alignment pin by hand.
344
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRemovable Vehicle ComponentsE346854 E347604 E347537

7.Locate the upper door hinge portion.
8.Locate the upper bodyside hinge.
9.With the help of another person, lowerthe door onto the body hinges, aligningthe upper door portion to the upperbody pin and the lower door portion tothe alignment pin.
Note:Make sure you do not pinch the wiringconnector harness between the door andthe body of the vehicle.
10.Remove the lower alignment pin.
11.Hand start the hinge bolts to theupper and lower door hinges.
12.Use the hex tool to tighten the bolts.
Note:We recommend that you use a torquewrench to tighten the bolts to the required22 lb.ft (30 Nm) specification.
13.If using a storage bag, remove it fromthe door.
14.Open the harness connector door.
345
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRemovable Vehicle ComponentsE347540 E347538 E347242

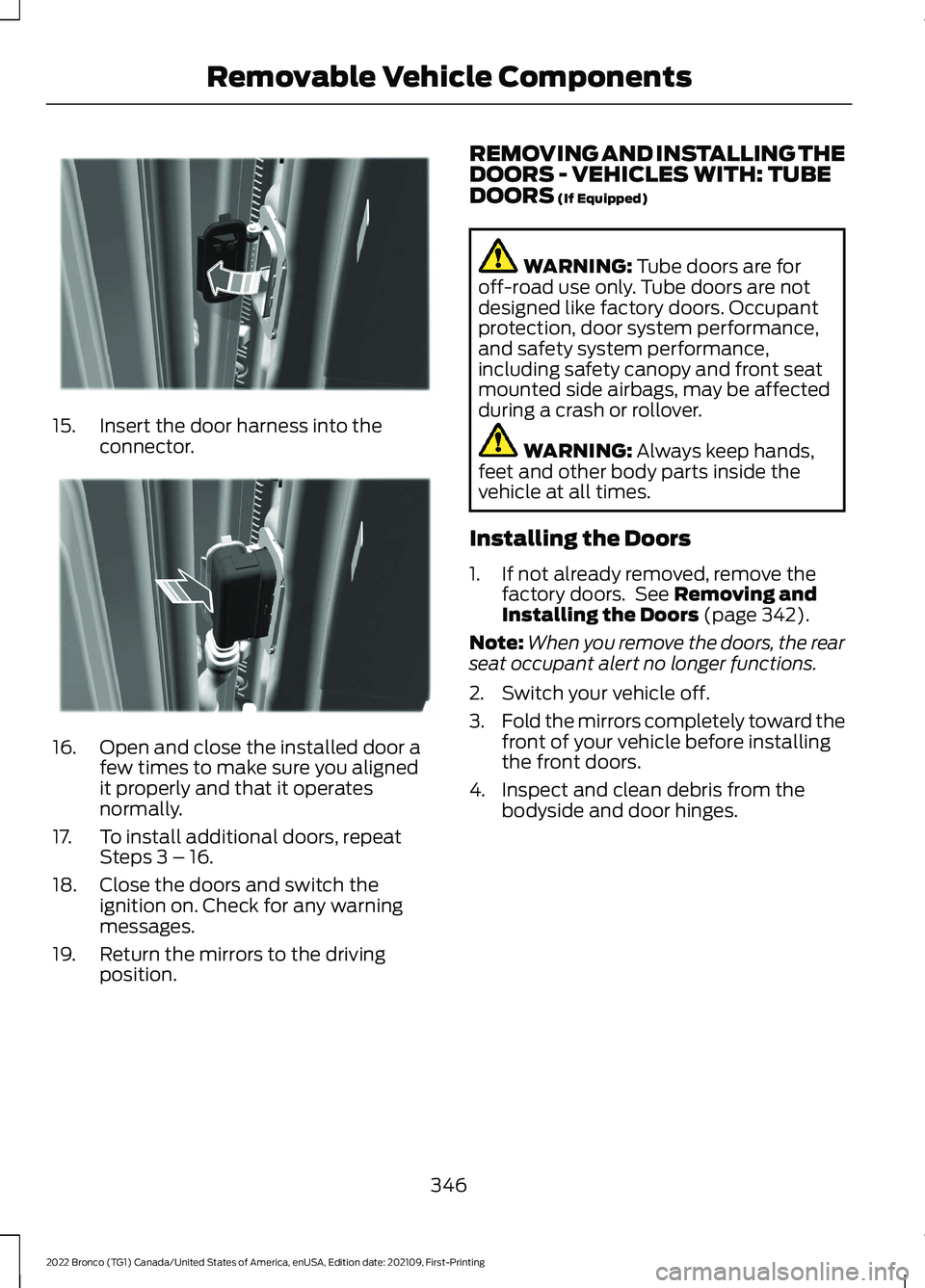

15.Insert the door harness into theconnector.
16.Open and close the installed door afew times to make sure you alignedit properly and that it operatesnormally.
17.To install additional doors, repeatSteps 3 – 16.
18.Close the doors and switch theignition on. Check for any warningmessages.
19.Return the mirrors to the drivingposition.
REMOVING AND INSTALLING THEDOORS - VEHICLES WITH: TUBEDOORS (If Equipped)
WARNING: Tube doors are foroff-road use only. Tube doors are notdesigned like factory doors. Occupantprotection, door system performance,and safety system performance,including safety canopy and front seatmounted side airbags, may be affectedduring a crash or rollover.
WARNING: Always keep hands,feet and other body parts inside thevehicle at all times.
Installing the Doors
1.If not already removed, remove thefactory doors. See Removing andInstalling the Doors (page 342).
Note:When you remove the doors, the rearseat occupant alert no longer functions.
2.Switch your vehicle off.
3.Fold the mirrors completely toward thefront of your vehicle before installingthe front doors.
4.Inspect and clean debris from thebodyside and door hinges.
346
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRemovable Vehicle ComponentsE328723 E328726
