bulb FORD BRONCO 2022 Owners Manual

Engine Oil.......................................................323
Checking the Coolant...............................324
Changing the Engine Air Filter...............328
Changing the Fuel Filter...........................329
12V Battery....................................................329
12V Battery – Troubleshooting..............330
Changing the 12V Battery.........................331
Adjusting the Headlamps........................333
Exterior Bulbs...............................................334
Interior Bulbs................................................336
Drive Belt Routing - 2.3L EcoBoost™........................................................................336
Drive Belt Routing - 2.7L EcoBoost™........................................................................337
Removable VehicleComponents
Removable Windows................................338
Removable Doors.......................................342
Removable Roof Panels..........................350
Removable Hard Top................................354
Removable Soft Top.................................354
Removable Fenders..................................358
Storing the Doors and the Roof Panels -4-Door........................................................360
Storing the Roof Panels - 2-Door.........366
Vehicle Care
Cleaning Products.....................................368
Cleaning the Exterior.................................368
Cleaning the Interior....................................371
Repairing Minor Paint Damage..............373
Waxing Your Vehicle...................................373
Storing Your Vehicle
Preparing Your Vehicle for Storage......374
Removing Your Vehicle From Storage........................................................................375
Wheel and Tire Information
Locating the Tire label..............................376
Department of Transportation UniformTire Quality Grades................................376
Information on the Tire Sidewall...........377
Glossary of Tire Terminology.................382
Tire Replacement Requirements.........383
Using Snow Chains....................................385
Tire Care
Checking the Tire Pressures...................387
Inflating the Tires........................................387
Inspecting the Tire for Wear...................388
Inspecting the Tire for Damage............388
Inspecting the Wheel Valve Stems......389
Tire Rotation................................................389
Tire Pressure MonitoringSystem
What Is the Tire Pressure MonitoringSystem........................................................391
Tire Pressure Monitoring SystemOverview.....................................................391
Tire Pressure Monitoring SystemPrecautions...............................................392
Tire Pressure Monitoring SystemLimitations................................................392
Viewing the Tire Pressures......................393
Tire Pressure Monitoring System –Troubleshooting......................................393
Changing a Road Wheel
Changing a Flat Tire..................................395
Wheel Nuts..................................................400
Capacities and Specifications
Engine Specifications - 2.3L EcoBoost™........................................................................401
Engine Specifications - 2.7L EcoBoost™........................................................................402
11
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingTable of Contents

INSTRUMENT CLUSTER
WARNING LAMPS
Anti-Lock Brake System
If it illuminates when you aredriving, this indicates amalfunction. Your vehiclecontinues to have normal braking withoutthe anti-lock brake system function. Haveyour vehicle checked as soon as possible.
Battery
It illuminates when you switchthe ignition on.
If it illuminates when the engineis running this indicates a malfunction.Have your vehicle checked as soon aspossible.
Brake System Warning Lamp
It illuminates when you apply theparking brake and the ignition ison. If it illuminates when yourvehicle is moving, make sure theparking brake is released. If theparking brake is released, thisindicates low brake fluid level or the brakesystem requires service. Have your vehiclechecked as soon as possible.
Note:Indicators may vary depending onregion.
Door Ajar
It illuminates when you switchthe ignition on and remains on ifany door is open.
Electric Park Brake
It illuminates or flashes when theelectric parking brake requiresservice.
Note:Indicators may vary depending onregion.
Engine Coolant Temperature
If it illuminates, safely stop yourvehicle and switch your vehicleoff.
Fasten Seatbelt
It illuminates and a tone soundsuntil you fasten the seatbelts.
Hood Ajar
It illuminates when the ignitionis on and the hood is notcompletely closed.
Low Beam Warning
Illuminates when the low beamheadlamp bulb requires service.Have the system checked assoon as possible.
Low Fuel Level
It illuminates when the fuel levelis low.
Low Tire Pressure
It illuminates when your tirepressure is low. If illuminated,check your tire pressure as soonas possible. If it begins to flash at anytime,have the system checked as soon aspossible.
109
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingInstrument Cluster E270480 E340898 E325775 E71880 E324249 E325579

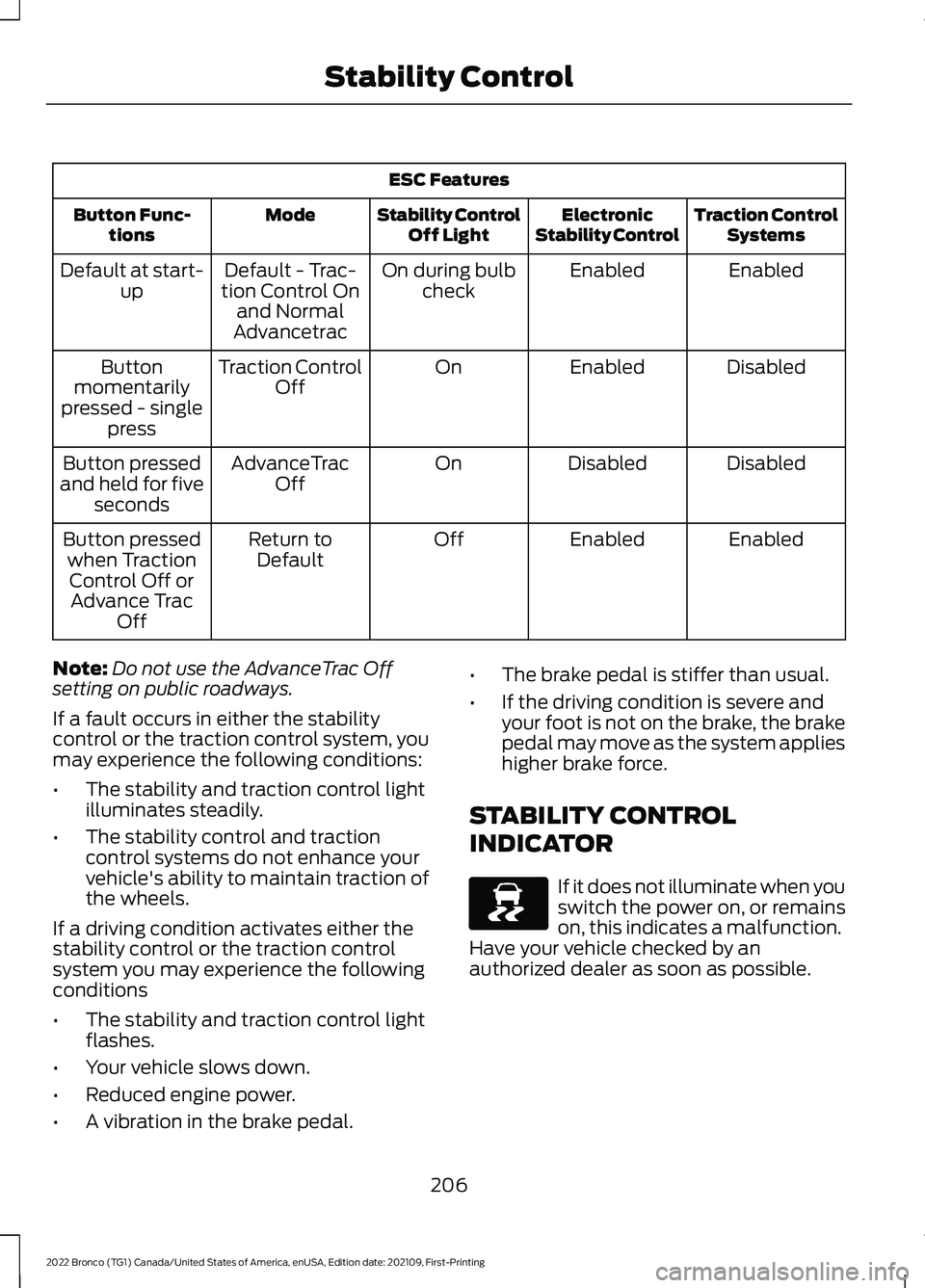

ESC Features
Traction ControlSystemsElectronicStability ControlStability ControlOff LightModeButton Func-tions
EnabledEnabledOn during bulbcheckDefault - Trac-tion Control Onand NormalAdvancetrac
Default at start-up
DisabledEnabledOnTraction ControlOffButtonmomentarilypressed - singlepress
DisabledDisabledOnAdvanceTracOffButton pressedand held for fiveseconds
EnabledEnabledOffReturn toDefaultButton pressedwhen TractionControl Off orAdvance TracOff
Note:Do not use the AdvanceTrac Offsetting on public roadways.
If a fault occurs in either the stabilitycontrol or the traction control system, youmay experience the following conditions:
•The stability and traction control lightilluminates steadily.
•The stability control and tractioncontrol systems do not enhance yourvehicle's ability to maintain traction ofthe wheels.
If a driving condition activates either thestability control or the traction controlsystem you may experience the followingconditions
•The stability and traction control lightflashes.
•Your vehicle slows down.
•Reduced engine power.
•A vibration in the brake pedal.
•The brake pedal is stiffer than usual.
•If the driving condition is severe andyour foot is not on the brake, the brakepedal may move as the system applieshigher brake force.
STABILITY CONTROL
INDICATOR
If it does not illuminate when youswitch the power on, or remainson, this indicates a malfunction.Have your vehicle checked by anauthorized dealer as soon as possible.
206
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingStability ControlE138639

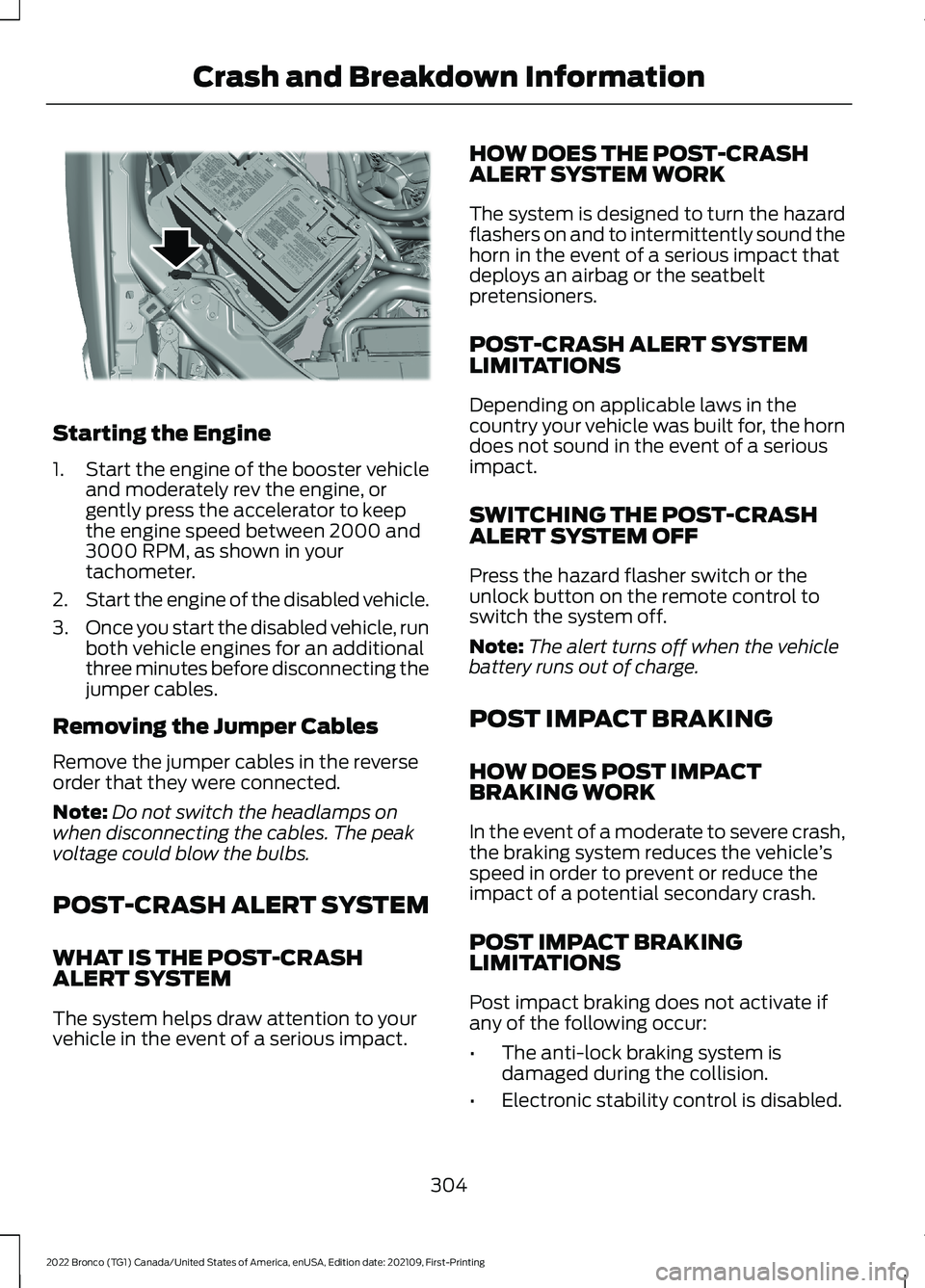

Starting the Engine
1.Start the engine of the booster vehicleand moderately rev the engine, orgently press the accelerator to keepthe engine speed between 2000 and3000 RPM, as shown in yourtachometer.
2.Start the engine of the disabled vehicle.
3.Once you start the disabled vehicle, runboth vehicle engines for an additionalthree minutes before disconnecting thejumper cables.
Removing the Jumper Cables
Remove the jumper cables in the reverseorder that they were connected.
Note:Do not switch the headlamps onwhen disconnecting the cables. The peakvoltage could blow the bulbs.
POST-CRASH ALERT SYSTEM
WHAT IS THE POST-CRASHALERT SYSTEM
The system helps draw attention to yourvehicle in the event of a serious impact.
HOW DOES THE POST-CRASHALERT SYSTEM WORK
The system is designed to turn the hazardflashers on and to intermittently sound thehorn in the event of a serious impact thatdeploys an airbag or the seatbeltpretensioners.
POST-CRASH ALERT SYSTEMLIMITATIONS
Depending on applicable laws in thecountry your vehicle was built for, the horndoes not sound in the event of a seriousimpact.
SWITCHING THE POST-CRASHALERT SYSTEM OFF
Press the hazard flasher switch or theunlock button on the remote control toswitch the system off.
Note:The alert turns off when the vehiclebattery runs out of charge.
POST IMPACT BRAKING
HOW DOES POST IMPACTBRAKING WORK
In the event of a moderate to severe crash,the braking system reduces the vehicle’sspeed in order to prevent or reduce theimpact of a potential secondary crash.
POST IMPACT BRAKINGLIMITATIONS
Post impact braking does not activate ifany of the following occur:
•The anti-lock braking system isdamaged during the collision.
•Electronic stability control is disabled.
304
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingCrash and Breakdown InformationE309115

7.Close the hood and turn off the lamps.
Horizontal Aim Adjustment
Horizontal aim is not required for thisvehicle and is not adjustable.

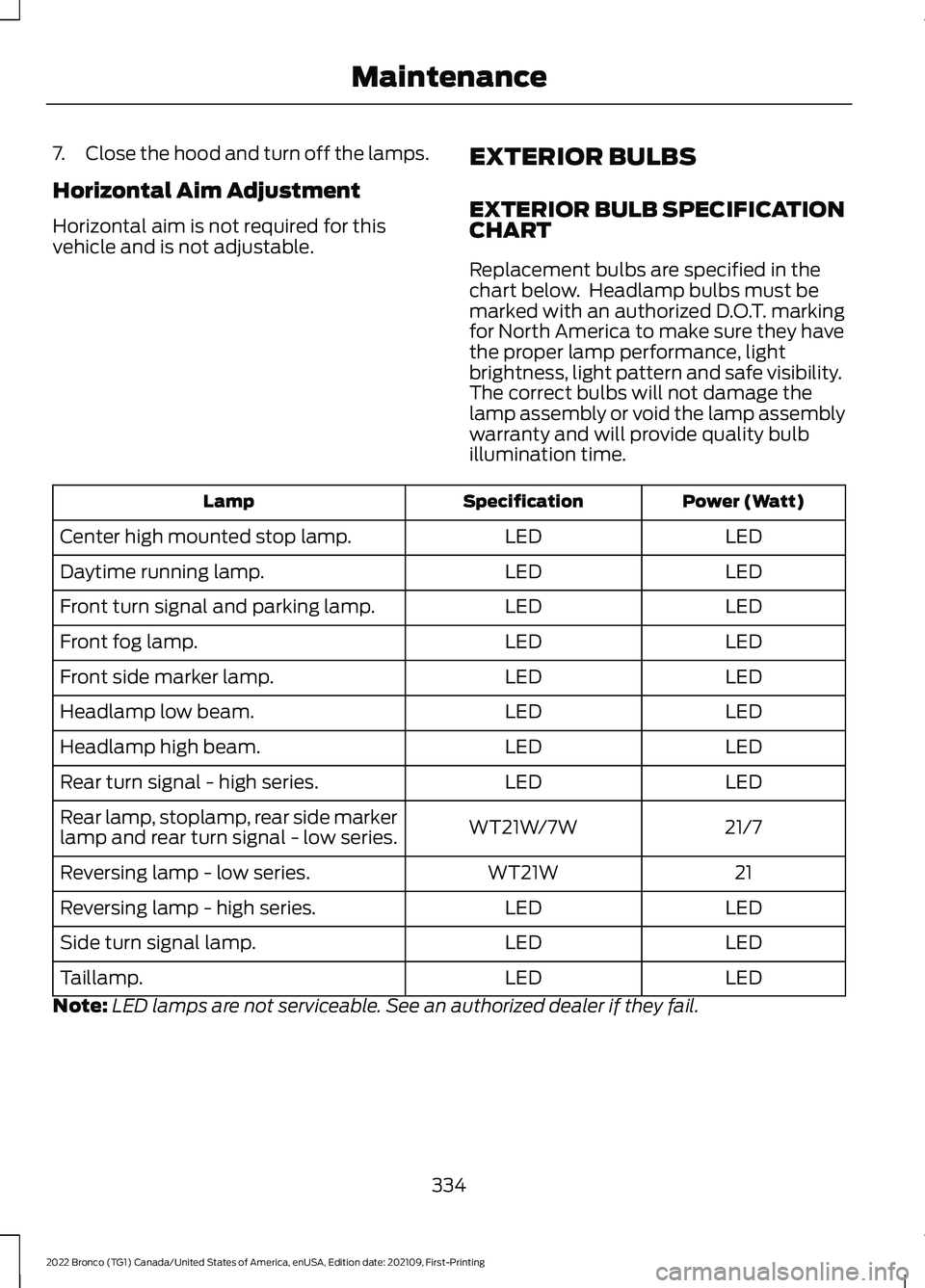

EXTERIOR BULBS
EXTERIOR BULB SPECIFICATIONCHART
Replacement bulbs are specified in thechart below. Headlamp bulbs must bemarked with an authorized D.O.T. markingfor North America to make sure they havethe proper lamp performance, lightbrightness, light pattern and safe visibility.The correct bulbs will not damage thelamp assembly or void the lamp assemblywarranty and will provide quality bulbillumination time.
Power (Watt)SpecificationLamp
LEDLEDCenter high mounted stop lamp.
LEDLEDDaytime running lamp.
LEDLEDFront turn signal and parking lamp.
LEDLEDFront fog lamp.
LEDLEDFront side marker lamp.
LEDLEDHeadlamp low beam.
LEDLEDHeadlamp high beam.
LEDLEDRear turn signal - high series.
21/7WT21W/7WRear lamp, stoplamp, rear side markerlamp and rear turn signal - low series.
21WT21WReversing lamp - low series.
LEDLEDReversing lamp - high series.
LEDLEDSide turn signal lamp.
LEDLEDTaillamp.
Note:LED lamps are not serviceable. See an authorized dealer if they fail.
334
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingMaintenance

7.Remove the three retaining boltssecuring the rear lamp to the body.
Note:Remove and install the retaining boltnear the wheel well before the retainingbolts near the luggage compartment.
8.Pull the rear lamp away from thevehicle and disconnect the electricalconnectors as needed.
9.To install, reverse the removalprocedure.
CHANGING A REAR LAMP BULB
Stoplamp, rear and turn signalbulb.A.
Reversing lamp bulb.B.
1.Remove the rear lamp assembly. SeeRemoving a Rear Lamp Assembly(page 335).
2.Rotate the bulb socketcounterclockwise and remove it fromthe rear lamp assembly.
3.To install, reverse the removalprocedure.
INTERIOR BULBS
INTERIOR BULB SPECIFICATIONCHART
Your vehicle has LED lamps. These are notserviceable items. See an authorized dealerif they fail.
DRIVE BELT ROUTING - 2.3L
ECOBOOST™
Short drive belt is on the secondpulley groove farthest fromengine.
A.
Long drive belt is on the firstpulley groove closest to engine.B.
336
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingMaintenanceABE339583 BAE357477

Driver Alert – Troubleshooting................270Driver Alert – Information Messages..........270Driving Economically.................................299Driving Hints..................................................290Off-Road Driving...............................................290
E
Electric Parking Brake AudibleWarning.........................................................199Electric Parking Brake.................................198Electric Parking Brake –Troubleshooting.............................................199Electric Parking Brake –Troubleshooting........................................199Electric Parking Brake – InformationMessages........................................................200Electric Parking Brake – WarningLamps................................................................199Electric Power Steering..............................219Electric Power Steering Precautions...........219How Does Electric Power SteeringWork....................................................................219Electromagnetic Compatibility..............533Electronic Locking Differential................190Electronic Locking Differential –Troubleshooting.............................................192Electronic Locking DifferentialIndicators.......................................................191Electronic Locking Differential –Troubleshooting.........................................192Electronic Locking Differential –Information Messages.................................192Emergency Call Limitations.......................68Emergency Call Requirements.................68Emergency Call System Data....................25Emergency Towing........................................311Emission Law................................................530Enabling Apps on an AndroidDevice...........................................................444Enabling Apps on an iOS Device...........444Enabling Remote Start................................115End User License Agreement.................505Engine Block Heater....................................153Engine Block Heater Precautions.................153How Does the Engine Block HeaterWork....................................................................153Using the Engine Block Heater......................154
Engine Coolant TemperatureGauge............................................................108Engine Oil Capacity and Specification -2.3L EcoBoost™.......................................405Engine Oil Capacity and Specification -2.7L EcoBoost™.......................................406Engine Oil........................................................323Adding Engine Oil...............................................323Checking the Engine Oil Level.......................323Engine Oil Capacity andSpecification...................................................324Engine Oil Dipstick Overview.........................323Resetting the Engine Oil ChangeReminder..........................................................324Engine Specifications - 2.3LEcoBoost™.................................................401Engine Specifications - 2.7LEcoBoost™.................................................402Evasive Steering Assist.............................266Evasive Steering Assist Limitations............267Switching Evasive Steering Assist On andOff.......................................................................267What Is Evasive Steering Assist...................266Event Data.........................................................23Export Unique Options...............................531Exterior Bulbs................................................334Changing a Rear Lamp Bulb.........................336Exterior Bulb Specification Chart................334Removing a Rear Lamp Assembly..............335Exterior Lamps................................................95Exterior Lamp Audible Warning......................97Exterior Lamp Indicators...................................96Switching the Daytime Running Lamps Onand Off................................................................95Switching the Front Fog Lamps On andOff.........................................................................96Switching the Spot Lamps On andOff.........................................................................96Switching the Turn Signal Lamps On andOff.........................................................................95Exterior Lighting Control.............................94Exterior Lighting.............................................94Autolamps..............................................................95Automatic High Beam Control.......................98Automatic High Beam Control –Troubleshooting............................................100Exterior Lamps......................................................95Exterior Zone Lighting.........................................97
542
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingIndex

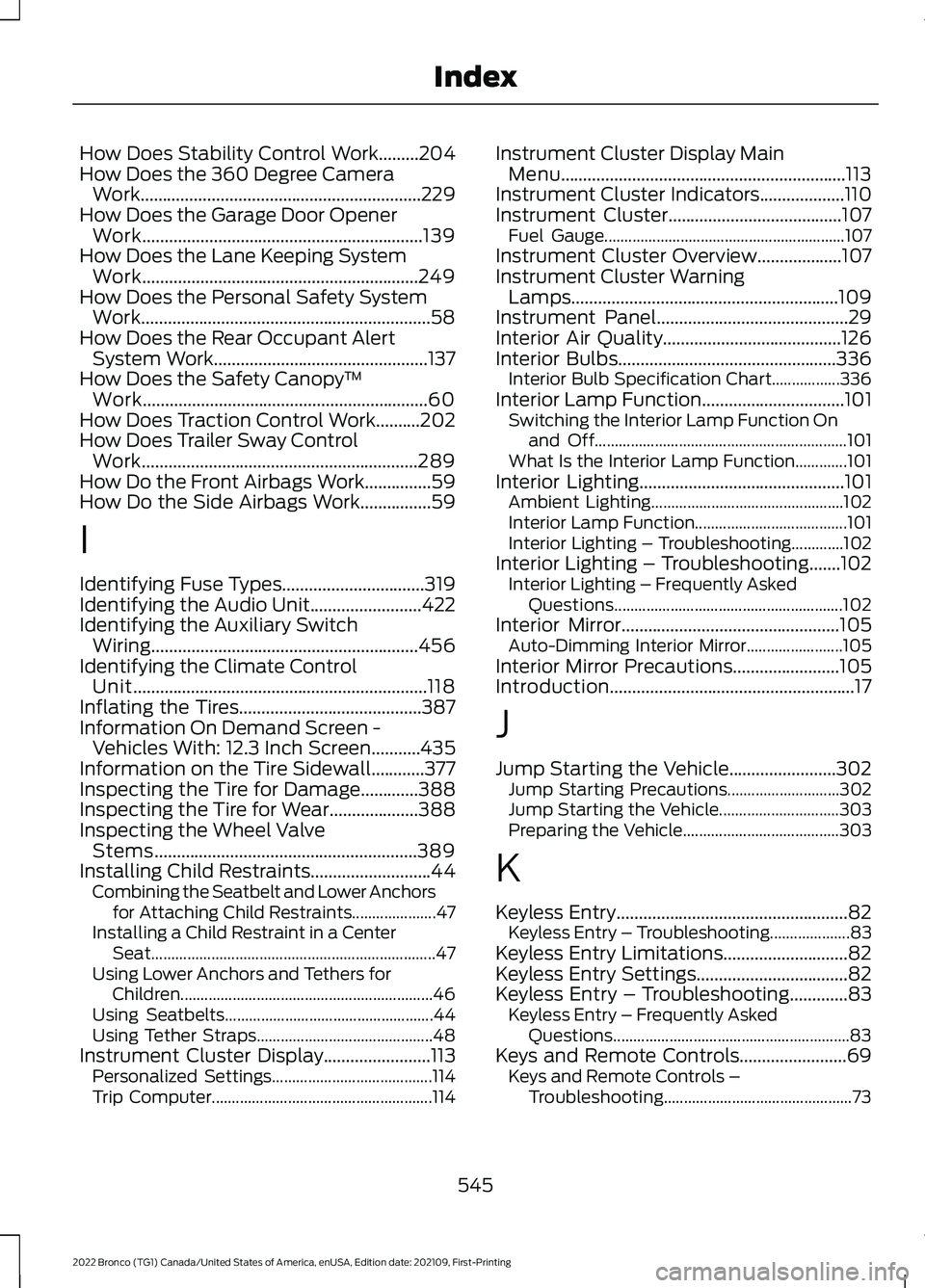

How Does Stability Control Work.........204How Does the 360 Degree CameraWork...............................................................229How Does the Garage Door OpenerWork...............................................................139How Does the Lane Keeping SystemWork..............................................................249How Does the Personal Safety SystemWork.................................................................58How Does the Rear Occupant AlertSystem Work................................................137How Does the Safety Canopy™Work................................................................60How Does Traction Control Work..........202How Does Trailer Sway ControlWork..............................................................289How Do the Front Airbags Work...............59How Do the Side Airbags Work................59
I
Identifying Fuse Types................................319Identifying the Audio Unit.........................422Identifying the Auxiliary SwitchWiring............................................................456Identifying the Climate ControlUnit..................................................................118Inflating the Tires.........................................387Information On Demand Screen -Vehicles With: 12.3 Inch Screen...........435Information on the Tire Sidewall............377Inspecting the Tire for Damage.............388Inspecting the Tire for Wear....................388Inspecting the Wheel ValveStems...........................................................389Installing Child Restraints...........................44Combining the Seatbelt and Lower Anchorsfor Attaching Child Restraints.....................47Installing a Child Restraint in a CenterSeat.......................................................................47Using Lower Anchors and Tethers forChildren...............................................................46Using Seatbelts....................................................44Using Tether Straps............................................48Instrument Cluster Display........................113Personalized Settings........................................114Trip Computer.......................................................114
Instrument Cluster Display MainMenu................................................................113Instrument Cluster Indicators...................110Instrument Cluster.......................................107Fuel Gauge............................................................107Instrument Cluster Overview...................107Instrument Cluster WarningLamps............................................................109Instrument Panel...........................................29Interior Air Quality........................................126Interior Bulbs.................................................336Interior Bulb Specification Chart.................336Interior Lamp Function................................101Switching the Interior Lamp Function Onand Off...............................................................101What Is the Interior Lamp Function.............101Interior Lighting..............................................101Ambient Lighting................................................102Interior Lamp Function......................................101Interior Lighting – Troubleshooting.............102Interior Lighting – Troubleshooting.......102Interior Lighting – Frequently AskedQuestions.........................................................102Interior Mirror.................................................105Auto-Dimming Interior Mirror........................105Interior Mirror Precautions........................105Introduction.......................................................17
J
Jump Starting the Vehicle........................302Jump Starting Precautions............................302Jump Starting the Vehicle..............................303Preparing the Vehicle.......................................303
K
Keyless Entry....................................................82Keyless Entry – Troubleshooting....................83Keyless Entry Limitations............................82Keyless Entry Settings..................................82Keyless Entry – Troubleshooting.............83Keyless Entry – Frequently AskedQuestions...........................................................83Keys and Remote Controls........................69Keys and Remote Controls –Troubleshooting...............................................73
545
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingIndex

Keys and Remote Controls –Troubleshooting...........................................73Keys and Remote Controls – InformationMessages............................................................73
L
Lane Keeping System Indicators...........252Lane Keeping System................................249Aid Mode................................................................251Alert and Aid Mode............................................251Alert Mode...........................................................250Lane Keeping System –Troubleshooting............................................253Lane Keeping System Limitations........249Lane Keeping SystemPrecautions.................................................249Lane Keeping System –Troubleshooting........................................253Lane Keeping System – Frequently AskedQuestions........................................................254Lane Keeping System – InformationMessages.........................................................253Launching or Retrieving a Boat orPersonal Watercraft................................286Live Traffic......................................................447Switching Live Traffic On and Off................447What Is Live Traffic............................................447Load Carrying..................................................271Fender Anchor Points.......................................279Roof Rack..............................................................276Load Carrying Precautions........................271Loading Your Trailer....................................284Locating the 360 DegreeCameras.......................................................230Locating the Auxiliary Switches.............454Locating the Auxiliary SwitchWiring............................................................454Locating the Blind Spot InformationSystem Sensors.........................................257Locating the Brake Fluid Reservoir - 2.3LEcoBoost™..................................................194Locating the Brake Fluid Reservoir - 2.7LEcoBoost™..................................................194Locating the Cross Traffic AlertSensors........................................................260Locating the Fuel Filler Funnel.................167Locating the Power Outlets......................145
Locating the Pre-Collision AssistSensors.........................................................264Locating the Rear View Camera............226Locating the Safety ComplianceCertification Labels..................................272Locating the Tire label...............................376Locating the USB Ports..............................143Locating the Wireless AccessoryCharger..........................................................148Locating Your Vehicle...................................70Locking and Unlocking the Tailgate........84Locking the Rear WindowControls........................................................104
M
Maintenance.................................................32012V Battery...........................................................32912V Battery – Troubleshooting.....................330Engine Oil..............................................................323Exterior Bulbs......................................................334Interior Bulbs.......................................................336Maintenance Precautions........................320Making and Receiving a PhoneCall................................................................440Manually Dimming the InteriorMirror..............................................................105Manually Releasing the Electric ParkingBrake..............................................................198Manually Shifting Gears.............................179Shifting Using the Buttons on the SelectorLever....................................................................179Manual Seats.................................................128Adjusting the Head Restraint.........................128Adjusting the Seat Backrest...........................130Folding the Seats................................................135Head Restraint Components.........................128Installing the Head Restraint.........................129Moving the Seat Backward andForward.............................................................129Removing the Head Restraint........................129Unfolding the Seats...........................................136Manual Transmission Fluid Capacity andSpecification................................................176Manual Transmission..................................174Crawler Gear.........................................................174Manual Transmission –Troubleshooting..............................................177
546
