Downloaded from www.Manualslib.com manuals search engine Introduction
About this handbook........................7
Symbols glossary..............................7
Parts and accessories......................7
Quick start
Quick start.........................................10
Child safety
Child seats........................................20
Child seat positioning......................21
Booster cushions............................23
ISOFIX anchor points......................24
Child safety locks............................26
Occupant protection
Principle of operation......................27
Fastening the seat belts.................31
Seat belt height adjustment..........33
Using seat belts duringpregnancy....................................33
Disabling the passengerairbag............................................33
Keys and remote
controls
General information on radiofrequencies..................................35
Programming the remotecontrol...........................................35
Changing the remote controlbattery...........................................36
Locks
Locking and unlocking...................40
Keyless entry...................................44
Global opening and closing...........50
Engine immobiliser
Principle of operation.....................52
Coded keys.....................................52
Arming the engine immobiliser.....52
Disarming the engineimmobiliser...................................52
Alarm
Arming the alarm.............................53
Disarming the alarm........................54
Steering wheel
Adjusting the steering wheel.........55
Horn..................................................55
Audio control...................................55
Voice control....................................57
Pedals
Adjusting the pedals.......................58
Wipers and washers
Windscreen wipers.........................59
Windscreen washers......................61
Rear window wiper andwashers.........................................61
Adjusting the windscreen washerjets.................................................62
Headlamp washers........................62
Checking the wiper blades...........63
Changing the wiper blades...........63
Lighting
Lighting control................................64
1
Table of contents

Downloaded from www.Manualslib.com manuals search engine WARNING
Do not operate the washer formore than 10 seconds at a time,and never when the reservoir isempty.
Note:On some models, to preventthe washer fluid reservoir frombecoming empty too quickly, theheadlamp washer will not beactivated with every press of thebutton. For a period of ten minutesafter activation, the washer will onlybe activated again with every fourthpress of the button.
The headlamp washers operatewhen the exterior lights are switchedon and the windscreen washer isused. The system is supplied fromthe washer fluid reservoir.
CHECKING THE WIPER
BLADES
Run the tip of your fingers over theedge of the blade to check forroughness.
Clean the wiper blade lips with waterapplied with a soft sponge.
CHANGING THE WIPER
BLADES
Windscreen wiper blades
Lift the wiper arm. Position the wiperblade at a right angle to the wiperarm. Remove the blade from the armand replace it.
Rear window wiper blades
Lift the wiper arm and position thewiper blade at a right angle to thewiper arm. To remove, press theretaining clip, disengage the wiperblade and pull it off the arm in theopposite direction.
63
Wipers and washersE66644 E78156

Downloaded from www.Manualslib.com manuals search engine A message will appear in theinformation display and the headlampindicator flashes if the systemmalfunctions. See Informationmessages (page 103). Theheadlamps will move to a fixedcentral or dipped position. Have thesystem checked as soon as possible.
69
Lighting

Downloaded from www.Manualslib.com manuals search engine CHANGING A BULB
WARNINGS
On vehicles fitted with Xenonheadlamps, have the headlampbulbs changed by an expert. Thereis a risk of injury due to high voltage.
During operation, the bulbs andtheir surroundings get hot.Switch off the lights and let the bulbscool down before replacing them.
Always switch off lights and ignitionbefore replacing any bulb.
Never touch the glass of the bulbs.Fit only bulbs having a UV filter.Always replace a faulty bulb with anew one of the same type. Afterreplacing a bulb, check that the lightsoperate correctly.
Headlamps, side lamps,direction indicators
Note:It is necessary to remove theheadlamp assembly to remove anyof the bulbs.
Removing the headlampassembly
Open the bonnet.
Remove the screw.
WARNING
When re-installing the lampassembly, make sure that thewiring connectors and retaining clipsare engaged properly.
Press down the retaining clips at therear of the lamp assembly using ascrewdriver and carefully pull out thelamp assembly.
74
LightingE78106 E78107

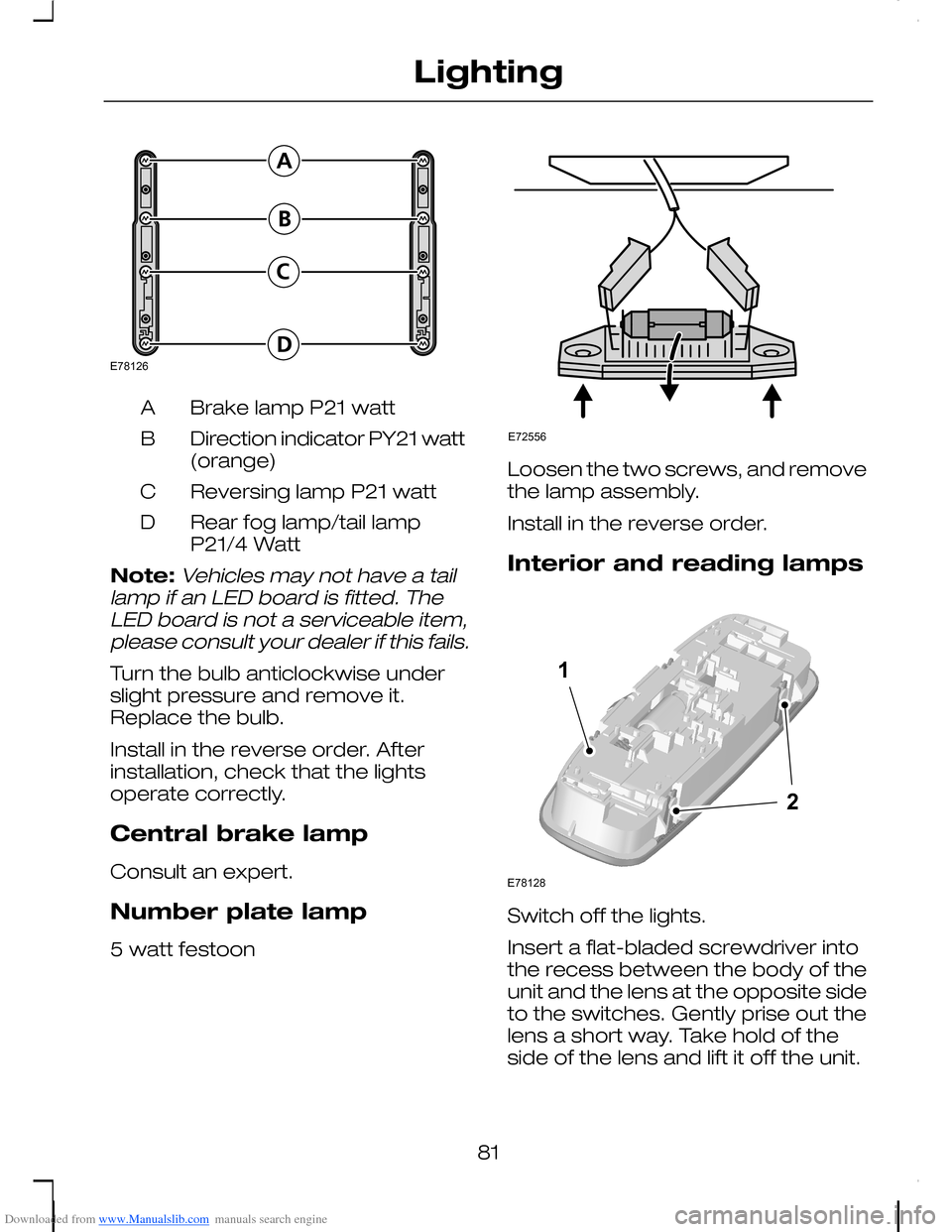

Downloaded from www.Manualslib.com manuals search engine Brake lamp P21 wattA
Direction indicator PY21 watt(orange)B
Reversing lamp P21 wattC
Rear fog lamp/tail lampP21/4 WattD
Note:Vehicles may not have a taillamp if an LED board is fitted. TheLED board is not a serviceable item,please consult your dealer if this fails.
Turn the bulb anticlockwise underslight pressure and remove it.Replace the bulb.
Install in the reverse order. Afterinstallation, check that the lightsoperate correctly.
Central brake lamp
Consult an expert.
Number plate lamp
5 watt festoon
Loosen the two screws, and removethe lamp assembly.
Install in the reverse order.
Interior and reading lamps
Switch off the lights.
Insert a flat-bladed screwdriver intothe recess between the body of theunit and the lens at the opposite sideto the switches. Gently prise out thelens a short way. Take hold of theside of the lens and lift it off the unit.
81
LightingE78126 E72556 E7812812

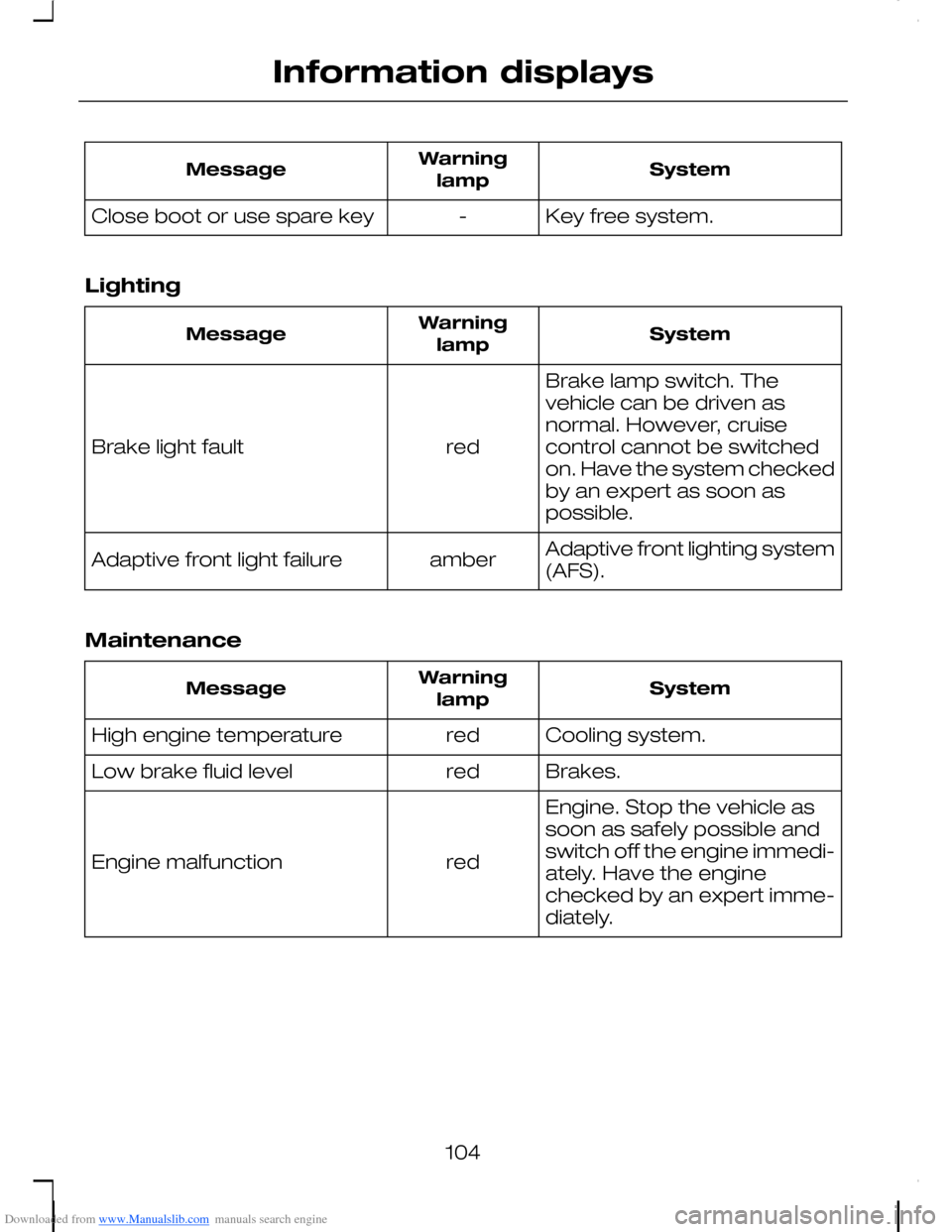

Downloaded from www.Manualslib.com manuals search engine SystemWarninglampMessage
Key free system.-Close boot or use spare key
Lighting
SystemWarninglampMessage
Brake lamp switch. Thevehicle can be driven asnormal. However, cruisecontrol cannot be switchedon. Have the system checkedby an expert as soon aspossible.
redBrake light fault
Adaptive front lighting system(AFS).amberAdaptive front light failure
Maintenance
SystemWarninglampMessage
Cooling system.redHigh engine temperature
Brakes.redLow brake fluid level
Engine. Stop the vehicle assoon as safely possible andswitch off the engine immedi-ately. Have the enginechecked by an expert imme-diately.
redEngine malfunction
104
Information displays

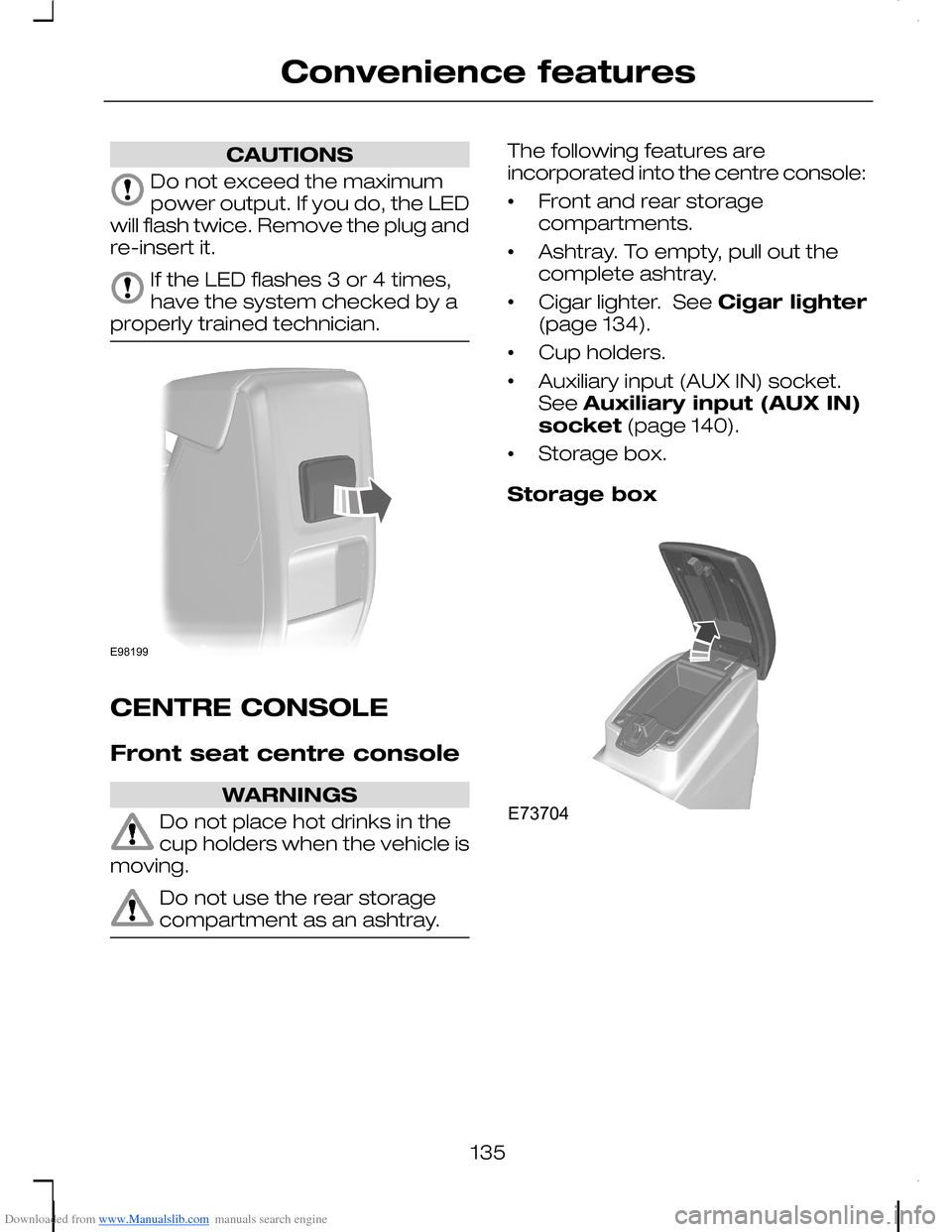

Downloaded from www.Manualslib.com manuals search engine CAUTIONS
Do not exceed the maximumpower output. If you do, the LEDwill flash twice. Remove the plug andre-insert it.
If the LED flashes 3 or 4 times,have the system checked by aproperly trained technician.
CENTRE CONSOLE
Front seat centre console
WARNINGS
Do not place hot drinks in thecup holders when the vehicle ismoving.
Do not use the rear storagecompartment as an ashtray.
The following features areincorporated into the centre console:
•Front and rear storagecompartments.
•Ashtray. To empty, pull out thecomplete ashtray.
•Cigar lighter. See Cigar lighter(page 134).
•Cup holders.
•Auxiliary input (AUX IN) socket.See Auxiliary input (AUX IN)socket (page 140).
•Storage box.
Storage box
135
Convenience featuresE98199 E73704

Downloaded from www.Manualslib.com manuals search engine WARNINGS
Always check that the steeringwheel lock is deactivated beforeattempting to move your vehicle.See Cigar lighter (page 134).
Note:A valid passive key must belocated inside the vehicle to switchthe ignition on and start the engine.
Note:To start your engine you mustalso fully depress the brake or clutchpedal, depending on the transmissionfitted.
Ignition on
Press the start button once. Allelectrical circuits are operational,warning lamps and indicatorsilluminate.
Starting with automatictransmission
CAUTION
Release the start button as soonas the engine starts.
Note:Releasing the start button orthe brake pedal during engine startwill stop the engine cranking andreturn to ignition on.
1.Make sure the transmission is inP or N.
2.Fully depress the brake pedal.
3.Press the start button.
Starting with manualtransmission
CAUTION
Release the start button as soonas the engine starts.
Note:Releasing the start button orthe clutch pedal during engine startwill stop the engine cranking andreturn to ignition on.
1.Fully depress the clutch pedal.
2.Press the start button.
Starting a diesel engine
Note:Engine cranking will notcommence until the engine glow plugcycle has been completed. This maytake several seconds in extremelycold conditions.
Note:Continue to press the startbutton and the clutch or brake pedaluntil engine cranking begins.
146
Starting the engineE85766

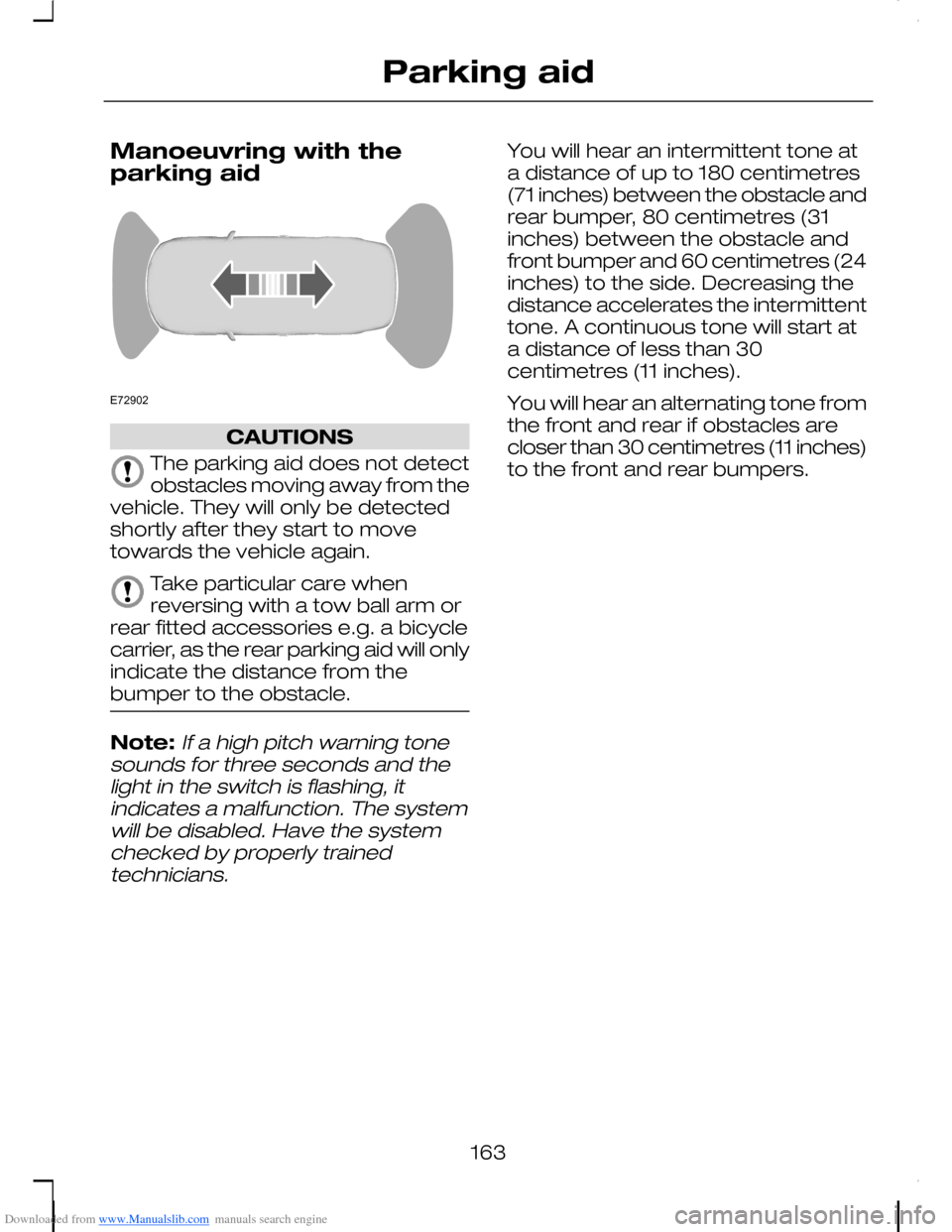

Downloaded from www.Manualslib.com manuals search engine Manoeuvring with theparking aid
CAUTIONS
The parking aid does not detectobstacles moving away from thevehicle. They will only be detectedshortly after they start to movetowards the vehicle again.
Take particular care whenreversing with a tow ball arm orrear fitted accessories e.g. a bicyclecarrier, as the rear parking aid will onlyindicate the distance from thebumper to the obstacle.
Note:If a high pitch warning tonesounds for three seconds and thelight in the switch is flashing, itindicates a malfunction. The systemwill be disabled. Have the systemchecked by properly trainedtechnicians.
You will hear an intermittent tone ata distance of up to 180 centimetres(71 inches) between the obstacle andrear bumper, 80 centimetres (31inches) between the obstacle andfront bumper and 60 centimetres (24inches) to the side. Decreasing thedistance accelerates the intermittenttone. A continuous tone will start ata distance of less than 30centimetres (11 inches).
You will hear an alternating tone fromthe front and rear if obstacles arecloser than 30 centimetres (11 inches)to the front and rear bumpers.
163
Parking aidE72902

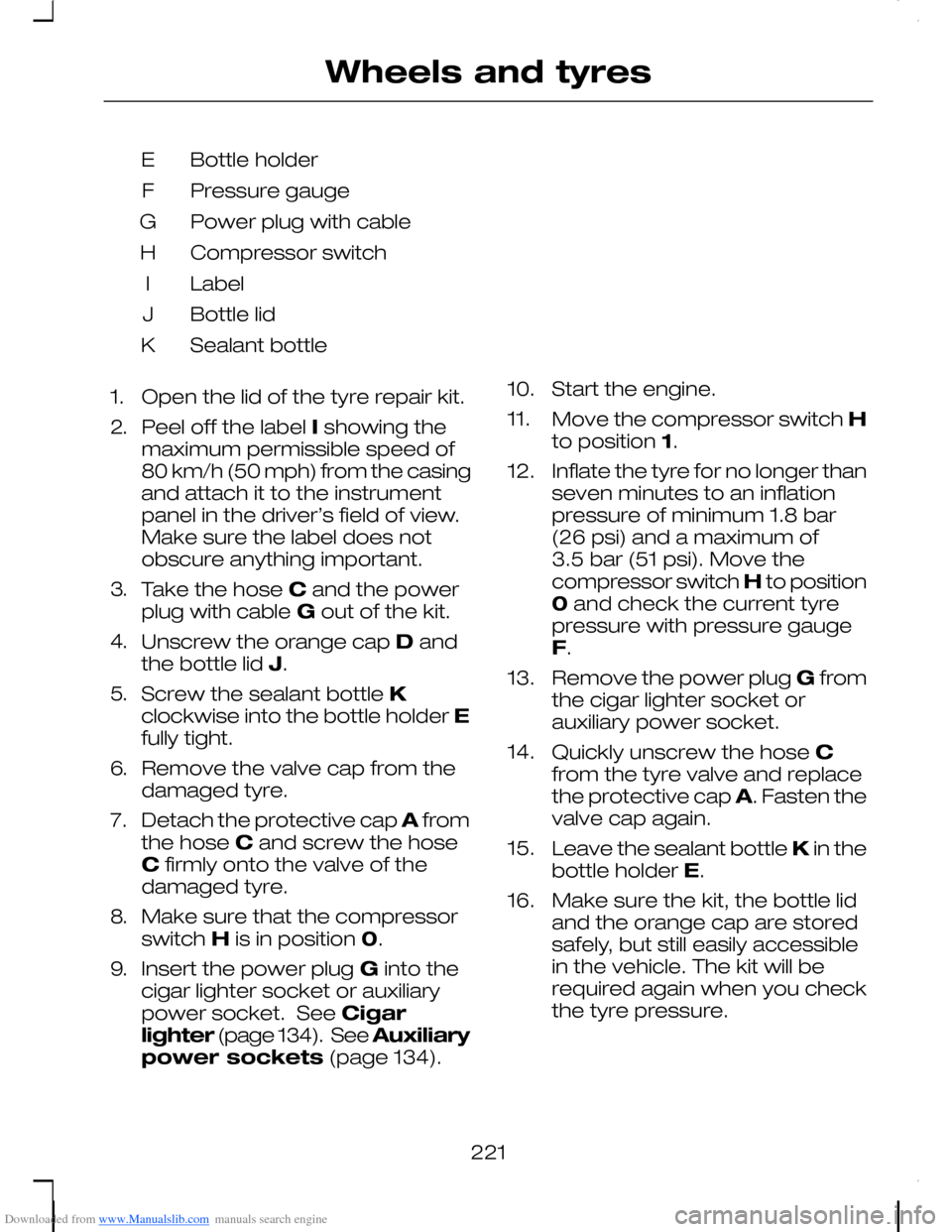

Downloaded from www.Manualslib.com manuals search engine Bottle holderE
Pressure gaugeF
Power plug with cableG
Compressor switchH
LabelI
Bottle lidJ
Sealant bottleK
1.Open the lid of the tyre repair kit.
2.Peel off the label I showing themaximum permissible speed of80 km/h (50 mph) from the casingand attach it to the instrumentpanel in the driver’s field of view.Make sure the label does notobscure anything important.
3.Take the hose C and the powerplug with cable G out of the kit.
4.Unscrew the orange cap D andthe bottle lid J.
5.Screw the sealant bottle Kclockwise into the bottle holder Efully tight.
6.Remove the valve cap from thedamaged tyre.
7.Detach the protective cap A fromthe hose C and screw the hoseC firmly onto the valve of thedamaged tyre.
8.Make sure that the compressorswitch H is in position 0.
9.Insert the power plug G into thecigar lighter socket or auxiliarypower socket. See Cigarlighter (page 134). See Auxiliarypower sockets (page 134).
10.Start the engine.
11.Move the compressor switch Hto position 1.
12.Inflate the tyre for no longer thanseven minutes to an inflationpressure of minimum 1.8 bar(26 psi) and a maximum of3.5 bar (51 psi). Move thecompressor switch H to position0 and check the current tyrepressure with pressure gaugeF.
13.Remove the power plug G fromthe cigar lighter socket orauxiliary power socket.
14.Quickly unscrew the hose Cfrom the tyre valve and replacethe protective cap A. Fasten thevalve cap again.
15.Leave the sealant bottle K in thebottle holder E.
16.Make sure the kit, the bottle lidand the orange cap are storedsafely, but still easily accessiblein the vehicle. The kit will berequired again when you checkthe tyre pressure.
221
Wheels and tyres
