fuse chart FORD C MAX 2008 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Fuel and refuelling
Safety precautions........................149
Fuel quality - Petrol........................149
Fuel quality - Flexible Fuel............149
Fuel quality - Diesel.......................150
Catalytic converter........................150
Fuel filler flap....................................151
Refuelling.........................................151
Fuel consumption..........................151
Technical specifications................152
Transmission
Manual transmission.....................154
Automatic transmission................154
Brakes
Principle of operation....................158
Hints on driving with ABS.............158
Parking brake.................................159
Stability control
Principle of operation....................160
Using stability control.....................161
Parking aid
Principle of operation....................162
Using the parking aid....................162
Cruise control
Principle of operation....................164
Using cruise control......................164
Automatic speed limiter
(ASL)
Principle of operation....................166
Load carrying
General information.......................167
Luggage covers.............................167
Rear under floor storage..............168
Towing
Towing a trailer...............................169
Detachable tow ball......................169
Driving hints
Running-in.......................................173
Emergency
equipment
First aid kit.......................................174
Warning triangle.............................174
Status after a
collision
Fuel cut-off switch.........................175
Inspecting safety systemcomponents...............................175
Fuses
Fuse box locations........................176
Changing a fuse.............................177
Fuse labels......................................177
Fuse specification chart................179
Vehicle recovery
Towing points.................................185
Towing the vehicle on fourwheels.........................................186
3
Table of contents

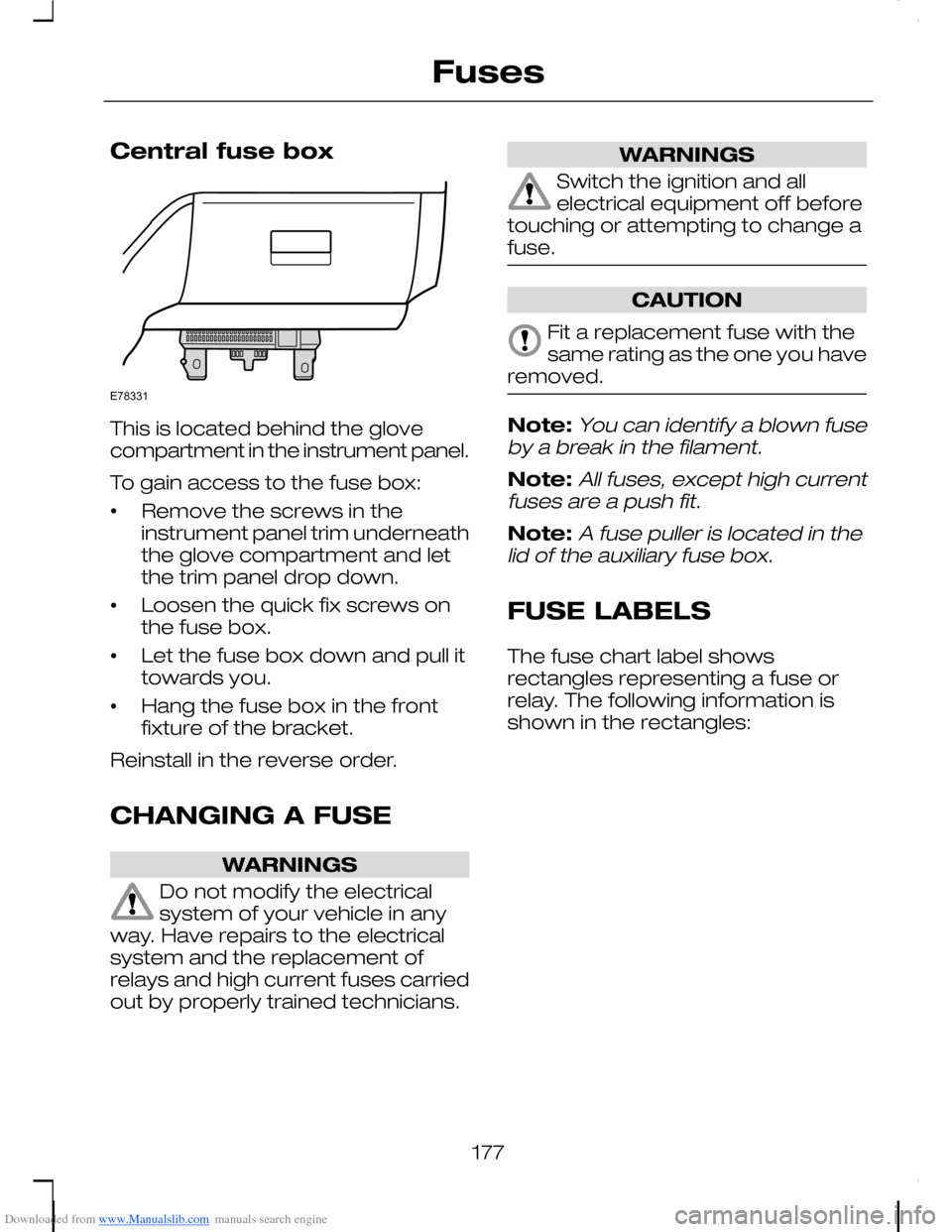

Downloaded from www.Manualslib.com manuals search engine Central fuse box
This is located behind the glovecompartment in the instrument panel.
To gain access to the fuse box:
•Remove the screws in theinstrument panel trim underneaththe glove compartment and letthe trim panel drop down.
•Loosen the quick fix screws onthe fuse box.
•Let the fuse box down and pull ittowards you.
•Hang the fuse box in the frontfixture of the bracket.
Reinstall in the reverse order.
CHANGING A FUSE
WARNINGS
Do not modify the electricalsystem of your vehicle in anyway. Have repairs to the electricalsystem and the replacement ofrelays and high current fuses carriedout by properly trained technicians.
WARNINGS
Switch the ignition and allelectrical equipment off beforetouching or attempting to change afuse.
CAUTION
Fit a replacement fuse with thesame rating as the one you haveremoved.
Note:You can identify a blown fuseby a break in the filament.
Note:All fuses, except high currentfuses are a push fit.
Note:A fuse puller is located in thelid of the auxiliary fuse box.
FUSE LABELS
The fuse chart label showsrectangles representing a fuse orrelay. The following information isshown in the rectangles:
177
FusesE78331

Downloaded from www.Manualslib.com manuals search engine FUSE SPECIFICATION CHART
Engine junction box
Circuits protectedAmpereratingFuse
Cooling fan501
Power steering802
Passenger junction box supply 1603
Passenger junction box supply 2604
Climate control805
Auxiliary heater (diesel only)606
ABS, stability control pump307
ABS, stability control valves208
Powertrain control module209
179
FusesE79716196781091211141316152936283435332225325432120171824213031232627

Downloaded from www.Manualslib.com manuals search engine Engine coolant check...................201Topping up the coolant.....................201
Engine heater.................................148Engine immobiliser..........................52Principle of operation..........................52
Engine number....................................Engine oil check............................200Checking the oil level........................200Topping up..........................................201
Engine oil dipstick................................Exterior mirrors................................85Convex mirrors....................................85Folding mirrors.....................................86
F
Fastening the seat belts.................31First aid kit.......................................174Foot pedalsSee: Adjusting the pedals..................58
Front fog lamps...............................65Fuel and refuelling.........................149Technical specifications....................152
Fuel burning heaterSee: Auxiliary heater...........................114
Fuel consumptionSee: .....................................................152
Fuel consumption..........................151Fuel cut-off switch.........................175Vehicles with a Duratec engine........175
Fuel filler flap....................................151Fuel quality............................................Fuse box locations........................176Auxiliary fuse box................................176Central fuse box.................................177
Fuse labels......................................177Fuses...............................................176Fuse specification chart................179Engine junction box...........................179Passenger junction box.....................181
G
Gauges.............................................88Engine coolant temperaturegauge.................................................90Fuel gauge............................................90
GearboxSee: Transmission..............................154
General information on radiofrequencies....................................35Glasses holder...............................139Global opening and closing...........50Global closing.......................................50Global opening.....................................50
H
HandbrakeSee: Parking brake............................159
Hazard warning flashers................70Headlamp levelling..........................66Headlamp washers........................62Head restraints...............................121Adjusting the head restraint..............121Removing the head restraint...........122
Heated seats.................................132Heated windows and mirrors......114Heated exterior mirrors.....................114Heated windows.................................114
HeatingSee: Climate control..........................107
Hints on driving with ABS.............158Horn..................................................55
I
Ignition switch.................................141Ignition switch positions.....................141
ImmobiliserSee: Engine immobiliser.....................52
Information displays........................96General information.............................96
268
Index
