Downloaded from www.Manualslib.com manuals search engine FUSE BOX LOCATIONS
Engine compartment fuse box
This fuse box is located in the engine
compartment See Maintenance (page
185).
Passenger compartment fuse box
1. Pinch the retaining clips to release the
cover.
2. Lower the fuse box cover and pull it towards you.
Install in the reverse order. Load compartment fuse box
CHANGING A FUSE
WARNINGS
Do not modify the electrical system
of your vehicle in any way. Have
repairs to the electrical system and
the replacement of relays and high current
fuses carried out by a properly trained
technician. Switch the ignition and all electrical
equipment off before touching or
attempting to change a fuse.
CAUTION
Fit a replacement fuse with the same
rating as the one you have removed.
Note:
You can identify a blown fuse by a
break in the filament.
Note: All fuses, except high current fuses,
are a push fit.
Note: A fuse puller is located in the engine
compartment fuse box.
174
FusesE130170 E130171 E130147

Downloaded from www.Manualslib.com manuals search engine FUSE SPECIFICATION CHART
Engine compartment fuse box
Circuits protected
Ampere
rating
Fuse
ABS pump
40
7
ABS valve
30
8
Headlamp washer
20
9
Heater blower
40
10
Not used
-
11
Engine Control Relay
30
12
Starter relay
30
13
Heated windscreen (right-hand side)
40
14
Not used
-
15
175
FusesE129925

Downloaded from www.Manualslib.com manuals search engine Circuits protected
Ampere
rating
Fuse
Heated windscreen (left-hand side)
40
16
Fuel fired heater
20
17
Windscreen wipers
20
18
ABS ESP module
5
19
Horn
15
20
Stop lamp switch
5
21
Battery monitoring system
15
22
Relay coils, light switch module
5
23
Rear power outlet
20
24
Electric exterior mirrors
10
25
Powertrain control module (PCM)
15
26
Air conditioning clutch
15
27
Not used
-
28
Heated rear window
25
29
Engine control module
5
30
Not used
-
31
EGR Valve, swirl control valves, HEGO sensor (engine
management)
10
32
Ignition Coils
10
33
Injectors
10
34
Diesel filter heater, active grille shutters
15
35
Engine control module
10
36
ABS
5
37
Engine control module, transmission control module
15
38
Headlamp control module
5
39
Electric power assisted steering
5
40
Body Control Module
20
41
176
Fuses

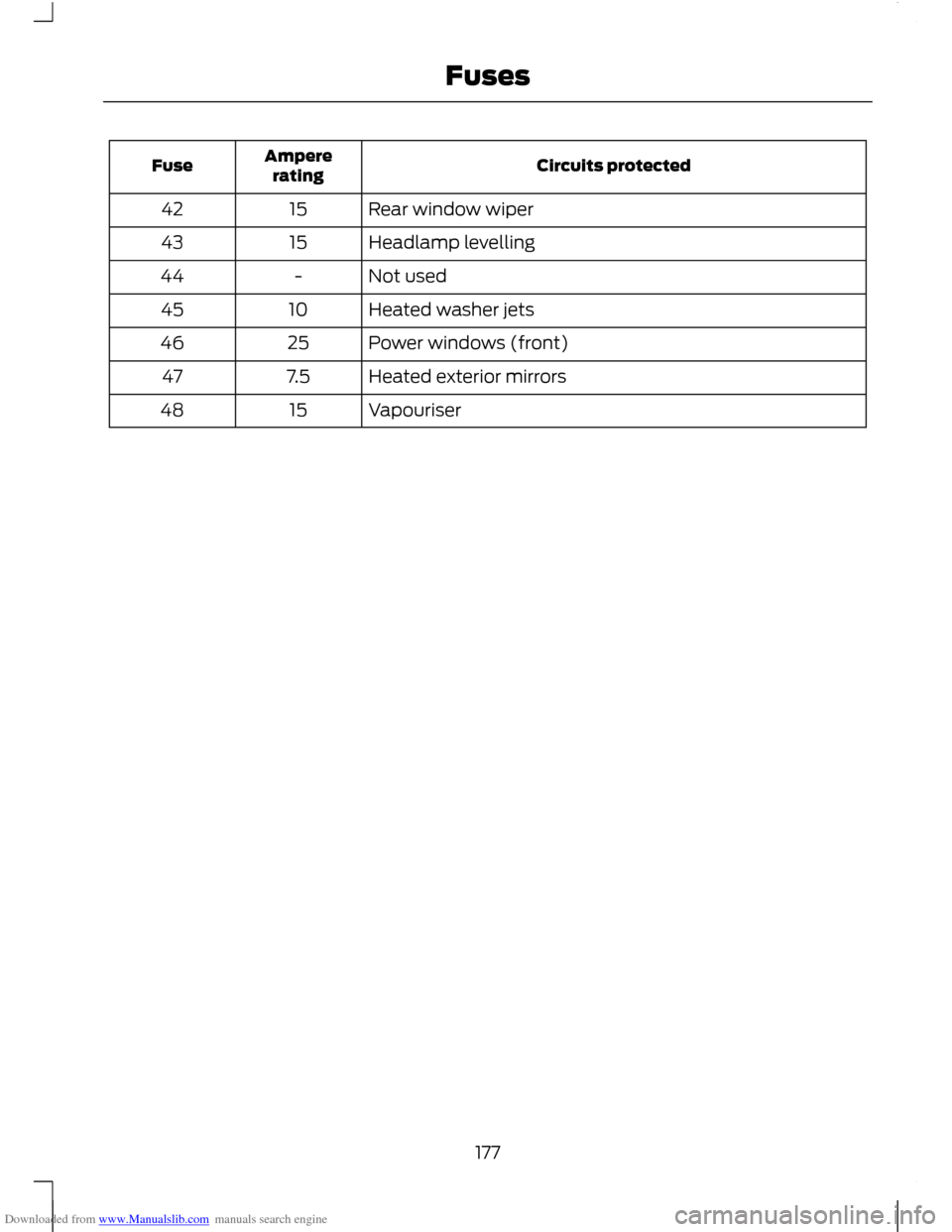

Downloaded from www.Manualslib.com manuals search engine Circuits protected
Ampere
rating
Fuse
Rear window wiper
15
42
Headlamp levelling
15
43
Not used
-
44
Heated washer jets
10
45
Power windows (front)
25
46
Heated exterior mirrors
7.5
47
Vapouriser
15
48
177
Fuses

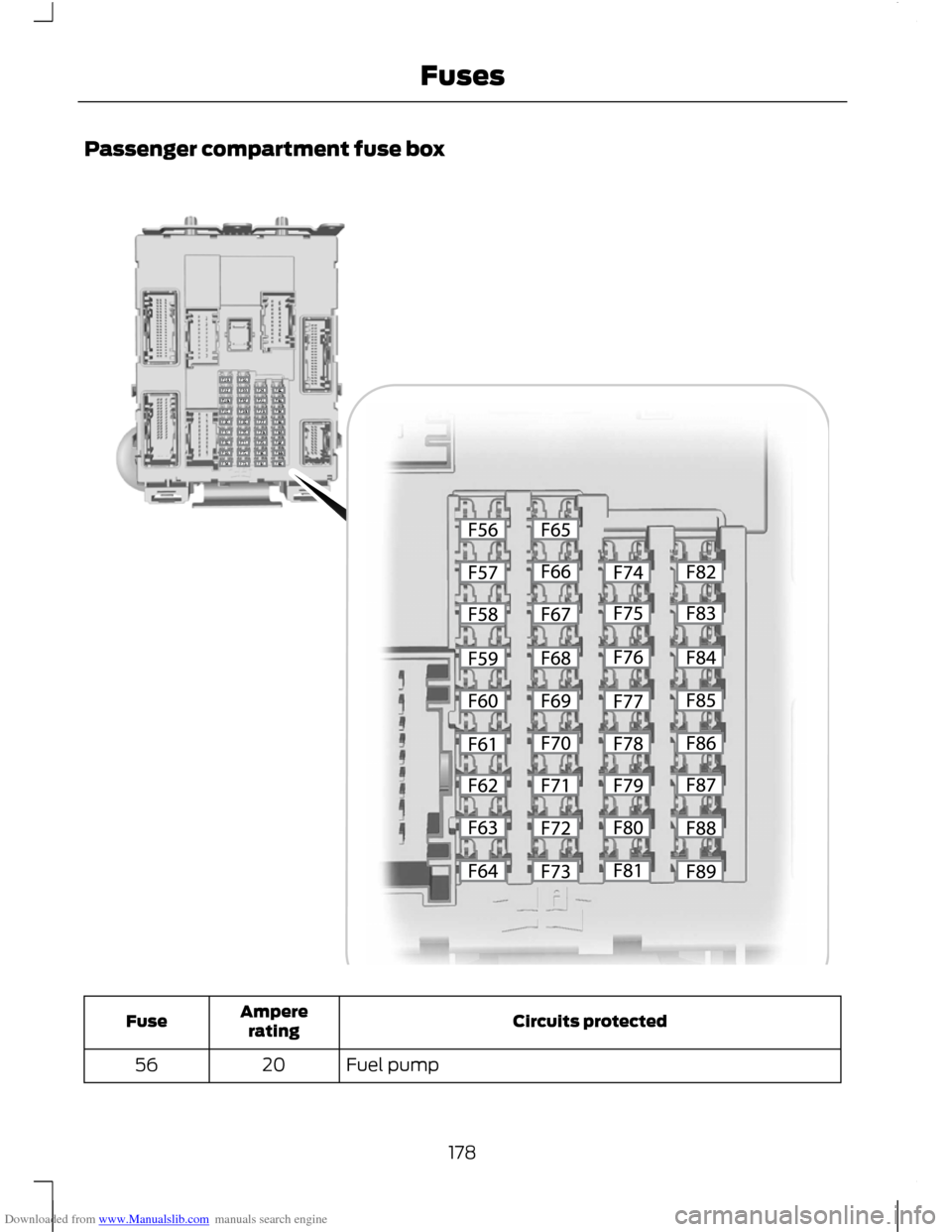

Downloaded from www.Manualslib.com manuals search engine Passenger compartment fuse box
Circuits protected
Ampere
rating
Fuse
Fuel pump
20
56
178
FusesE129926

Downloaded from www.Manualslib.com manuals search engine Circuits protected
Ampere
rating
Fuse
Not used
-
57
Not used
-
58
Passive anti theft system (PATS)
5
59
Interior lamp, driver's door switch pack, glove box
10
60
Cigar lighter, second row power point
20
61
Rain sensor module, interior mirror
5
62
Not used
-
63
Not used
-
64
Liftgate release
10
65
Driver's door lock, double locking
20
66
Information and entertainment display
7.5
67
Steering column lock
15
68
Instrument cluster
5
69
Central locking
20
70
Air conditioning
10
71
Steering wheel control module
7.5
72
Alarm, on-board diagnostics II
5
73
Main beam
15
74
Front fog lamps
15
75
Reversing lamp
10
76
Washer pump
20
77
Ignition switch or start button
5
78
Voice control module, radio, navigation system, DVD
player, CD changer, door lock button
15
79
Not used
-
80
Interior motion sensor, RF receiver, sun blinds.
5
81
Washer pump ground
20
82
179
Fuses

Downloaded from www.Manualslib.com manuals search engine Circuits protected
Ampere
rating
Fuse
Central locking ground
20
83
Driver's door lock and double locking ground
20
84
Radio, navigation system, passenger airbag deactivation
switch, heated front seats switch, parking heater, manual
air conditioning heater module
7.5
85
Restraint system
10
86
Not used
-
87
Not used
-
88
Not used
-
89
Load compartment fuse box Circuits protected
Ampere
rating
Fuse
Not used
-
1
Keyless vehicle module
10
2
Keyless vehicle door handles
5
3
Door module (left-hand front) (power windows, central
locking, electric folding exterior mirror, heated exterior
mirror)
25
4
180
FusesE129927

Downloaded from www.Manualslib.com manuals search engine Circuits protected
Ampere
rating
Fuse
Door module (right-hand front) (window up/down, central
locking, electric folding mirror, heated mirror)
25
5
Door module (left-hand rear) (window up/down)
25
6
Door module (right-hand rear) (window up/down)
25
7
Security Horn
10
8
Electric driver's seat
25
9
Not used
-
10
Not used
-
11
Not used
-
12
Not used
-
13
Not used
-
14
Not used
-
15
Not used
-
16
Not used
-
17
Not used
-
18
Not used
-
19
Not used
-
20
Not used
-
21
Not used
-
22
Not used
-
23
Power inverter
30
24
Power operated tailgate
25
25
Accessories, trailer module
40
26
Not used
-
27
Not used
-
28
Blind spot information system
5
29
Park aid Module
5
30
181
Fuses

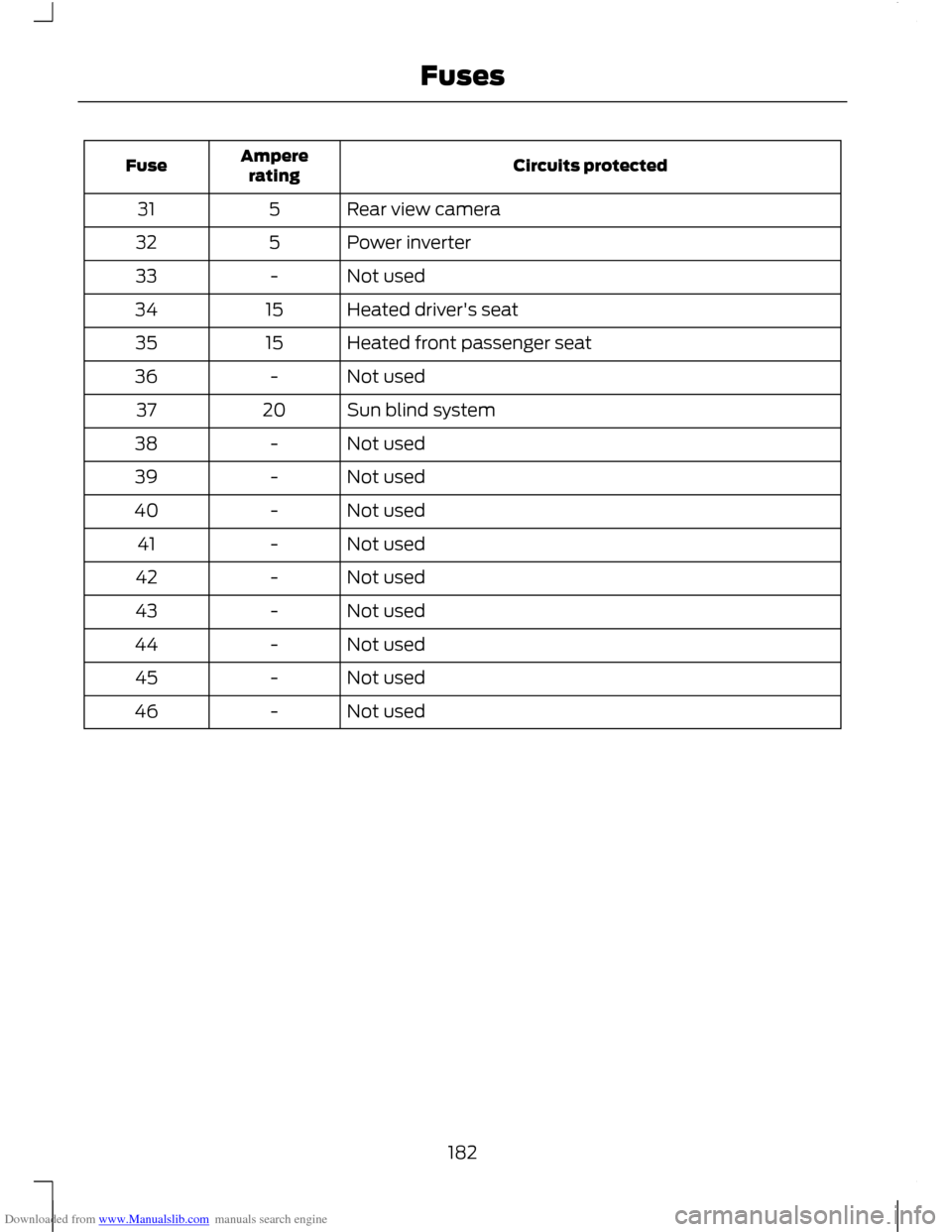

Downloaded from www.Manualslib.com manuals search engine Circuits protected
Ampere
rating
Fuse
Rear view camera
5
31
Power inverter
5
32
Not used
-
33
Heated driver's seat
15
34
Heated front passenger seat
15
35
Not used
-
36
Sun blind system
20
37
Not used
-
38
Not used
-
39
Not used
-
40
Not used
-
41
Not used
-
42
Not used
-
43
Not used
-
44
Not used
-
45
Not used
-
46
182
Fuses
