climate control FORD C MAX 2013 User Guide

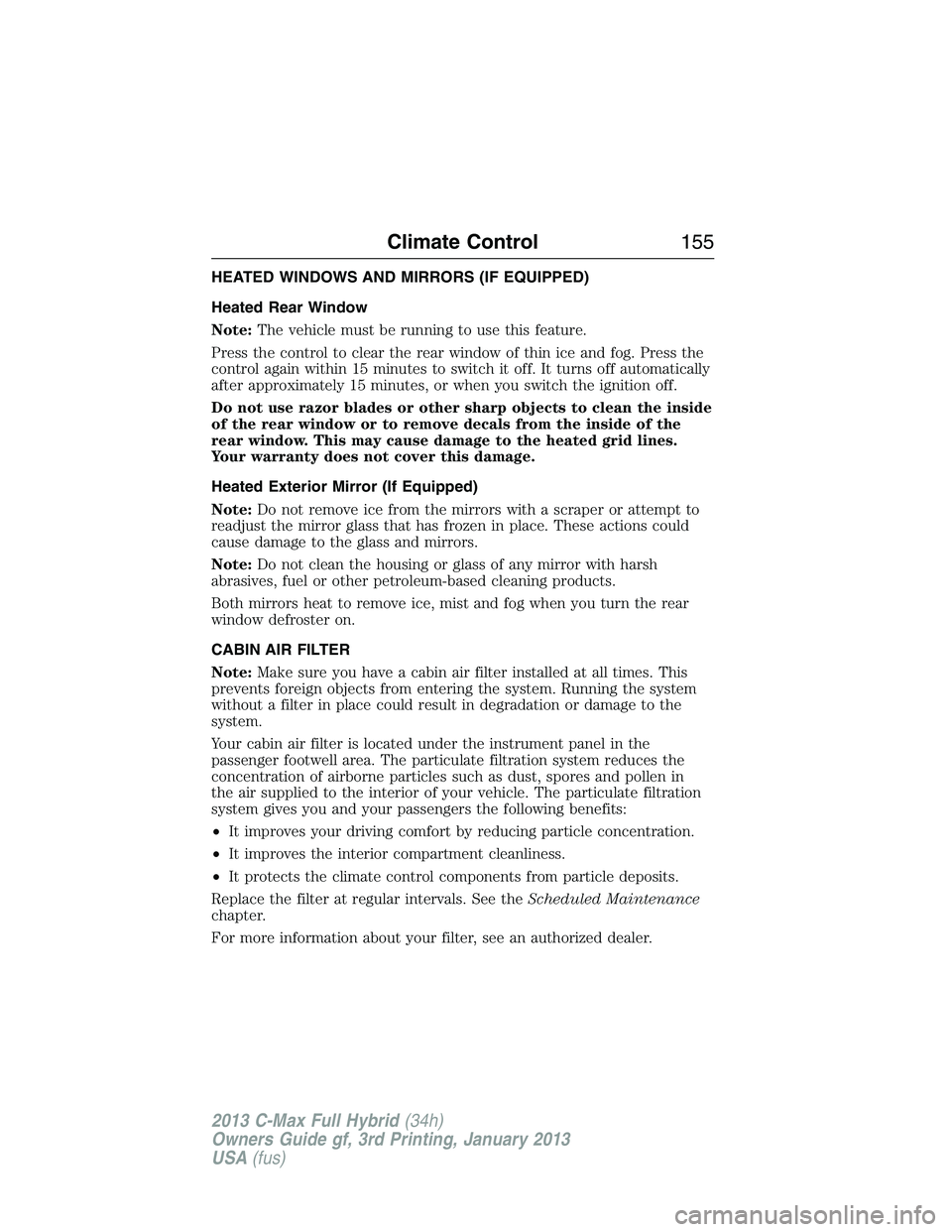

HEATED WINDOWS AND MIRRORS (IF EQUIPPED)
Heated Rear Window
Note:The vehicle must be running to use this feature.
Press the control to clear the rear window of thin ice and fog. Press the
control again within 15 minutes to switch it off. It turns off automatically
after approximately 15 minutes, or when you switch the ignition off.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside of the
rear window. This may cause damage to the heated grid lines.
Your warranty does not cover this damage.
Heated Exterior Mirror (If Equipped)
Note:Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass that has frozen in place. These actions could
cause damage to the glass and mirrors.
Note:Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Both mirrors heat to remove ice, mist and fog when you turn the rear
window defroster on.
CABIN AIR FILTER
Note:Make sure you have a cabin air filter installed at all times. This
prevents foreign objects from entering the system. Running the system
without a filter in place could result in degradation or damage to the
system.
Your cabin air filter is located under the instrument panel in the
passenger footwell area. The particulate filtration system reduces the
concentration of airborne particles such as dust, spores and pollen in
the air supplied to the interior of your vehicle. The particulate filtration
system gives you and your passengers the following benefits:
•It improves your driving comfort by reducing particle concentration.
•It improves the interior compartment cleanliness.
•It protects the climate control components from particle deposits.
Replace the filter at regular intervals. See theScheduled Maintenance
chapter.
For more information about your filter, see an authorized dealer.
Climate Control155
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

REMOTE START CLIMATE OPERATION (C-MAX ENERGI ONLY)
The climate control system adjusts the cabin temperature during remote
start.
You cannot adjust the system during remote start operation. Turn the
ignition on to return the system to its previous settings. You can now
make adjustments. You will need to turn certain vehicle-dependent
features back on, such as:
•heated seats
•heated mirrors
•heated rear window.
You can adjust the settings using the information display controls.
See theInformation Displayschapter.
Automatic Climate Systems
Automatic Settings
You can set the climate control to operate in AUTO mode through the
information display setting: Remote Start > Climate Control > Heater –
A/C > Auto. The climate control system automatically sets the interior
temperature to 72°F (22°C).
In hot weather, the system is set to 72°F (22°C).
In moderate weather, the system either heats or cools (based on
previous settings). The rear defroster, heated mirrors and heated
seats do not automatically turn on.
In cold weather, the system is set to 72°F (22°C). The rear defroster and
heated mirrors automatically turn on.
Last Settings
You can set the climate control to operate using the last climate control
settings through the information display setting: Remote Start > Climate
Control > Heater – A/C > Last Settings. The climate control system
automatically uses the settings last selected before you turned off the
engine.
Heated and Cooled Devices
The climate control system controls other heated and cooled devices
inside the vehicle. You can switch these devices on (if available, and
selected toAUTOin the information displays) during remote start.
Heated devices usually switch on during cold weather, and cooled
devices during hot weather.
156Climate Control
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Stopping the Engine When Your Vehicle is Moving
WARNING:Switching off the engine when the vehicle is still
moving will result in a loss of brake and steering assistance.
The steering will not lock, but higher effort will be required. When the
ignition is switched off, some electrical circuits, warning lamps and
indicators may also be off.
1.If your vehicle has an ignition key,move the transmission
selector lever to positionNand use the brakes to bring your vehicle
to a safe stop. When your vehicle has stopped, move the transmission
selector lever to positionPand turn the key to position0.
2.If your vehicle has a keyless start system,move the transmission
selector lever to positionNand use the brakes to bring your vehicle
to a safe stop. When your vehicle has stopped, move the transmission
selector lever to positionPand switch the ignition off by pressing
and holding the button for one second, or pressing it three times
within two seconds.
3. Apply the parking brake.
Guarding Against Exhaust Fumes
WARNING:If you smell exhaust fumes inside your vehicle, have
this checked immediately. Do not drive your vehicle if you smell
exhaust fumes. Carbon monoxide is present in exhaust fumes. Take
precautions to avoid its dangerous effects.
Important Ventilating Information
If you stop your vehicle and leave the engine idling for long periods of
time, we recommend that you do one of the following:
•Open the windows at least 1 inch (2.5 centimeters).
•Set your climate control to outside air.
Starting and Stopping the Engine179
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

ENGINE BLOCK HEATER (IF EQUIPPED)
WARNING:Failure to follow engine block heater instructions
could result in property damage or physical injury.
WARNING:Do not use your heater with ungrounded electrical
systems or two-pronged (cheater) adapters. There is a risk of
electrical shock.
Note:The heater is most effective when outdoor temperatures are below
0°F (-18°C).
The heater acts as a starting aid by warming the engine coolant. This
allows the climate control system to respond quickly. The equipment
includes a heater element (installed in the engine block) and a wire
harness. You can connect the system to a grounded 120 volt A/C
electrical source.
We recommend that you do the following for safe and correct operation:
•
Use a 16-gauge outdoor extension cord that is product certified by
Underwriter’s Laboratory or Canadian Standards Association. This
extension cord must be able to be used outdoors, in cold temperatures,
and be clearly markedSuitable for Use with Outdoor Appliances.
Never use an indoor extension cord outdoors; it could result in an
electric shock or become a fire hazard.
•Use as short an extension cord as possible.
•Do not use multiple extension cords.
•Make sure that when in operation, the extension cord plug and the
heater cord plug connections are free and clear of water. This could
cause an electric shock or fire.
•
Make sure your vehicle is parked in a clean area, clear of combustibles.
•Make sure the heater, heater cord and extension cord are firmly
connected.
180Starting and Stopping the Engine
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

EV Now
This mode provides an electric only driving experience using
plug-in power. The left-hand information display will change to an
Energy Use screen that supplies EV specific tools and functions.
The vehicle may accelerate more slowly and the top speed may be lower
than in Auto EV. At any time, the engine may be enabled by using one of
the following methods:
1. Press the OK button on the left 5–way steering wheel control while
viewing the EV screen. The vehicle will automatically exit override after
the timer has expired and the engine shuts down.
2.
Press the accelerator pedal fully. A pop up message statingPress OK to
Enable Enginewill appear. Press OK on the left steering wheel button to
activate as needed. The message will disappear if the accelerator pedal is
released.
3. Press the EV button. This will change the mode to EV Later and
permit engine operation
The vehicle may automatically enter Engine Enabled mode if system
conditions require it. A messageEngine Enabled for System
Performancewill display if this occurs. This is normal function, and
your vehicle will return to EV Now when possible.
The vehicle may enter Enable Engine mode if the climate control is in a
defrost mode and the outside temperature is cold. A messageEngine
Enabled Due to Defrostwill display if this occurs. If defrost is not
needed, select a different climate control mode to permit EV Now.
There is a blue EV icon that is displayed in the left-hand information
display when EV Now is enabled. If the vehicle is in the Engine Enabled
mode, the EV icon will be yellow.
EV Now will automatically exit when the Plug in power has been depleted.
EV Later
This mode saves the high voltage battery plug in power for
future use (for example, your initial drive is at high speeds on
open roads, but later your drive will be at low speeds in an
urban area). Your vehicle will run the engine as needed and
keep most of the high voltage battery plug in power for later use in Auto
EV or EV Now mode.
There is a white EV Later icon that appears on the left-hand information
display when EV Later is enabled.
EV
Unique Driving Characteristics183
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

HYBRID VEHICLE OPERATION (C-MAX HYBRID AND C-MAX ENERGI)
This hybrid vehicle combines electric and gasoline propulsion to provide
breakthrough performance and improved efficiency. Familiarizing yourself
with these unique characteristics will provide an optimal driving experience
from your new vehicle.
Note:You may notice higher engine speeds upon start-up. This
temporary condition is normal and necessary to heat up the cabin and
minimize emissions.
Starting:When you start your vehicle, a green ready indicator
light will appear in the lower right portion of the instrument
cluster and a ready to drive message will appear in the middle
of the left cluster screen, letting you know that the vehicle is ready for
driving.
The engine may not start because this hybrid vehicle is equipped with
silent key start. This fuel saving feature allows your vehicle to be
ready-to-drive without requiring the gas engine to be running. This
indicator will remain on while the vehicle is on, whether the engine is
running or not to indicate the vehicle is capable of movement (using its
electric motor, engine, or both). Typically, the engine will not start unless
the vehicle is cold, a climate control change is requested, or the
accelerator is pressed.
Driving:The gas engine automatically starts and stops to provide power
when it’s needed and to save fuel when it’s not. While coasting at low
speeds, coming to a stop, or standing, the gas engine normally shuts
down and the vehicle operates in electric-only mode. Conditions that
may cause the engine to start up or remain running include:
•considerable vehicle acceleration
•vehicle speed above 60 mph (96 km/h) For C-MAX Energi vehicles,
you can drive up to 85 mph (137 km/h) in EV mode.
•ascending a hill
•charge level of high voltage battery is low
•very high or low outside temperature (to provide system cooling or
heating) For C-MAX Energi vehicles, climate control demands by
passengers do not directly cause the engine to run. This only occurs
when the high voltage battery charge is low.
•engine not warm enough to provide passenger requested cabin
temperature
Stopping:The gas engine may shut off to conserve fuel as you come
to a stop. Restarting the vehicle is not required. Simply step on the
accelerator when you are ready to drive.
184Unique Driving Characteristics
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Question Answer
Why does it take
a long time
before the engine
shuts down?There are several reasons the engine stays on for an
extended amount of time when it is first started.
One common reason is to ensure that the emissions
components are warm enough to minimize tailpipe
emissions. As the climate gets cooler, this engine-on
time is extended.
Why does my
engine never
shut down
above 60 mph
(96 km/h)?The engine is required to turn on above this speed
to protect the transmission hardware. (For C-MAX
Energi vehicles, you can travel up to 85 mph
[137 km/h] in EV mode.)
Why does my
engine stay
on when it’s
extremely cold
outside?In order to ensure that the climate control system
can begin heating the cabin or defrosting the
windshield as soon as a driver requests it, the
engine coolant temperature has to be kept
sufficiently hot. Keeping the engine on is required
to maintain the correct minimum temperature.
(For C-MAX Energi vehicles, this is not required to
maintain cabin conditions.)
Why does my
engine rev up so
high sometimes
when I
accelerate?Your vehicle’s engine and transmission are designed
to deliver the power you need at the most efficient
engine speed. This may be higher than expected
during heavy accelerations, and may fluctuate
during steady state driving. These are
characteristics of the Atkinson engine cycle and the
eCVT transmission technology that help maximize
your hybrid’s fuel economy.
188Unique Driving Characteristics
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

The front wheels must be on a tow dolly when towing your vehicle
from the rear using wheel lift equipment. This prevents damage to the
transmission.
TOWING THE VEHICLE ON FOUR WHEELS
Emergency Towing
If your vehicle becomes inoperable (without access to wheel dollies,
car-hauling trailer, or flatbed transport vehicle), it can be flat-towed
(all wheels on the ground, regardless of the powertrain and transmission
configuration) under the following conditions:
•Your vehicle is facing forward for towing in a forward direction.
•
Place the transmission in positionN.SeeAutomatic transmissionin
theTransmissionchapter if you cannot move the transmission intoN.
•Maximum speed is 35 mph (56 km/h).
•Maximum distance is 50 miles (80 kilometers).
Recreational Towing
Note:Put your climate control system in recirculated air mode to
prevent exhaust fumes from entering your vehicle. See theClimate
Controlchapter.
Follow these guidelines if you have a need for recreational towing,
such as towing your vehicle behind a motorhome. We designed these
guidelines to prevent damage to your transmission.
You can tow your vehicle with all four wheels on the ground or with
the front wheels off the ground by using a tow dolly. If you are using a
tow dolly, follow the instructions specified by the equipment provider.
If you are towing with all four wheels on the ground, see the following
instructions.
If you tow your vehicle with all four wheels on the ground:
•Tow only in the forward direction.
•Release the parking brake.
•Place the transmission in positionN.
•Place the ignition in the accessory mode. See theStarting and
Stopping the Enginechapter.
•Do not exceed 70 mph (113 km/h).
•Place the transmission in positionP,start the engine and allow it to
run for one minute at the beginning of each day (you may need to
press the accelerator pedal in order to start the engine). After
allowing the engine to run, place the transmission back into position
Nand the ignition in the accessory position.
Towing249
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Fuse or relay
numberFuse amp
ratingProtected components
66 20A Driver door unlock supply, Double
lock
67 7.5A Cell phone passport (C-MAX Energi)
68 — Not used
69 5A Instrument cluster
70 20A Central lock and unlock supply
71 10A Heating control head (manual A/C),
Climate control module
72 7.5A Steering wheel module
73 5A Data link connector
74 15A Headlamp supply
75 15A Fog lamp supply
76 10A Reverse lamp supply
77 20A Windshield and rear washer supply
78 5A Ignition switch, Start button
79 15A Radio, Hazard light switch
80 20A Not used (spare)
81 5A Power sun shade
82 20A Windshield and rear washer relay
83 20A Central lock and unlock supply
84 20A Drive door unlock supply, Double lock
85 7.5A Electronic 15 feed
86 10A Restraints control module, Passenger
air bag deactivation indicator
87 — Not used
88 — Not used
89 — Not used
Fuses277
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

5. Close the engine coolant reservoir cap.
6. Clean the Easy Fuel funnel.
7. Store the Easy Fuel funnel in the storage compartment.
Whenever you add engine coolant, check the coolant level in the engine
coolant reservoir the next few times you drive the vehicle. If necessary,
add enough prediluted engine coolant to bring the engine coolant level to
the proper level.
Adding Inverter System Controller Coolant
1. Open the inverter system controller coolant reservoir cap.
2. Use a funnel to add prediluted coolant to the inverter system
controller coolant reservoir. Make sure that the level is between the
MIN and MAX marks on the inverter system controller coolant reservoir.
Use prediluted coolant meeting the Ford specification. See the technical
specifications chart in theCapacities and Specificationschapter.
3. Close the inverter system controller coolant reservoir cap.
Whenever you add coolant, check the coolant level in the inverter system
controller coolant reservoir the next few times you drive the vehicle.
If necessary, add enough prediluted coolant to bring the inverter system
controller coolant level to the proper level.
Recycled Engine Coolant
Ford Motor Company does not recommend the use of recycled engine
coolant since a Ford-approved recycling process is not yet available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Severe Climates
If you drive in extremely cold climates:
•It may be necessary to have a Ford authorized dealer increase the
coolant concentration above 50%.
•A coolant concentration of 60% will provide improved freeze point
protection. Engine coolant concentrations above 60% will decrease
the overheat protection characteristics of the engine coolant and may
cause engine damage.
Maintenance289
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
