Satellite Radio Electronic Serial Number (ESN)
You need your ESN to activate, modify or track your satellite radio
account. When in satellite radio mode, you can view this number by
pressingSIRIUSand memory preset 1 at the same time. To access your
ESN, press the bottom left corner of the touchscreen, thenSIRIUS>
Options.
Troubleshooting
Radio display Condition Possible action
Acquiring Radio requires more
than two seconds to
produce audio for the
selected channel.No action required.
This message should
disappear shortly.
Sat Fault/SIRIUS
system failureThere is an internal
module or system
failure present.If this message does
not clear shortly, or
with an ignition key
cycle, your receiver
may have a fault. See
an authorized dealer
for service.
Invalid Channel The channel is no
longer available.Tune to another
channel or choose
another preset.
Unsubscribed Channel Your subscription
does not include this
channel.Contact SIRIUS at
1–888–539–7474 to
subscribe to the
channel, or tune to
another channel.
Audio System149
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

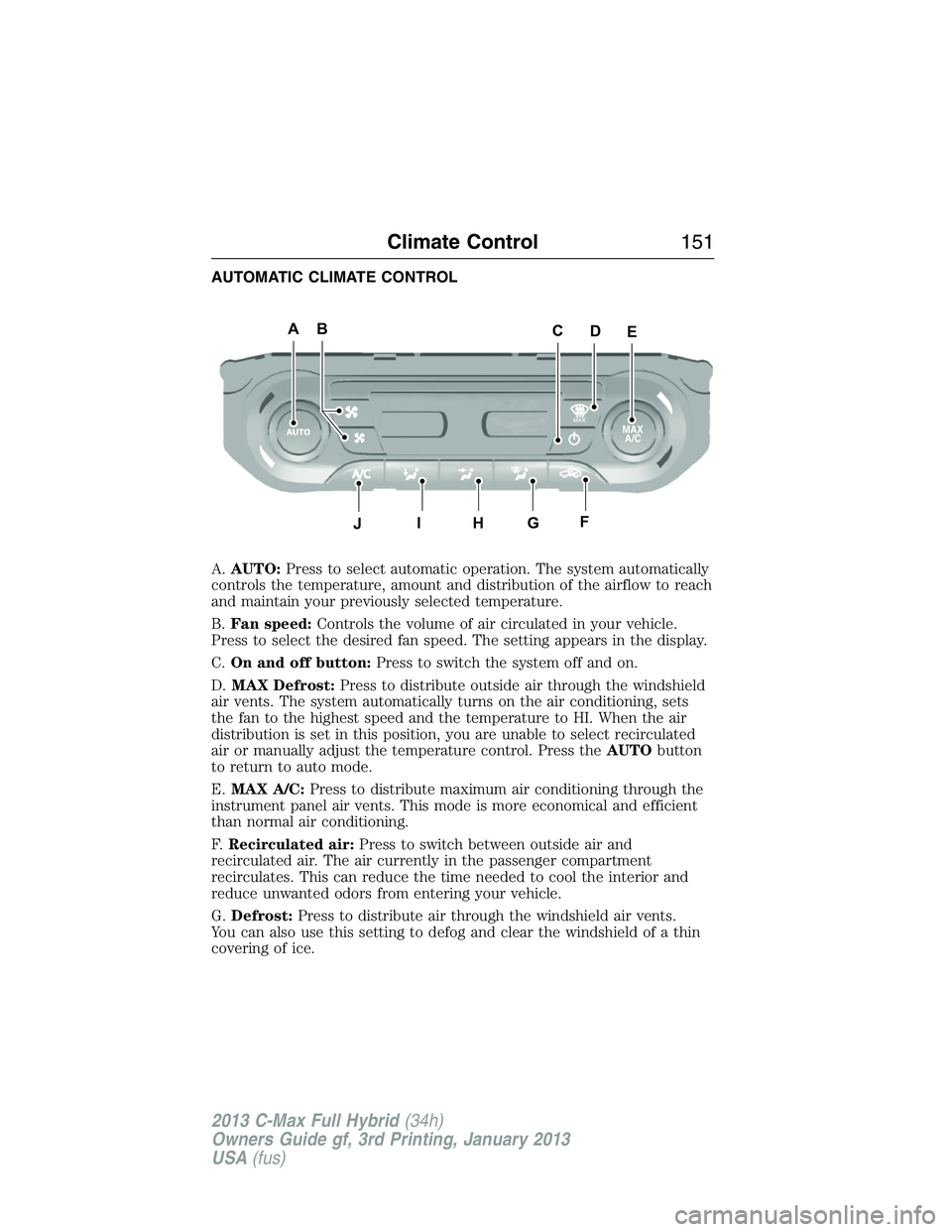

AUTOMATIC CLIMATE CONTROL
A.AUTO:Press to select automatic operation. The system automatically
controls the temperature, amount and distribution of the airflow to reach
and maintain your previously selected temperature.
B.Fan speed:Controls the volume of air circulated in your vehicle.
Press to select the desired fan speed. The setting appears in the display.
C.On and off button:Press to switch the system off and on.
D.MAX Defrost:Press to distribute outside air through the windshield
air vents. The system automatically turns on the air conditioning, sets
the fan to the highest speed and the temperature to HI. When the air
distribution is set in this position, you are unable to select recirculated
air or manually adjust the temperature control. Press theAUTObutton
to return to auto mode.
E.MAX A/C:Press to distribute maximum air conditioning through the
instrument panel air vents. This mode is more economical and efficient
than normal air conditioning.
F.Recirculated air:Press to switch between outside air and
recirculated air. The air currently in the passenger compartment
recirculates. This can reduce the time needed to cool the interior and
reduce unwanted odors from entering your vehicle.
G.Defrost:Press to distribute air through the windshield air vents.
You can also use this setting to defog and clear the windshield of a thin
covering of ice.
ABAAEAAC
J
D
AHAGAFAI
MAX
A/C
Climate Control151
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Programming HomeLink to a Genie Intellicode 2 garage door
opener
Note:The Genie Intellicode 2 transmitter must already be programmed
to operate with the garage door opener.
Programing the transmitters
To program HomeLink to the transmitter you must first put the
transmitter into programming mode. To do this:
A. Red LED
B. Green LED
1. Press and hold one of the buttons on the hand-held transmitter for
10 seconds. The LED light will change from green to green and red.
2. Press the same button twice to confirm the change to Programming
mode. If done properly the LED light will appear red.
3. Hold the transmitter within 1–3 inches (2–8 centimeters) of the
button on the sun visor you want to program.
4. Press and hold both the programmed Genie button on the hand-held
transmitter and the button on the sun visor you want to program.
The indicator light on the sun visor will flash rapidly when the
programming is successful.
Note:the Genie transmitter will transmit for up to 30 seconds.
If HomeLink does not program within 30 seconds the Genie transmitter
will need to be pressed again. If the Genie transmitter LED displays
green and red, release the button until the LED turns off before pressing
the button again.
Once HomeLink has been programmed successfully, the Genie
transmitter must be changed out of program mode. To do this:
1. Press and hold the previously programmed Genie button on the
hand-held transmitter for 10 seconds. The indicator light will change
from red to red and green.
2. Press the same button twice to confirm the change. If done correctly
the LED will turn green.
BA
Universal Garage Door Opener (If Equipped)169
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Programming HomeLink to the Genie Intellicode garage door
opener motor
Note:You may need a ladder to access the garage door opener motor.
To program HomeLink to the garage
door opener motor:
1. Press and hold the PROGRAM
button on the garage door opener
motor until both blue LED’s turn on.
2. Release the PROGRAM button.
Only the smaller round LED should
be on.
3. Press and release the program button. The larger purple LED will flash
Note:The next two steps must be completed in 30 seconds.
4. Press and release the Genie Intellicode 2 hand-held transmitter’s
previously programmed button. Both indicator lights on the garage door
opener motor unit should now flash purple.
5. Press and hold the previously programmed button on the sun visor for
two seconds. Repeat this step up to 3 times until the garage door moves.
Programming is now complete.
Clearing a HomeLink device
To erase programming from the three HomeLink buttons, press and hold
the two outer HomeLink buttons until the indicator light begins to flash.
The LED will begin flashing in 10 to 20 seconds, at which time both
buttons should be released. Programming has now been erased, and the
LED should blink slowly to indicate the device is in train mode when any
one of the three HomeLink buttons is pressed.
FCC and RSS-210 Industry Canada Compliance
This device complies with Part 15 of the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications to your device not expressly approved by the
party responsible for compliance can void the user’s authority to operate
the equipment.
170Universal Garage Door Opener (If Equipped)
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Ignition Modes
Off:Turns the ignition off.
•Without applying the brake pedal, press and release the button once
when the ignition is in the on mode, or when the engine is running
but the vehicle is not in motion.
On:All electrical circuits are operational. Warning lamps and indicators
are illuminated.
•Without applying the brake pedal, press and release the button once
from off mode.
Start:Starts the engine.
•
Press the brake pedal, and then press the button until the engine starts.
STARTING A GASOLINE ENGINE
When you start the engine, the idle speed increases, this helps to warm
up the engine. If the engine idle speed does not slow down automatically,
have your vehicle checked by an authorized dealer.
Before starting the engine check the following:
•Make sure all occupants have fastened their safety belts.
•Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is on.
•Make sure the gearshift is in positionP.
•Turn the ignition key to positionII.If your vehicle is equipped with a
keyless ignition, see the following instructions.
Vehicles with an Ignition Key
Note:Do not touch the accelerator pedal.
1. Fully press the brake pedal.
2. Turn the key to positionIII.Release the key when the engine starts.
Note:The engine may continue cranking for up to 15 seconds or until it
starts.
Note:If you cannot start the engine on the first try, wait for a short
period and try again.
START
STOP ENGINE
176Starting and Stopping the Engine
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

PLUG-IN POWER MODE AND HYBRID MODE (C-MAX ENERGI ONLY)
C-MAX Energi vehicles must be plugged in regularly for optimal use of
the high voltage battery’s extended range capability. When you charge
your vehicle you add electrical energy which is then used to propel the
vehicle in Plug-in Power Mode. Your estimated electric range in this
mode is shown in an enhanced battery gauge on the instrument panel
display. Electric only operation is maximized in plug-in power mode.
System conditions may require engine operation, however, plug-in power
will be used whenever possible.
When your plug-in power has been depleted, the powertrain system will
automatically switch to hybrid mode. Your battery gauge will show an
electric range of zero before transitioning to a simple battery graphic
upon entering hybrid mode. Hybrid mode uses both the gasoline engine
and electric motor to power your vehicle and maximize fuel economy as
with C-MAX Hybrid.
EV MODES (C-MAX ENERGI ONLY)
Your vehicle contains selectable EV modes through the EV
button on the center console.
These modes are available when the vehicle can run under high voltage
battery power. With the vehicle in driving mode you can change EV
modes with each press of the EV button. The current mode will be
displayed in the left hand instrument cluster screen.
Auto EV
This mode provides an automatic use of high-voltage battery
power during the drive, staying in electric mode when possible
and running the engine when needed. This mode will be the
only one available if the plug in power has been depleted.
AUTO
182Unique Driving Characteristics
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Engine:The engine speed in your hybrid is not directly tied to your
vehicle speed. Your vehicle’s engine and transmission are designed to
deliver the power you need at the most efficient engine speed. During
heavy accelerations, your hybrid may reach high engine speeds (up to
6000 rpm).
In prolonged mountainous driving, you may see the engine tachometer
changing without your input. This is intentional and maintains the
battery charge level. You may also notice during extended downhill
driving that your engine continues to run instead of shutting off.
During this engine braking, the engine stays on, but it’s not using any
fuel. You may also hear a slight whine or whistle when operating your
vehicle. This is the normal operation of the electric generator in the
hybrid system.
During certain events (such as vehicle servicing) your low voltage
(underhood) battery may become disconnected or disabled. Once the
battery is reconnected and after driving the vehicle, the engine may
continue to operate for three to five seconds after the key is turned to
off. This is a normal condition.
Braking:Your hybrid is equipped with standard hydraulic braking and
regenerative braking. Regenerative braking is performed by your vehicle
computer housed with the transmission and it commands a portion of
the brake energy stored in your high voltage battery.
Driving to Optimize Fuel Economy
Note:Having your engine running is not always an indication of
inefficiency. In some cases, it is actually more efficient than driving in
electric mode.
Your fuel economy should improve throughout your hybrid’s break-in
period. As with any vehicle, fuel economy can be significantly impacted
by your driving habits, accessory usage, temperature and terrain.
For best results, keep in mind these tips:
•Keep the tires properly inflated and only use the recommended size.
•Aggressive driving increases the amount of energy required to move
your vehicle. In general, better fuel economy is achieved with mild to
moderate acceleration and deceleration. Moderate braking is
particularly important since it allows you to maximize the energy
captured by the regenerative braking system.
186Unique Driving Characteristics
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Additional Tips:
•Do not carry extra loads
•Be mindful of adding external accessories that may increase
aerodynamic drag
•Observe posted speed limits
•Perform all scheduled maintenance
•There is no need to wait for your engine to warm up. The vehicle is
ready to drive immediately after starting
EV+ Mode
Your vehicle will recognize your frequent destinations and allow for more
EV driving as you approach them. For example, when nearing your home
it should be easier to stay in electric mode. The EV indicator will display
EV+ when this mode is active. You should see this approximately
1/8 mile (200 meters) from a frequent destination.
Note:Frequent destinations are learned by your vehicle after two to
four weeks of use. These destinations can be cleared with a Lifetime
Summary reset through the Settings menu.
Note:The EV+ feature can be turned on or off through the Driver Assist
section of the Settings menu.
Frequently Asked Questions
Question Answer
What are the
series of clicks
from the cargo
area when I first
turn the key in
the ignition?The high voltage battery is electrically isolated from
the rest of the vehicle when the key is off. When
the key is turned to on, high voltage contactors
inside the battery are closed to make the electricity
available to the motor/generator and enable the
vehicle to drive. The clicks are the sound of these
contactors as they close and open during start up
and shut down.
Why does the
engine sometimes
start at key-on?The vehicle’s computer will determine if an engine
start is required at key-on. Silent key start will start
the engine if it is necessary for cabin heating,
windshield defrost, or if the outside temperature is
low. (For C-MAX Energi vehicles, engine on is not
required to operate these functions.)
Unique Driving Characteristics187
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Question Answer
Why does it take
a long time
before the engine
shuts down?There are several reasons the engine stays on for an
extended amount of time when it is first started.
One common reason is to ensure that the emissions
components are warm enough to minimize tailpipe
emissions. As the climate gets cooler, this engine-on
time is extended.
Why does my
engine never
shut down
above 60 mph
(96 km/h)?The engine is required to turn on above this speed
to protect the transmission hardware. (For C-MAX
Energi vehicles, you can travel up to 85 mph
[137 km/h] in EV mode.)
Why does my
engine stay
on when it’s
extremely cold
outside?In order to ensure that the climate control system
can begin heating the cabin or defrosting the
windshield as soon as a driver requests it, the
engine coolant temperature has to be kept
sufficiently hot. Keeping the engine on is required
to maintain the correct minimum temperature.
(For C-MAX Energi vehicles, this is not required to
maintain cabin conditions.)
Why does my
engine rev up so
high sometimes
when I
accelerate?Your vehicle’s engine and transmission are designed
to deliver the power you need at the most efficient
engine speed. This may be higher than expected
during heavy accelerations, and may fluctuate
during steady state driving. These are
characteristics of the Atkinson engine cycle and the
eCVT transmission technology that help maximize
your hybrid’s fuel economy.
188Unique Driving Characteristics
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Octane Recommendations
Regular unleaded gasoline with a
pump (R+M)/2 octane rating of 87 is
recommended. Some stations offer
fuels posted as Regular with an
octane rating below 87, particularly
in high altitude areas. Fuels with octane levels below 87 are not
recommended.
Regular unleaded gasoline with a pump (R+M)/2 octane rating of 87 is
recommended. Some stations offer fuels posted as “Regular” with an
octane rating below 87, particularly in high altitude areas. Fuels with
octane levels below 87 are not recommended.
Do not be concerned if your engine sometimes knocks lightly. However, if
it knocks heavily under most driving conditions while you are using fuel
with the recommended octane rating, see your authorized dealer to
prevent any engine damage.
Fuel Freshness Mode (Energi Vehicles Only)
This feature helps keeps the fuel system functional and the fuel fresh.
If you operate your vehicle mainly in plug-in power mode using
electricity from plugging in without refueling, the gasoline in your tank
eventually becomes old. Old fuel can damage the engine and fuel system.
To prevent the fuel from becoming old, your vehicle will automatically
enter fuel freshness mode. In fuel freshness mode operates, your vehicle
will operate in hybrid mode causing the gasoline engine to run in order
to consume the fuel in the fuel tank.
Note:
If new fuel is not added during an 18 month period, fuel freshness
mode will consume fuel until about 1 gallon (3.8 liters) is left in the tank.
During fuel freshness mode:
•The information display screen will indicate that fuel freshness mode
is active.
•The vehicle will only run in hybrid mode. EV Now mode will not be
available.
•Most of the plug-in power will be stored until fuel freshness mode is
completed.
87(R+M)/2 METHOD
192Fuel and Refueling
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
