FORD C MAX 2013 Owners Manual

5. Install the air cleaner outlet
tube (C) and tighten the hose
clamps.
6. Connect the PCV tube (D) to the air cleaner outlet tube (C).
7. Connect the air cleaner intake tube (E) to the air cleaner assembly (A).
ADJUSTING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident, the alignment of your headlamps
should be checked by your authorized dealer.
Vertical Aim Adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
•(A) 8 feet (2.4 meters)
•(B) Center height of lamp to
ground
•(C) 25 feet (7.6 meters)
•(D) Horizontal reference line
2. Measure the height of the headlamp bulb center from the ground and
mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall
or screen at this height.
C
A
B
D
300Maintenance
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
To see a clearer light pattern for adjusting, you may want to block the
light from one headlamp while adjusting the other.
On the wall or screen you will
observe a flat zone of high intensity
light located at the top of the right
hand portion of the beam pattern.
If the top edge of the high intensity
light zone is not at the horizontal
reference line, the headlamp will
need to be adjusted.
4.
Locate the vertical adjuster on
each headlamp. Using a Phillips #2
screwdriver, turn the adjuster
either clockwise or counterclockwise
in order to aim the headlamp.
The horizontal edge of the brighter
light should touch the horizontal
reference line.
5. Close the hood and turn off the lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NOT ADJUSTABLE.
Maintenance301
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

REMOVING A HEADLAMP
1. Make sure the lighting control is
in the off position and open the
hood.
2. Remove the two screws from the
headlamp assembly.
3. Carefully pull the headlamp
assembly as far as possible
towards the center of the vehicle
to disengage it from the lower fixing
point.
4. Carefully lift the outer side of the
headlamp and remove it.
5. Disconnect the electrical
connector.
CHANGING A BULB
Lamp Assembly Condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
These are examples of acceptable condensation:
•Presence of thin mist (no streaks, drip marks or droplets).
•Fine mist covers less than 50% of the lens.
302Maintenance
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

These are examples of unacceptable moisture (usually caused by a lamp
water leak):
•Water puddle inside the lamp.
•Large water droplets, drip marks or streaks present on the interior of
the lens.
Take your vehicle to a dealer for service if any of the above conditions of
unacceptable moisture are present.
Replacing Headlamp Bulbs
WARNING:Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb by only its plastic base
and do not touch the glass. The oil from your hand could cause the
bulb to break the next time the headlamps are operated.
Note:If the bulb is accidentally touched, it should be cleaned with
rubbing alcohol before being used.
Locating the Headlamp Bulbs:
A. Turn lamp
B. Low beam headlamp
C. High beam headlamp
Replacing the High Beam
Headlamp Bulb:
1. Remove the headlamp assembly.
2. Remove the service cap.
3. Disconnect the electrical
connector
4. Release the clip and remove the
bulb from the headlamp assembly.
Maintenance303
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Replacing the Low Beam
Headlamp Bulb:
1. Remove the headlamp assembly.
2. Remove the cover.
3. Turn the bulb holder
counterclockwise and remove it.
4. Remove the bulb from the
headlamp assembly.
Replacing the Side Lamp Bulb:
1. Remove the headlamp assembly.
2. Remove the service cap.
3. Remove the bulb holder.
4. Remove the bulb from the
headlamp assembly.
Install the new bulbs in reverse order.
Replacing the Fog Lamp Bulbs (If Equipped)
Note:You cannot separate the fog
lamp bulb from the bulb holder.
1. Remove the fog lamp cover
2. Remove the 2 screws.
3. Remove the lamp.
304Maintenance
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

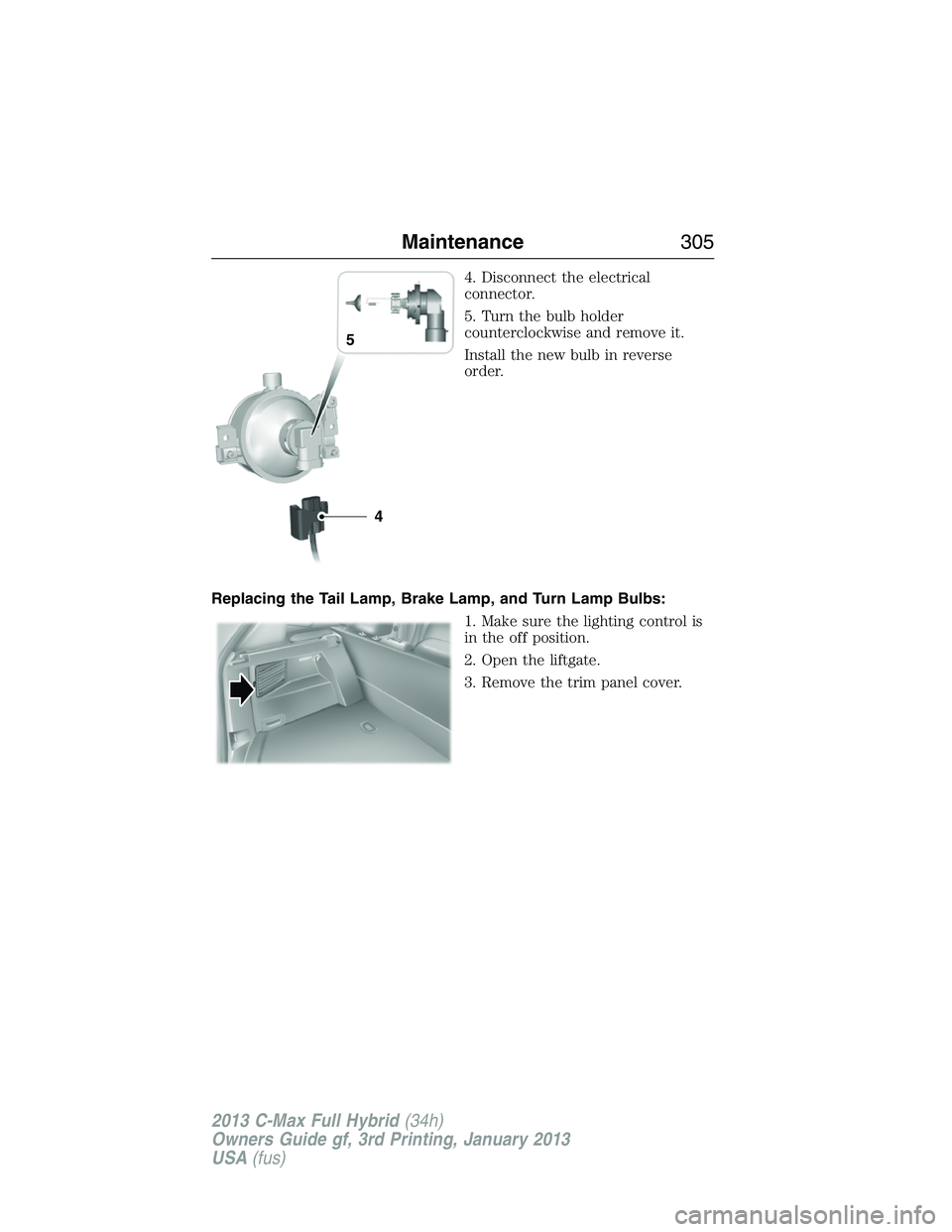

4. Disconnect the electrical
connector.
5. Turn the bulb holder
counterclockwise and remove it.
Install the new bulb in reverse
order.
Replacing the Tail Lamp, Brake Lamp, and Turn Lamp Bulbs:
1. Make sure the lighting control is
in the off position.
2. Open the liftgate.
3. Remove the trim panel cover.
4 5
Maintenance305
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

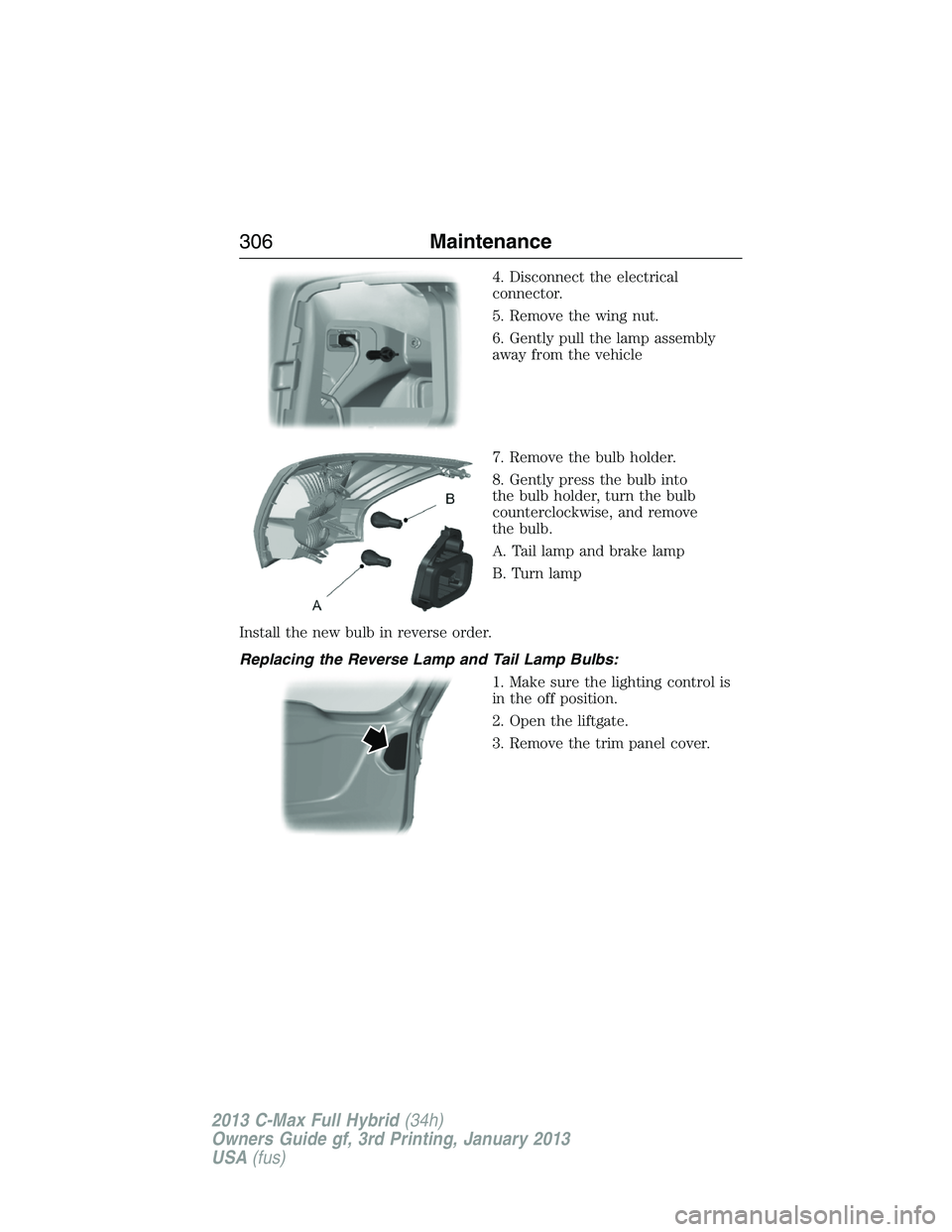

4. Disconnect the electrical
connector.
5. Remove the wing nut.
6. Gently pull the lamp assembly
away from the vehicle
7. Remove the bulb holder.
8. Gently press the bulb into
the bulb holder, turn the bulb
counterclockwise, and remove
the bulb.
A. Tail lamp and brake lamp
B. Turn lamp
Install the new bulb in reverse order.
Replacing the Reverse Lamp and Tail Lamp Bulbs:
1. Make sure the lighting control is
in the off position.
2. Open the liftgate.
3. Remove the trim panel cover.
306Maintenance
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

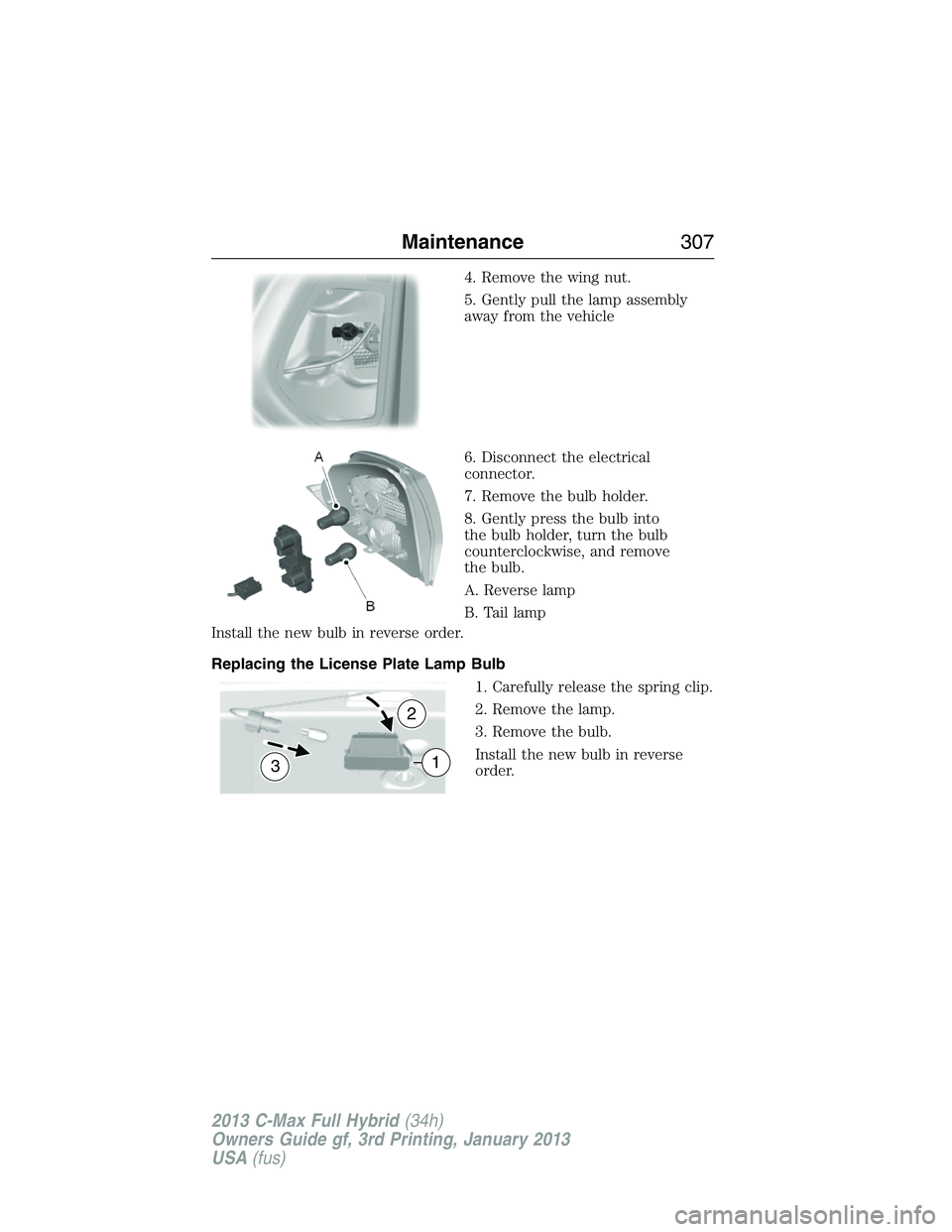

4. Remove the wing nut.
5. Gently pull the lamp assembly
away from the vehicle
6. Disconnect the electrical
connector.
7. Remove the bulb holder.
8. Gently press the bulb into
the bulb holder, turn the bulb
counterclockwise, and remove
the bulb.
A. Reverse lamp
B. Tail lamp
Install the new bulb in reverse order.
Replacing the License Plate Lamp Bulb
1. Carefully release the spring clip.
2. Remove the lamp.
3. Remove the bulb.
Install the new bulb in reverse
order.
3
2
1
Maintenance307
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

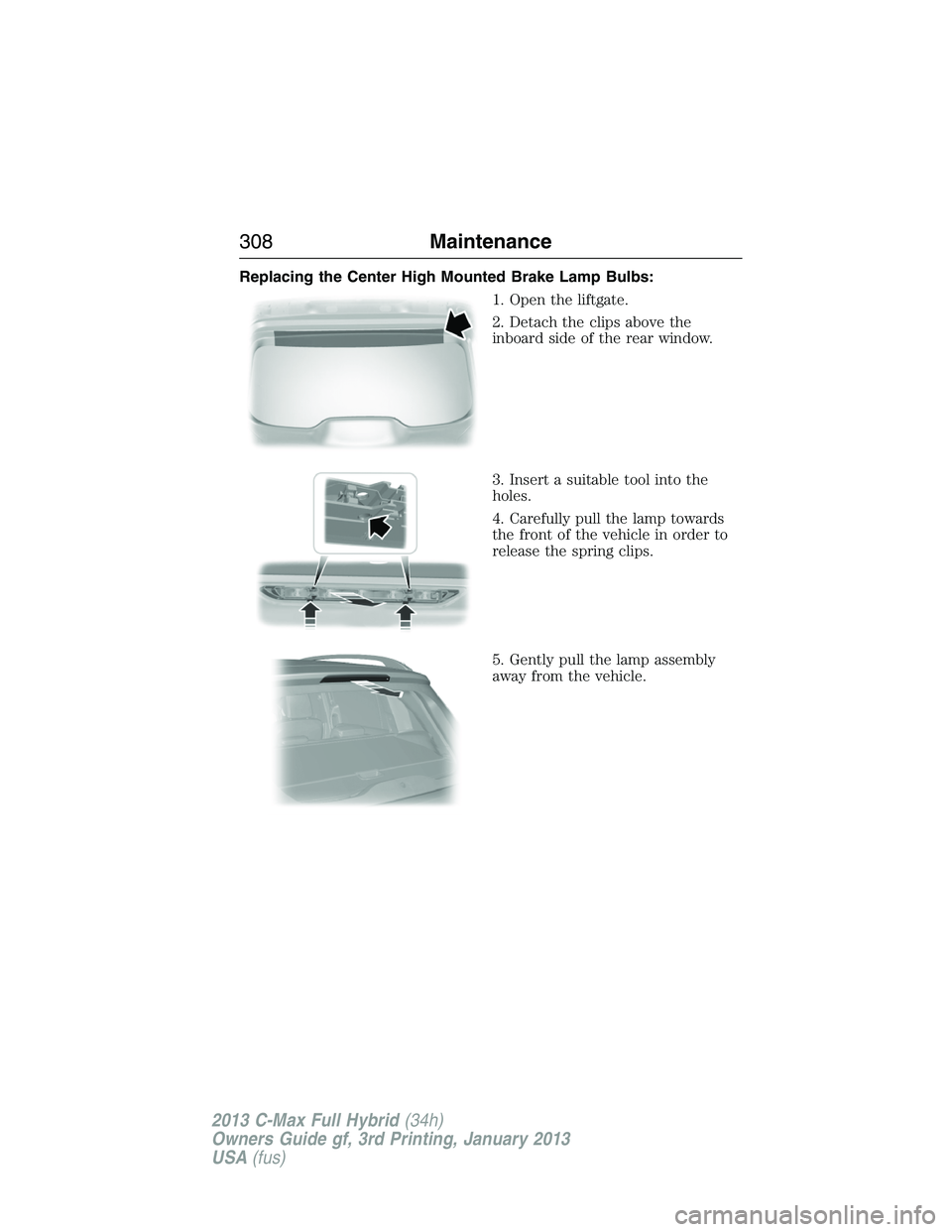

Replacing the Center High Mounted Brake Lamp Bulbs:
1. Open the liftgate.
2. Detach the clips above the
inboard side of the rear window.
3. Insert a suitable tool into the
holes.
4. Carefully pull the lamp towards
the front of the vehicle in order to
release the spring clips.
5. Gently pull the lamp assembly
away from the vehicle.
308Maintenance
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

6. Remove the bulb holder.
7. Remove the bulb.
Install the new bulb in reverse order.
BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America to
ensure lamp performance, light brightness and pattern and safe visibility.
The correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn time.
Function Trade number
Headlamps high beam H1
Headlamps low beam H11
Park/turn lamp (front) 3457AK
Side marker (front) W5W
Fog lamps (if equipped) H11LL
Tail/brake lamp in the rear fender W21/5W
Turn lamp in the rear fender WY21W
Tail lamp in the liftgate P21/5W
Backup lamp W16W
License plate lamp W5W
Cargo area lamp W6W
High-mount brake lamp W5W
* Interior lamps LED
* To replace these lamps - see your authorized dealer.
To replace all instrument panel lights - see your authorized dealer
