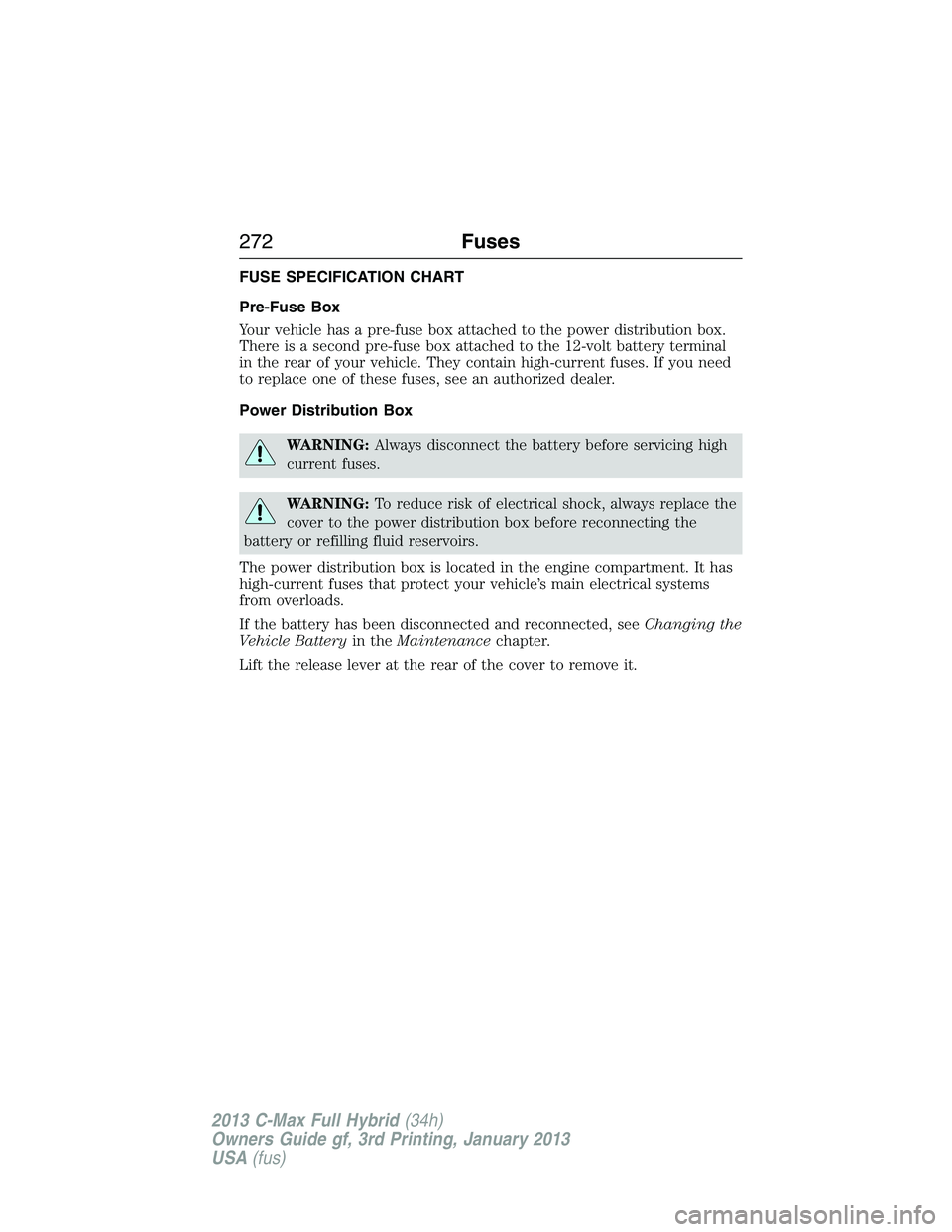

FUSE SPECIFICATION CHART
Pre-Fuse Box
Your vehicle has a pre-fuse box attached to the power distribution box.
There is a second pre-fuse box attached to the 12-volt battery terminal
in the rear of your vehicle. They contain high-current fuses. If you need
to replace one of these fuses, see an authorized dealer.
Power Distribution Box
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
The power distribution box is located in the engine compartment. It has
high-current fuses that protect your vehicle’s main electrical systems
from overloads.
If the battery has been disconnected and reconnected, seeChanging the
Vehicle Batteryin theMaintenancechapter.
Lift the release lever at the rear of the cover to remove it.
272Fuses
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Passenger Compartment Fuse Panel
The fuse panel is located on the right side below the glove box.
Fuse or relay
numberFuse amp
ratingProtected components
56 20A Fuel pump supply
57 — Not used
58 — Not used
59 5A Passive anti-theft system
60 10A Interior light, Driver door switch
pack, Glove box illumination
61 20A Cigar lighter, Second row power point
62 5A Autowipers module, Auto-dimming
rear view mirror
63 — Not used
64 — Not used
65 10A Liftgate release
276Fuses
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
