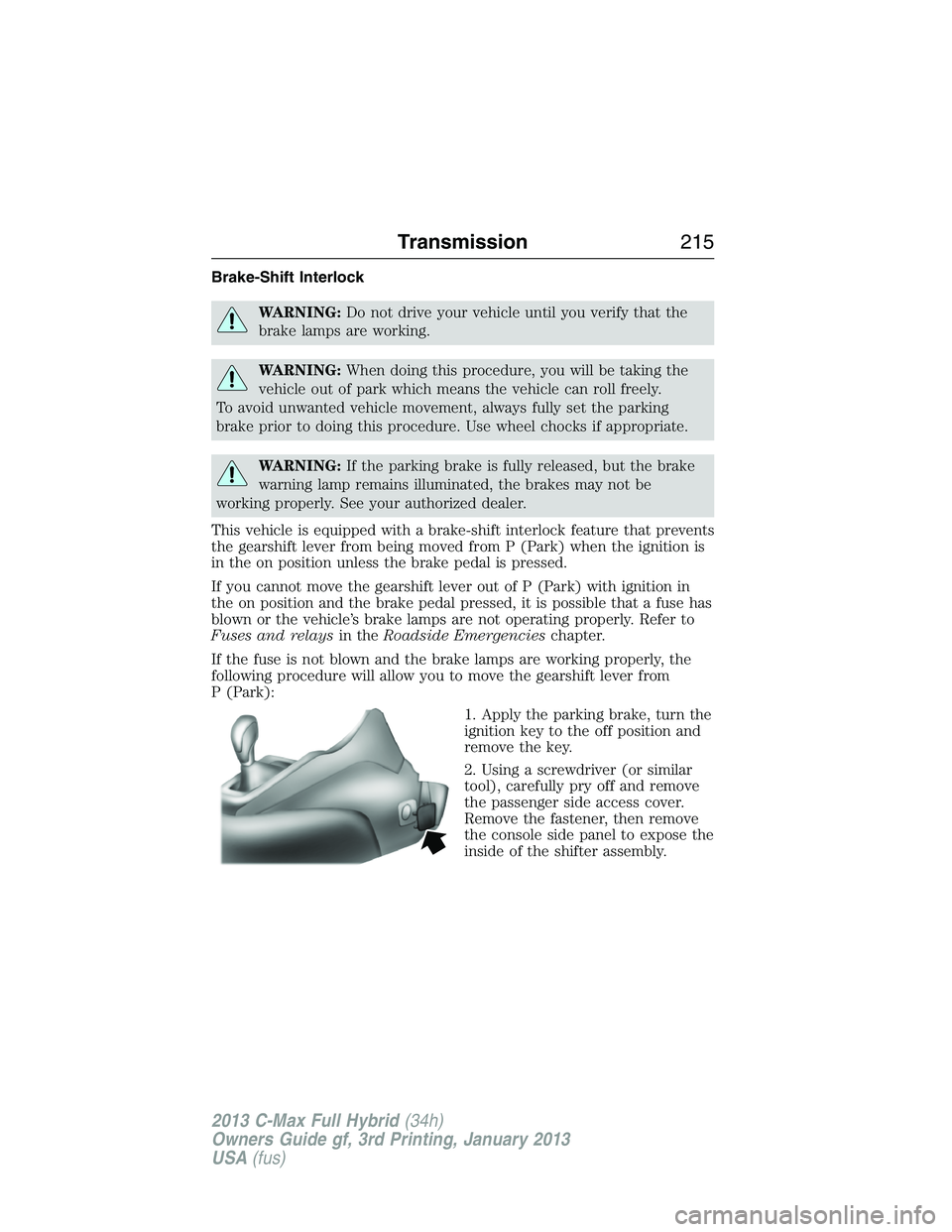

Brake-Shift Interlock
WARNING:Do not drive your vehicle until you verify that the
brake lamps are working.
WARNING:When doing this procedure, you will be taking the
vehicle out of park which means the vehicle can roll freely.
To avoid unwanted vehicle movement, always fully set the parking
brake prior to doing this procedure. Use wheel chocks if appropriate.
WARNING:If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer.
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless the brake pedal is pressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal pressed, it is possible that a fuse has
blown or the vehicle’s brake lamps are not operating properly. Refer to
Fuses and relaysin theRoadside Emergencieschapter.
If the fuse is not blown and the brake lamps are working properly, the
following procedure will allow you to move the gearshift lever from
P (Park):
1. Apply the parking brake, turn the
ignition key to the off position and
remove the key.
2. Using a screwdriver (or similar
tool), carefully pry off and remove
the passenger side access cover.
Remove the fastener, then remove
the console side panel to expose the
inside of the shifter assembly.
Transmission215
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

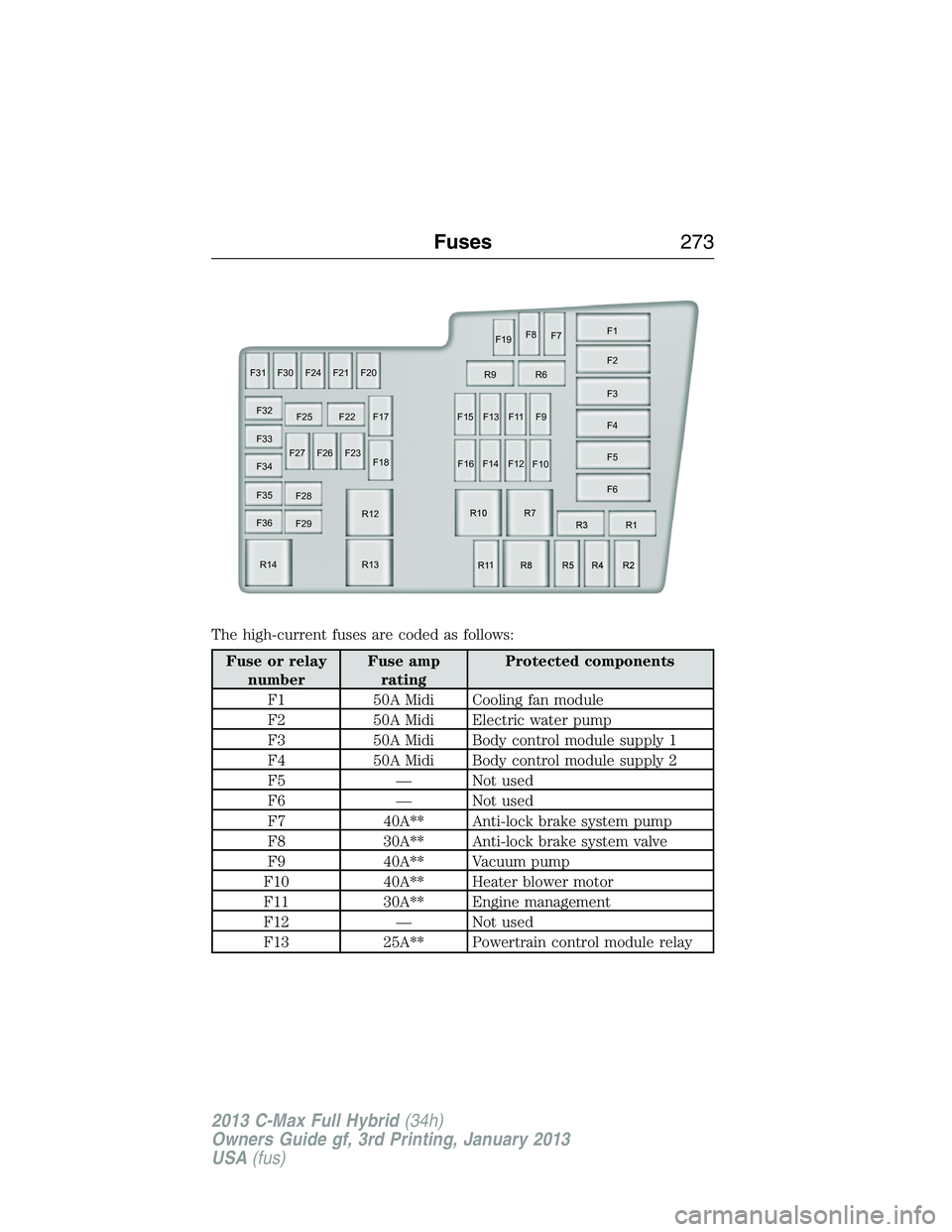

The high-current fuses are coded as follows:
Fuse or relay
numberFuse amp
ratingProtected components
F1 50A Midi Cooling fan module
F2 50A Midi Electric water pump
F3 50A Midi Body control module supply 1
F4 50A Midi Body control module supply 2
F5 — Not used
F6 — Not used
F7 40A** Anti-lock brake system pump
F8 30A** Anti-lock brake system valve
F9 40A** Vacuum pump
F10 40A** Heater blower motor
F11 30A** Engine management
F12 — Not used
F13 25A** Powertrain control module relay
F1
F2
F3
F4
F5
F6 F7 F8
F9 R6
R7
R3
R1
R2 R4 R5 R8 R11 R10
R9
F11 F13 F15
F10 F12 F14 F16F19
F20 F21 F24 F30 F31
F32
F33
F34
F35
F36
F29 F28 F27 F26 F23F22 F17
F18
R12
R13 R14F25
Fuses273
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

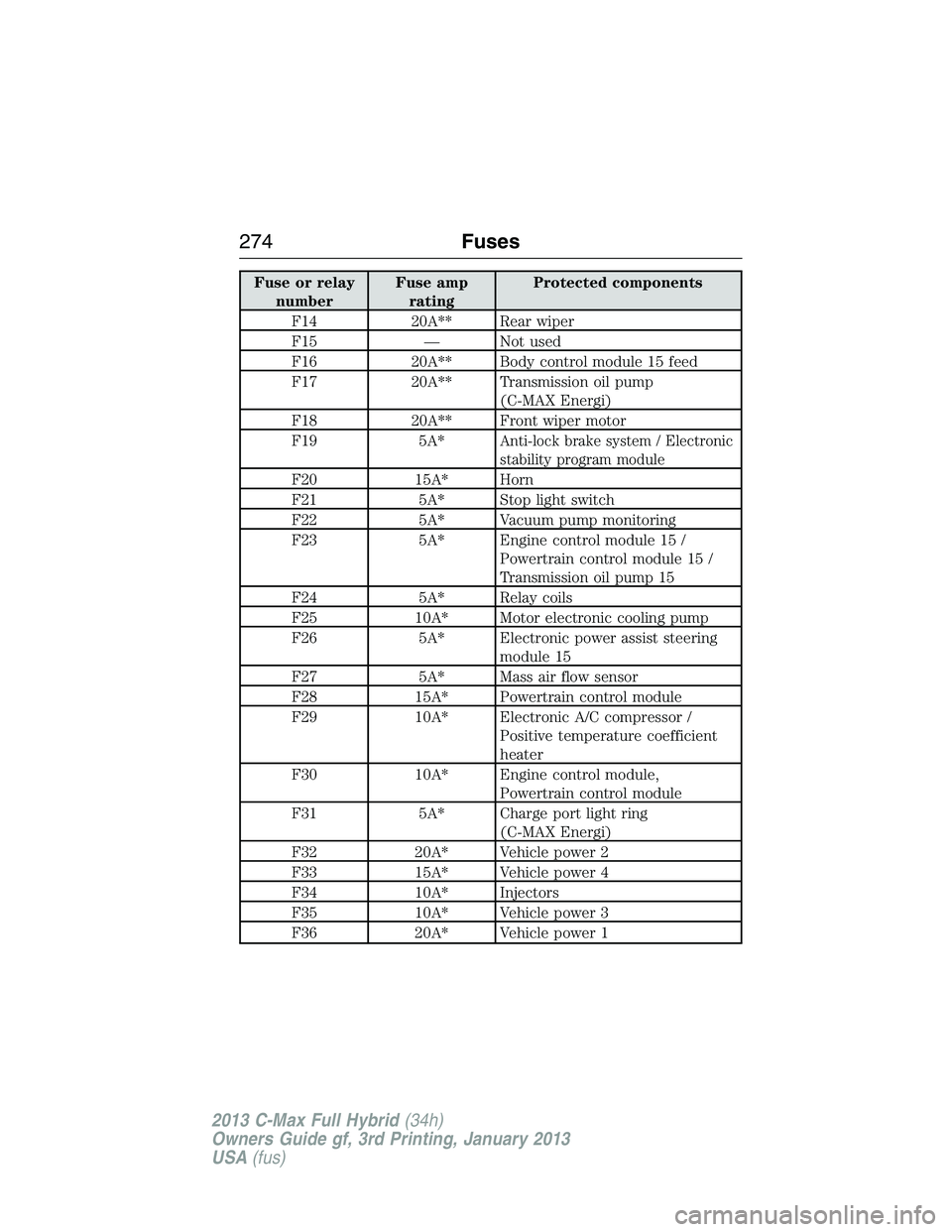

Fuse or relay
numberFuse amp
ratingProtected components
F14 20A** Rear wiper
F15 — Not used
F16 20A** Body control module 15 feed
F17 20A** Transmission oil pump
(C-MAX Energi)
F18 20A** Front wiper motor
F19 5A*
Anti-lock brake system / Electronic
stability program module
F20 15A* Horn
F21 5A* Stop light switch
F22 5A* Vacuum pump monitoring
F23 5A* Engine control module 15 /
Powertrain control module 15 /
Transmission oil pump 15
F24 5A* Relay coils
F25 10A* Motor electronic cooling pump
F26 5A* Electronic power assist steering
module 15
F27 5A* Mass air flow sensor
F28 15A* Powertrain control module
F29 10A* Electronic A/C compressor /
Positive temperature coefficient
heater
F30 10A* Engine control module,
Powertrain control module
F31 5A* Charge port light ring
(C-MAX Energi)
F32 20A* Vehicle power 2
F33 15A* Vehicle power 4
F34 10A* Injectors
F35 10A* Vehicle power 3
F36 20A* Vehicle power 1
274Fuses
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

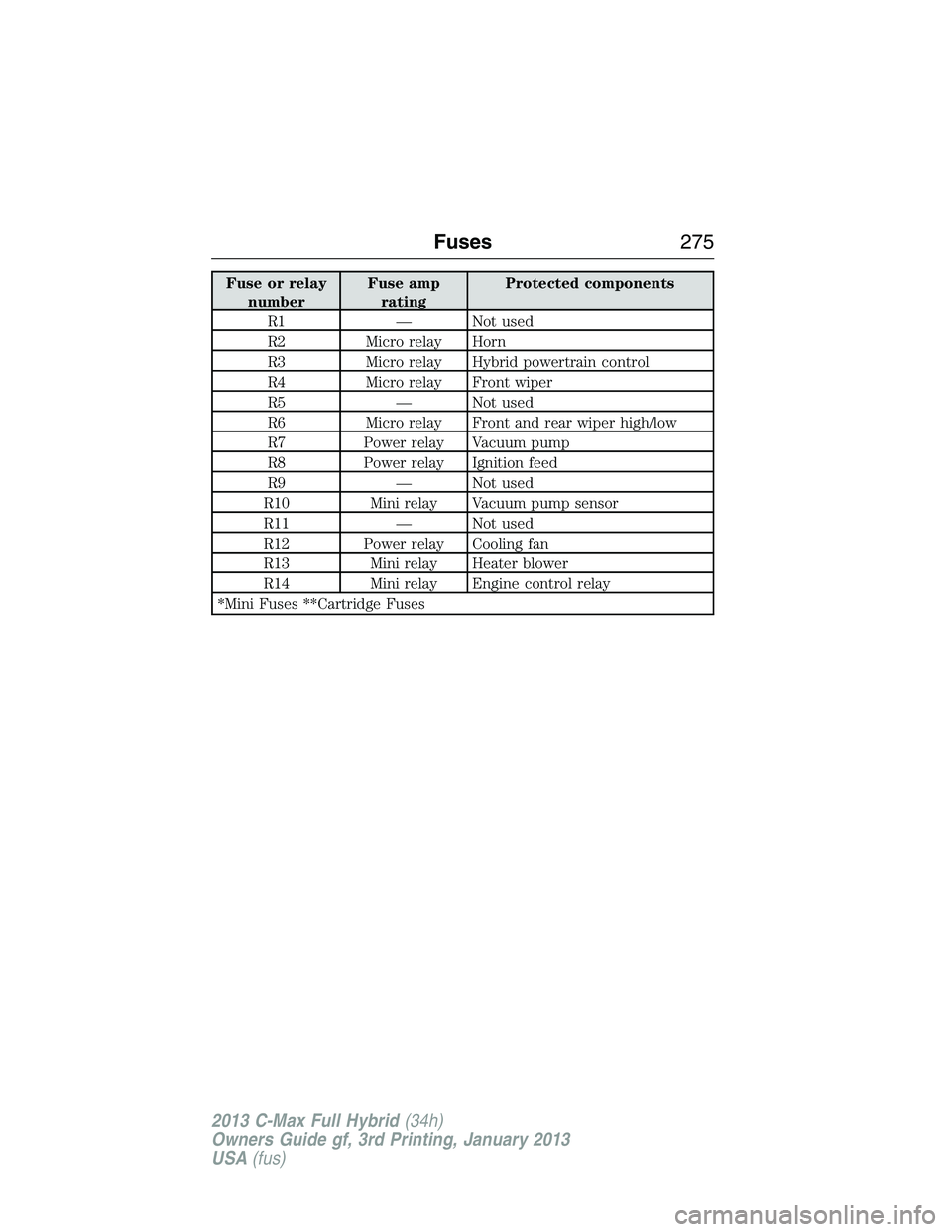

Fuse or relay
numberFuse amp
ratingProtected components
R1 — Not used
R2 Micro relay Horn
R3 Micro relay Hybrid powertrain control
R4 Micro relay Front wiper
R5 — Not used
R6 Micro relay Front and rear wiper high/low
R7 Power relay Vacuum pump
R8 Power relay Ignition feed
R9 — Not used
R10 Mini relay Vacuum pump sensor
R11 — Not used
R12 Power relay Cooling fan
R13 Mini relay Heater blower
R14 Mini relay Engine control relay
*Mini Fuses **Cartridge Fuses
Fuses275
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

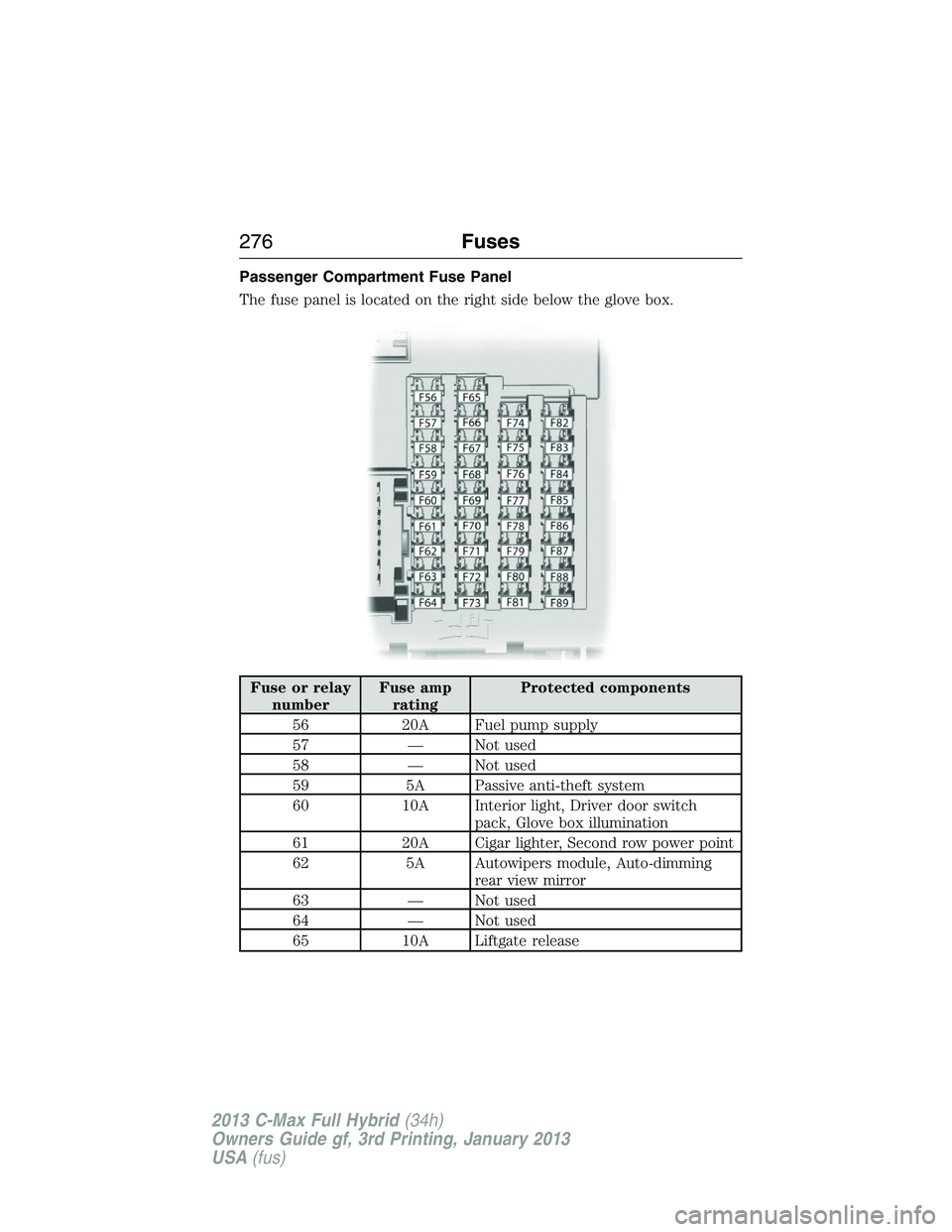

Passenger Compartment Fuse Panel
The fuse panel is located on the right side below the glove box.
Fuse or relay
numberFuse amp
ratingProtected components
56 20A Fuel pump supply
57 — Not used
58 — Not used
59 5A Passive anti-theft system
60 10A Interior light, Driver door switch
pack, Glove box illumination
61 20A Cigar lighter, Second row power point
62 5A Autowipers module, Auto-dimming
rear view mirror
63 — Not used
64 — Not used
65 10A Liftgate release
276Fuses
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

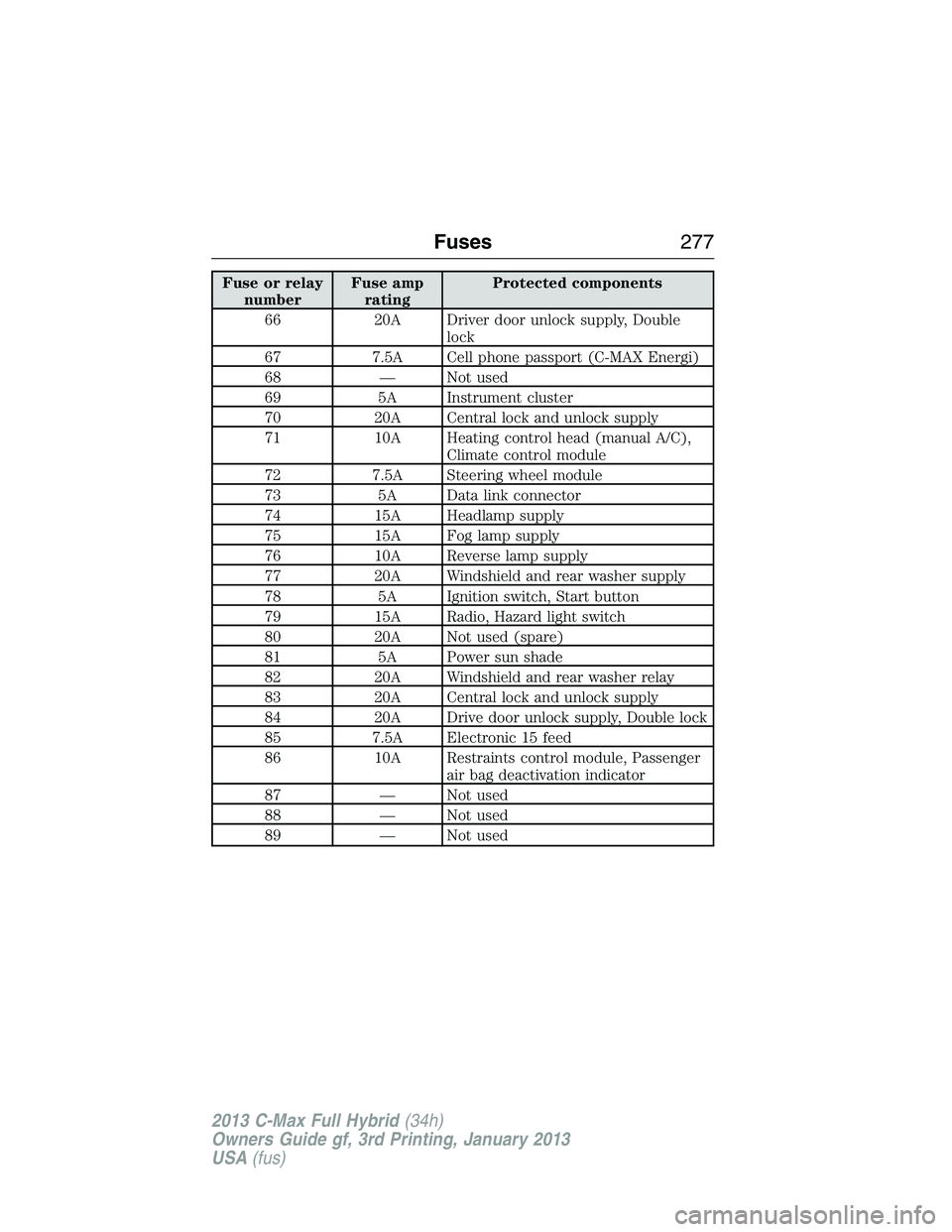

Fuse or relay
numberFuse amp
ratingProtected components
66 20A Driver door unlock supply, Double
lock
67 7.5A Cell phone passport (C-MAX Energi)
68 — Not used
69 5A Instrument cluster
70 20A Central lock and unlock supply
71 10A Heating control head (manual A/C),
Climate control module
72 7.5A Steering wheel module
73 5A Data link connector
74 15A Headlamp supply
75 15A Fog lamp supply
76 10A Reverse lamp supply
77 20A Windshield and rear washer supply
78 5A Ignition switch, Start button
79 15A Radio, Hazard light switch
80 20A Not used (spare)
81 5A Power sun shade
82 20A Windshield and rear washer relay
83 20A Central lock and unlock supply
84 20A Drive door unlock supply, Double lock
85 7.5A Electronic 15 feed
86 10A Restraints control module, Passenger
air bag deactivation indicator
87 — Not used
88 — Not used
89 — Not used
Fuses277
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

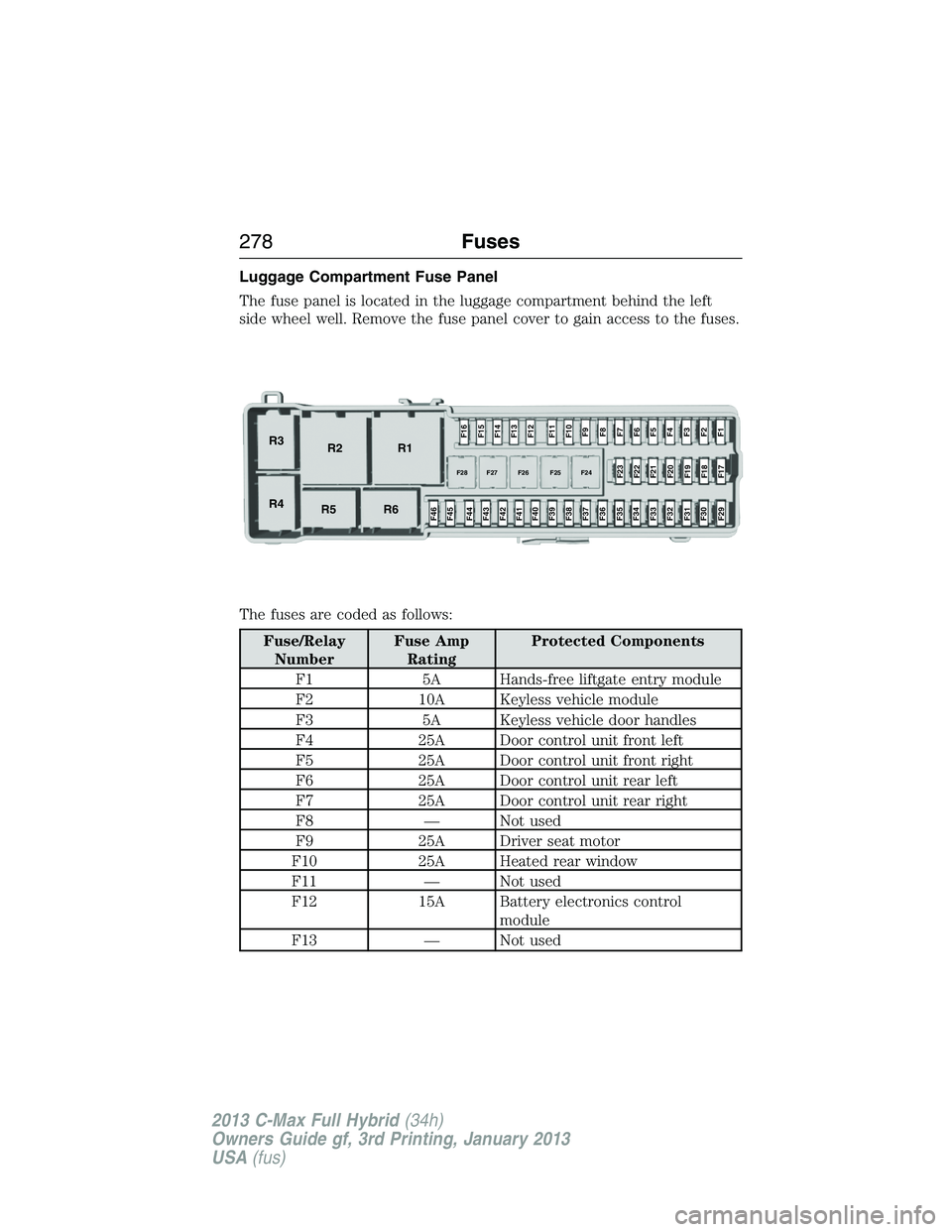

Luggage Compartment Fuse Panel
The fuse panel is located in the luggage compartment behind the left
side wheel well. Remove the fuse panel cover to gain access to the fuses.
The fuses are coded as follows:
Fuse/Relay
NumberFuse Amp
RatingProtected Components
F1 5A Hands-free liftgate entry module
F2 10A Keyless vehicle module
F3 5A Keyless vehicle door handles
F4 25A Door control unit front left
F5 25A Door control unit front right
F6 25A Door control unit rear left
F7 25A Door control unit rear right
F8 — Not used
F9 25A Driver seat motor
F10 25A Heated rear window
F11 — Not used
F12 15A Battery electronics control
module
F13 — Not used
R2
R5R1
F28
F16
F17 F29 F30 F31 F32 F33 F34 F35 F36 F37 F38 F39 F40 F41 F42 F43 F44 F45 F46
F18 F19 F20 F21 F22 F23F15
F14
F13
F12
F11
F10
F9
F8
F7
F6
F5
F4
F3
F2
F1
F27 F26 F25 F24
R6 R3
R4
278Fuses
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

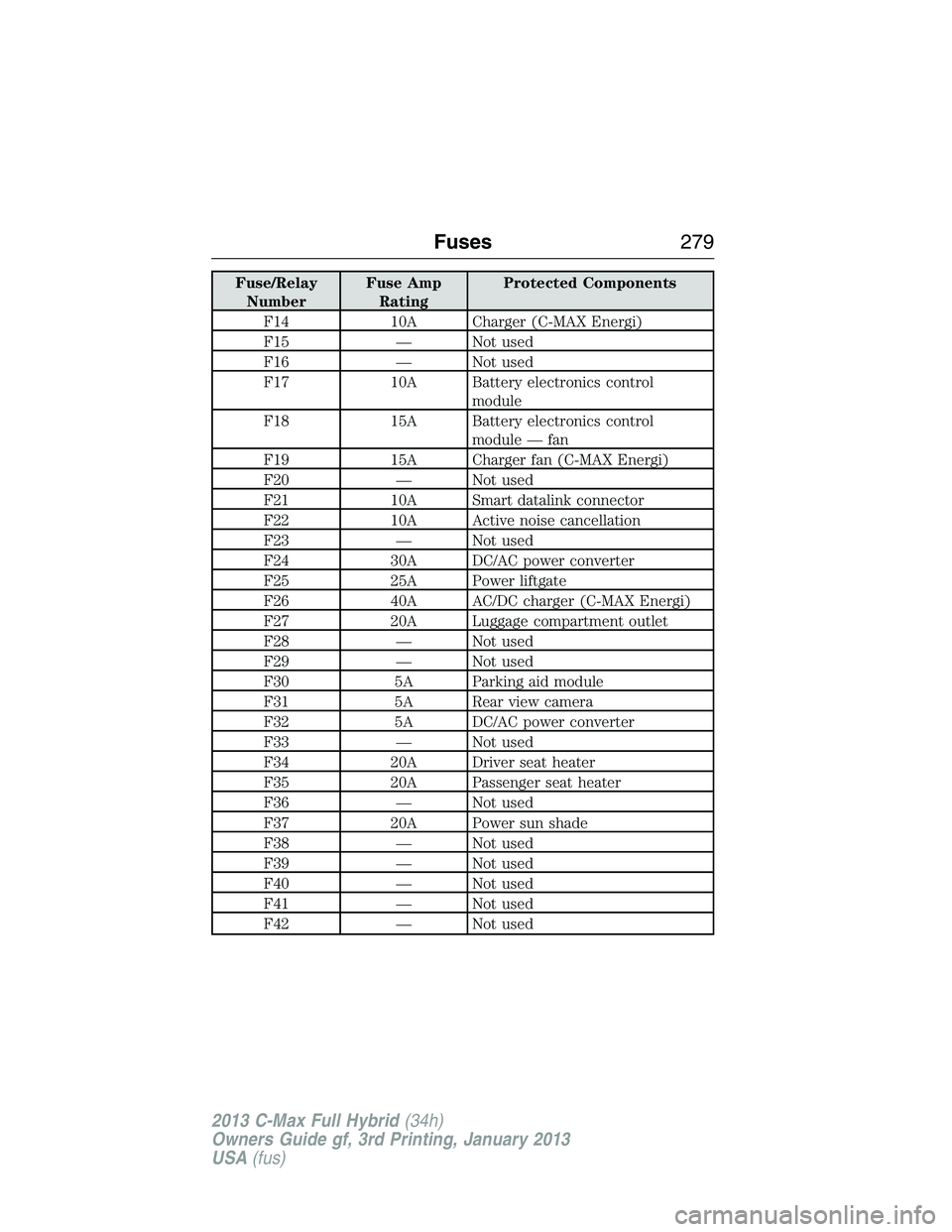

Fuse/Relay
NumberFuse Amp
RatingProtected Components
F14 10A Charger (C-MAX Energi)
F15 — Not used
F16 — Not used
F17 10A Battery electronics control
module
F18 15A Battery electronics control
module — fan
F19 15A Charger fan (C-MAX Energi)
F20 — Not used
F21 10A Smart datalink connector
F22 10A Active noise cancellation
F23 — Not used
F24 30A DC/AC power converter
F25 25A Power liftgate
F26 40A AC/DC charger (C-MAX Energi)
F27 20A Luggage compartment outlet
F28 — Not used
F29 — Not used
F30 5A Parking aid module
F31 5A Rear view camera
F32 5A DC/AC power converter
F33 — Not used
F34 20A Driver seat heater
F35 20A Passenger seat heater
F36 — Not used
F37 20A Power sun shade
F38 — Not used
F39 — Not used
F40 — Not used
F41 — Not used
F42 — Not used
Fuses279
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

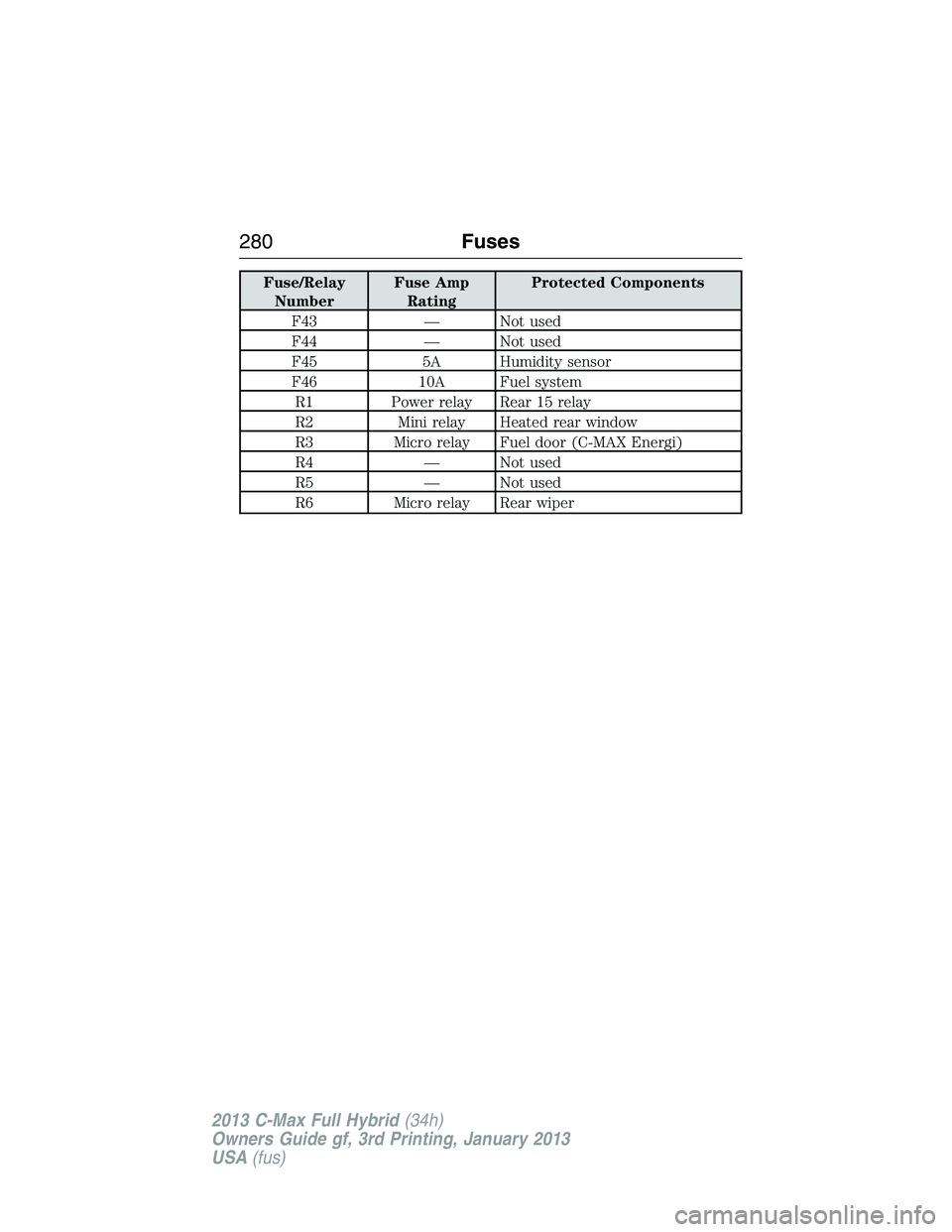

Fuse/Relay
NumberFuse Amp
RatingProtected Components
F43 — Not used
F44 — Not used
F45 5A Humidity sensor
F46 10A Fuel system
R1 Power relay Rear 15 relay
R2 Mini relay Heated rear window
R3 Micro relay Fuel door (C-MAX Energi)
R4 — Not used
R5 — Not used
R6 Micro relay Rear wiper
280Fuses
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
