Downloaded from www.Manualslib.com manuals search engine Press the door to open it. Open the doorfully until it engages.
Insert the fuel nozzle up to and includingthe first notch on the nozzle A. Keep itresting on the cover of the fuel pipeopening.
WARNING
We recommend that you remove thefuel nozzle slowly to allow anyresidual fuel to drain into the fueltank. Alternatively you can wait 10 secondsbefore removing the fuel nozzle.
Slightly raise the fuel nozzle to remove it.
HILL START ASSIST
The system makes it easier to pull awaywhen your vehicle is on a slope without theneed to use the parking brake.
When the system is active, your vehicle willremain stationary on the slope for two tothree seconds after you release the brakepedal. This allows you time to move yourfoot from the brake to the acceleratorpedal. The brakes are releasedautomatically once the engine hasdeveloped sufficient drive to prevent yourvehicle from rolling down the slope.
HINTS ON DRIVING WITH ANTI-
LOCK BRAKES
Note:When the system is operating, thebrake pedal will pulse and may travel further.Maintain pressure on the brake pedal. Youmay also hear a noise from the system. Thisis normal.
The ABS will not eliminate the risks when:
•you drive too close to the vehicle in frontof you
•the vehicle is aquaplaning
•you take corners too fast
•the road surface is poor.
ACTIVE PARK ASSIST
Active park assist detects a suitable parallelparking space and steers the vehicle intothe space. The system controls the steeringwhile the driver controls the accelerator,transmission and brakes.
11C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing

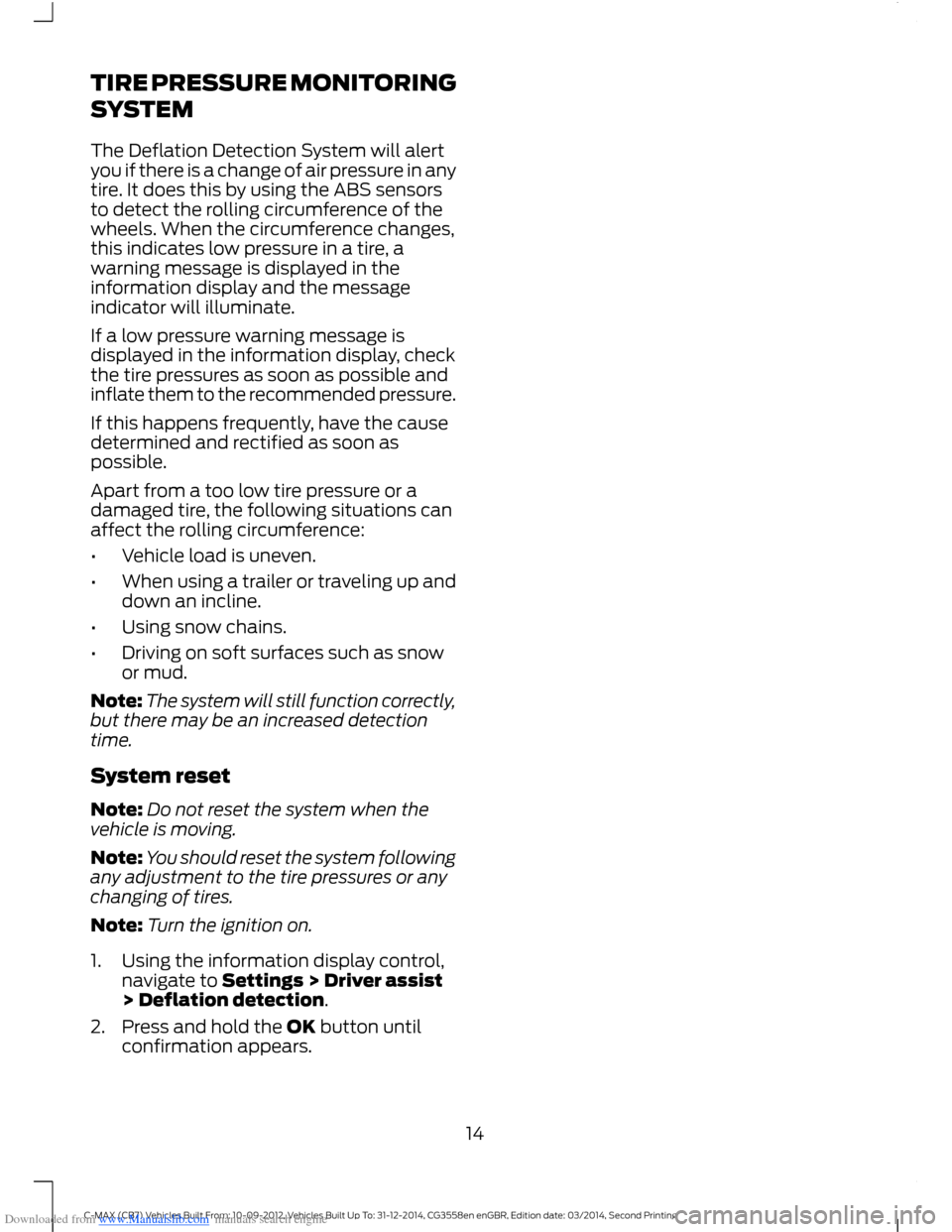

Downloaded from www.Manualslib.com manuals search engine TIRE PRESSURE MONITORING
SYSTEM
The Deflation Detection System will alertyou if there is a change of air pressure in anytire. It does this by using the ABS sensorsto detect the rolling circumference of thewheels. When the circumference changes,this indicates low pressure in a tire, awarning message is displayed in theinformation display and the messageindicator will illuminate.
If a low pressure warning message isdisplayed in the information display, checkthe tire pressures as soon as possible andinflate them to the recommended pressure.
If this happens frequently, have the causedetermined and rectified as soon aspossible.
Apart from a too low tire pressure or adamaged tire, the following situations canaffect the rolling circumference:
•Vehicle load is uneven.
•When using a trailer or traveling up anddown an incline.
•Using snow chains.
•Driving on soft surfaces such as snowor mud.
Note:The system will still function correctly,but there may be an increased detectiontime.
System reset
Note:Do not reset the system when thevehicle is moving.
Note:You should reset the system followingany adjustment to the tire pressures or anychanging of tires.
Note:Turn the ignition on.
1.Using the information display control,navigate to Settings > Driver assist> Deflation detection.
2.Press and hold the OK button untilconfirmation appears.
