cruise control FORD C MAX 2014 2.G Quick Reference Guide

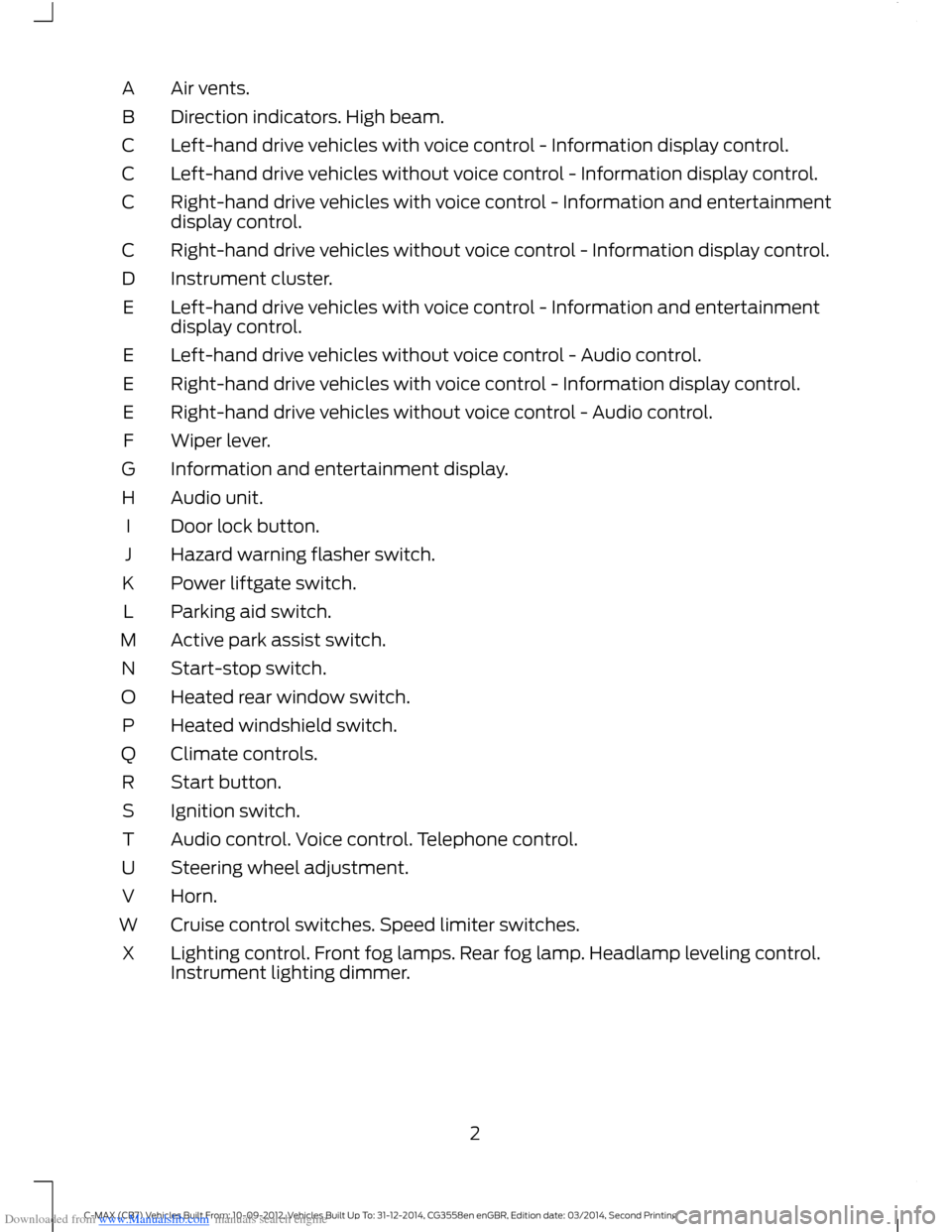

Downloaded from www.Manualslib.com manuals search engine Air vents.A
Direction indicators. High beam.B
Left-hand drive vehicles with voice control - Information display control.C
Left-hand drive vehicles without voice control - Information display control.C
Right-hand drive vehicles with voice control - Information and entertainmentdisplay control.C
Right-hand drive vehicles without voice control - Information display control.C
Instrument cluster.D
Left-hand drive vehicles with voice control - Information and entertainmentdisplay control.E
Left-hand drive vehicles without voice control - Audio control.E
Right-hand drive vehicles with voice control - Information display control.E
Right-hand drive vehicles without voice control - Audio control.E
Wiper lever.F
Information and entertainment display.G
Audio unit.H
Door lock button.I
Hazard warning flasher switch.J
Power liftgate switch.K
Parking aid switch.L
Active park assist switch.M
Start-stop switch.N
Heated rear window switch.O
Heated windshield switch.P
Climate controls.Q
Start button.R
Ignition switch.S
Audio control. Voice control. Telephone control.T
Steering wheel adjustment.U
Horn.V
Cruise control switches. Speed limiter switches.W
Lighting control. Front fog lamps. Rear fog lamp. Headlamp leveling control.Instrument lighting dimmer.X
2C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing

Downloaded from www.Manualslib.com manuals search engine USING CRUISE CONTROL
Switching cruise control on and off
Setting a speed
Press the SET+ switch or the SET- switchto store and maintain your current speed.The cruise control indicator will illuminate.
Changing the set speed
AccelerateA
DecelerateB
Canceling the set speed
Press the brake pedal or pull the CANswitch.
Resuming the set speed
Pull the RES switch.
ECONOMICAL DRIVING
The following will help to improve fuelconsumption.
Check your tire pressures regularly tooptimize fuel economy.
Gear Shifting
Use the highest drivable gear appropriatefor the road conditions.
Anticipation
Adjust your vehicle speed and the distanceto other vehicles without the need for heavybraking or acceleration.
Efficient Speed
Higher speeds use more fuel. Reduce yourcruising speed on open roads.
TEMPORARY MOBILITY KIT
WARNING
For all warnings and cautions, referto your Owner's Manual.
Your vehicle may not have a spare tire. Inthis case it will have an emergency tirerepair kit that can be used to repair one flattire.
Tire repair kit location
The tire repair kit is located in the sparewheel well.
13C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing
