ignition FORD C MAX 2014 2.G Quick Reference Guide

Downloaded from www.Manualslib.com manuals search engine Air vents.A
Direction indicators. High beam.B
Left-hand drive vehicles with voice control - Information display control.C
Left-hand drive vehicles without voice control - Information display control.C
Right-hand drive vehicles with voice control - Information and entertainmentdisplay control.C
Right-hand drive vehicles without voice control - Information display control.C
Instrument cluster.D
Left-hand drive vehicles with voice control - Information and entertainmentdisplay control.E
Left-hand drive vehicles without voice control - Audio control.E
Right-hand drive vehicles with voice control - Information display control.E
Right-hand drive vehicles without voice control - Audio control.E
Wiper lever.F
Information and entertainment display.G
Audio unit.H
Door lock button.I
Hazard warning flasher switch.J
Power liftgate switch.K
Parking aid switch.L
Active park assist switch.M
Start-stop switch.N
Heated rear window switch.O
Heated windshield switch.P
Climate controls.Q
Start button.R
Ignition switch.S
Audio control. Voice control. Telephone control.T
Steering wheel adjustment.U
Horn.V
Cruise control switches. Speed limiter switches.W
Lighting control. Front fog lamps. Rear fog lamp. Headlamp leveling control.Instrument lighting dimmer.X
2C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing

Downloaded from www.Manualslib.com manuals search engine LOCKING AND UNLOCKING
UnlockA
LockB
Luggage compartment lid unlockC
Double locking with the key
Turn the key to the lock position twicewithin three seconds.
Double locking with the remotecontrol
Press button B twice within three seconds.
GLOBAL OPENING AND
CLOSING
WARNINGS
For all warnings and cautions, referto your Owner's Manual.
Take care when using global closing.In an emergency, press the lock orunlock button immediately to stop.
To open all the windows, press and holdthe remote control unlock button for atleast three seconds. Press the lock orunlock button to stop the opening function.
To close all the windows, press and holdthe remote control lock button for at leastthree seconds. Press the lock or unlockbutton to stop the closing function. Theanti-trap function is also active duringglobal closing.
DISARMING THE ALARM
Vehicles without keyless entry
Perimeter alarm
Disarm and silence the alarm by unlockingthe doors with the key and switching theignition on with a correctly coded key, orunlocking the doors or the luggagecompartment lid with the remote control.
Category one alarm
Disarm and silence the alarm by unlockingthe doors with the key and switching theignition on with a correctly coded key within12 seconds, or unlocking the doors or theluggage compartment lid with the remotecontrol.
Vehicles with keyless entry
Note:A valid passive key must be locatedwithin the detection range of that door forkeyless entry.
Perimeter alarm
Disarm and silence the alarm by unlockingthe doors and switching the ignition on, orunlocking the doors or the luggagecompartment lid with the remote control.
Category one alarm
Disarm and silence the alarm by unlockingthe doors and switching the ignition onwithin 12 seconds, or unlocking the doorsor the luggage compartment lid with theremote control.
3C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing

Downloaded from www.Manualslib.com manuals search engine AUTOWIPERS
WARNING
For all warnings and cautions, referto your Owner's Manual.
High sensitivityA
OnB
Low sensitivityC
The wipers will function when moisture isdetected on the windshield. The rain sensorwill continue to monitor the amount ofmoisture on the windshield and adjust thespeed of the wipers automatically.
Use the rotary control to adjust thesensitivity of the rain sensor. With lowsensitivity, the wipers will operate when thesensor detects a large amount of moistureon the windshield. With high sensitivity, thewipers will operate when the sensor detectsa small amount of moisture on thewindshield.
REAR WINDOW WIPER AND
WASHERS
Intermittent wipeA
Low speed wipeB
Rear window washer
CHANGING THE WIPER BLADES
Windshield wiper blades
WARNINGS
Set the windshield wipers in theservice position to change the wiperblades.
You can use the service position inwinter to provide easier access to thewiper blades for freeing them fromsnow and ice. The windshield wipers willreturn to their normal position as soon asyou switch on the ignition so make sure thatthe outside of the windshield is free fromsnow and ice before you switch on theignition.
5C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing

Downloaded from www.Manualslib.com manuals search engine Service position
Switch off the ignition and move the wiperlever to position A within three seconds.Release the lever when the windshieldwipers have moved to the service position.
POWER WINDOWS
To reduce wind noise or buffeting when justone window is open, open the oppositewindow slightly.
BLIND SPOT INFORMATION
SYSTEM
Blind Spot Information System(BLIS)
The system is a convenience feature thatassists you to detect vehicles that may haveentered your blind spot zones (A). Thedetection area is on both sides of yourvehicle extending rearward from theexterior mirrors to approximately 10 ft (3 m)beyond the rear of your vehicle. The systemwill alert you if certain vehicles enter yourblind spot zones while driving.
Using the System
The system displays a yellow indicatorlocated in the exterior mirrors.
Detection Limitations
There may be instances where vehiclesentering and exiting the blind spot zonesmay not be detected.
6C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing

Downloaded from www.Manualslib.com manuals search engine 3.Pull the strap to fold the center seatover into the right-hand seat base.
4.Fold the right-hand seat cushion down.
Note:You can use the space between theoutboard seats to access the third row seatswhen the center seat has been stowed.
Folding the seats forward
WARNING
Do not use the third row seats whenthe second row seats have beenfolded forward.
Note:The center seat must be stowed intothe right-hand seat base before theright-hand seat is folded.
1.Pull the strap and lift the cushion.
2.Lift the lever and push the seatbackdown until it locks.
CLOCK
You can adjust the date and time using theinformation display menu. Use the arrowbuttons on your steering wheel to accessthe menu and make the necessary changes.
KEYLESS STARTING
Ignition On
Press the button once without your foot onthe brake or clutch pedal.
Note:The keyless starting system may notfunction if the passive key is close to metalobjects or electronic devices such as cellphones.
Starting with Manual Transmission
1.Fully depress the clutch pedal.
2.Press the start button.
Note:Releasing the clutch pedal duringengine start will stop the engine cranking andreturn to ignition on.
9C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing

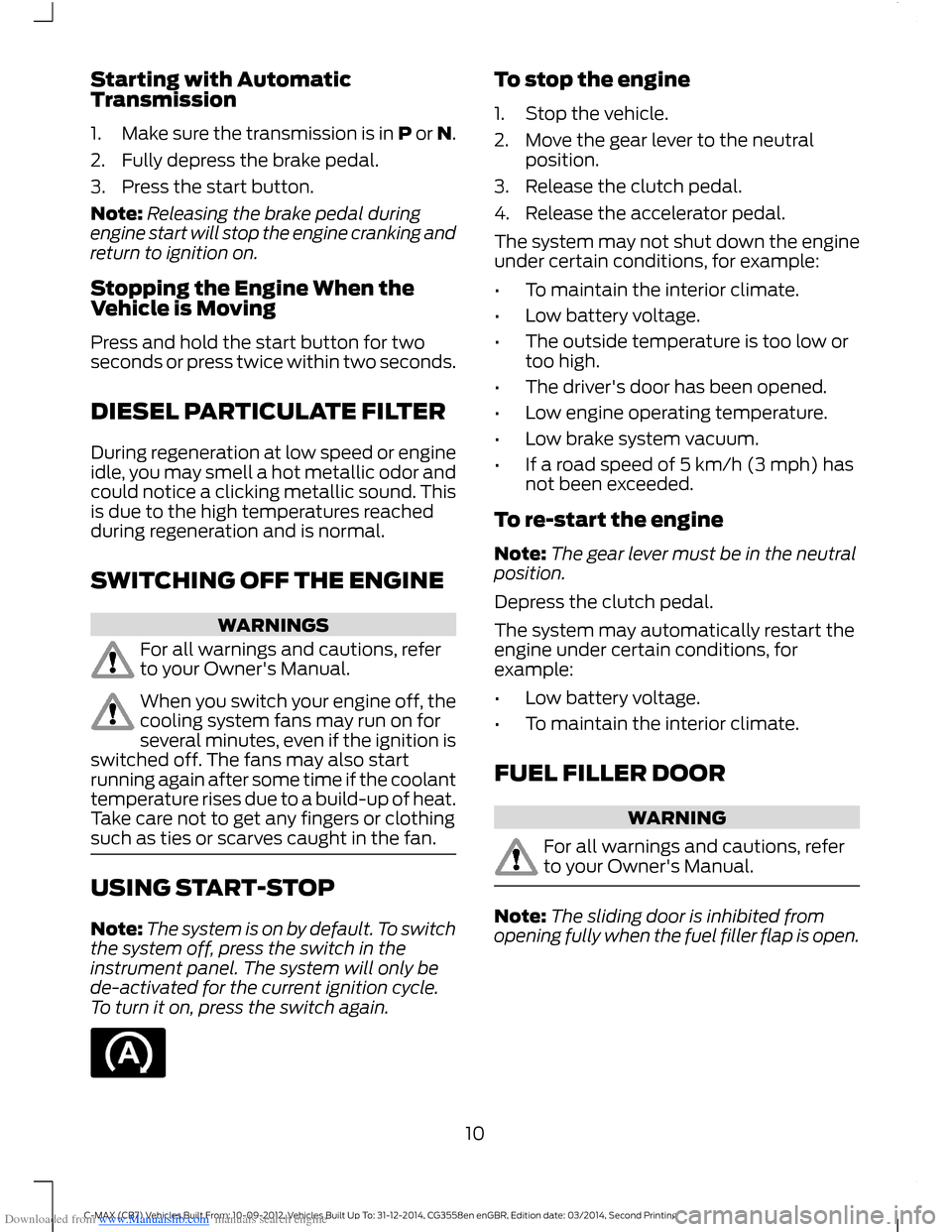

Downloaded from www.Manualslib.com manuals search engine Starting with AutomaticTransmission
1.Make sure the transmission is in P or N.
2.Fully depress the brake pedal.
3.Press the start button.
Note:Releasing the brake pedal duringengine start will stop the engine cranking andreturn to ignition on.
Stopping the Engine When theVehicle is Moving
Press and hold the start button for twoseconds or press twice within two seconds.
DIESEL PARTICULATE FILTER
During regeneration at low speed or engineidle, you may smell a hot metallic odor andcould notice a clicking metallic sound. Thisis due to the high temperatures reachedduring regeneration and is normal.
SWITCHING OFF THE ENGINE
WARNINGS
For all warnings and cautions, referto your Owner's Manual.
When you switch your engine off, thecooling system fans may run on forseveral minutes, even if the ignition isswitched off. The fans may also startrunning again after some time if the coolanttemperature rises due to a build-up of heat.Take care not to get any fingers or clothingsuch as ties or scarves caught in the fan.
USING START-STOP
Note:The system is on by default. To switchthe system off, press the switch in theinstrument panel. The system will only bede-activated for the current ignition cycle.To turn it on, press the switch again.
To stop the engine
1.Stop the vehicle.
2.Move the gear lever to the neutralposition.
3.Release the clutch pedal.
4.Release the accelerator pedal.
The system may not shut down the engineunder certain conditions, for example:
•To maintain the interior climate.
•Low battery voltage.
•The outside temperature is too low ortoo high.
•The driver's door has been opened.
•Low engine operating temperature.
•Low brake system vacuum.
•If a road speed of 5 km/h (3 mph) hasnot been exceeded.
To re-start the engine
Note:The gear lever must be in the neutralposition.
Depress the clutch pedal.
The system may automatically restart theengine under certain conditions, forexample:
•Low battery voltage.
•To maintain the interior climate.
FUEL FILLER DOOR
WARNING
For all warnings and cautions, referto your Owner's Manual.
Note:The sliding door is inhibited fromopening fully when the fuel filler flap is open.
10C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing

Downloaded from www.Manualslib.com manuals search engine TIRE PRESSURE MONITORING
SYSTEM
The Deflation Detection System will alertyou if there is a change of air pressure in anytire. It does this by using the ABS sensorsto detect the rolling circumference of thewheels. When the circumference changes,this indicates low pressure in a tire, awarning message is displayed in theinformation display and the messageindicator will illuminate.
If a low pressure warning message isdisplayed in the information display, checkthe tire pressures as soon as possible andinflate them to the recommended pressure.
If this happens frequently, have the causedetermined and rectified as soon aspossible.
Apart from a too low tire pressure or adamaged tire, the following situations canaffect the rolling circumference:
•Vehicle load is uneven.
•When using a trailer or traveling up anddown an incline.
•Using snow chains.
•Driving on soft surfaces such as snowor mud.
Note:The system will still function correctly,but there may be an increased detectiontime.
System reset
Note:Do not reset the system when thevehicle is moving.
Note:You should reset the system followingany adjustment to the tire pressures or anychanging of tires.
Note:Turn the ignition on.
1.Using the information display control,navigate to Settings > Driver assist> Deflation detection.
2.Press and hold the OK button untilconfirmation appears.
