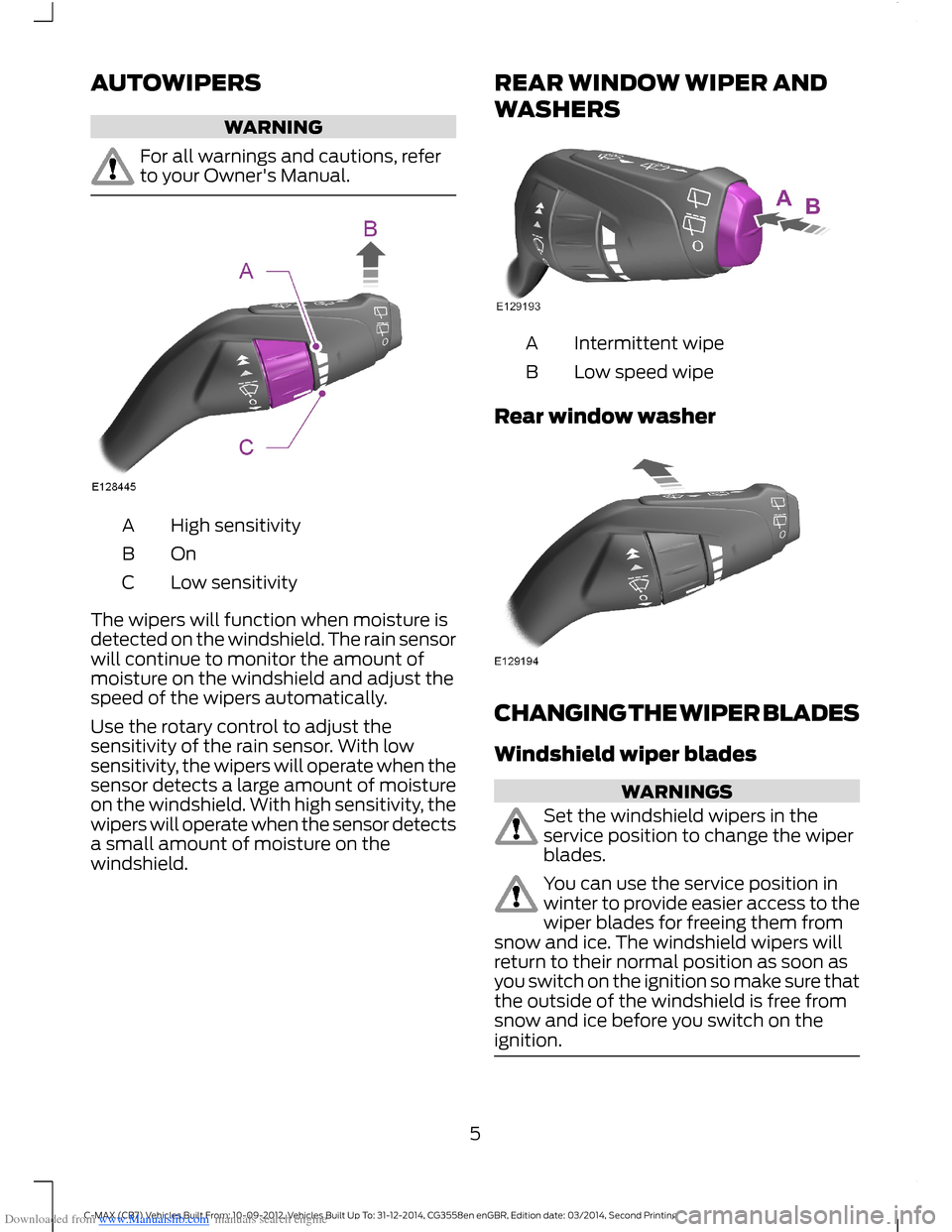

wiper blades FORD C MAX 2014 2.G Quick Reference Guide

Downloaded from www.Manualslib.com manuals search engine AUTOWIPERS
WARNING
For all warnings and cautions, referto your Owner's Manual.
High sensitivityA
OnB
Low sensitivityC
The wipers will function when moisture isdetected on the windshield. The rain sensorwill continue to monitor the amount ofmoisture on the windshield and adjust thespeed of the wipers automatically.
Use the rotary control to adjust thesensitivity of the rain sensor. With lowsensitivity, the wipers will operate when thesensor detects a large amount of moistureon the windshield. With high sensitivity, thewipers will operate when the sensor detectsa small amount of moisture on thewindshield.
REAR WINDOW WIPER AND
WASHERS
Intermittent wipeA
Low speed wipeB
Rear window washer
CHANGING THE WIPER BLADES
Windshield wiper blades
WARNINGS
Set the windshield wipers in theservice position to change the wiperblades.
You can use the service position inwinter to provide easier access to thewiper blades for freeing them fromsnow and ice. The windshield wipers willreturn to their normal position as soon asyou switch on the ignition so make sure thatthe outside of the windshield is free fromsnow and ice before you switch on theignition.
5C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing
