fuses FORD C MAX 2016 User Guide

Protected components
Fuse amp rating
Fuse or relay number
Hands-free liftgate entry module.
5A
F1
Keyless vehicle module.
10A
F2
Keyless vehicle door handles.
5A
F3
Door control unit front left.
25A
F4
Door control unit front right.
25A
F5
Door control unit rear left.
25A
F6
Door control unit rear right.
25A
F7
Not used.
—
F8
Driver seat motor.
25A
F9
Heated rear window.
25A
F10
Ignition relay.
5A
F11
Battery electronics control module.
15A
F12
Not used.
—
F13
Charger (C-MAX Energi).
10A
F14
Not used.
—
F15
Not used.
—
F16
Battery electronics control module.
10A
F17
Battery electronics control module — fan.
15A
F18
215
C-MAX (CCG) Canada/United States of America, enUSA, First Printing FusesE129927

Protected components
Fuse amp rating
Fuse or relay number
Charger fan (C-MAX Energi).
15A
F19
Not used.
—
F20
Smart datalink connector.
15A
F21
Active noise cancellation.
10A
F22
Not used.
—
F23
DC/AC power converter.
30A
F24
Power liftgate.
25A
F25
AC/DC charger (C-MAX Energi).
40A
F26
Luggage compartment outlet.
20A
F27
Not used.
—
F28
Not used.
—
F29
Parking aid module.
5A
F30
Rear view camera.
5A
F31
DC/AC power converter.
5A
F32
Not used.
—
F33
Driver seat heater.
20A
F34
Passenger seat heater.
20A
F35
Not used.
—
F36
Power sun shade.
20A
F37
Not used.
—
F38
Not used.
—
F39
Not used.
—
F40
Not used.
—
F41
Not used.
—
F42
Not used.
—
F43
Not used.
—
F44
Humidity sensor.
5A
F45
216
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Fuel system.
10A
F46
Rear 15 relay.
Power relay
R1
Heated rear window.
Mini relay
R2
Fuel door (C-MAX Energi).
Micro relay
R3
Not used.
—
R4
Not used.
—
R5
Rear wiper.
Micro relay
R6
CHANGING A FUSE
Fuses WARNING
You must replace a failed fuse with
one that has the specified amperage
rating. If you use a fuse with a higher
amperage rating, you may cause severe
wire damage and may start a fire. A fuse may fail if electrical components in
the vehicle are not properly working. A
broken wire inside the fuse indicates a
failed fuse. Check the appropriate fuses
before replacing any electrical
components.
217
C-MAX (CCG) Canada/United States of America, enUSA, First Printing FusesE142430

Engine coolant reservoir cap. See Engine Coolant Check (page 223).
A
Engine oil filler cap. See
Engine Oil Check (page 222).
B
Engine oil dipstick. See
Engine Oil Dipstick (page 222).
C
Engine air filter cover. See
Changing the Engine Air Filter (page 238).
D
Inverter system controller.
E
Brake fluid reservoir cap. See
Brake Fluid Check (page 227).
F
Power distribution box. See
Fuses (page 209).
G
Inverter system controller coolant reservoir cap.
H
Windshield washer fluid reservoir cap. See
Washer Fluid Check (page 227).
I
220
C-MAX (CCG) Canada/United States of America, enUSA, First Printing MaintenanceABCDEFG
HIE162485

Inverter system controller.
E
Brake fluid reservoir cap. See Brake Fluid Check (page 227).
F
Power distribution box. See
Fuses (page 209).
G
Inverter system controller coolant reservoir cap.
H
Windshield washer fluid reservoir cap. See
Washer Fluid Check (page 227).
I
ENGINE OIL DIPSTICK MINA
MAX
B
ENGINE OIL CHECK
Check the level before starting the engine
and make sure that the level is between
the MIN and the MAX marks.
1. Make sure that your vehicle is on level ground.
2. Switch the engine off and wait 10 minutes for the oil to drain into the oil
pan.
3. Remove the dipstick and wipe it with a clean, lint-free cloth. Replace the
dipstick and remove it again to check
the oil level.
If the oil level is at the minimum mark, add
oil immediately. Adding Engine Oil
Note:
Do not remove the filler cap when
the engine is running.
Note: Do not add oil further than the MAX
mark. Oil levels above the MAX mark may
cause engine damage. Only use oils certified for gasoline engines
by the American Petroleum Institute (API).
An oil with this trademark symbol
conforms to the current engine and
emission system protection standards and
fuel economy requirements of the
International Lubricants Specification
Advisory Council (ILSAC), comprised of
U.S. and Japanese automobile
manufacturers.
1. Remove the filler cap.
2. Add engine oil that meets the Ford
specifications. See
Capacities and
Specifications (page 276).
3. Wipe off any spilled oil.
4. Replace the filler cap. Turn it until you feel a strong resistance.
222
C-MAX (CCG) Canada/United States of America, enUSA, First Printing MaintenanceAB
E169062 E142732

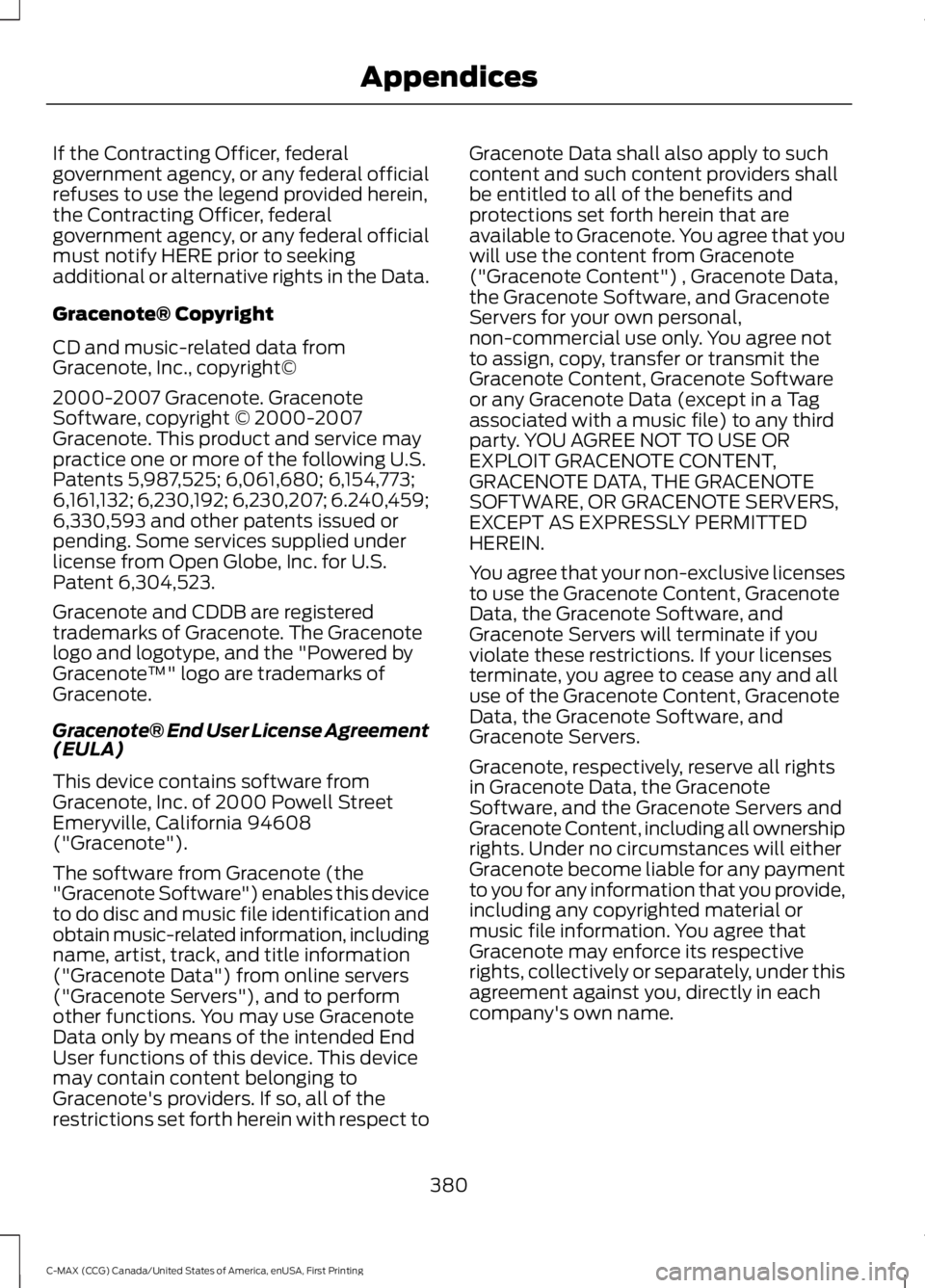

If the Contracting Officer, federal
government agency, or any federal official
refuses to use the legend provided herein,
the Contracting Officer, federal
government agency, or any federal official
must notify HERE prior to seeking
additional or alternative rights in the Data.
Gracenote® Copyright
CD and music-related data from
Gracenote, Inc., copyright©
2000-2007 Gracenote. Gracenote
Software, copyright © 2000-2007
Gracenote. This product and service may
practice one or more of the following U.S.
Patents 5,987,525; 6,061,680; 6,154,773;
6,161,132; 6,230,192; 6,230,207; 6.240,459;
6,330,593 and other patents issued or
pending. Some services supplied under
license from Open Globe, Inc. for U.S.
Patent 6,304,523.
Gracenote and CDDB are registered
trademarks of Gracenote. The Gracenote
logo and logotype, and the "Powered by
Gracenote
™" logo are trademarks of
Gracenote.
Gracenote® End User License Agreement
(EULA)
This device contains software from
Gracenote, Inc. of 2000 Powell Street
Emeryville, California 94608
("Gracenote").
The software from Gracenote (the
"Gracenote Software") enables this device
to do disc and music file identification and
obtain music-related information, including
name, artist, track, and title information
("Gracenote Data") from online servers
("Gracenote Servers"), and to perform
other functions. You may use Gracenote
Data only by means of the intended End
User functions of this device. This device
may contain content belonging to
Gracenote's providers. If so, all of the
restrictions set forth herein with respect to Gracenote Data shall also apply to such
content and such content providers shall
be entitled to all of the benefits and
protections set forth herein that are
available to Gracenote. You agree that you
will use the content from Gracenote
("Gracenote Content") , Gracenote Data,
the Gracenote Software, and Gracenote
Servers for your own personal,
non-commercial use only. You agree not
to assign, copy, transfer or transmit the
Gracenote Content, Gracenote Software
or any Gracenote Data (except in a Tag
associated with a music file) to any third
party. YOU AGREE NOT TO USE OR
EXPLOIT GRACENOTE CONTENT,
GRACENOTE DATA, THE GRACENOTE
SOFTWARE, OR GRACENOTE SERVERS,
EXCEPT AS EXPRESSLY PERMITTED
HEREIN.
You agree that your non-exclusive licenses
to use the Gracenote Content, Gracenote
Data, the Gracenote Software, and
Gracenote Servers will terminate if you
violate these restrictions. If your licenses
terminate, you agree to cease any and all
use of the Gracenote Content, Gracenote
Data, the Gracenote Software, and
Gracenote Servers.
Gracenote, respectively, reserve all rights
in Gracenote Data, the Gracenote
Software, and the Gracenote Servers and
Gracenote Content, including all ownership
rights. Under no circumstances will either
Gracenote become liable for any payment
to you for any information that you provide,
including any copyrighted material or
music file information. You agree that
Gracenote may enforce its respective
rights, collectively or separately, under this
agreement against you, directly in each
company's own name.
380
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Appendices

Capacities and Specifications...............280
Specifications..................................................... 280
Car Wash See: Cleaning the Exterior............................... 241
Center Console..............................................128
Changing a Bulb...........................................232 Replacing Fog, Park and Direction Indicator
Bulbs.................................................................. 234
Replacing Headlamp Bulbs........................... 232
Replacing License Plate Lamp Bulb...........236
Replacing Reverse Lamp and Tail Lamp Bulbs.................................................................. 235
Replacing Tail, Brake and Direction Indicator Bulbs............................................... 234
Replacing the Center High Mounted Brake Lamp Bulbs..................................................... 236
Changing a Fuse............................................217 Fuses........................................................................\
217
Changing the 12V Battery.........................228
Changing the Engine Air Filter................238 Air Cleaner Assembly Components...........238
Installing the Engine Air Filter
Element
............................................................ 240
Removing the Engine Air Filter Element............................................................ 239
Changing the Wiper Blades.....................229 Changing the Rear Window Wiper
Blade
................................................................. 230
Changing the Windshield Wiper Blades............................................................... 230
Service Position.................................................. 229
Charging the High Voltage Battery........155 Charge Port........................................................... 158
Charging................................................................. 158
Charging Equipment......................................... 155
Disconnecting the Charging Coupler..........160
Locking the Charging Coupler....................... 159
Waiting to Charge............................................... 159
Checking MyKey System Status...............54 MyKey Distance.................................................... 54
Number of Admin Keys...................................... 54
Number of MyKeys.............................................. 54
Checking the Wiper Blades......................229
Child Restraint and Seatbelt Maintenance.................................................33
Child Restraint Positioning.........................24
Child Safety
.......................................................15
General Information............................................. 15Child Safety Locks
..........................................25
Left-Hand Side...................................................... 26
Right-Hand Side................................................... 26
Cleaning Leather Seats.............................245
Cleaning Products
........................................241
Cleaning the Alloy Wheels.......................245
Cleaning the Engine....................................243
Cleaning the Exterior
...................................241
Exterior Chrome Parts...................................... 242
Exterior Plastic Parts........................................ 242
Stripes or Graphics............................................ 242
Underbody............................................................ 242
Cleaning the Instrument Panel and Instrument Cluster Lens
........................244
Cleaning the Interior...................................244
Cleaning the Windows and Wiper Blades...........................................................243
Clearing All MyKeys.......................................52
Climate Control............................................108
Collision, Damage or Fire Event..............199 Guidance for Ford Motor Company Electric
and Hybrid-Electric Vehicles Equipped
With High Voltage Batteries...................... 199
Coolant Check See: Engine Coolant Check............................ 223
Crash Sensors and Airbag Indicator........42
Creating a MyKey............................................52 Programming/Changing Configurable
Settings............................................................... 52
Cruise Control.................................................68 Principle of Operation....................................... 179
Cruise control See: Using Cruise Control................................ 179
Customer Assistance
.................................202
D
Data Recording
..................................................9
Event Data Recording........................................... 9
Service Data Recording........................................ 9
Daytime Running Lamps..............................77 Type 1 - Conventional
(Non-Configurable)........................................ 77
Type 2 - Configurable.......................................... 77
Digital Radio...................................................291 HD Radio Reception and Station
Troubleshooting............................................ 292
Direction Indicators
........................................78
384
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Index

Driver and Passenger Airbags...................36
Children and Airbags.......................................... 36
Proper Driver and Front Passenger Seating Adjustment........................................................ 36
Driver Knee Airbag.........................................40
Driving Aids......................................................181
Driving Hints...................................................192
Driving Through Water................................193
DRL See: Daytime Running Lamps.......................... 77
E
Economical Driving......................................192
EcoSelect.........................................................142
Emission Control System
..........................150
On-Board Diagnostics (OBD-II)..................... 151
Readiness for Inspection and Maintenance (I/M) Testing.................................................... 152
End User License Agreement.................366 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................ 366
Engine Block Heater.....................................132 Using the Engine Block Heater...................... 133
Engine Coolant Check
................................223
Adding Coolant................................................... 224
Adding Engine Coolant.................................... 225
Adding Inverter System Controller Coolant............................................................. 225
Checking the Engine Coolant........................ 223
Checking the Inverter System Controller Coolant............................................................. 224
Engine Coolant and Inverter System Controller Coolant........................................ 223
Recycled Engine Coolant................................ 225
Severe Climates.................................................. 225
What You Should Know About Fail-Safe Cooling.............................................................. 226
Engine Immobilizer See: Passive Anti-Theft System..................... 65
Engine Oil Check
..........................................222
Adding Engine Oil............................................... 222
Low Engine Use.................................................. 223
Engine Oil Dipstick
.......................................222
Engine Specifications.................................276
Environment......................................................14
Event Data Recording See: Data Recording.............................................. 9Export Unique Options..................................13
Extended Service Plan (ESP).................346
EXTENDED SERVICE PLAN (CANADA
ONLY)................................................................ 347
EXTENDED SERVICE PLAN (U.S. Only).................................................................. 346
Exterior Mirrors
.................................................81
Fold-Away Exterior Mirrors............................... 82
Heated Exterior Mirrors...................................... 82
Integrated Blind Spot Mirrors.......................... 82
Power Exterior Mirrors......................................... 81
Signal Indicator Mirrors...................................... 82
F
Fastening the Seatbelts..............................28 Safety Belt Extension Assembly.................... 30
Safety Belt Locking Modes............................... 29
Using Safety Belts During Pregnancy...........28
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................249
Floor Mats.......................................................194
Fog Lamps - Front See: Front Fog Lamps......................................... 77
Ford Credit
..........................................................11
(U.S. Only)................................................................. 11
Front Fog Lamps.............................................77
Front Parking Aid............................................171
Front Passenger Sensing System.............37
Fuel and Refueling.......................................143
Fuel Consumption
.......................................150
Calculating Fuel Economy.............................. 150
Filling the Tank.................................................... 150
Fuel Filler Funnel Location........................145
Fuel Filter.........................................................227
Fuel Quality....................................................144 Choosing the Right Fuel................................... 144
Fuel Freshness Mode........................................ 144
Fuel Shutoff
...................................................196
Fuses................................................................209
Fuse Specification Chart
..........................209
Luggage Compartment Fuse Panel............214
Passenger Compartment Fuse Panel.........212
Power Distribution Box................................... 209
Pre-Fuse Box....................................................... 209
385
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Index
